Circle Segments and Their Properties

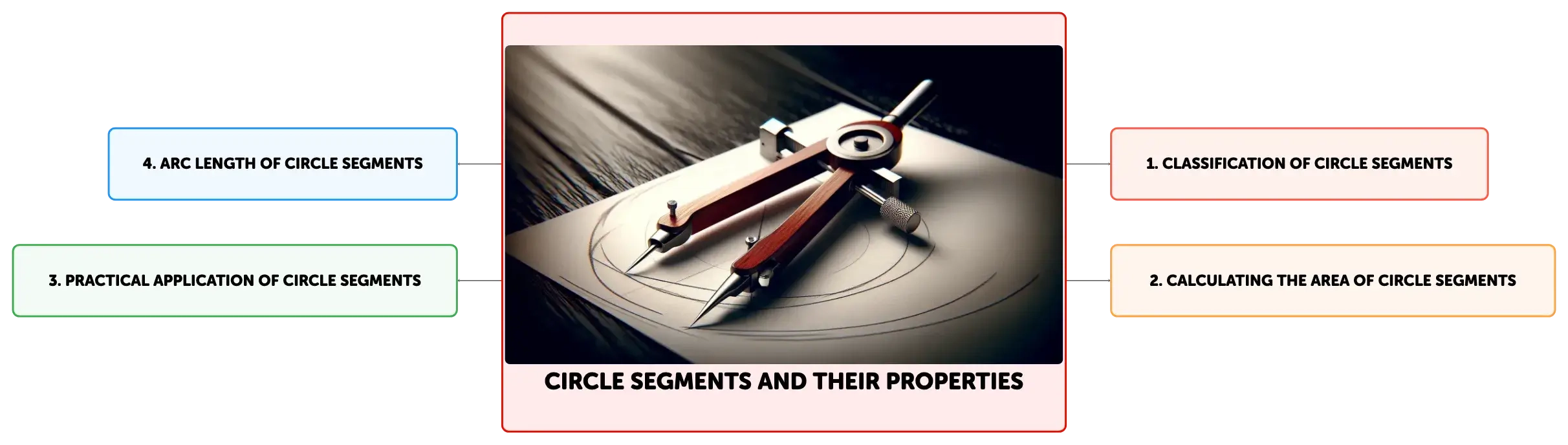

Concept Map
Understanding circle segments is crucial for geometric problem-solving. This overview covers the classification of circle segments into minor and major, based on their size relative to a semicircle. It details formulas for calculating the area of these segments using central angles in both radians and degrees, and explains how to determine the arc length of a segment. Practical examples are provided to illustrate the application of these formulas in real-world scenarios.
Summary
Outline
Definitions and Classifications of Circle Segments
A circle segment is a region within a circle enclosed by an arc and a chord—the straight line joining the arc's endpoints. Circle segments are classified into two types: the minor segment, which is smaller than a semicircle, and the major segment, which is larger. This classification is essential for geometric calculations, particularly when determining the area of a segment, as the formula varies depending on the segment type.Area Calculation of Circle Segments in Radians
The area of a circle segment can be calculated using the central angle in radians. The formula for the area of a circle, A = πr^2, where r is the radius, is the starting point for these calculations. For a minor segment with a central angle θ in radians, the area is given by A = 1/2r^2(θ - sin(θ)). To find the area of a major segment, subtract the area of the minor segment from the area of the entire circle, resulting in A = πr^2 - 1/2r^2(θ - sin(θ)).Area Calculation of Circle Segments in Degrees
If the central angle is provided in degrees, the formulas for calculating the areas of circle segments are modified to include the conversion from degrees to radians. The area of a minor segment is calculated with the formula A = (θπ/360 - sin(θ)/2)r^2, where θ is the angle in degrees. For the major segment, the formula is A = πr^2 - (θπ/360 - sin(θ)/2)r^2. This ensures that the calculation is consistent with the radian measure, where the area of the minor segment is subtracted from the total area of the circle to find the major segment's area.Examples of Circle Segment Area Calculation
For practical application, consider a circle with a radius of 9 units and a central angle of π/3 radians for the minor segment. Using the minor segment formula, the area is approximately 7.64 square units. For the major segment, subtracting this from the circle's total area, πr^2, yields approximately 247 square units. To confirm accuracy, the sum of the minor and major segment areas should be close to the total area of the circle. Similarly, for a circle with a radius of 10 cm and a central angle of 120 degrees, the minor segment's area is approximately 75.7 square units, and the major segment's area is approximately 239 square units.Calculating Arc Lengths of Circle Segments
The arc length of a segment is the measure of the distance along the arc boundary of the segment. The calculation of arc length is the same as that for a sector and is directly proportional to the central angle. When the angle is in radians, the arc length is l = rθ. If the angle is in degrees, the formula is l = rθπ/180. For instance, a segment with a radius of 7 cm and a central angle of 20 degrees has an arc length of 7π/9 cm, and a segment with a radius of 5 cm and a central angle of 90 degrees has an arc length of approximately 7.85 cm.Concluding Remarks on Circle Segments
In conclusion, a thorough understanding of circle segments and their properties is vital for addressing geometric problems involving circles. Segments are differentiated as major or minor based on their comparative size to a semicircle, and their areas are determined by formulas that vary with the unit of measurement for the central angle—radians or degrees. The area of a major segment is the total area of the circle minus the area of the minor segment. Calculating the arc length of a segment is a simple process that depends on the central angle and the circle's radius. Mastery of these concepts and formulas is crucial for students and professionals who encounter circular shapes in various disciplines.
Show More

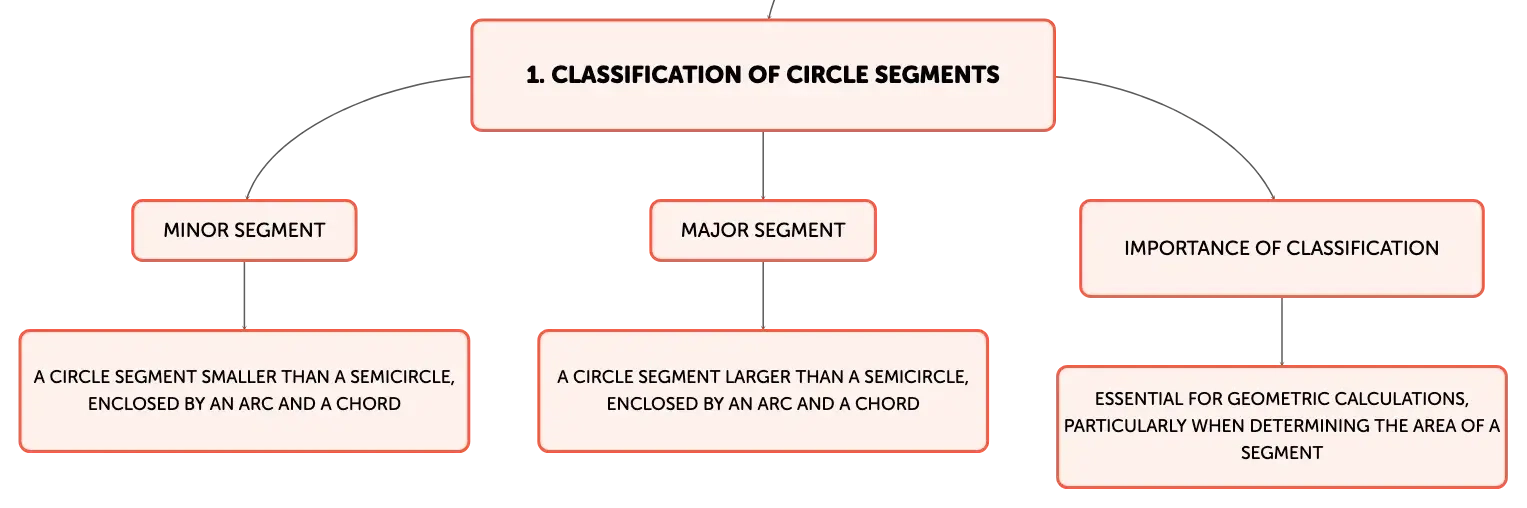

Classification of Circle Segments
Minor Segment
A circle segment smaller than a semicircle, enclosed by an arc and a chord
Major Segment
A circle segment larger than a semicircle, enclosed by an arc and a chord
Importance of Classification
Essential for geometric calculations, particularly when determining the area of a segment
Calculating the Area of Circle Segments
Formula for Minor Segment
The area of a minor segment can be calculated using the central angle in radians with the formula A = 1/2r^2(θ - sin(θ))
Formula for Major Segment
The area of a major segment can be calculated by subtracting the area of the minor segment from the area of the entire circle with the formula A = πr^2 - 1/2r^2(θ - sin(θ))
Conversion from Degrees to Radians
When the central angle is provided in degrees, the formulas for calculating the areas of circle segments are modified to include the conversion from degrees to radians

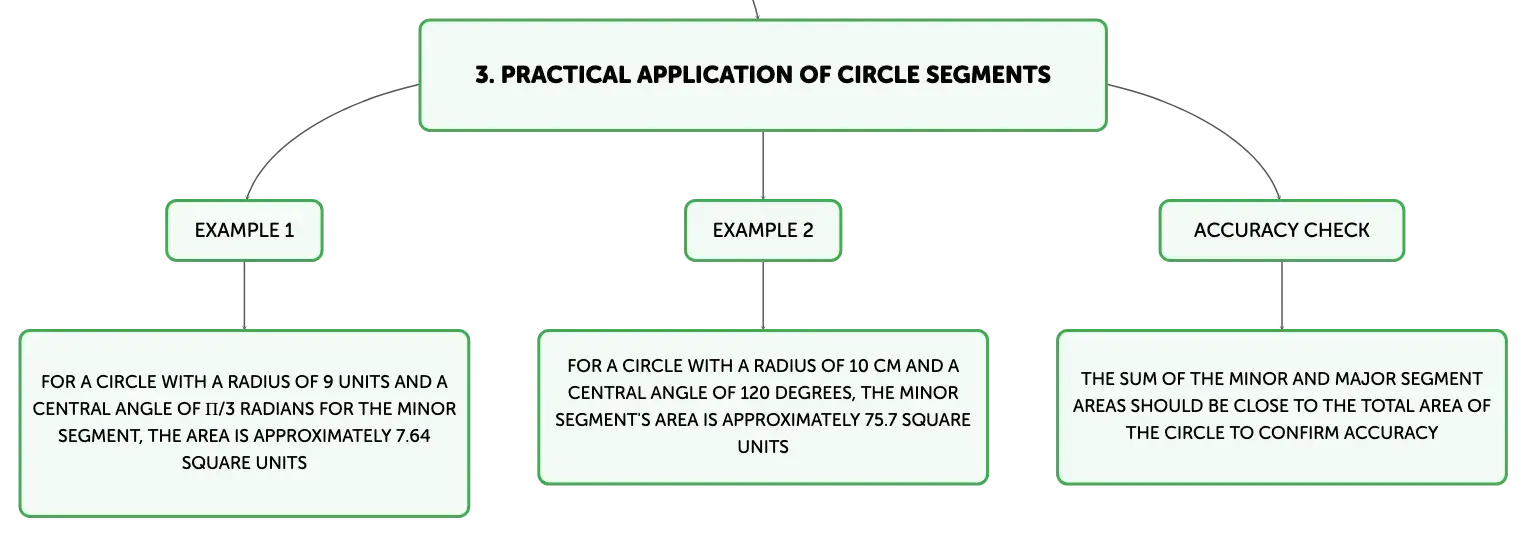

Practical Application of Circle Segments
Example 1
For a circle with a radius of 9 units and a central angle of π/3 radians for the minor segment, the area is approximately 7.64 square units
Example 2
For a circle with a radius of 10 cm and a central angle of 120 degrees, the minor segment's area is approximately 75.7 square units
Accuracy Check
The sum of the minor and major segment areas should be close to the total area of the circle to confirm accuracy

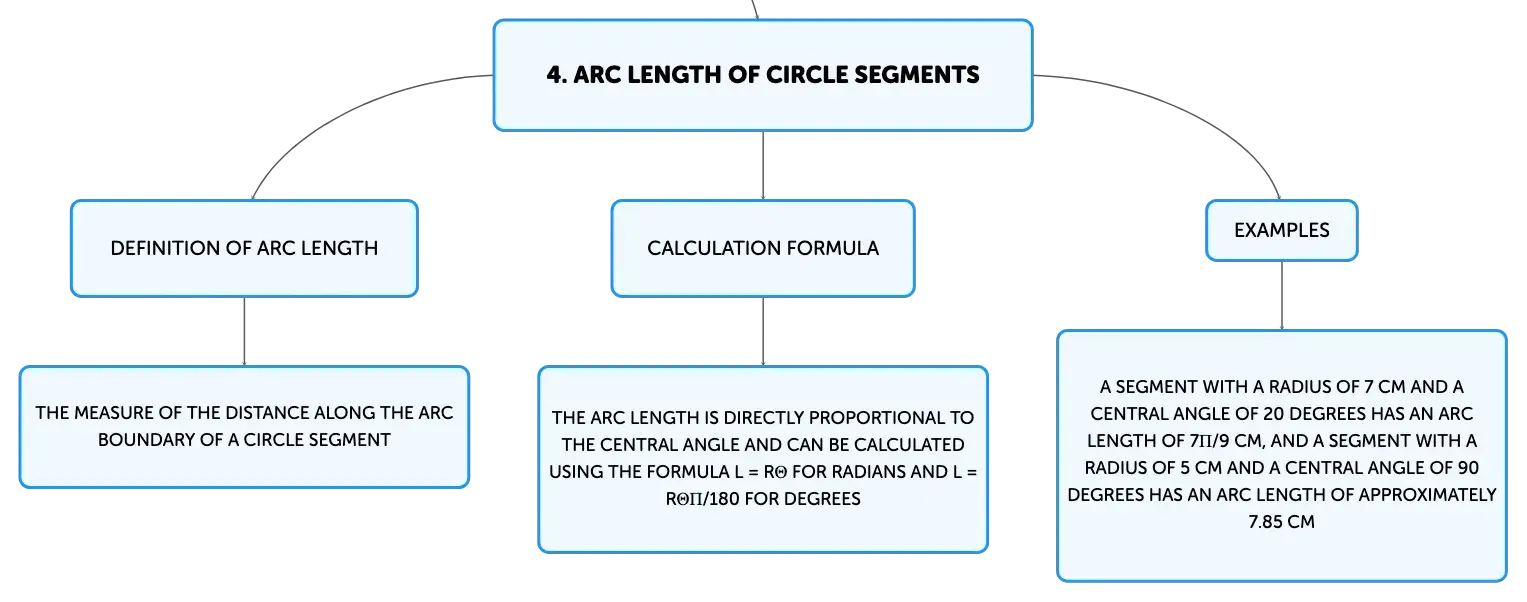

Arc Length of Circle Segments
Definition of Arc Length
The measure of the distance along the arc boundary of a circle segment
Calculation Formula
The arc length is directly proportional to the central angle and can be calculated using the formula l = rθ for radians and l = rθπ/180 for degrees
Examples
A segment with a radius of 7 cm and a central angle of 20 degrees has an arc length of 7π/9 cm, and a segment with a radius of 5 cm and a central angle of 90 degrees has an arc length of approximately 7.85 cm
Circle Segments and Their Properties
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Definition of a circle segment
Region within a circle bounded by an arc and a chord.
01
Area calculation of circle segments
Varies by segment type; different formulas for minor and major segments.
02
The area of a major segment is found by subtracting the minor segment's area from the whole circle's area, leading to ______ = ______^2 - 1/2______^2(θ - sin(θ)).
A
πr
r
