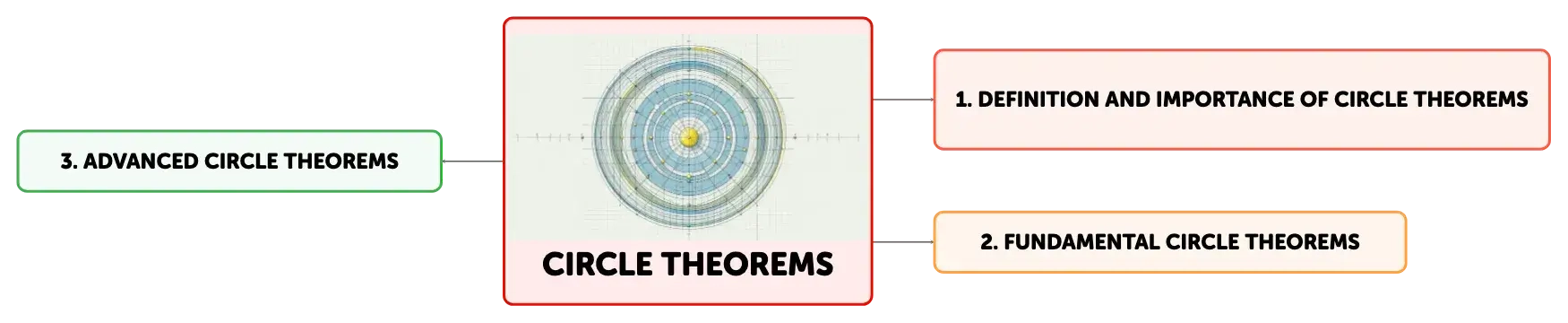

Concept Map

Algorino

Edit available

Circle theorems are fundamental rules in geometry that explain relationships between angles, lines, and arcs in circles. They include theorems on right angles subtended by diameters, the relationship between central and circumferential angles, equality of angles from the same chord, properties of cyclic quadrilaterals, the alternate segment theorem, tangents from a point, and bisecting chords with a perpendicular radius. These theorems are vital for calculating unknown angles and solving geometric problems.

Summary

Outline

Understanding Circle Theorems and Their Proofs

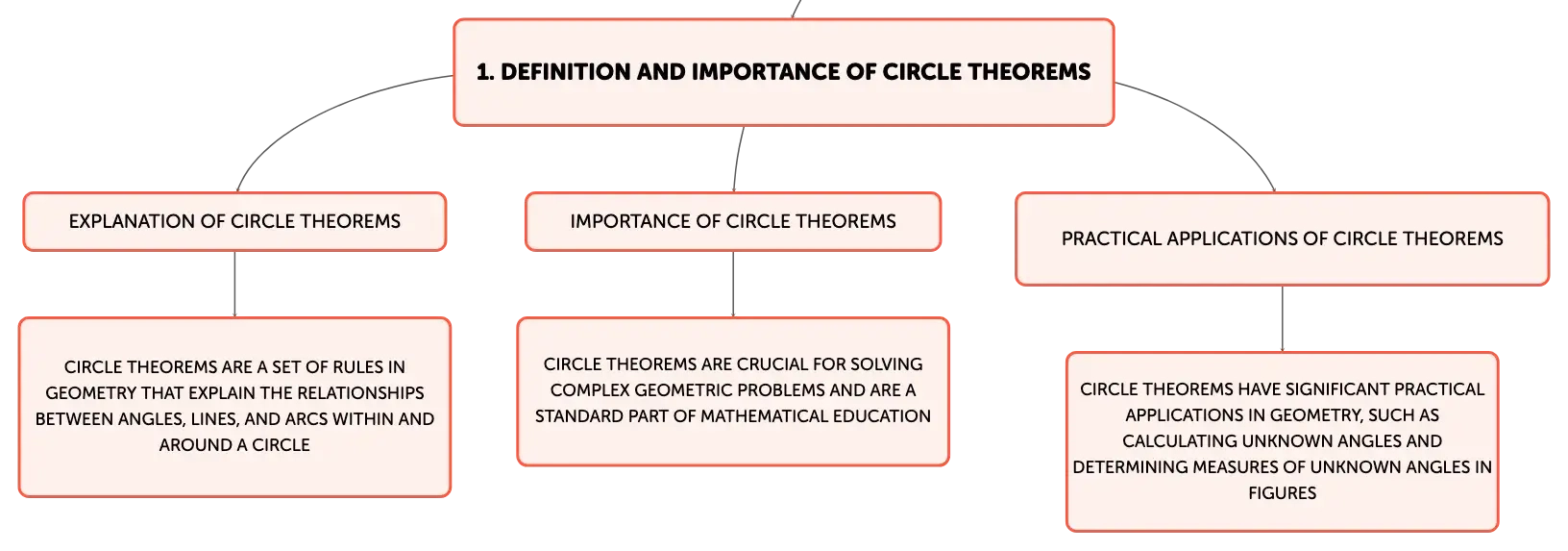

Circle theorems are a set of rules in geometry that explain the relationships between angles, lines, and arcs within and around a circle. These theorems are crucial for solving complex geometric problems and are a standard part of mathematical education. One fundamental theorem is that the angle subtended by a diameter at the circumference of a circle is a right angle. This is proven by constructing two isosceles triangles within the inscribed right-angled triangle and using the properties of isosceles triangles and angles at the center to show that the angle opposite the diameter is 90°.

Geometric design with a central blue circle, two tangent yellow and green circles inside, black lines intersecting with red dots, on a light gray grid background.

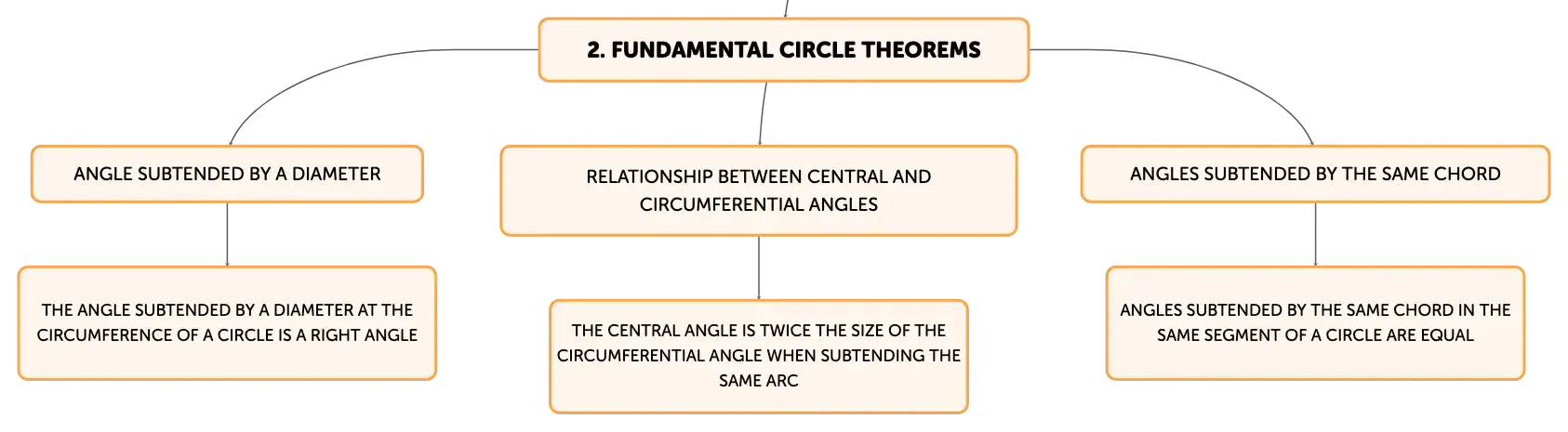

The Relationship Between Central and Circumferential Angles

A key circle theorem concerns the relationship between central and circumferential angles subtending the same arc. It states that the central angle is twice the size of the circumferential angle. The proof involves drawing isosceles triangles from the arc to the center and to a point on the circumference, then applying the base angles theorem and the fact that the sum of angles around a point is 360° to establish the proportional relationship between the two angles.

Equality of Angles from the Same Chord

Another theorem posits that angles subtended by the same chord in the same segment of a circle are equal. This is demonstrated by using the principle that angles at the circumference subtended by the same arc are equal. This theorem is particularly useful for analyzing geometric figures where multiple angles share a common chord within a circle, allowing for the determination of unknown angles.

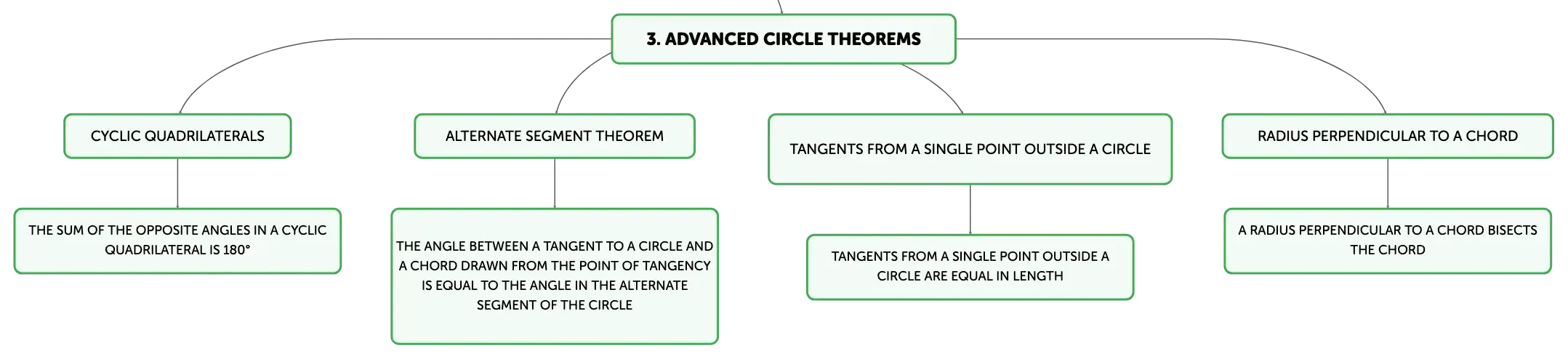

Opposite Angles in Cyclic Quadrilaterals

The theorem concerning cyclic quadrilaterals states that the sum of the opposite angles in such a figure is 180°. This can be proven by connecting the vertices to the center of the circle to form triangles and using the fact that the exterior angle of a triangle is equal to the sum of the opposite interior angles, along with the properties of cyclic quadrilaterals, to show that the opposite angles sum to 180°.

The Alternate Segment Theorem

The alternate segment theorem addresses the angle between a tangent to a circle and a chord drawn from the point of tangency. It states that this angle is equal to the angle in the alternate segment of the circle. The proof uses the properties of isosceles triangles formed by radii and the fact that a radius is perpendicular to a tangent at the point of tangency. By comparing angles, it can be shown that the angle between the tangent and the chord is equal to the angle in the alternate segment.

Tangents from a Point to a Circle

The theorem regarding tangents from a single point outside a circle states that these tangents are equal in length. The proof involves constructing right-angled triangles by connecting the points of tangency to the center of the circle and applying the Pythagorean theorem. By showing that the triangles are congruent, it follows that the lengths of the tangents are equal.

Bisecting Chords with a Perpendicular Radius

The theorem that a radius perpendicular to a chord bisects the chord is proven using right-angled triangles formed by the radius and the segments of the chord. By applying the Pythagorean theorem and demonstrating that the triangles are congruent, it is shown that the radius divides the chord into two equal segments, thus bisecting it.

Practical Applications of Circle Theorems

Circle theorems have significant practical applications in geometry. For example, the theorem relating central and circumferential angles can be used to calculate unknown angles within a circle. Knowledge of cyclic quadrilaterals aids in determining the measures of unknown angles in such figures. These theorems are indispensable tools in the study of geometry, and a thorough understanding is essential for students to succeed in this discipline.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

00

Definition of Circle Theorems

Rules explaining relationships between angles, lines, arcs in/on a circle.

01

Importance of Circle Theorems

Essential for solving complex geometric problems, integral in math education.

02

Example of a Circle Theorem

Angle at circumference subtended by diameter is always 90°.
