Fundamentals of Circle Geometry

A circle is a two-dimensional shape consisting of all points in a plane that are at a constant distance, known as the radius, from a fixed point called the center. The diameter, which is twice the length of the radius, is the longest straight line that can be drawn within the circle, passing through the center. The circumference, the total distance around the circle, is calculated using the formula \(C = 2\pi r\) or \(C = \pi d\), where \(r\) is the radius and \(d\) is the diameter. These elements form the basis for understanding more intricate concepts in circle geometry, including sectors, chords, segments, tangents, and arcs, which are essential for a comprehensive study of the subject.

Geometric still life with a glossy metallic circle, silver compass, etched acrylic diagram, and wooden shapes on a neutral background.

Equations of Circles in Coordinate Geometry

The equation of a circle on a coordinate plane provides a way to identify all the points that make up the circle. The standard form of this equation is \((x-h)^2 + (y-k)^2 = r^2\), where \((h, k)\) represents the coordinates of the center and \(r\) is the radius. To determine whether a specific point lies on the circle, one can substitute the point's coordinates into the equation and check if the equation holds true. For instance, to ascertain if the point (4, 12) is on the circle with the equation \(x^2 + (y-10)^2 = 20\), one would calculate \(4^2 + (12-10)^2\) and see if it equals 20, confirming the point's presence on the circle.

Theorems Involving Circles and Related Angles

Circle theorems describe the relationships between angles, lines, and arcs within or around a circle. These theorems include the congruence of angles subtended by the same arc in the same segment, the sum of opposite angles in a cyclic quadrilateral being 180 degrees, and the angle between a tangent and a radius being perpendicular at the point of contact. A notable theorem states that the central angle subtended by an arc is twice the angle subtended at the circumference. Furthermore, the perpendicular bisector of a chord not only bisects the chord but also passes through the center of the circle, illustrating the interconnectivity of circle properties.

Constructing Equations from Circle Graphs

To derive the equation of a circle from its graph, one must identify the coordinates of the center and the length of the radius. The radius can be found by measuring the distance between the center and any point on the circumference, often using the Pythagorean theorem. For example, if the center is at (4, 1) and a point on the circumference is at (7, 5), the horizontal and vertical distances from the center to the point are 3 and 4 units, respectively. The Pythagorean theorem then gives a radius of 5 units, which can be used to formulate the circle's equation as \((x-4)^2 + (y-1)^2 = 25\).

Deriving and Transforming General Circle Equations

Circle equations can also be expressed in the general form \(x^2 + y^2 + Dx + Ey + F = 0\), where the center is located at \((-D/2, -E/2)\) and the radius is determined by the equation \(r = \sqrt{(D/2)^2 + (E/2)^2 - F}\). This form can be derived from the standard equation by expanding and rearranging terms. To convert the general form back to the standard form, one completes the square for the \(x\) and \(y\) terms, which involves grouping the \(x\)-related and \(y\)-related terms, adding the necessary constants to complete the square, and then isolating the radius squared on one side of the equation to reveal the standard form.

Comprehensive Insights into Circle Geometry

Circles are fundamental geometric shapes with a rich set of properties and relationships that can be described using equations and theorems. Mastery of the basic components, such as radius, diameter, and circumference, is vital for engaging with circle equations and understanding the geometric principles they represent. Theorems elucidate the intricate angular relationships within circles, and the skills to construct and manipulate circle equations are indispensable for resolving complex geometric problems. Whether one encounters a circle's equation in standard or general form, the foundational concepts of circle geometry are integral to the study of mathematics and its applications.

Circle Geometry and Equations

Concept Map

Summary

Outline

Circle Geometry and Equations

Definition of a Circle

Two-dimensional shape

Elements of a circle

Equation of a circle

Circle Theorems

Relationships between angles, lines, and arcs

Examples of circle theorems

Central angle theorem

Deriving Circle Equations

Identifying center and radius

Using the Pythagorean theorem

Converting between standard and general form

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Q&A

Here's a list of frequently asked questions on this topic

What are the basic elements of a circle and how is its circumference calculated?

How can you verify if a point is on a circle using its equation in coordinate geometry?

Can you name a circle theorem related to angles and a chord's perpendicular bisector?

What is the process for finding a circle's equation from its graph?

How do you transform a general circle equation to its standard form?

Why is understanding the basic components and theorems of circle geometry important?

Similar Contents

Explore other maps on similar topics

Circle Geometry and Equations

Concept Map

Summary

Outline

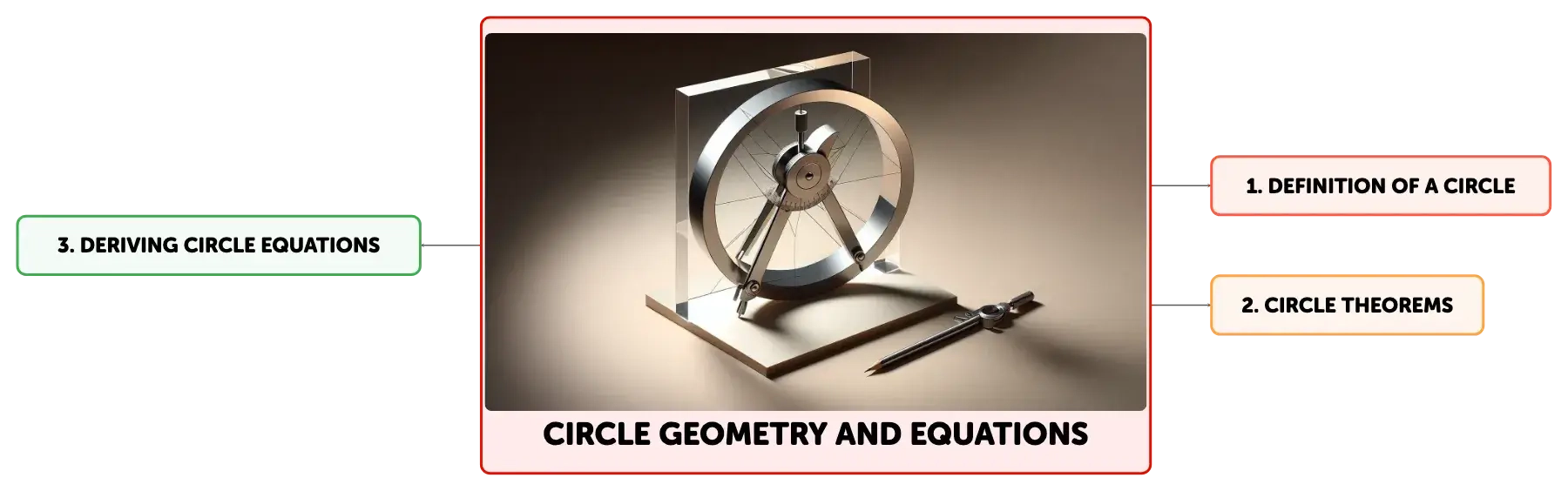

Circle Geometry and Equations

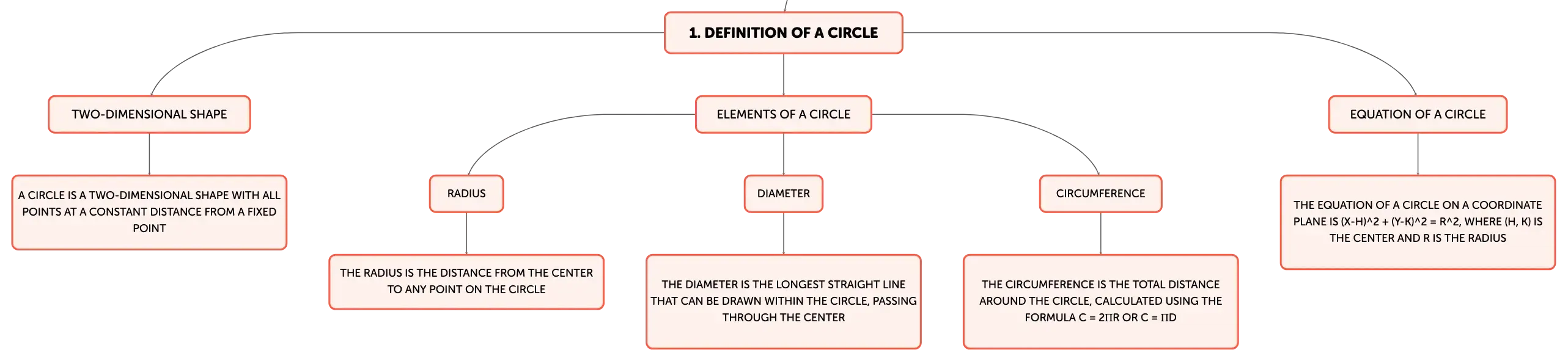

Definition of a Circle

Two-dimensional shape

Elements of a circle

Equation of a circle

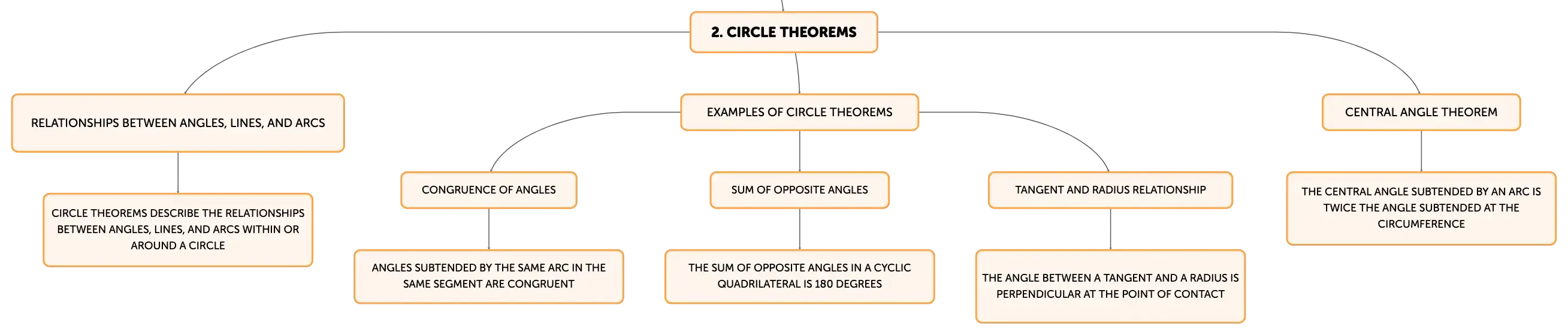

Circle Theorems

Relationships between angles, lines, and arcs

Examples of circle theorems

Central angle theorem

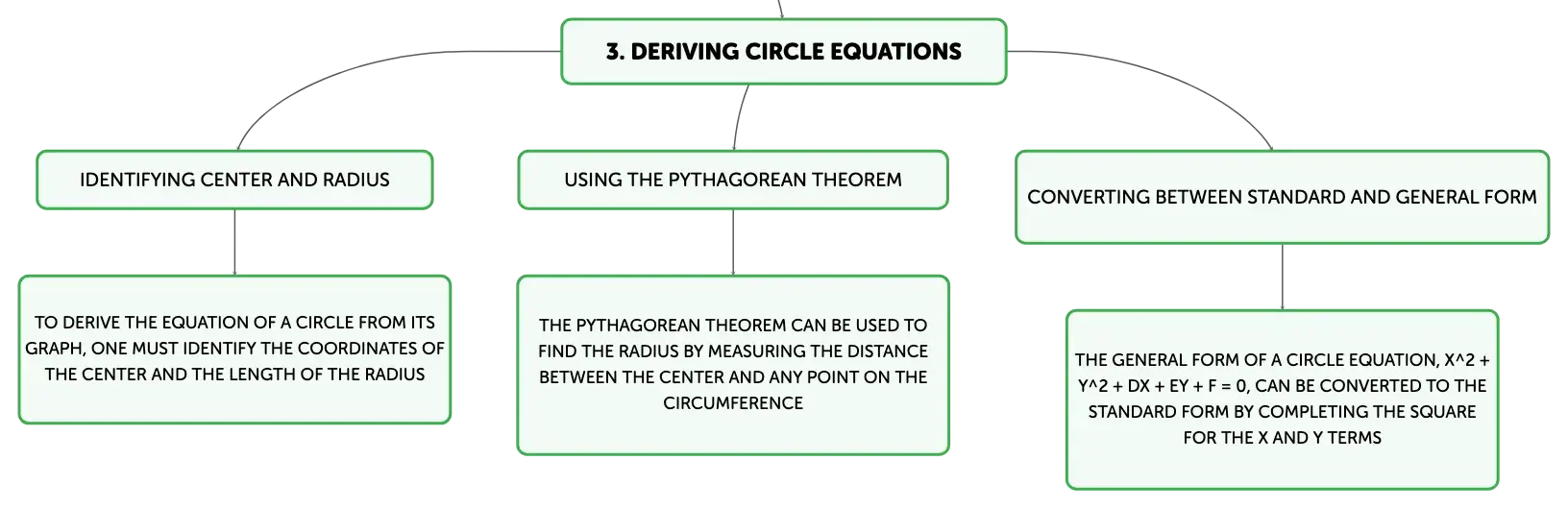

Deriving Circle Equations
