The Second Law of Thermodynamics and Its Implications

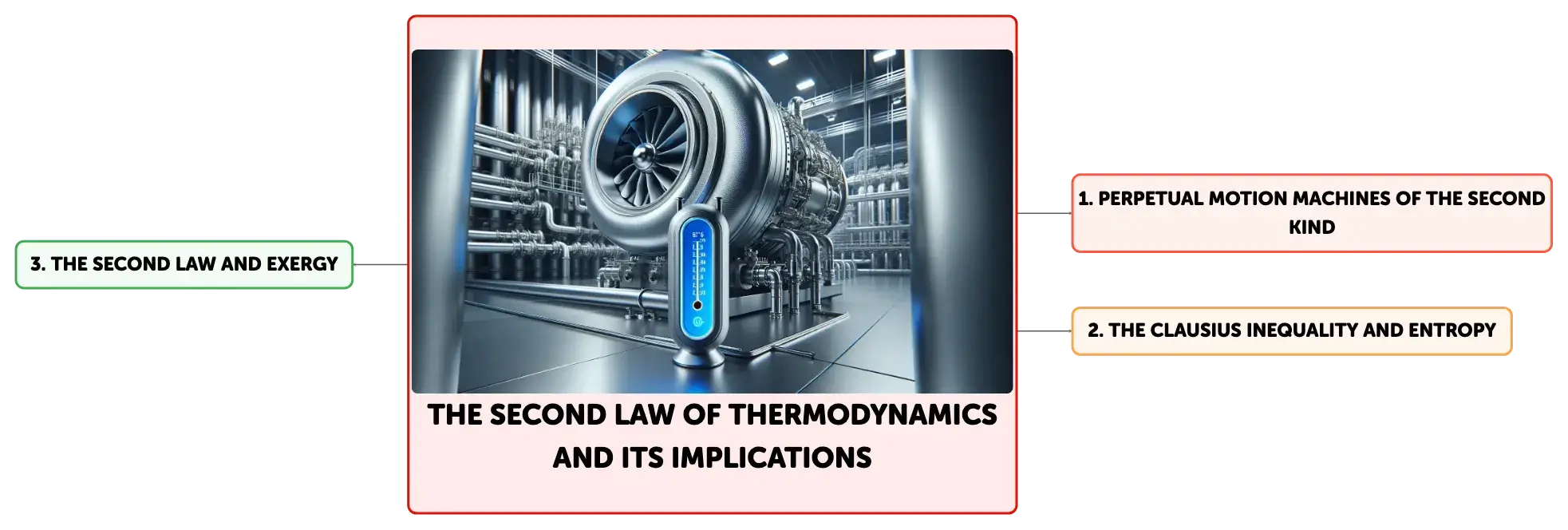

Concept Map
Exploring the principles of thermodynamics, this content delves into the impossibility of perpetual motion machines of the second kind, Carnot's theorem, the Clausius inequality, entropy, and the efficiency of heat engines. It discusses the role of entropy in classical thermodynamics, the concept of exergy, and the directionality of spontaneous processes. The application of the second law in chemical thermodynamics and insights from statistical mechanics are also covered.
Summary
Outline
Exploring the Impossibility of Perpetual Motion Machines of the Second Kind
Perpetual motion machines of the second kind are hypothetical constructs that claim to perform work indefinitely without an input of energy, by supposedly extracting heat from their surroundings and converting it entirely into work. This notion contradicts the second law of thermodynamics, which states that it is impossible to create a system that operates in a cycle and produces no effect other than the transfer of heat from a cooler to a hotter body. The second law, therefore, precludes the existence of such machines, as they would require a 100% conversion of heat into work, which is unattainable due to inherent inefficiencies and the inevitable generation of entropy.The Foundational Principles of Carnot's Theorem
Carnot's theorem, established by Sadi Carnot in 1824, is a principle that delineates the upper limit of efficiency for any heat engine. It is predicated on the temperatures of the heat reservoirs between which the engine operates. According to this theorem, no engine can be more efficient than a reversible Carnot engine, which is an idealized engine that operates on a reversible cycle between two heat reservoirs. The efficiency of such an engine is solely dependent on the temperature difference between the reservoirs, and not on the specific details of the engine itself. Carnot's theorem underscores the impossibility of achieving 100% conversion of heat into work and is a cornerstone of thermodynamic theory.The Clausius Inequality and the Concept of Entropy
The Clausius inequality is a mathematical formulation of the second law of thermodynamics for cyclic processes, introduced by Rudolf Clausius. It asserts that the cyclic integral of heat transfer over temperature is always less than or equal to zero, with equality holding for reversible processes. This inequality led to the definition of entropy, a state function that quantifies the degree of disorder or randomness in a system. Entropy is a measure of energy dispersion at a specific temperature, and it increases in all natural processes, providing a direction to spontaneous changes. The Clausius inequality and the concept of entropy are fundamental to understanding the irreversible nature of real-world processes.Thermodynamic Temperature and the Efficiency of Heat Engines
The efficiency of a heat engine is the fraction of heat absorbed from the hot reservoir that is converted into work. Carnot's theorem further implies that all reversible engines operating between two given temperatures will have the same maximum efficiency, which is a function of these temperatures. This insight led to the establishment of the thermodynamic temperature scale, which is a universal scale based on the properties of an ideal Carnot engine. This scale is independent of the material properties of any specific substance and is integral to the field of thermodynamics.The Role of Entropy in Classical Thermodynamics
In classical thermodynamics, entropy is a fundamental concept that quantifies the level of molecular disorder within a system. For reversible processes, the change in entropy is the quotient of the heat transfer and the temperature at which it occurs. The third law of thermodynamics states that the entropy of a perfect crystalline structure at absolute zero temperature is zero, providing a baseline for the calculation of absolute entropy. In contrast, during irreversible processes, entropy increases, indicating a spontaneous evolution towards disorder. This increase in entropy can be determined by comparing the initial and final states of a system through a hypothetical reversible path.The Second Law and the Concept of Exergy
The second law of thermodynamics introduces the concept of exergy, which is the maximum useful work potential of a system. It dictates that for an isolated system, the total entropy must remain constant or increase. The first law of thermodynamics relates changes in a system's internal energy to heat transfer, work done, and chemical energy changes. Consequently, the exergy change of a system limits the amount of useful work that can be extracted, emphasizing the second law's implications for the efficiency of energy conversion processes and reinforcing the concept that no process is perfectly efficient.Spontaneous Processes and the Directionality Imposed by the Second Law
The second law of thermodynamics determines the direction of spontaneous processes in isolated systems, which are characterized by an increase in entropy. Such processes include the flow of heat from warmer to cooler areas, the dissipation of mechanical energy into heat, and the diffusion of substances from regions of high concentration to low concentration. In non-isolated systems, which can exchange energy with their surroundings, processes may proceed in a direction that decreases the system's entropy, provided that the total entropy of the system plus its surroundings increases, thus adhering to the second law.The Application of the Second Law in Chemical Thermodynamics
In chemical thermodynamics, the second law is often expressed through changes in Gibbs free energy for processes at constant temperature and pressure. A spontaneous chemical reaction in a closed system is one that results in a decrease in Gibbs free energy. This principle is invaluable in predicting the spontaneity of chemical reactions and in calculating equilibrium conditions, as it allows for the determination of free-energy changes using standard enthalpies of formation and molar entropies of reactants and products.The Evolution of Thermodynamic Thought
The foundational concepts of thermodynamics were shaped by the pioneering work of Sadi Carnot on heat engines in 1824, which highlighted the role of temperature differences in determining engine efficiency. Rudolf Clausius, in the 1850s, articulated the second law of thermodynamics, asserting that heat does not spontaneously flow from colder to hotter bodies and introduced the concept of entropy. The Kelvin-Planck statement and the notion of entropy production further refined the understanding of the second law, which has become a fundamental principle in both classical and statistical thermodynamics.Insights from Statistical Mechanics on the Second Law
Statistical mechanics provides a microscopic perspective on the second law of thermodynamics by considering the behavior of atoms and molecules. It suggests that in a state of equilibrium, all microstates are equally probable, and as a result, the second law is statistically upheld. While large systems will almost invariably comply with the second law, small systems may exhibit fluctuations that deviate from the expected behavior. Ludwig Boltzmann's H-theorem supports the second law from a statistical angle, proposing that molecular collisions lead to an equilibrium distribution of energies and thus to an increase in entropy over time.
Show More
Perpetual Motion Machines of the Second Kind
Definition and Function
Perpetual motion machines of the second kind are hypothetical constructs that claim to perform work indefinitely without an input of energy
Contradiction to the Second Law of Thermodynamics
The second law of thermodynamics states that it is impossible to create a system that operates in a cycle and produces no effect other than the transfer of heat from a cooler to a hotter body, making the existence of perpetual motion machines of the second kind impossible
Foundational Principles of Carnot's Theorem
Carnot's theorem, established in 1824, is a principle that delineates the upper limit of efficiency for any heat engine, based on the temperatures of the heat reservoirs between which the engine operates

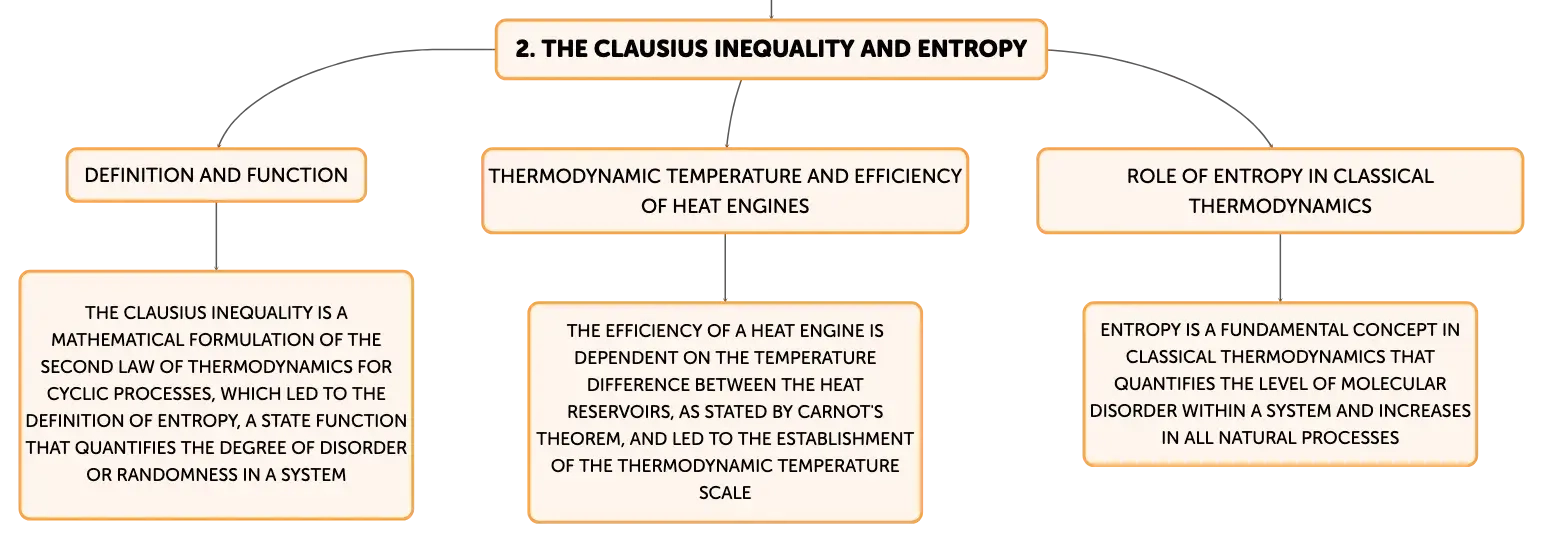

The Clausius Inequality and Entropy
Definition and Function
The Clausius inequality is a mathematical formulation of the second law of thermodynamics for cyclic processes, which led to the definition of entropy, a state function that quantifies the degree of disorder or randomness in a system
Thermodynamic Temperature and Efficiency of Heat Engines
The efficiency of a heat engine is dependent on the temperature difference between the heat reservoirs, as stated by Carnot's theorem, and led to the establishment of the thermodynamic temperature scale
Role of Entropy in Classical Thermodynamics
Entropy is a fundamental concept in classical thermodynamics that quantifies the level of molecular disorder within a system and increases in all natural processes

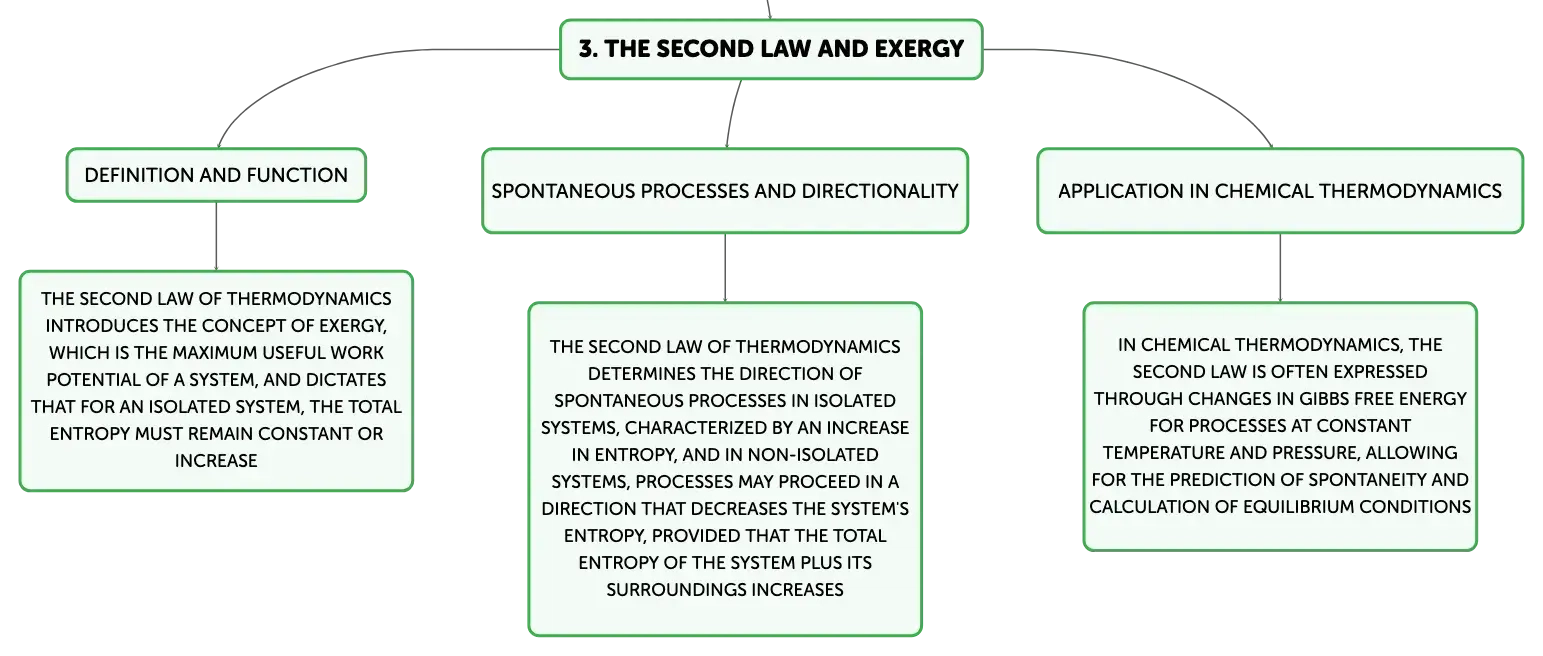

The Second Law and Exergy
Definition and Function
The second law of thermodynamics introduces the concept of exergy, which is the maximum useful work potential of a system, and dictates that for an isolated system, the total entropy must remain constant or increase
Spontaneous Processes and Directionality
The second law of thermodynamics determines the direction of spontaneous processes in isolated systems, characterized by an increase in entropy, and in non-isolated systems, processes may proceed in a direction that decreases the system's entropy, provided that the total entropy of the system plus its surroundings increases
Application in Chemical Thermodynamics
In chemical thermodynamics, the second law is often expressed through changes in Gibbs free energy for processes at constant temperature and pressure, allowing for the prediction of spontaneity and calculation of equilibrium conditions
The Second Law of Thermodynamics and Its Implications
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Machines of the second kind that claim to operate endlessly without energy input, by turning ______ from their environment into work, are purely theoretical.
heat
01
The concept of a machine that converts heat to work with no energy loss contradicts the ______ law of thermodynamics.
second
02
According to the second law of thermodynamics, it's impossible to have a system that only transfers heat from a ______ to a ______ body without any other effect.
cooler
hotter
