Fundamentals of the Second Law of Thermodynamics
Concept Map
The Second Law of Thermodynamics is a fundamental principle governing heat transfer and energy efficiency. It introduces entropy, a measure of disorder, indicating that energy transformations are not completely efficient, as some energy is lost as heat. This law also explains the irreversibility of natural processes and sets limits on the performance of heat engines and refrigerators, highlighting the universal trend of increasing entropy.
Summary
Outline
Exploring the Fundamentals of the Second Law of Thermodynamics
The Second Law of Thermodynamics is a core principle that dictates the direction of heat transfer and the efficiency of energy transformations within the universe. It asserts that in a natural process, heat will flow from a hotter to a cooler region, and not the other way around, unless external work is applied. This law introduces the concept of entropy, which quantifies the degree of disorder or randomness in a system. Entropy tends to increase in isolated systems, signifying that energy transformations are inherently inefficient due to some energy being invariably lost as heat. The Second Law also provides the basis for understanding the spontaneity of processes, such as the irreversible shattering of a cup, as opposed to its highly improbable spontaneous reassembly, which would entail a decrease in entropy.The Evolution of the Second Law of Thermodynamics
The Second Law of Thermodynamics was developed through empirical observations and was first conceptualized in the study of heat engines by Sadi Carnot in 1824. Carnot's theorem, which was formulated before the concept of entropy was defined, established the theoretical maximum efficiency for the conversion of heat into work. Subsequently, Rudolf Clausius and William Thomson (Lord Kelvin) provided more comprehensive formulations of the Second Law, focusing on the one-way flow of heat and the impossibility of perpetual motion machines of the second kind. Clausius notably formulated the law by stating that heat does not spontaneously flow from a colder to a hotter body without external work. These early formulations were instrumental in shaping the modern interpretation of the Second Law.Entropy as a Measure of Time's Irreversibility
Entropy is a fundamental concept introduced by the Second Law of Thermodynamics, serving as a measure of disorder within a system. It is essential for determining the directionality of natural processes and for understanding the irreversibility inherent in these processes, often described as the "arrow of time." In any natural process, the total entropy of the universe tends to increase, driving systems towards a state of thermodynamic equilibrium where entropy is at a maximum. This principle underlies the unidirectional flow of time in natural phenomena.Statistical Mechanics: The Microscopic Interpretation of the Second Law
Statistical mechanics provides the microscopic underpinnings of the Second Law by examining the behavior of systems from the perspective of the statistical distribution of particle states. This field of physics explains the macroscopic observations of thermodynamics as the emergent behavior of a vast number of particles, reinforcing the notion of entropy as a statistical measure of a system's disorder.Defining Thermodynamic Temperature through the Second Law
The Second Law is integral to the definition of thermodynamic temperature, a concept that is rooted in the Zeroth Law of Thermodynamics. The Zeroth Law establishes that if two systems are each in thermal equilibrium with a third system, they are also in thermal equilibrium with each other, which forms the basis for temperature measurement. The Second Law expands upon this by enabling the establishment of an absolute thermodynamic temperature scale, which is independent of the properties of any specific thermometric material.Mathematical Expression of Entropy
The mathematical expression of entropy allows for the quantification of entropy changes during energy exchanges. In a theoretical reversible process, the change in entropy (dS) is quantified as the infinitesimal heat transfer (δQ) divided by the temperature (T) at which the transfer occurs. In contrast, real, irreversible processes experience a greater increase in entropy than the quotient of heat transfer and temperature, reflecting the generation of entropy due to non-ideal factors such as friction or irreversible chemical reactions.Practical Consequences of the Second Law for Heat Engines and Refrigerators
The Second Law has profound implications for the design and operation of heat engines and refrigeration systems. It stipulates that no heat engine can achieve perfect efficiency, as some heat must be expelled to a cooler reservoir. Similarly, the law explains why refrigeration systems require work to move heat from a cooler area to a warmer one, opposing the natural direction of heat flow. These principles highlight the intrinsic limitations of energy conversion processes and the inevitable increase in entropy within the universe.
Show More
Definition and Evolution of the Second Law
Introduction to the Second Law
The Second Law of Thermodynamics dictates the direction of heat transfer and the efficiency of energy transformations within the universe
Development of the Second Law
Carnot's Theorem
Carnot's theorem established the theoretical maximum efficiency for the conversion of heat into work
Clausius and Thomson's Formulations
Clausius and Thomson provided more comprehensive formulations of the Second Law, focusing on the one-way flow of heat and the impossibility of perpetual motion machines
Entropy as a Measure of Time's Irreversibility
Entropy is a fundamental concept introduced by the Second Law, serving as a measure of disorder and driving systems towards a state of thermodynamic equilibrium
Statistical Mechanics and Thermodynamic Temperature
Statistical Mechanics and the Second Law
Statistical mechanics provides the microscopic underpinnings of the Second Law by examining the behavior of systems from a statistical perspective
Defining Thermodynamic Temperature
The Second Law is integral to the definition of thermodynamic temperature, which is rooted in the Zeroth Law of Thermodynamics

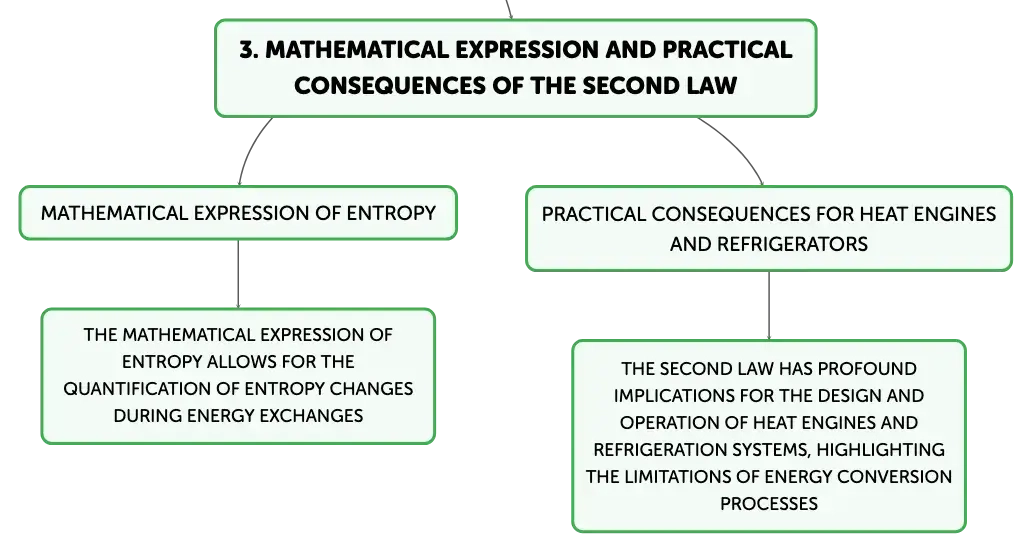

Mathematical Expression and Practical Consequences of the Second Law
Mathematical Expression of Entropy
The mathematical expression of entropy allows for the quantification of entropy changes during energy exchanges
Practical Consequences for Heat Engines and Refrigerators
The Second Law has profound implications for the design and operation of heat engines and refrigeration systems, highlighting the limitations of energy conversion processes
Fundamentals of the Second Law of Thermodynamics
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Direction of Heat Flow According to Second Law
Heat flows from hotter to cooler regions, not vice versa without external work.
01
Entropy in Isolated Systems
In isolated systems, entropy increases, indicating energy transformations are not 100% efficient.
02
Second Law on Spontaneity of Processes
Processes that increase entropy are spontaneous, like a cup shattering; reverse is highly improbable.
