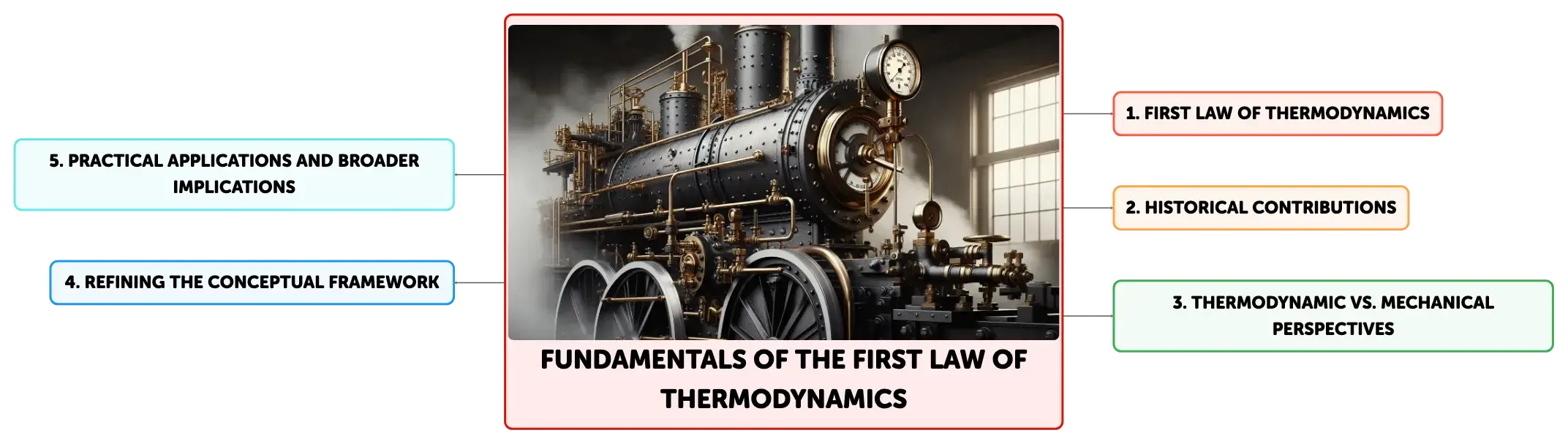

Concept Map
Algorino
Edit available
The First Law of Thermodynamics, a cornerstone of energy conservation, states that energy within a closed system is constant, merely changing forms. This law introduces internal energy and refutes perpetual motion machines. It's mathematically expressed as ∆U = Q - W, where ∆U is the change in internal energy, Q is heat added, and W is work done. Historical figures like Joule and Clausius contributed to its development, which has practical applications in understanding energy transfer in thermodynamic processes.
Summary
Outline
Exploring the Fundamentals of the First Law of Thermodynamics
The first law of thermodynamics, also known as the principle of energy conservation, asserts that within a closed system, energy can neither be created nor destroyed; it can only change forms. This principle is essential for understanding energy transfer, particularly through heat and work. The law introduces the concept of internal energy, a property that reflects the total energy contained within a system. For an isolated system, the internal energy remains constant, which underscores the impossibility of creating a perpetual motion machine of the first kind, as it would require continuous output without any energy input.Mathematical Expression of the First Law
The first law of thermodynamics is mathematically represented by the equation ∆U = Q - W, where ∆U denotes the change in internal energy, Q represents the heat added to the system, and W is the work done by the system. This relationship, rooted in the work of Rudolf Clausius, can also be interpreted using sign conventions that treat energy transfers into the system as positive and those out of the system as negative. In a quasistatic process, the work done by or on the system is the product of pressure and volume change, while the change in internal energy equals the net heat supplied minus the work done.Historical Contributions to the First Law
The development of the first law of thermodynamics was influenced by several scientific figures. Émilie du Châtelet highlighted the significance of kinetic energy, and Sadi Carnot acknowledged the convertibility of heat and work. The caloric theory of heat was challenged by empirical evidence, notably by James Prescott Joule's experiments, which quantified the mechanical equivalent of heat. Rudolf Clausius and William Rankine, in 1850, articulated the first comprehensive statements of the law, emphasizing the conservation of energy and the role of internal energy in thermodynamic processes.Thermodynamic Versus Mechanical Perspectives
The first law of thermodynamics can be understood through two distinct approaches: the thermodynamic and the mechanical. The thermodynamic approach is based on the traditional concepts of heat and work, while the mechanical approach, which emerged in the 20th century, is founded on the principle of energy conservation. This latter approach, influenced by Constantin Carathéodory and Max Born, defines heat as an energy transfer distinct from work, avoiding the need to define heat calorimetrically. It considers heat as the residual energy transfer when work does not account for the entire change in internal energy.Refining the Conceptual Framework
The contemporary understanding of the first law involves a refined conceptual framework that defines the change in internal energy of a system in relation to an adiabatic work process. This refined statement posits that for any given process, the change in internal energy is equivalent to that of a hypothetical adiabatic work process connecting the initial and final states of the system. This approach is favored for its conceptual simplicity and its focus on the conservation of energy, reinforcing the notion that heat is a form of energy transfer that is fundamentally different from work.Practical Applications and Broader Implications
The first law of thermodynamics has profound implications for both cyclic and non-cyclic processes in closed systems. In cyclic processes, the law correlates the net work performed with the heat exchanged by the system, with the mechanical equivalent of heat acting as a constant of proportionality. In closed systems, the law differentiates between energy transfers as work and as heat, with internal energy being a state function defined by adiabatic work. This distinction is vital for comprehending the behavior of systems undergoing thermodynamic processes and affirms the principle that energy conservation is an intrinsic aspect of the physical world.
Show More

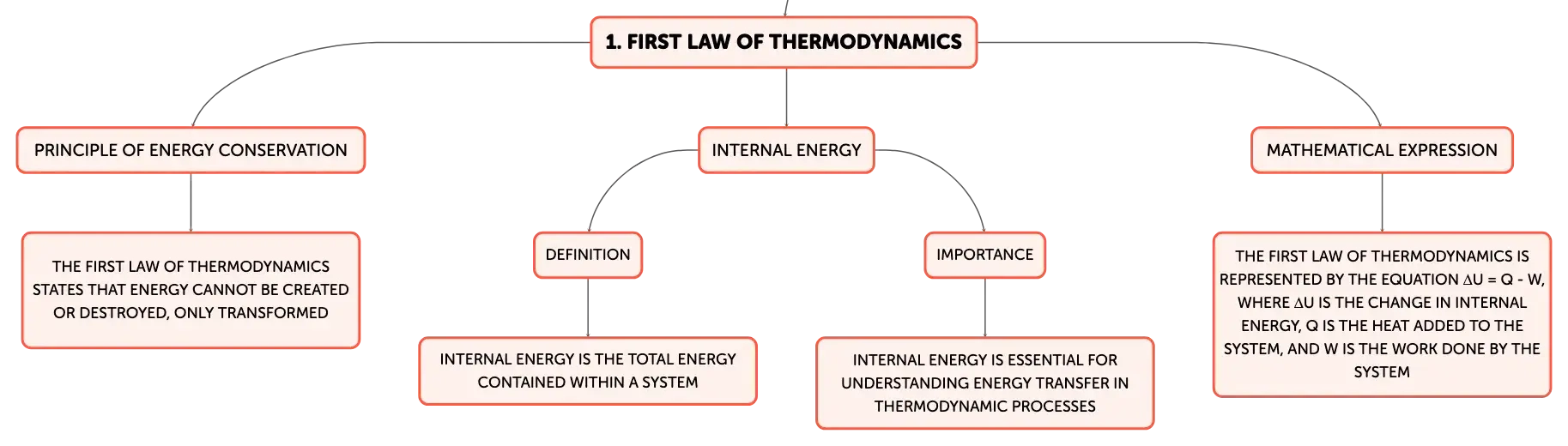

First Law of Thermodynamics
Principle of Energy Conservation
The first law of thermodynamics states that energy cannot be created or destroyed, only transformed
Internal Energy
Definition
Internal energy is the total energy contained within a system
Importance
Internal energy is essential for understanding energy transfer in thermodynamic processes
Mathematical Expression
The first law of thermodynamics is represented by the equation ∆U = Q - W, where ∆U is the change in internal energy, Q is the heat added to the system, and W is the work done by the system

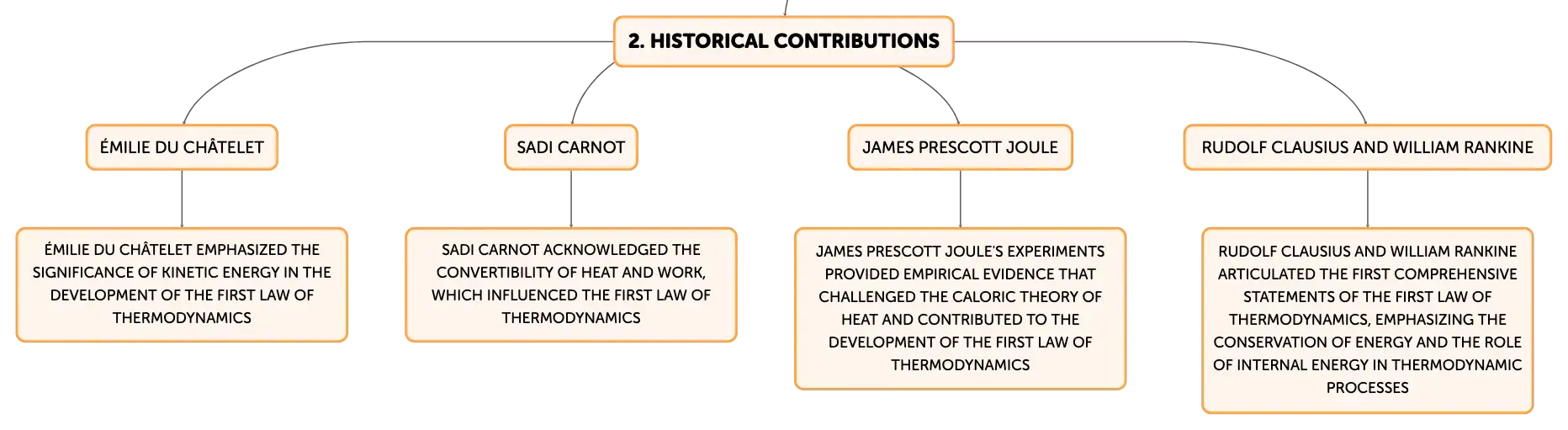

Historical Contributions
Émilie du Châtelet
Émilie du Châtelet emphasized the significance of kinetic energy in the development of the first law of thermodynamics
Sadi Carnot
Sadi Carnot acknowledged the convertibility of heat and work, which influenced the first law of thermodynamics
James Prescott Joule
James Prescott Joule's experiments provided empirical evidence that challenged the caloric theory of heat and contributed to the development of the first law of thermodynamics
Rudolf Clausius and William Rankine
Rudolf Clausius and William Rankine articulated the first comprehensive statements of the first law of thermodynamics, emphasizing the conservation of energy and the role of internal energy in thermodynamic processes

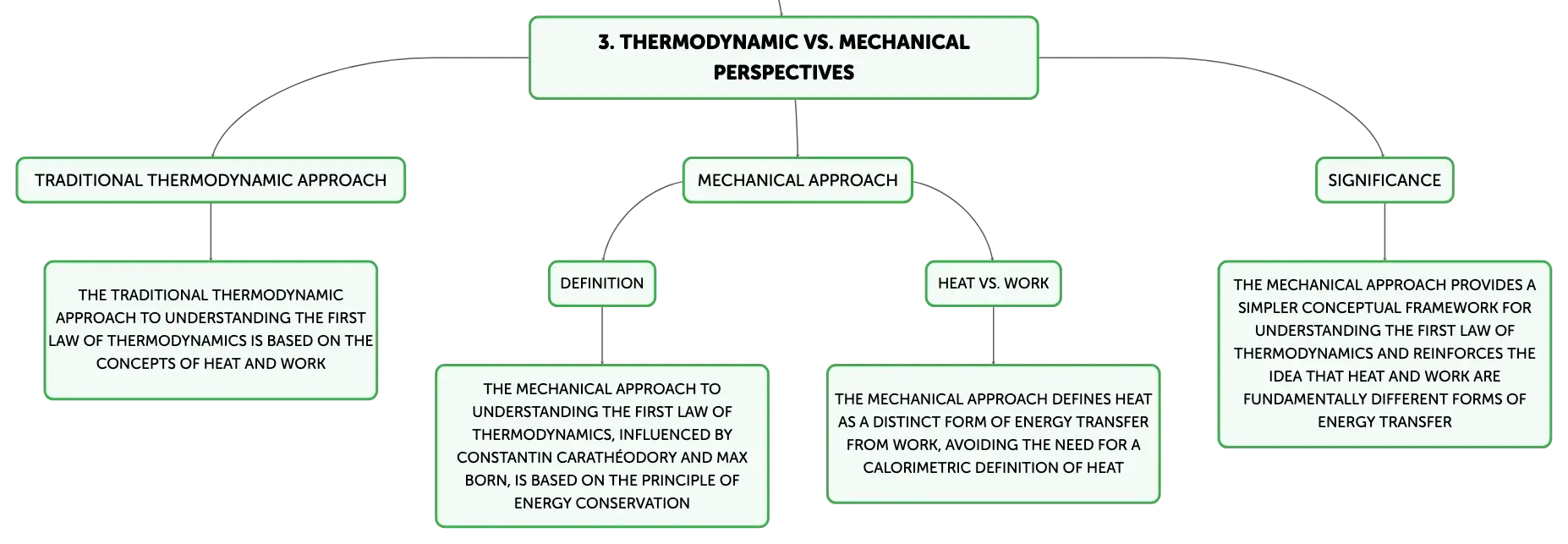

Thermodynamic vs. Mechanical Perspectives
Traditional Thermodynamic Approach
The traditional thermodynamic approach to understanding the first law of thermodynamics is based on the concepts of heat and work
Mechanical Approach
Definition
The mechanical approach to understanding the first law of thermodynamics, influenced by Constantin Carathéodory and Max Born, is based on the principle of energy conservation
Heat vs. Work
The mechanical approach defines heat as a distinct form of energy transfer from work, avoiding the need for a calorimetric definition of heat
Significance
The mechanical approach provides a simpler conceptual framework for understanding the first law of thermodynamics and reinforces the idea that heat and work are fundamentally different forms of energy transfer
Refining the Conceptual Framework
Adiabatic Work Process
The contemporary understanding of the first law of thermodynamics involves a refined conceptual framework that defines the change in internal energy in relation to an adiabatic work process
Hypothetical Adiabatic Work Process
The refined statement of the first law posits that for any given process, the change in internal energy is equivalent to that of a hypothetical adiabatic work process connecting the initial and final states of the system
Importance
This approach is favored for its conceptual simplicity and its focus on the conservation of energy, reinforcing the idea that heat is a distinct form of energy transfer from work

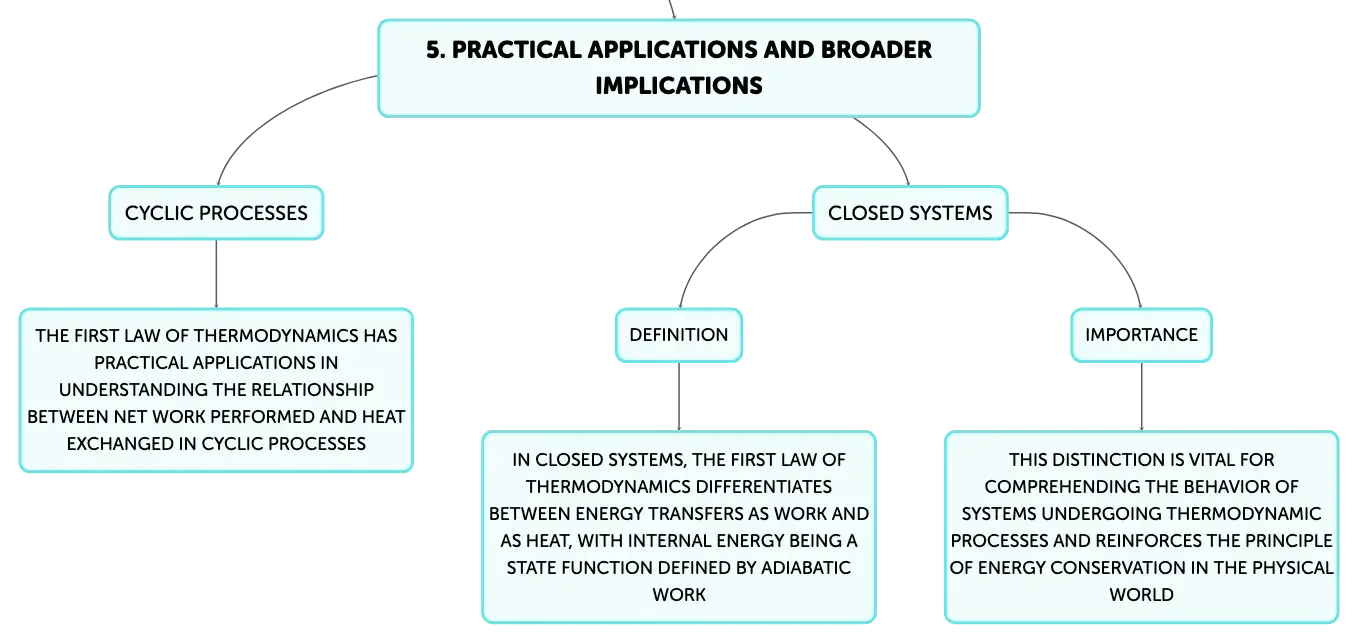

Practical Applications and Broader Implications
Cyclic Processes
The first law of thermodynamics has practical applications in understanding the relationship between net work performed and heat exchanged in cyclic processes
Closed Systems
Definition
In closed systems, the first law of thermodynamics differentiates between energy transfers as work and as heat, with internal energy being a state function defined by adiabatic work
Importance
This distinction is vital for comprehending the behavior of systems undergoing thermodynamic processes and reinforces the principle of energy conservation in the physical world
Fundamentals of the First Law of Thermodynamics
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
The ______ law of thermodynamics is also known as the principle of ______ conservation.
first
energy
01
The first law of thermodynamics is crucial for comprehending ______ transfer, especially via heat and ______.
energy
work
02
Internal energy is a property indicating the total energy within a ______.
system
