The Operation and Applications of Transformers
Explore the fundamentals of transformer technology, a crucial component in electrical systems for modifying voltage levels. Learn how transformers operate on the principles of electromagnetic induction, governed by Faraday's Law, and how they are designed for AC systems. Understand the different types of transformers, such as core-type and shell-type, their specific applications, and the importance of voltage regulation. Gain insights into the efficiency of transformers and the distinction between single-phase and three-phase systems.
See moreFundamentals of Transformer Technology

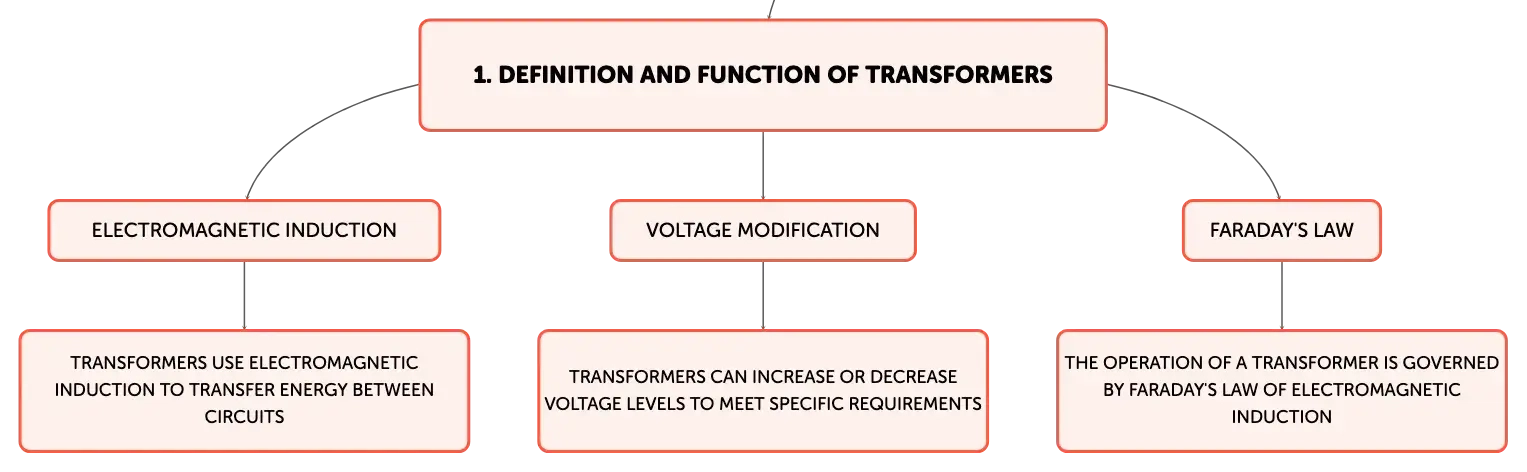

A transformer is a static electrical device that transfers energy between two or more circuits through electromagnetic induction. It is designed to modify voltage levels, either increasing (step-up) or decreasing (step-down) them to meet specific requirements. The operation of a transformer is governed by Faraday's Law of electromagnetic induction, which explains how a time-varying magnetic field can induce an electromotive force (EMF) across a conductor. Transformers are suited for alternating current (AC) systems, as AC provides the necessary changing magnetic field for induction to occur. Structurally, a transformer consists of two coils, the primary and secondary windings, wound around a magnetic core made of laminated silicon steel to minimize energy losses.Principles of Transformer Operation

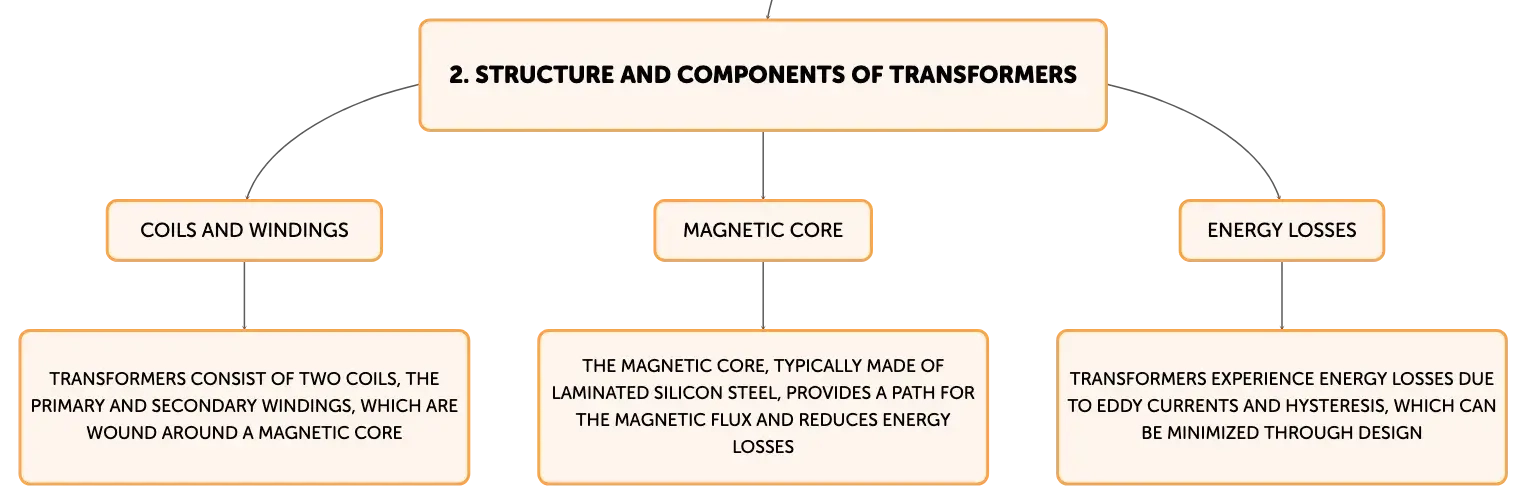

The fundamental principle behind a transformer's operation is mutual induction between its windings. Applying an AC voltage to the primary winding creates a magnetic field that changes in intensity with the current. This alternating magnetic field induces a corresponding EMF in the secondary winding. If the secondary winding is connected to a load, it allows the flow of current, thereby transferring energy from the primary circuit to the secondary circuit. The core, typically constructed from laminated silicon steel sheets, provides a path for the magnetic flux with low reluctance, which helps to reduce energy losses due to eddy currents and hysteresis. Eddy currents are circular currents induced within the core by the alternating magnetic field, and hysteresis losses result from the repeated magnetization and demagnetization of the core material.Types of Transformers and Their Applications

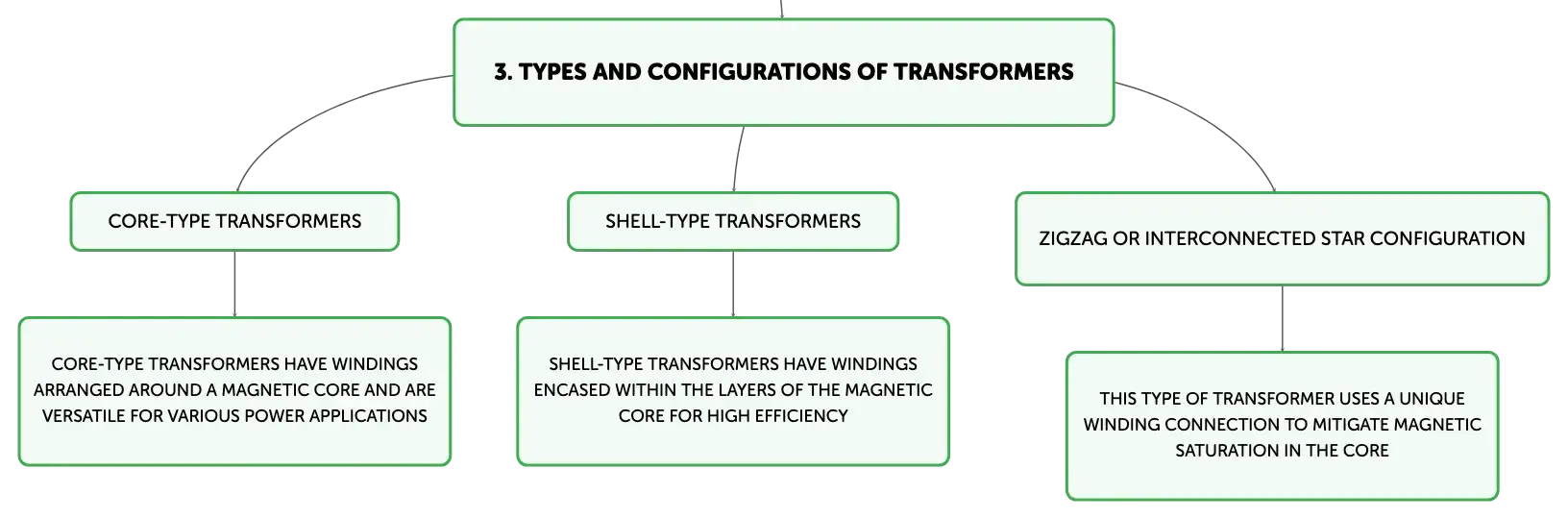

Transformers are designed in various configurations to suit specific applications. Core-type transformers have windings that are concentrically arranged around a substantial magnetic core and are versatile for both small and large power applications. Shell-type transformers, in contrast, have their windings encased within the layers of the magnetic core, which ensures a high degree of magnetic coupling and efficiency. The zigzag or interconnected star configuration is another type of transformer that uses a unique winding connection to mitigate the effects of magnetic saturation in the core, making it ideal for certain specialized applications such as providing a path for earth fault currents.Transformer Applications in Voltage Regulation

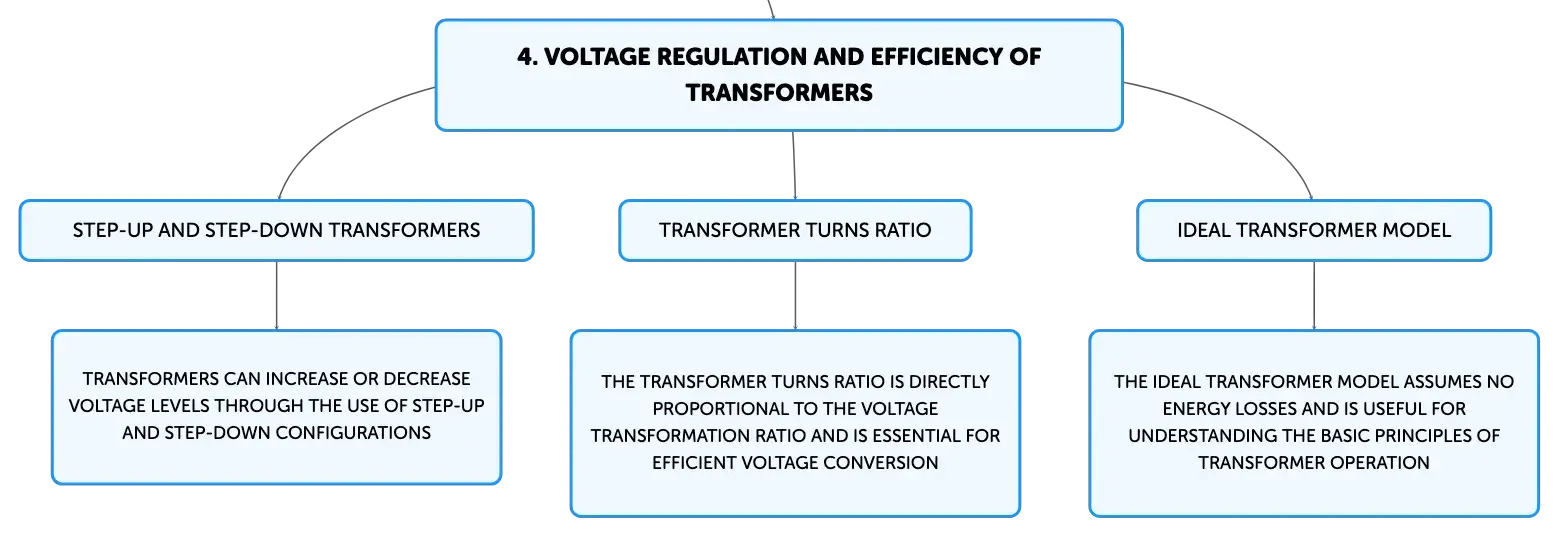

Transformers are integral to electrical systems for voltage regulation, either stepping up or stepping down voltage levels as needed. Step-up transformers have a greater number of turns on the secondary winding compared to the primary, resulting in an increased voltage output. In contrast, step-down transformers have fewer turns on the secondary winding, yielding a reduced voltage output. The transformer turns ratio, which is the ratio of the number of turns in the primary winding to that in the secondary winding, is directly proportional to the voltage transformation ratio. This relationship is essential for designing transformers to achieve the intended voltage conversion efficiently and effectively.Concept of the Ideal Transformer and Efficiency
The concept of an ideal transformer assumes no energy losses, with the power input to the primary winding being exactly equal to the power output from the secondary winding, which would imply 100% efficiency. This is a theoretical construct, as real transformers experience core losses, eddy current losses, and hysteresis losses, among others. Nonetheless, modern transformers are designed to minimize these losses and achieve high efficiency. The ideal transformer model is useful for understanding the basic principles of transformer operation, where the primary and secondary voltages and currents are related by the turns ratio, and the power in both windings is assumed to be equal under ideal conditions.Single-Phase vs. Three-Phase Transformer Systems

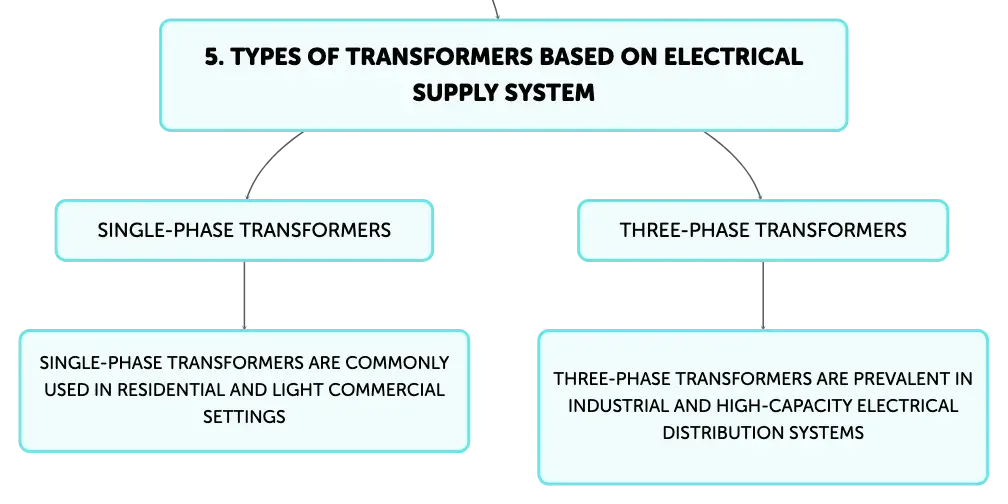

Transformers are classified according to the electrical supply system they are designed to support: single-phase or three-phase. Single-phase transformers are commonly used in residential and light commercial settings, where they adapt AC voltages to appropriate levels using one active conductor and a neutral wire. Three-phase transformers are prevalent in industrial and high-capacity electrical distribution systems. They employ three conductors, each with its own winding set, to deliver a balanced power supply with a constant flow of energy. This three-phase system provides multiple voltage and current phases that overlap, ensuring a more stable and efficient energy transfer.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Transformers are ideal for ______ current systems because they require a changing magnetic field to function.
Click to check the answer
2
Transformer operation fundamental principle
Click to check the answer
3
Primary winding AC voltage effect
Click to check the answer
4
Secondary winding EMF induction
Click to check the answer
5
The ______ transformer is designed with windings inside the layers of the magnetic core to enhance magnetic coupling and efficiency.
Click to check the answer
6
Purpose of transformers in electrical systems
Click to check the answer
7
Characteristic of step-up transformers
Click to check the answer
8
Characteristic of step-down transformers
Click to check the answer
9
Despite the theoretical nature of ______ transformers, modern versions are engineered to reduce core and ______ losses to maximize efficiency.
Click to check the answer
10
Single-phase transformer application
Click to check the answer
11
Three-phase transformer application
Click to check the answer
12
Advantage of three-phase power supply
Click to check the answer
