The Concept of Loci in Geometry
Concept Map
Exploring geometric loci, this content delves into the definition, construction, and practical uses of loci in geometry. It covers the circle, parallel loci, perpendicular bisectors, and angle bisectors, illustrating how these concepts apply to real-life scenarios such as navigation. The text emphasizes the importance of loci in understanding spatial relationships and geometric principles.
Summary
Outline
Exploring the Definition of Locus in Geometry
A locus is a fundamental concept in geometry, referring to a collection of points that share a common property or fulfill a specific geometric condition. This set of points can be represented and understood through the use of basic geometric tools such as a straightedge and compass. For example, consider a scenario where a fence is constructed at a uniform distance from the edge of a property. This fence exemplifies a locus, as it consists of points that are all at the same distance from the property's boundary, thereby providing a tangible illustration of the locus concept.The Circle as a Classic Example of a Locus
The circle is a prime example of a locus, defined as the set of all points in a plane that are equidistant from a fixed point, known as the center. To construct a circle, one uses a compass to mark off a distance equal to the radius from the center point, and then sweeps the compass around this point to trace the circumference. This action creates a locus where every point on the perimeter is at the same distance from the center, thus forming the circle.Constructing a Locus Parallel to a Line Segment
A locus that is equidistant from a given line segment takes on a 'sausage' or 'racetrack' shape. This locus is constructed by drawing arcs with a compass set to a specific radius from the endpoints of the line segment, and then drawing additional arcs along the length of the segment. The envelope of these arcs, when connected, forms the desired locus, ensuring that each point on the boundary is at the same distance from the line segment.The Role of the Perpendicular Bisector as a Locus
The perpendicular bisector is a line that acts as a locus for points that are equidistant from two given points. It not only divides the line segment connecting these points into two equal parts but also forms a right angle with it. To construct a perpendicular bisector, one draws arcs from each point that intersect at two locations, and then connects these intersections to form the bisector. This line comprises all points that are the same distance from the two initial points, satisfying the locus condition.Angle Bisectors as Loci of Equidistance
An angle bisector is a line that splits an angle into two congruent angles and serves as the locus of points that are equidistant from the angle's sides. To construct an angle bisector, one draws arcs from the angle's vertex to intersect the angle's arms. Further arcs are drawn from these intersections until they meet, and the line joining the vertex to this new intersection is the angle bisector. This line includes points that maintain equal distances from the angle's arms.Practical Applications of Loci in Real-World Scenarios
Loci are not merely theoretical constructs but have practical applications in solving real-world problems. For instance, to determine a navigational path for a boat that must stay equidistant from both a port and a lighthouse, one can construct the perpendicular bisector of the segment connecting the port to the lighthouse. This bisector represents the locus of all possible paths the boat can take, showcasing the utility of geometric loci in practical problem-solving.Concluding Thoughts on Geometric Loci
In conclusion, the study of loci is integral to geometry, encompassing a variety of shapes and constructions, each with unique characteristics and methods of creation. The circle, the 'sausage' shape, the perpendicular bisector, and the angle bisector are all instances of loci that can be constructed using elementary geometric tools. These concepts are not only academically important but also have real-life applications, providing students with a deeper understanding of spatial relationships and the geometric principles that shape our environment.
Show More

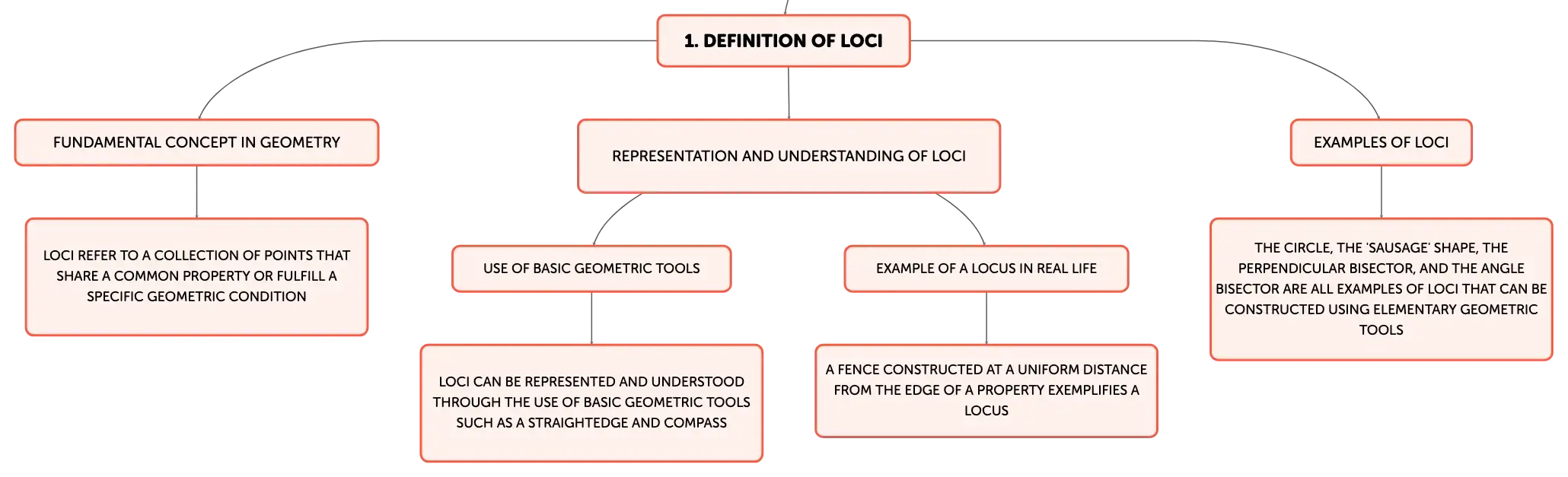

Definition of Loci
Fundamental concept in geometry
Loci refer to a collection of points that share a common property or fulfill a specific geometric condition
Representation and understanding of loci
Use of basic geometric tools
Loci can be represented and understood through the use of basic geometric tools such as a straightedge and compass
Example of a locus in real life
A fence constructed at a uniform distance from the edge of a property exemplifies a locus
Examples of loci
The circle, the 'sausage' shape, the perpendicular bisector, and the angle bisector are all examples of loci that can be constructed using elementary geometric tools

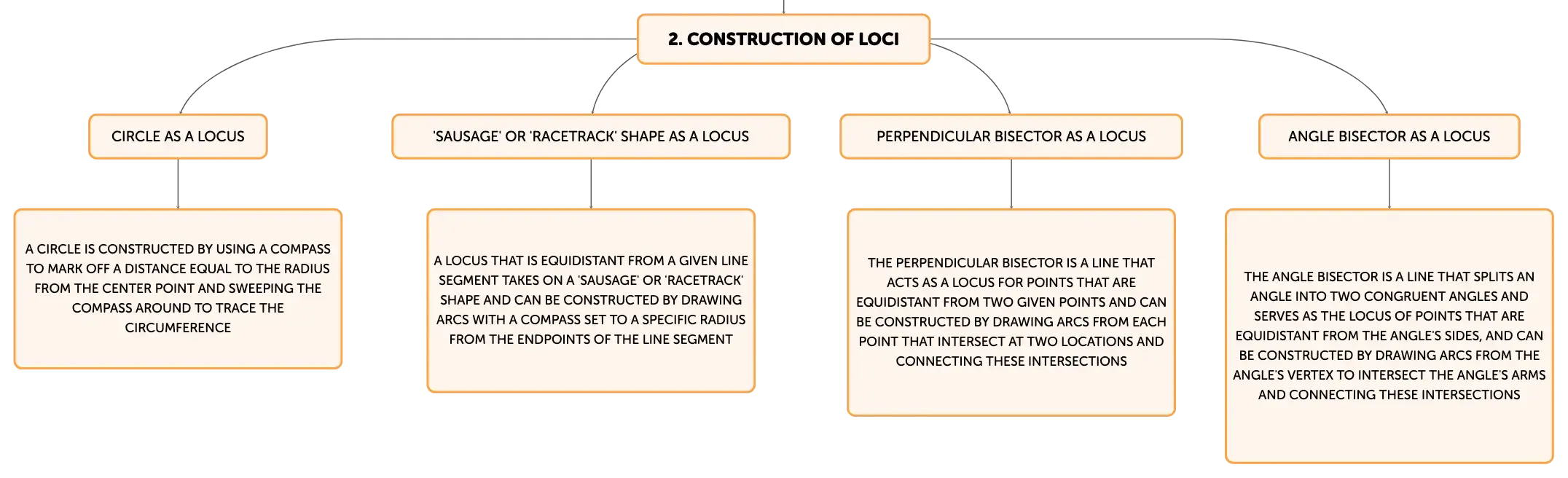

Construction of Loci
Circle as a locus
A circle is constructed by using a compass to mark off a distance equal to the radius from the center point and sweeping the compass around to trace the circumference
'Sausage' or 'racetrack' shape as a locus
A locus that is equidistant from a given line segment takes on a 'sausage' or 'racetrack' shape and can be constructed by drawing arcs with a compass set to a specific radius from the endpoints of the line segment
Perpendicular bisector as a locus
The perpendicular bisector is a line that acts as a locus for points that are equidistant from two given points and can be constructed by drawing arcs from each point that intersect at two locations and connecting these intersections
Angle bisector as a locus
The angle bisector is a line that splits an angle into two congruent angles and serves as the locus of points that are equidistant from the angle's sides, and can be constructed by drawing arcs from the angle's vertex to intersect the angle's arms and connecting these intersections

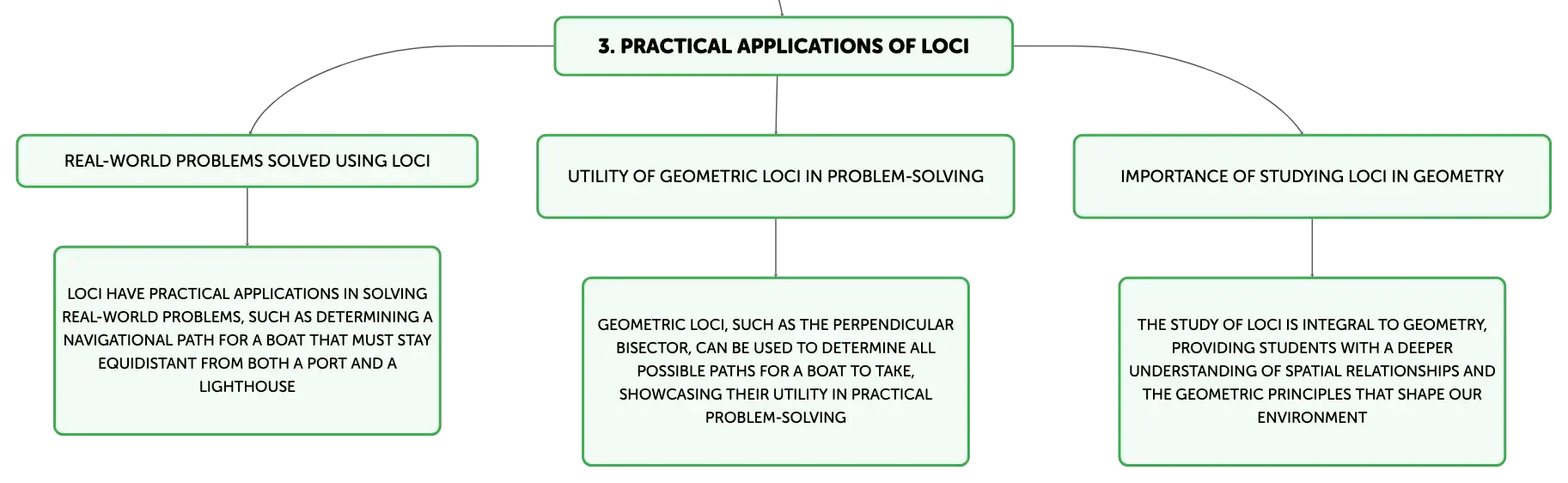

Practical Applications of Loci
Real-world problems solved using loci
Loci have practical applications in solving real-world problems, such as determining a navigational path for a boat that must stay equidistant from both a port and a lighthouse
Utility of geometric loci in problem-solving
Geometric loci, such as the perpendicular bisector, can be used to determine all possible paths for a boat to take, showcasing their utility in practical problem-solving
Importance of studying loci in geometry
The study of loci is integral to geometry, providing students with a deeper understanding of spatial relationships and the geometric principles that shape our environment
The Concept of Loci in Geometry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In geometry, a ______ is a set of points that satisfy a certain ______ or meet a specific geometric condition.
locus
property
01
Definition of a locus in geometry
Set of points satisfying a specific condition; for a circle, all points equidistant from center.
02
Circle construction using a compass
Compass set to radius length, swept around center point to trace circle's circumference.
