Standard Deviation and Variance
Concept Map
Standard deviation is a crucial statistical measure that quantifies how much individual data points deviate from the mean. It is represented by sigma (σ) and is the square root of the variance, which is the average of squared deviations. This concept is essential for understanding data spread and is visualized through a normal distribution curve, where the empirical rule applies. The text provides a step-by-step calculation example and discusses its importance in data analysis.
Summary
Outline
Exploring the Concept of Standard Deviation in Statistics
Standard deviation is a statistical measure that quantifies the degree of variation or dispersion of a set of data values from their mean (average). Represented by the Greek letter sigma (σ), it is calculated using the formula σ = √[Σ(xi - μ)² / N], where Σ denotes the sum of all squared deviations, xi is an individual data point, μ is the mean of the dataset, and N is the number of data points. The standard deviation is the square root of the variance, which is the average of these squared deviations, providing a gauge of how much individual data points differ from the mean.The Relationship Between Variance and Standard Deviation
Variance is the square of the standard deviation (σ²) and is an essential statistical measure that indicates the average squared deviation of each data point from the mean. While standard deviation is expressed in the same units as the data, making it more interpretable, variance is expressed in squared units. Both measures are fundamental in statistical analysis, with variance often used in more complex statistical methods and standard deviation providing a more direct understanding of data spread.Depicting Data Dispersion Using the Standard Deviation Graph
The standard deviation can be visualized through a graph, often the normal distribution curve, which is bell-shaped. This graph displays how data is distributed in relation to the mean. The x-axis represents the data values, measured in standard deviations from the mean, and the y-axis represents the frequency or probability density of these values. In a normal distribution, about 68% of the data falls within one standard deviation of the mean, 95% within two standard deviations, and 99.7% within three, illustrating the concept of empirical rule or 68-95-99.7 rule.Step-by-Step Calculation of Standard Deviation with an Example
To calculate standard deviation, consider a dataset of heights in centimeters: [165, 187, 172, 166, 178, 175, 185, 163, 176, 183, 186, 179]. First, compute the mean (μ) by summing the heights and dividing by the number of data points (N = 12), resulting in a mean of 176.25 cm. Then, subtract the mean from each data point, square the result, and sum these squared differences. Divide this sum by N to find the variance, and take the square root to obtain the standard deviation, which in this case is approximately 7.91 cm, indicating the average deviation of the heights from the mean.Real-World Application of Standard Deviation
Consider the ages of five workers: [44, 35, 27, 56, 52]. With N = 5, the mean age (μ) is 42.8 years. The standard deviation is calculated by subtracting the mean from each age, squaring these differences, summing them, dividing by N, and taking the square root. The resulting standard deviation is approximately 11.07 years, reflecting the average amount by which the workers' ages differ from the mean age, providing insight into the age diversity within the group.Understanding the Importance of Standard Deviation
Standard deviation is a vital statistical tool that measures the dispersion of data points around the mean. It is symbolized by σ and is derived from the variance, which is its square. Standard deviation is particularly insightful for normally distributed data, where the bell curve aids in predicting value distribution. Mastery of standard deviation calculation and interpretation is crucial for data analysis across various disciplines, offering a clear perspective on the consistency and variability within datasets.
Show More

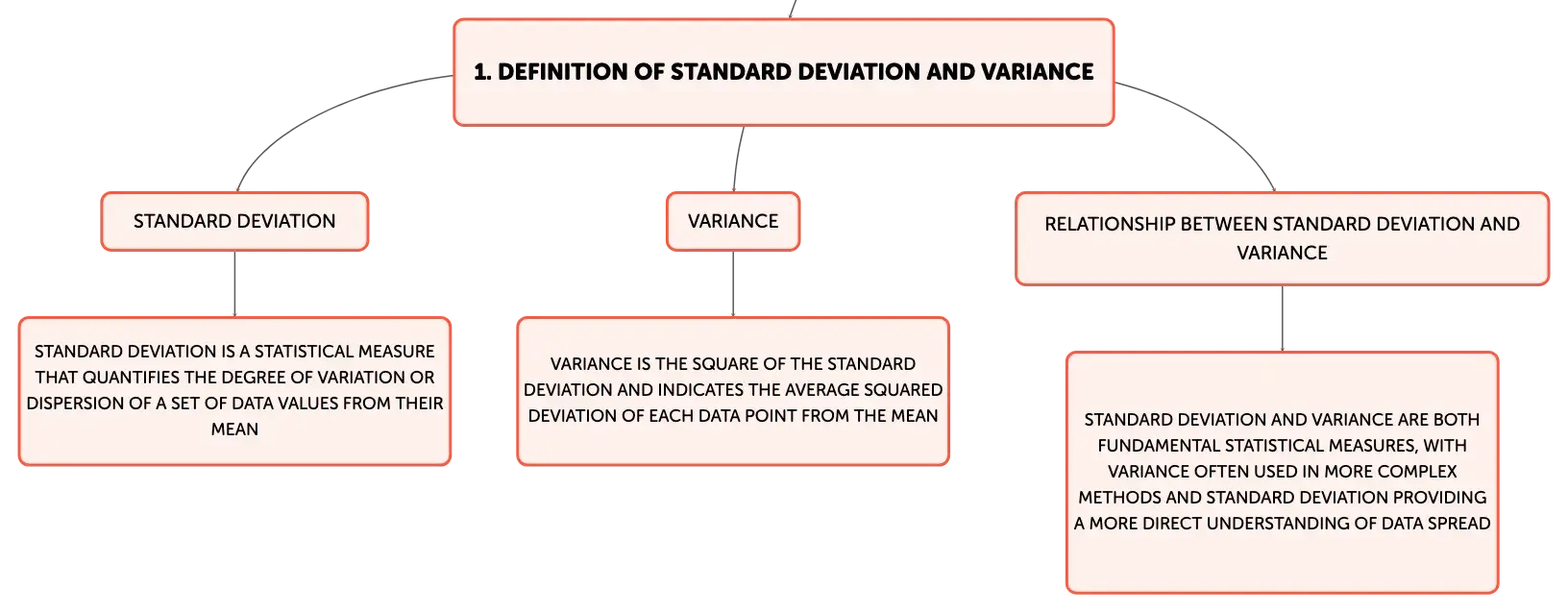

Definition of Standard Deviation and Variance
Standard Deviation
Standard deviation is a statistical measure that quantifies the degree of variation or dispersion of a set of data values from their mean
Variance
Variance is the square of the standard deviation and indicates the average squared deviation of each data point from the mean
Relationship between Standard Deviation and Variance
Standard deviation and variance are both fundamental statistical measures, with variance often used in more complex methods and standard deviation providing a more direct understanding of data spread

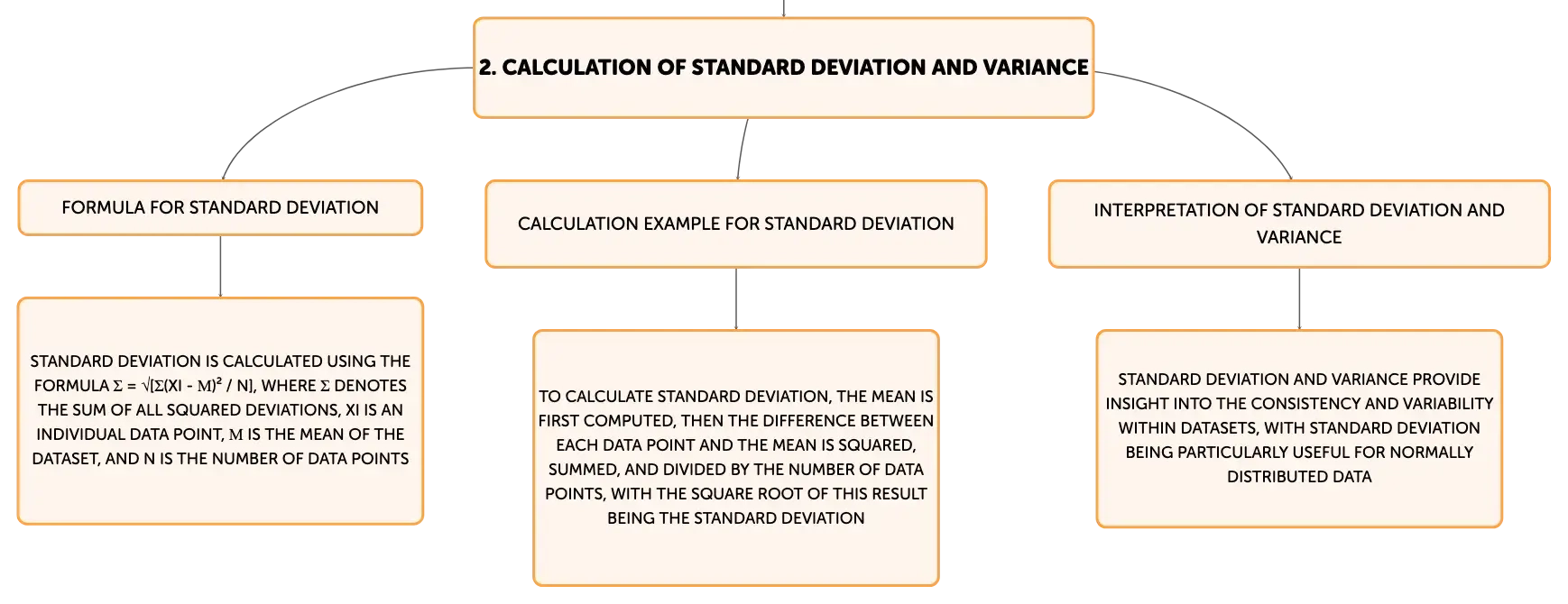

Calculation of Standard Deviation and Variance
Formula for Standard Deviation
Standard deviation is calculated using the formula σ = √[Σ(xi - μ)² / N], where Σ denotes the sum of all squared deviations, xi is an individual data point, μ is the mean of the dataset, and N is the number of data points
Calculation Example for Standard Deviation
To calculate standard deviation, the mean is first computed, then the difference between each data point and the mean is squared, summed, and divided by the number of data points, with the square root of this result being the standard deviation
Interpretation of Standard Deviation and Variance
Standard deviation and variance provide insight into the consistency and variability within datasets, with standard deviation being particularly useful for normally distributed data

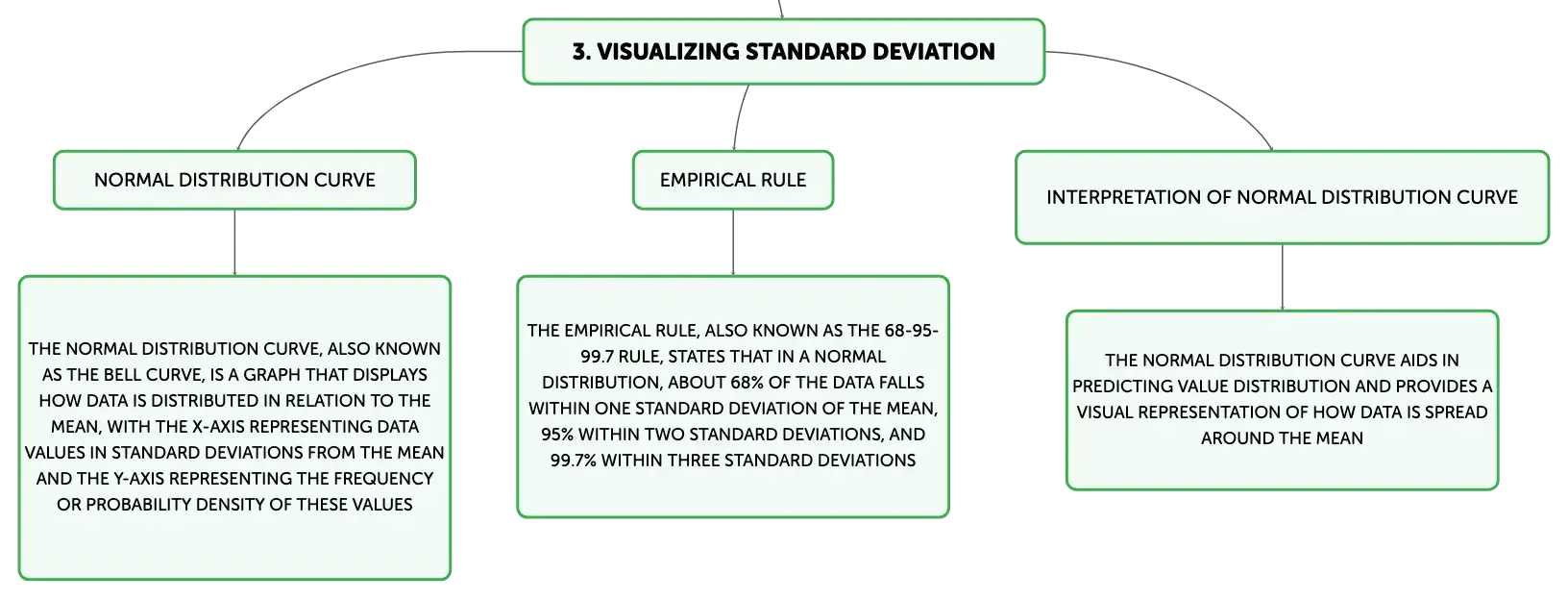

Visualizing Standard Deviation
Normal Distribution Curve
The normal distribution curve, also known as the bell curve, is a graph that displays how data is distributed in relation to the mean, with the x-axis representing data values in standard deviations from the mean and the y-axis representing the frequency or probability density of these values
Empirical Rule
The empirical rule, also known as the 68-95-99.7 rule, states that in a normal distribution, about 68% of the data falls within one standard deviation of the mean, 95% within two standard deviations, and 99.7% within three standard deviations
Interpretation of Normal Distribution Curve
The normal distribution curve aids in predicting value distribution and provides a visual representation of how data is spread around the mean
Standard Deviation and Variance
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
Symbol representing standard deviation
Greek letter sigma (σ)
01
Formula to calculate standard deviation
σ = √[Σ(xi - μ)² / N]
02
Relationship between standard deviation and variance
Standard deviation is the square root of the variance
