Trigonometric functions are fundamental in mathematics, linking angles and side lengths in right-angled triangles. They include sine, cosine, and tangent, which are graphically represented as waves and curves, and have key values at specific angles. Understanding these functions, along with their inverse and reciprocal counterparts, is essential for applications in various fields such as physics and engineering.

Summary

Outline

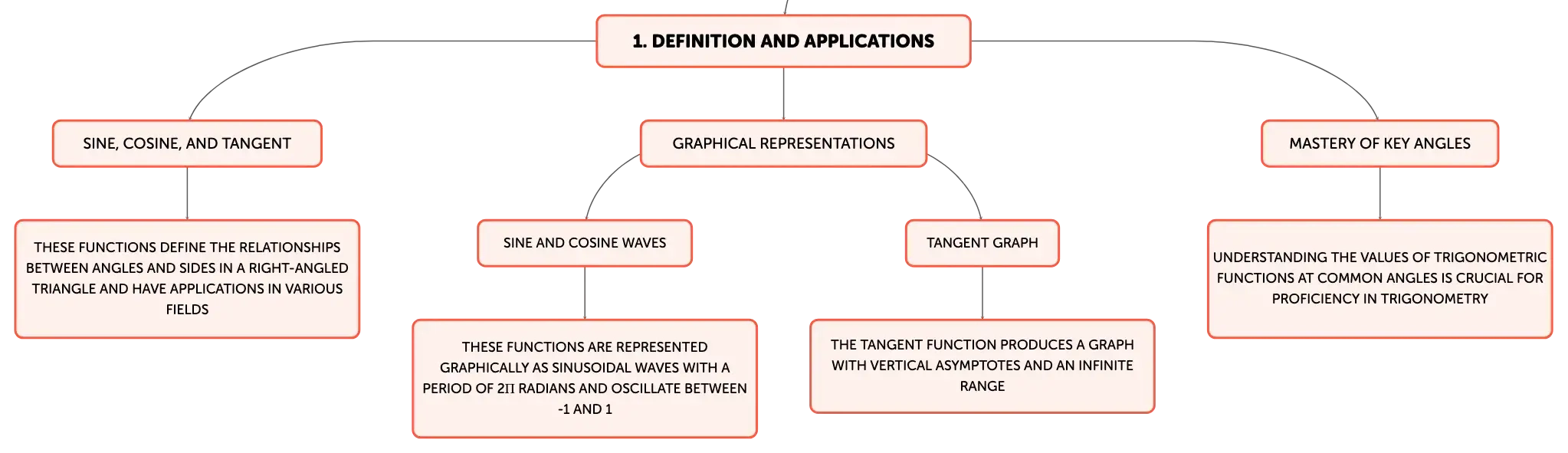

Exploring the Basics of Trigonometric Functions

Trigonometric functions are a crucial component of mathematics, with applications that extend beyond geometry into various fields such as physics, engineering, and even music theory. These functions—sine (sin), cosine (cos), and tangent (tan)—define the relationships between the angles of a triangle and the lengths of its sides, specifically in right-angled triangles. The mnemonic SOH CAH TOA is a useful aid for remembering these relationships: sine equals the ratio of the Opposite side to the Hypotenuse (SOH), cosine equals the ratio of the Adjacent side to the Hypotenuse (CAH), and tangent equals the ratio of the Opposite side to the Adjacent side (TOA).

Transparent blue protractor with raised degree notches and compasses on top, alongside a folded green right triangle on a light background.

Graphical Interpretation of Sine, Cosine, and Tangent

The sine and cosine functions are represented graphically as sinusoidal waves, with the sine wave commencing at the origin (0,0) and the cosine wave exhibiting a phase shift, starting at its maximum value when the angle is zero. Both functions oscillate between -1 and 1, with a period of 2π radians (equivalent to 360 degrees), reflecting their repetitive nature over the interval. The tangent function, characterized by its periodic vertical asymptotes at odd multiples of π/2 radians, produces a graph that appears as a series of increasing and decreasing curves without bounds, reflecting its infinite range.

Mastery of Trigonometric Values for Key Angles

Mastery of trigonometric values for key angles—0, π/6, π/4, π/3, and π/2 radians (0, 30, 45, 60, and 90 degrees)—is essential for proficiency in trigonometry. These values can be memorized using a systematic approach, such as constructing a table based on the patterns of the square roots of the numbers 0 through 4, divided by 2, for sine and cosine. The tangent values are then determined by the ratio of sine to cosine for each angle. It is critical to recognize that the tangent of π/2 radians is undefined, which corresponds to the vertical asymptotes in its graph.

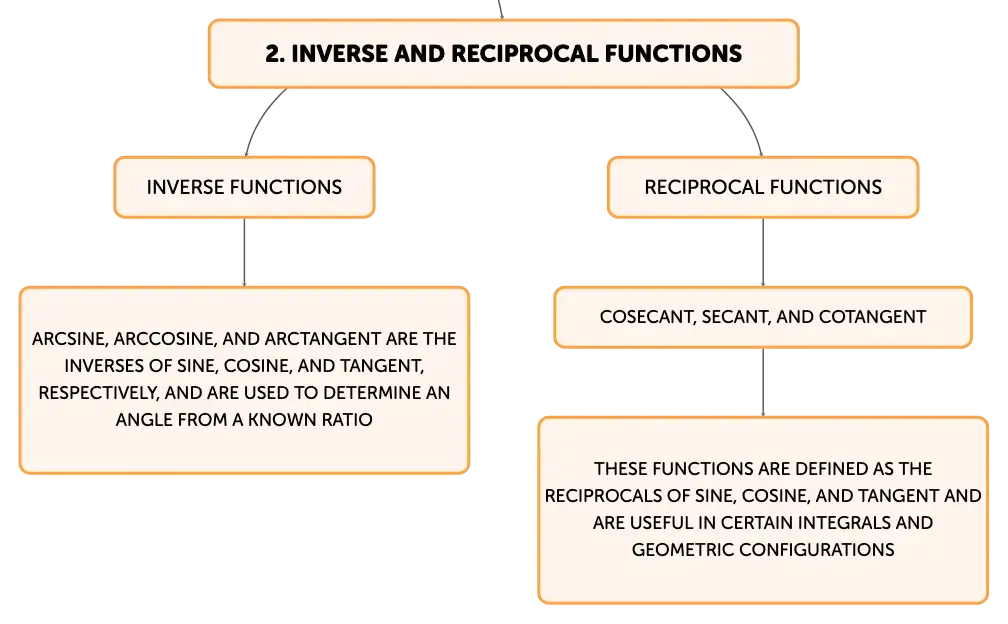

The Role of Inverse Trigonometric Functions

Inverse trigonometric functions—arcsine (sin⁻¹), arccosine (cos⁻¹), and arctangent (tan⁻¹)—are indispensable for determining an angle when a trigonometric ratio is known. These functions are the inverses of their corresponding primary functions and are graphically distinct, with arcsine and arccosine producing S-shaped curves and arctangent producing a curve that extends indefinitely in both directions, horizontally approaching π/2 and -π/2 radians. These functions are key in solving trigonometric equations and in applications where the angle must be derived from a known ratio.

Understanding Reciprocal Trigonometric Functions

The reciprocal trigonometric functions—cosecant (csc), secant (sec), and cotangent (cot)—are defined as the reciprocals of sine, cosine, and tangent, respectively. Cosecant is the ratio of the Hypotenuse to the Opposite side, secant is the ratio of the Hypotenuse to the Adjacent side, and cotangent is the ratio of the Adjacent side to the Opposite side. These functions are particularly useful in scenarios where the primary trigonometric functions are not as convenient to use, such as in certain integrals and when dealing with specific geometric configurations.

Comprehensive Insights into Trigonometric Functions

Trigonometric functions form an integral part of mathematical education, offering a framework for understanding the relationships within right-angled triangles and the properties of periodic phenomena. The mnemonic SOH CAH TOA is a foundational tool for recalling the basic trigonometric ratios. Graphical representations of these functions provide a visual understanding of their periodicity and behavior. Familiarity with the values of trigonometric functions at common angles is crucial for efficient problem-solving. The study of inverse and reciprocal functions further broadens the scope of trigonometry, enabling the calculation of angles from known ratios and the exploration of relationships that extend beyond the primary trigonometric functions. A thorough grasp of these concepts is vital for students pursuing advanced studies in mathematics, physics, engineering, and other related disciplines.
