Hyperbolas: Definition and Properties
Exploring hyperbolas reveals their nature as conic sections formed by intersecting a cone with a plane. These curves feature two symmetrical branches, defined by the constant difference in distances to two fixed points, the foci. Understanding their geometric structure, including the transverse and conjugate axes, vertices, co-vertices, and asymptotes, is crucial. The standard equations and classification of hyperbolas depend on their orientation and center position, while their eccentricity indicates the degree of elongation.
See moreExploring the Nature of Hyperbolas as Conic Sections

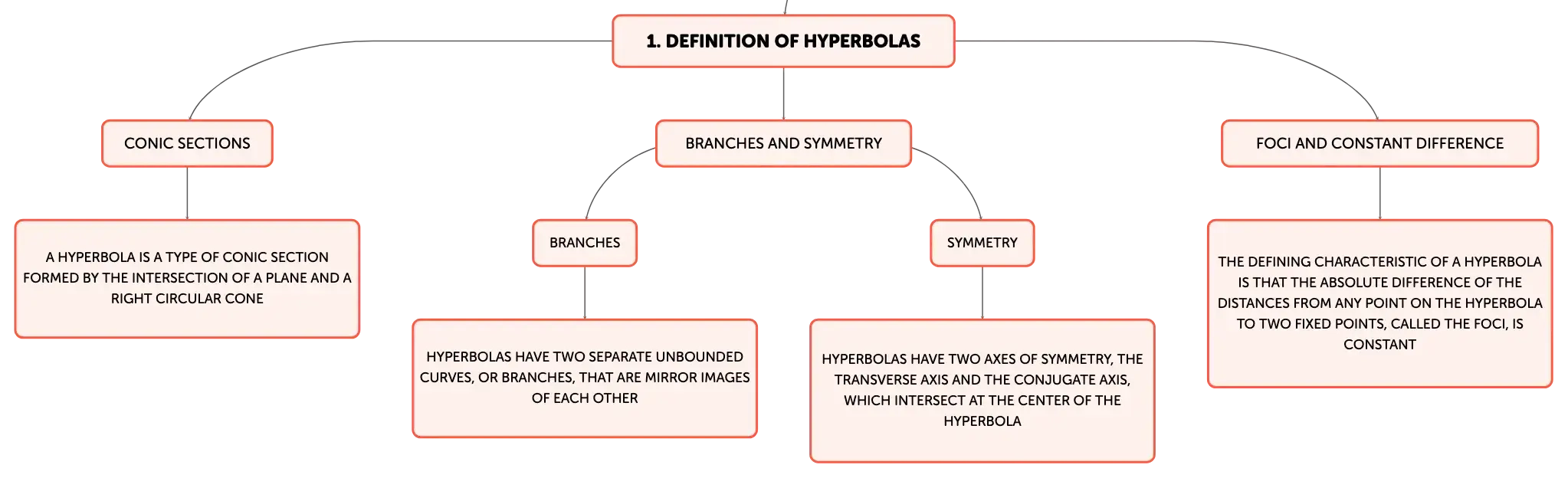

A hyperbola is a type of conic section that is formed when a right circular cone is intersected by a plane at an angle such that two separate unbounded curves, or branches, are produced. These branches are mirror images of each other and open either vertically or horizontally. Each branch has a vertex, and the central axis that passes through both vertices is known as the transverse axis. The defining characteristic of a hyperbola is that for any point on either branch, the absolute difference of the distances to two fixed points, called the foci, is constant. This can be expressed mathematically as H={P: |d(P, F1) - d(P, F2)| = 2a}, where P is a point on the hyperbola, F1 and F2 are the foci, and 2a is the constant distance between each point on the hyperbola and the foci. A thorough understanding of the geometric and algebraic properties of hyperbolas is essential for accurately graphing and analyzing these curves.Geometric Structure and Symmetry in Hyperbolas

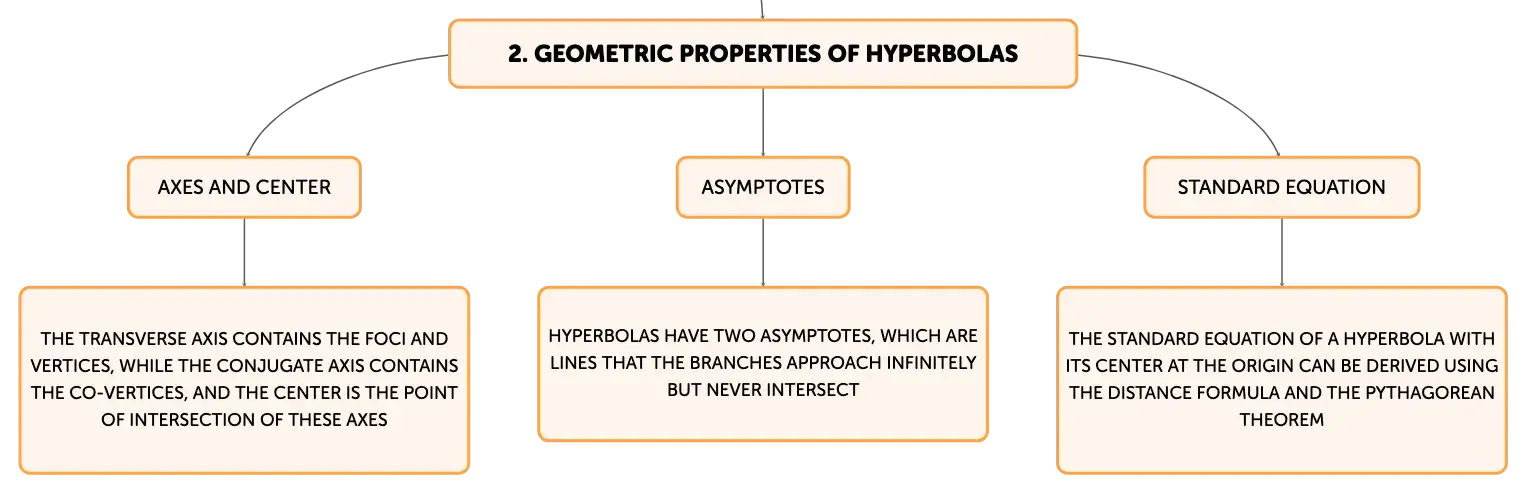

Hyperbolas possess a unique geometric structure, characterized by their two axes of symmetry. The transverse axis, which contains the foci and vertices, is the axis along which the hyperbola opens. Perpendicular to the transverse axis is the conjugate axis, which contains the co-vertices. The center of the hyperbola is the point of intersection of these axes and is equidistant from the vertices and foci. Hyperbolas also feature asymptotes, which are lines that the branches of the hyperbola approach infinitely but never intersect. These asymptotes intersect at the center of the hyperbola and form the angles that define the direction of the opening of the branches. The asymptotes can be constructed by drawing the diagonals of a rectangle centered at the hyperbola's center, with sides parallel to the axes and passing through the vertices and co-vertices.Derivation of the Standard Equation of a Hyperbola
The standard equation of a hyperbola with its center at the origin (0,0) can be derived by considering a point P(x, y) on the hyperbola and the foci F1(-c, 0) and F2(c, 0), where c is the distance from the center to a focus. Using the definition of a hyperbola, we set the constant difference in distances from the foci to any point on the hyperbola as 2a. By applying the Pythagorean Theorem and algebraic manipulation, we arrive at the standard equation of a hyperbola with a horizontal transverse axis: x²/a² - y²/b² = 1, where a is the distance from the center to a vertex on the transverse axis, and b is the distance from the center to a co-vertex on the conjugate axis. The relationship between a, b, and c is given by c² = a² + b².Classification and Equations of Hyperbolas

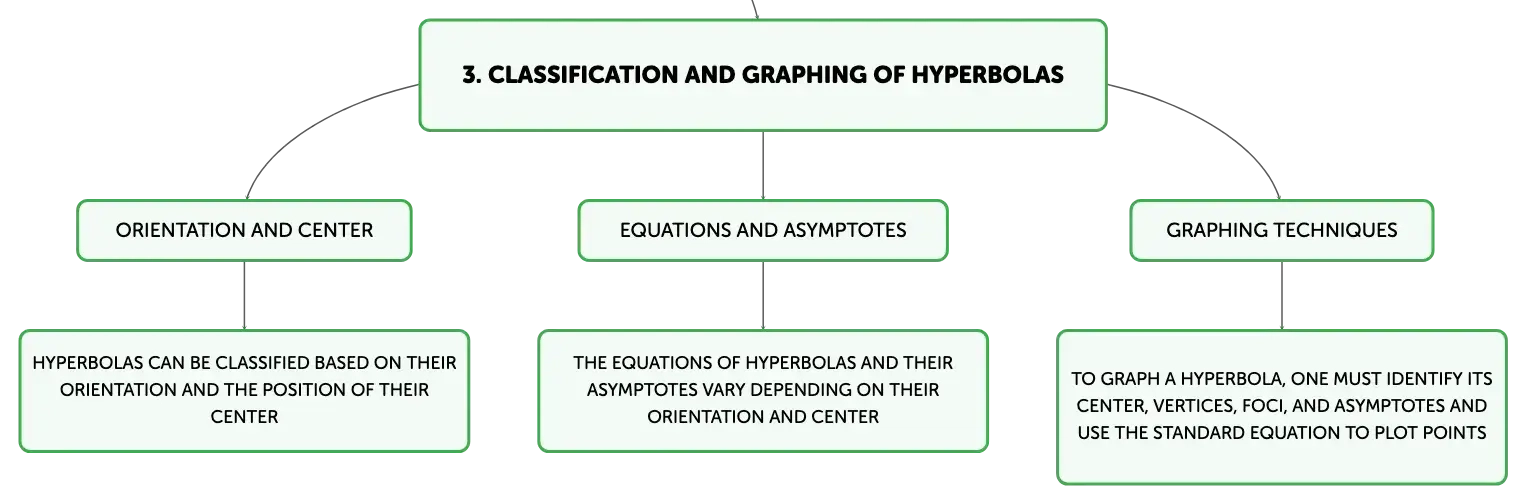

Hyperbolas are classified based on their orientation and the position of their center. When the center is at the origin, the standard form of the equation for a hyperbola that opens horizontally is x²/a² - y²/b² = 1, and for a hyperbola that opens vertically, it is y²/a² - x²/b² = 1. The equations of the asymptotes for these hyperbolas are y = ±(b/a)x for the horizontal case and x = ±(a/b)y for the vertical case. For hyperbolas centered at a point (h, k), the equations become (x - h)²/a² - (y - k)²/b² = 1 and (y - k)²/a² - (x - h)²/b² = 1, respectively. The asymptotes in these cases are given by the equations y = k ± (b/a)(x - h) and x = h ± (a/b)(y - k). These properties, including the center, vertices, foci, and asymptotes, are crucial for graphing hyperbolas and understanding their behavior.Graphing Hyperbolas and Assessing Eccentricity
To graph a hyperbola, one must identify the center, vertices, foci, and asymptotes based on the hyperbola's equation. The process begins by determining the values of a, b, and c from the standard form of the equation. The vertices and foci are located using these values, and the asymptotes are drawn using the slopes derived from a and b. The eccentricity (e) of a hyperbola is a measure of its elongation and is defined as e = c/a, with e > 1 for all hyperbolas. The eccentricity indicates the shape of the hyperbola; a larger value of e corresponds to a more elongated curve. Mastery of graphing techniques and an understanding of eccentricity are vital for a comprehensive grasp of the geometric properties and applications of hyperbolas.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
A ______ is a shape created when a cone is cut by a plane at a specific angle, resulting in two unbounded curves.
Click to check the answer
2
The branches of a hyperbola are symmetrical and can extend either ______ or ______.
Click to check the answer
3
Hyperbola center significance
Click to check the answer
4
Hyperbola asymptotes function
Click to check the answer
5
Construction of hyperbola asymptotes
Click to check the answer
6
In a hyperbola with a horizontal transverse axis, the relationship between the distances to a vertex (a), a co-vertex (b), and a focus (c) is expressed as ______.
Click to check the answer
7
Standard equation of hyperbola centered at origin, opens vertically
Click to check the answer
8
Equation of asymptotes for hyperbola with center (h, k)
Click to check the answer
9
Hyperbola translation from origin to (h, k)
Click to check the answer
10
To plot a hyperbola, one should first find the ______, ______, ______, and ______ from its equation.
Click to check the answer
