Exploring the Geometry of Circle Sectors and Arc Lengths
A circle sector is a portion of a circle enclosed by two radii and the arc that connects their endpoints, resembling a pie slice. The sector's area and the arc length, which is part of the circle's perimeter, can be calculated using specific formulas. These calculations are based on the central angle of the sector, which can be measured in degrees or radians—two distinct units for angular measurement. Mastery of these formulas is crucial in geometry and finds practical use in fields such as engineering, architecture, and various design disciplines.Calculating the Area of a Sector Using Degrees
To calculate the area of a sector when the central angle is given in degrees, the formula is: Area of a sector = (π * r^2 * θ) / 360, where "r" is the radius of the circle, and "θ" is the central angle in degrees. For example, if a circle has a radius of 5 cm and a sector with a central angle of 50 degrees, the area is (π * 5^2 * 50) / 360, which is approximately 10.9 cm^2 to three significant figures. This formula is derived from the proportion of the sector's angle to the full 360-degree rotation of a circle.Determining the Arc Length of a Sector Using Degrees
The arc length of a sector, a portion of the circle's circumference, can be determined when the central angle is in degrees. The formula is: Arc length of a sector = (π * d * θ) / 360, where "d" is the diameter of the circle. For a circle with a 12 cm radius, thus a 24 cm diameter, and a sector with a 100-degree central angle, the arc length is (π * 24 * 100) / 360, yielding an arc length of approximately 20.9 cm when rounded to three significant figures. This formula is based on the ratio of the sector's angle to the total degrees in a circle.Utilizing Radians in Circle Sector Calculations
Radians are an alternative to degrees for measuring angles and are integral in advanced mathematics, trigonometry, and calculus. One radian is the angle subtended at the center of a circle by an arc whose length is equal to the radius of the circle. The conversion between degrees and radians is pivotal, with π radians corresponding to 180 degrees and 2π radians to a full circle or 360 degrees. These conversions facilitate the use of radian measurements in the formulas for sector areas and arc lengths.Calculating the Area of a Sector Using Radians
When the central angle of a sector is expressed in radians, the area is calculated using the formula: Area of a sector = (1/2) * r^2 * θ, where "r" is the radius and "θ" is the angle in radians. For a sector with a 15 cm radius and a 0.5 radian angle, the area is (1/2) * 15^2 * 0.5, which is approximately 56.3 cm^2 to three significant figures. This formula reflects the direct proportionality between the sector's angle and its area, similar to when the angle is measured in degrees.Determining the Arc Length of a Sector Using Radians
For a sector's arc length when the angle is in radians, the formula simplifies to: Arc length of a sector = r * θ. With a sector that has a 9.5 cm radius and a central angle of 1.2 radians, the arc length is 9.5 cm * 1.2 radians, equating to 11.4 cm. This relationship between the radius, the angle in radians, and the arc length streamlines calculations, making it especially useful in disciplines that commonly employ radian measurements.Essential Concepts of Circle Sectors and Arc Lengths
In conclusion, a circle sector is characterized by two radii and the intervening arc, and its geometric properties include the area and arc length. The formulas for these properties vary based on the measurement unit of the central angle—degrees or radians. For degrees, the area formula is (π * r^2 * θ) / 360, and the arc length formula is (π * d * θ) / 360. For radians, the area formula is (1/2) * r^2 * θ, and the arc length formula is r * θ. A thorough understanding of these formulas is essential in geometry and has broad applications across scientific and engineering fields.
Show More

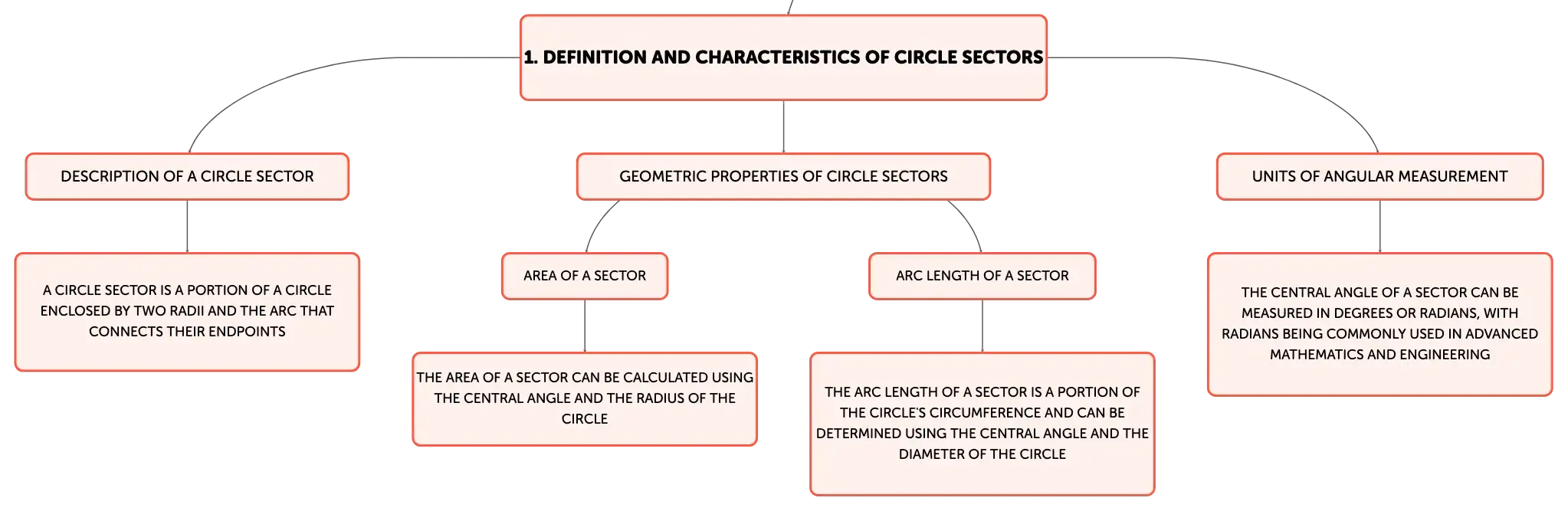

Definition and Characteristics of Circle Sectors
Description of a Circle Sector
A circle sector is a portion of a circle enclosed by two radii and the arc that connects their endpoints
Geometric Properties of Circle Sectors
Area of a Sector
The area of a sector can be calculated using the central angle and the radius of the circle
Arc Length of a Sector
The arc length of a sector is a portion of the circle's circumference and can be determined using the central angle and the diameter of the circle
Units of Angular Measurement
The central angle of a sector can be measured in degrees or radians, with radians being commonly used in advanced mathematics and engineering

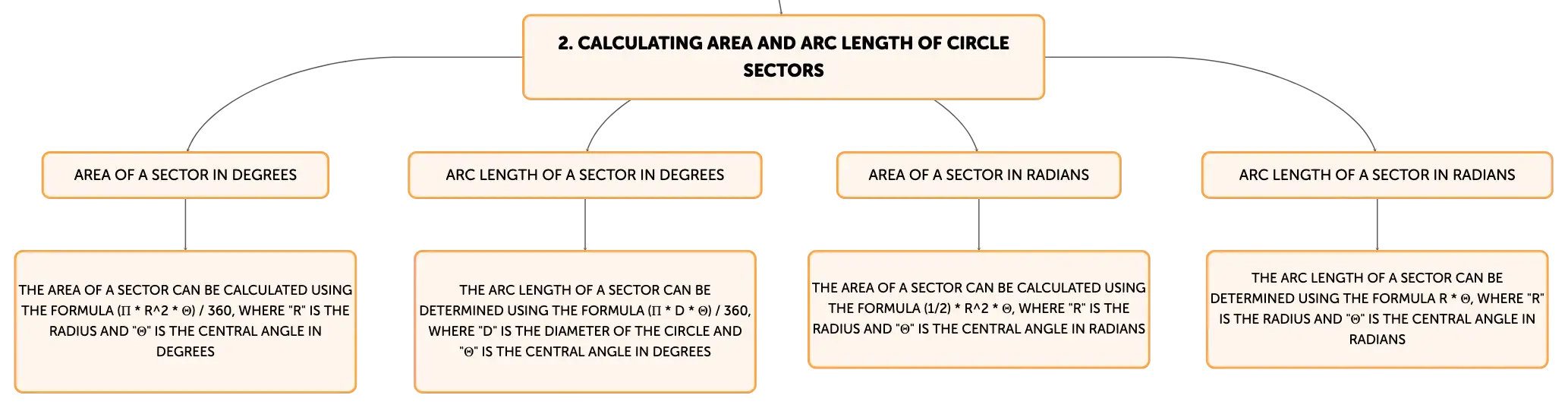

Calculating Area and Arc Length of Circle Sectors
Area of a Sector in Degrees
The area of a sector can be calculated using the formula (π * r^2 * θ) / 360, where "r" is the radius and "θ" is the central angle in degrees
Arc Length of a Sector in Degrees
The arc length of a sector can be determined using the formula (π * d * θ) / 360, where "d" is the diameter of the circle and "θ" is the central angle in degrees
Area of a Sector in Radians
The area of a sector can be calculated using the formula (1/2) * r^2 * θ, where "r" is the radius and "θ" is the central angle in radians
Arc Length of a Sector in Radians
The arc length of a sector can be determined using the formula r * θ, where "r" is the radius and "θ" is the central angle in radians
Practical Applications of Circle Sectors
Importance of Sector Calculations in Geometry
Understanding the formulas for calculating the area and arc length of circle sectors is crucial in geometry
Real-World Applications of Sector Calculations
The formulas for circle sector properties have practical use in fields such as engineering, architecture, and design
Circle Sectors and Their Properties
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Circle Sector Area Formula
Area = (r^2 * θ) / 2 for radians, or Area = (π * r^2 * α) / 360 for degrees, where r is radius and θ/α is central angle.
01
Arc Length Formula
Arc Length = (r * θ) for radians, or Arc Length = (π * r * α) / 180 for degrees, where r is radius and θ/α is central angle.
02
Degrees vs. Radians
Degrees and radians are units for measuring angles; 360 degrees equals 2π radians.
