Fundamentals of Kinematics in Robotics

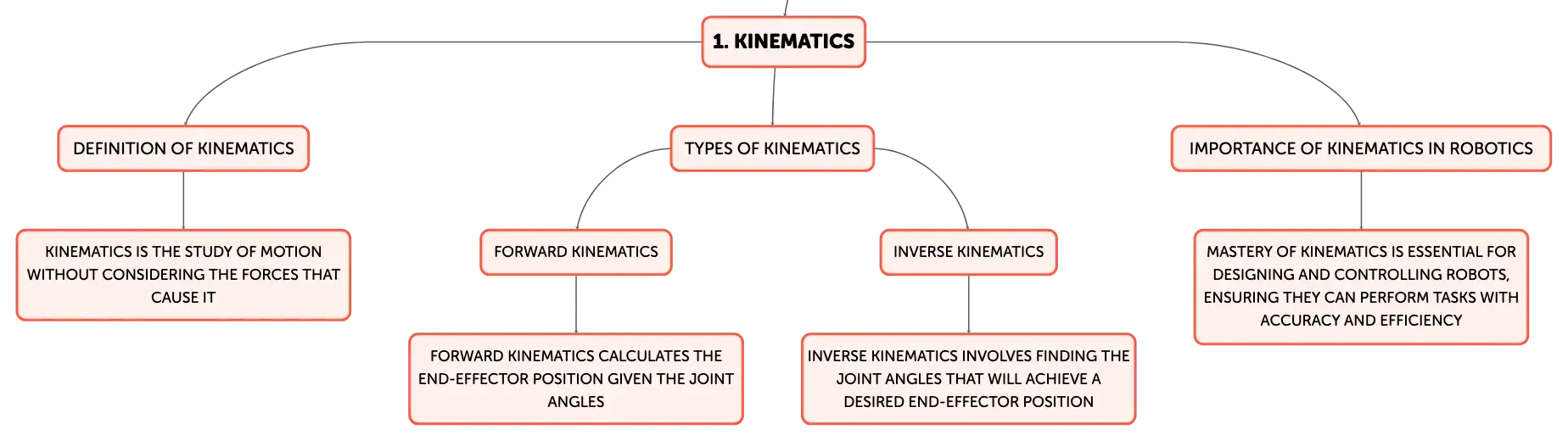

Kinematics is the study of motion without considering the forces that cause it. In robotics, kinematics equations are vital as they establish the mathematical relationship between a robot's joint parameters and the position and orientation of its end-effector. These equations enable the precise control of robotic arms and manipulators by determining how the actuation of joints leads to the desired movement of the end-effector, which is the part of the robot designed to interact with the environment. Kinematics is divided into two main types: forward kinematics, which deals with calculating the end-effector position given the joint angles, and inverse kinematics, which involves finding the joint angles that will achieve a desired end-effector position. Mastery of kinematics is essential for designing and controlling robots, ensuring they can perform tasks with accuracy and efficiency.
Articulated robotic arm in laboratory with multi-finger gripper in the foreground, metallic reflections and blurred technology background.

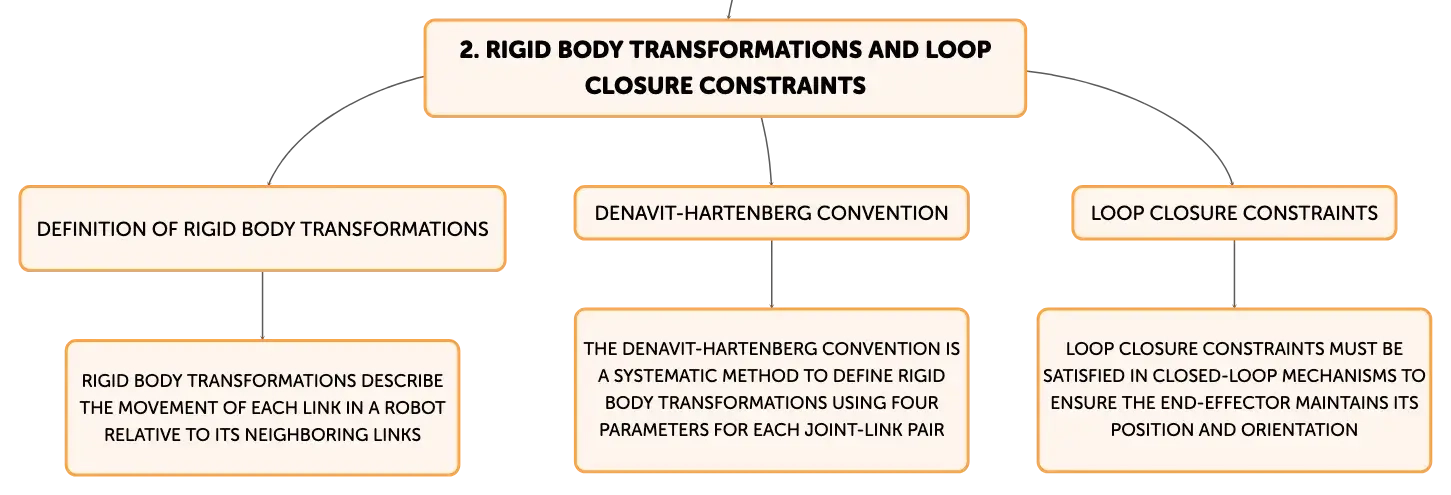

Rigid Body Transformations and Loop Closure Constraints

The derivation of kinematics equations in robotics is based on the concept of rigid body transformations, which describe the movement of each link in a robot relative to its neighboring links. These transformations are represented mathematically by matrices that encode rotations and translations in three-dimensional space. The Denavit-Hartenberg (D-H) convention is a systematic method to define these transformations using four parameters for each joint-link pair. When analyzing closed-loop mechanisms, such as parallel robots, loop closure constraints must be satisfied. This means that the kinematic chain must return to its starting point, ensuring that the end-effector maintains its position and orientation. The loop closure is mathematically represented by equating the product of all transformations in the loop to the identity matrix, indicating no net movement.

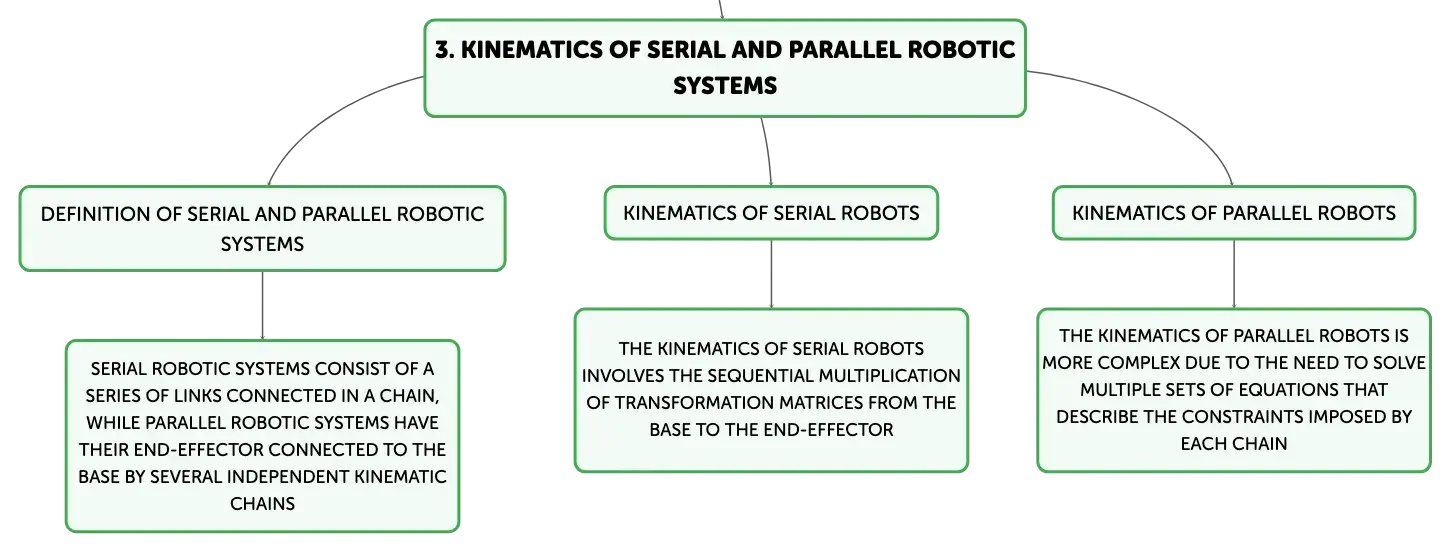

Kinematics of Serial and Parallel Robotic Systems

Serial robotic systems consist of a series of links connected in a chain, with one end fixed and the other end free to move. The kinematics of serial robots is relatively straightforward, involving the sequential multiplication of transformation matrices from the base to the end-effector. Parallel robotic systems, however, have their end-effector connected to the base by several independent kinematic chains. The kinematics of parallel robots is inherently more complex due to the need to solve multiple sets of equations that describe the constraints imposed by each chain. These systems often require advanced numerical methods for solving their kinematics due to the interdependence of the chains and the higher degree of freedom.

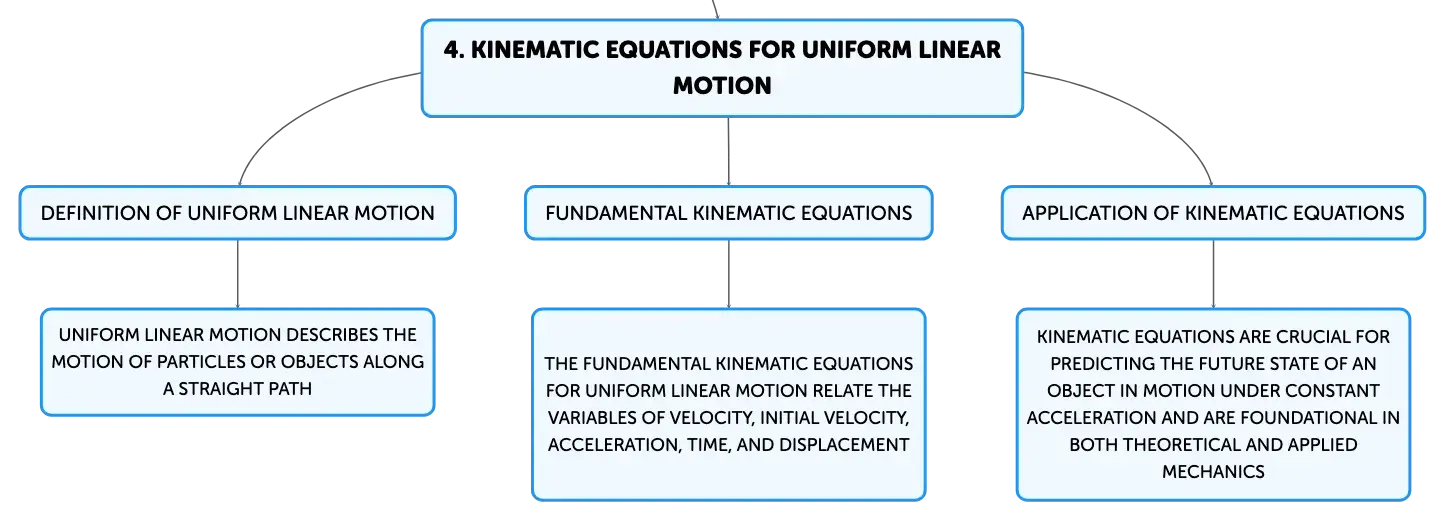

Kinematic Equations for Uniform Linear Motion

In the context of physics and engineering, kinematic equations also describe the motion of particles or objects along a straight path, known as linear motion. These equations relate the variables of velocity, initial velocity, acceleration, time, and displacement. The fundamental kinematic equations for uniform linear motion are: final velocity (v) equals initial velocity (u) plus acceleration (a) times time (t), v^2 equals u^2 plus two times acceleration (a) times displacement (s), and displacement (s) equals initial velocity (u) times time (t) plus one-half times acceleration (a) times the square of time (t^2). These equations are crucial for predicting the future state of an object in motion under constant acceleration and are foundational in both theoretical and applied mechanics.
