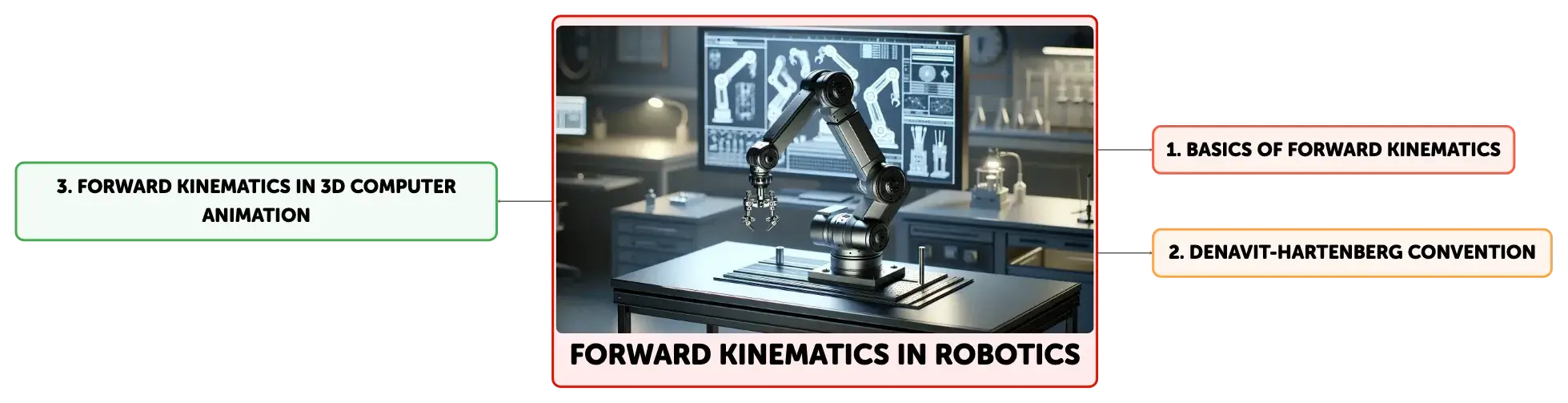

Forward Kinematics in Robotics

Forward kinematics is a fundamental concept in robotics, determining the position and orientation of a robot's end-effector based on joint parameters. It relies on mathematical transformations and the Denavit-Hartenberg convention to model robotic arms and animate characters in 3D graphics. Understanding these principles is crucial for precise control in robotics and lifelike animations in computer graphics.

See more
Open map in editor

1

4

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Definition of forward kinematics

Click to check the answer

Calculation of robot end-effector position and orientation based on joint parameters.

2

Role of joint parameters in forward kinematics

Click to check the answer

Joint angles and displacements determine the configuration of the robot's limbs.

3

Forward kinematics application in computer graphics

Click to check the answer

Used for controlling motion of characters and objects in animation.

4

The transformations in robot kinematics are represented using matrices that signify ______ and ______ in 3D space.

Click to check the answer

rotations translations

5

A robot's kinematic chain is created by sequentially multiplying transformation matrices from the ______ to the ______.

Click to check the answer

base end-effector

6

The final matrix, often symbolized as [T], captures the ______ and ______ of the end-effector relative to the robot's base frame.

Click to check the answer

position orientation

7

Denavit-Hartenberg Convention Originators

Click to check the answer

Introduced by Jacques Denavit and Richard Hartenberg in 1955.

8

D-H Parameters: Joint Angle

Click to check the answer

Represented by θ, it defines the rotation angle about the common normal axis between two links.

9

D-H Parameters: Link Length

Click to check the answer

Denoted by a, it is the distance from one joint to the next along the common normal.

10

The - parameters are essential for creating transformation matrices for a robot's ______.

Click to check the answer

Denavit-Hartenberg kinematics

11

Each joint's movement is defined by a rotation and a translation along the Z-axis, with parameters ______ and ______.

Click to check the answer

θ d

12

Each link's movement involves a rotation and a translation along the X-axis, with parameters ______ and ______.

Click to check the answer

α a

13

The overall transformation matrix that defines the end-effector's position and orientation is known as the - matrix.

Click to check the answer

Denavit-Hartenberg

14

The - matrix is crucial for systematically formulating a robot's kinematic ______.

Click to check the answer

Denavit-Hartenberg equations

15

Forward kinematics in articulated figure animation

Click to check the answer

Calculates limb positions from joint orientations without external factors like gravity.

16

Forward kinematics assumption in animation

Click to check the answer

Assumes joint angles are known, ignores external constraints such as collisions.

17

Animator control with forward kinematics

Click to check the answer

Provides precise control over character motion for detailed, lifelike animations.

18

The - convention has simplified kinematic modeling for engineers and animators.

Click to check the answer

Denavit Hartenberg

19

Forward kinematics remains crucial in the design and operation of ______ robotic systems and sophisticated animations.

Click to check the answer

advanced

20

The principles of forward kinematics are still highly relevant and widely applied in various ______.

Click to check the answer

fields

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Computer Science

Fundamentals of Inverse Kinematics

View document

Computer Science

Fundamentals of Inverse Kinematics

View document

Computer Science

Fundamentals of Kinematics in Robotics

View document

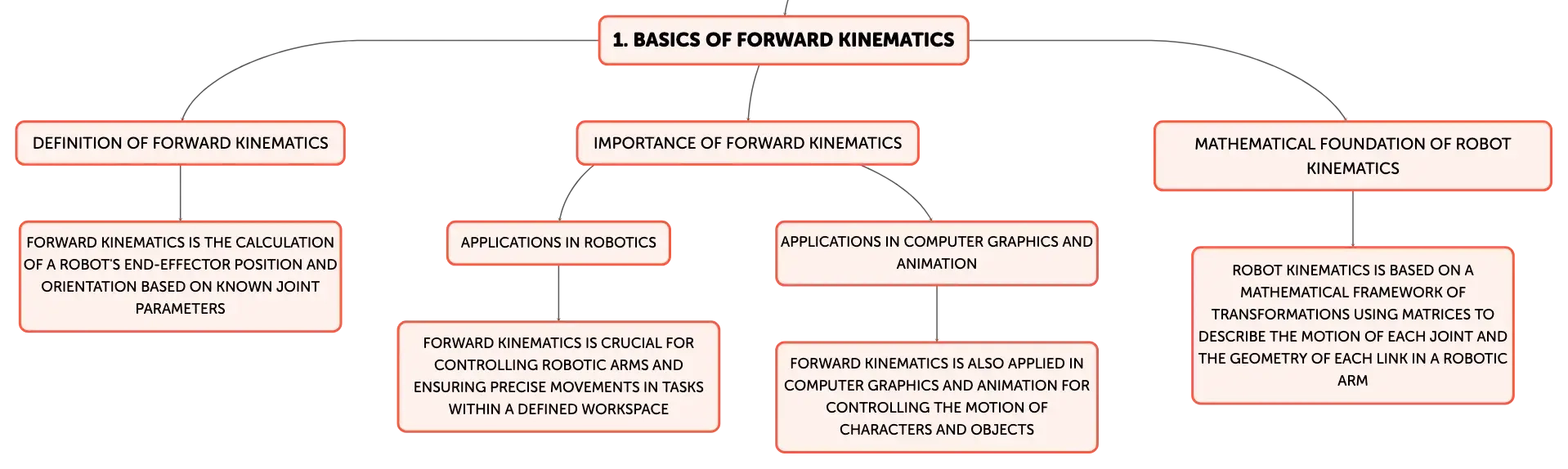

Exploring the Basics of Forward Kinematics in Robotics

Forward kinematics is an essential concept in the field of robotics, specifically in the study of robot kinematics. It involves the calculation of the position and orientation of a robot's end-effector, which is the part of the robot that interacts with the environment, such as a gripper or a tool. This calculation is based on the known values of the robot's joint parameters, including angles and displacements. Forward kinematics is crucial for controlling robotic arms and ensuring precise movements in tasks within a defined workspace. It is also applied in computer graphics and animation for controlling the motion of characters and objects.
Articulated robotic arm on workbench in laboratory with monitor showing corresponding 3D model, soft lighting and blurred background.

The Mathematical Foundation of Robot Kinematics

Robot kinematics is grounded in a mathematical framework that consists of a series of transformations, which describe the motion of each joint and the geometry of each link in a robotic arm. These transformations are expressed using matrices that represent rotations and translations in three-dimensional space. The kinematic chain of a robot is modeled by multiplying these transformation matrices in sequence, starting from the base and moving towards the end-effector. The resulting matrix, often denoted as [T], encapsulates the overall position and orientation of the end-effector in the robot's base frame.

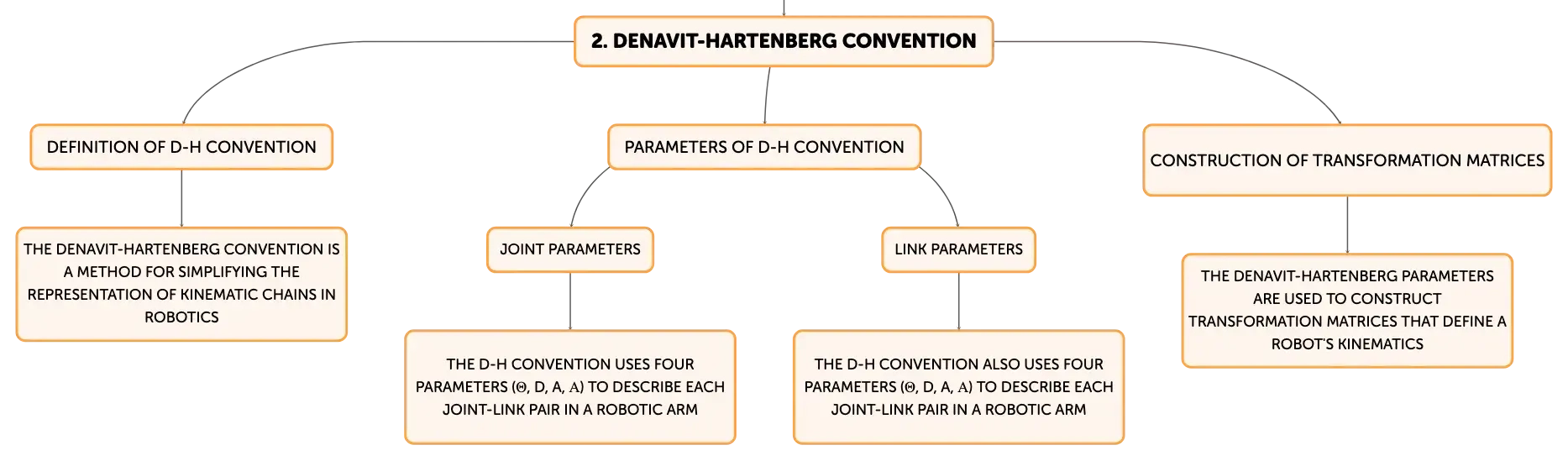

The Denavit-Hartenberg Convention in Kinematic Modeling

The Denavit-Hartenberg (D-H) convention is a widely adopted method for simplifying the representation of kinematic chains in robotics. Introduced by Jacques Denavit and Richard Hartenberg in 1955, this convention standardizes the assignment of coordinate frames to joints and links, facilitating the derivation of kinematic equations. The D-H convention uses four parameters to describe each joint-link pair: the joint angle (θ), the link offset (d), the link length (a), and the link twist (α). These parameters are essential for constructing the transformation matrices that define the spatial relationship between consecutive links in a robotic arm.

Constructing Transformation Matrices with D-H Parameters

The Denavit-Hartenberg parameters are the cornerstone for constructing the transformation matrices that define a robot's kinematics. Each joint contributes a transformation consisting of a rotation about and a translation along the Z-axis, characterized by the parameters θ and d, respectively. Similarly, each link contributes a transformation consisting of a rotation about and a translation along the X-axis, characterized by the parameters α and a, respectively. The sequential application of these transformations for each joint-link pair yields the overall transformation matrix that describes the end-effector's position and orientation. This matrix, known as the Denavit-Hartenberg matrix, provides a systematic and standardized approach to formulating a robot's kinematic equations.

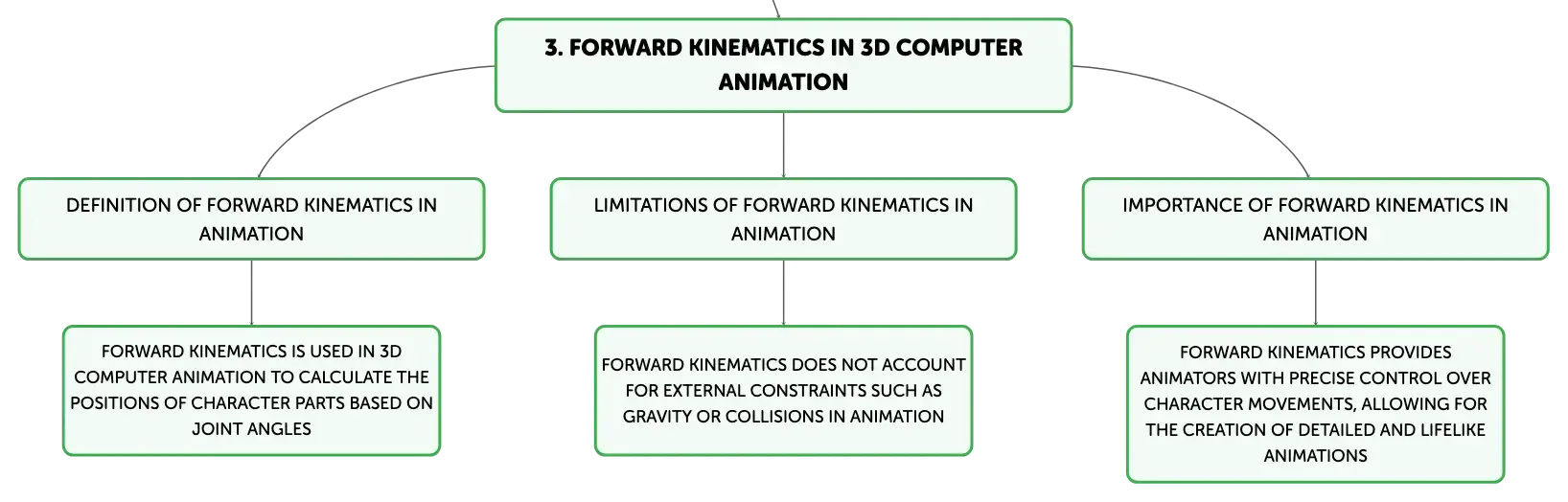

Forward Kinematics in 3D Computer Animation

Beyond robotics, forward kinematics is integral to the field of 3D computer graphics and animation. It is used to animate articulated figures by calculating the positions of limbs or other parts based on the orientations of their joints. For example, animating a character's arm involves determining the position of the hand from the known angles of the shoulder, elbow, and wrist joints. Forward kinematics operates under the assumption that joint angles are known, and it does not account for external constraints such as gravity or collisions. This approach provides animators with precise control over the motion of characters, enabling the creation of detailed and lifelike animations.

The Enduring Importance of Forward Kinematics

Forward kinematics plays a critical role in both robotics and animation, offering a mathematical and systematic way to predict the position of an end-effector or character part from joint parameters. The adoption of the Denavit-Hartenberg convention has streamlined the process of kinematic modeling, making it more accessible for engineers and animators alike. As technology progresses, the principles of forward kinematics continue to be fundamental in the design and operation of advanced robotic systems and in the production of sophisticated animations, highlighting its ongoing relevance and applicability across various fields.
