Exploring the Fundamentals of Inverse Kinematics
Inverse kinematics is a crucial computational technique in robotics and computer animation that calculates the necessary joint angles to position the end-effector of a robotic arm or the extremity of an animated character in a desired location and orientation. This process is the converse of forward kinematics, which uses known joint angles to determine the position and orientation of the end of a kinematic chain. Inverse kinematics is inherently more complex due to the need to solve for multiple possible joint configurations that can achieve the same end position, making it indispensable for precision tasks where the target position is predetermined.The Role of Inverse Kinematics in Robotic Applications
In robotics, inverse kinematics is integral for enabling robots to interact with their environment with high precision. It is used to compute the joint angles that allow a robot's end-effectors, such as grippers or tools, to reach and manipulate objects in a desired position and orientation. This capability is essential for a wide range of robotic tasks, from assembly lines to surgical procedures. By translating a motion plan into specific actuator trajectories, inverse kinematics ensures that robots can transition smoothly between configurations, optimizing their performance in complex tasks.Kinematic Analysis in the Engineering of Robots
Kinematic analysis is a foundational element in the engineering and design of robotic systems. It involves formulating and solving kinematic equations that describe the robot's configuration in terms of its joint variables. These equations are pivotal for addressing the inverse kinematics problem, which entails finding the joint angles that will produce a specified end-effector position. While some robotic structures allow for analytical solutions, many real-world applications require numerical methods, such as iterative algorithms, to handle the intricate, non-linear nature of these equations.Implementing Inverse Kinematics in 3D Animation and Gaming
Inverse kinematics is also a key component in the field of 3D animation and video game development, where it is employed to animate characters and creatures with natural and convincing movements. By using inverse kinematics, animators can focus on the desired position of limbs or other extremities, and the software calculates the appropriate joint angles to achieve that pose. This not only streamlines the animation process but also enhances the interaction of characters with their virtual environments, such as ensuring proper foot placement on uneven terrain.Techniques and Challenges in Inverse Kinematics Implementation
The implementation of inverse kinematics requires the computation of joint angles that satisfy the geometric constraints of a linked structure, facilitating the coordinated movement of its parts. For example, positioning a character's hand in a 3D model necessitates the automatic adjustment of the shoulder, elbow, and wrist joints. A significant challenge is to maintain these movements within realistic human ranges of motion. In animation, the decision to use forward or inverse kinematics is dictated by the nature of the movement; broad, sweeping actions are often better suited to forward kinematics, while precise end-effector positioning typically benefits from inverse kinematics. Contemporary animation software provides tools that allow animators to seamlessly switch between these methods, enabling the creation of more dynamic and realistic animations.
Show More

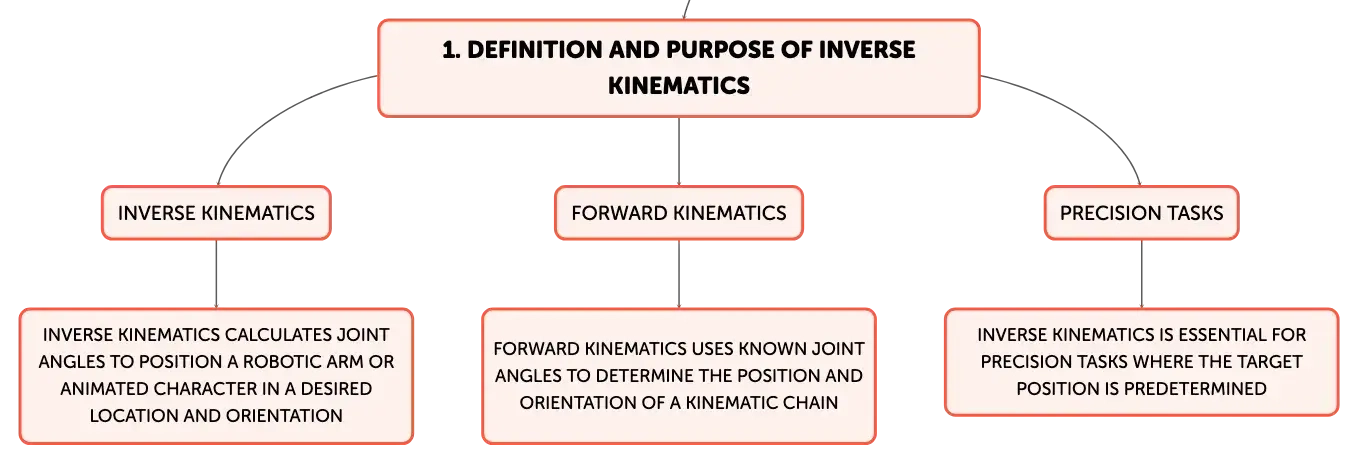

Definition and Purpose of Inverse Kinematics
Inverse Kinematics
Inverse kinematics calculates joint angles to position a robotic arm or animated character in a desired location and orientation
Forward Kinematics
Forward kinematics uses known joint angles to determine the position and orientation of a kinematic chain
Precision Tasks
Inverse kinematics is essential for precision tasks where the target position is predetermined

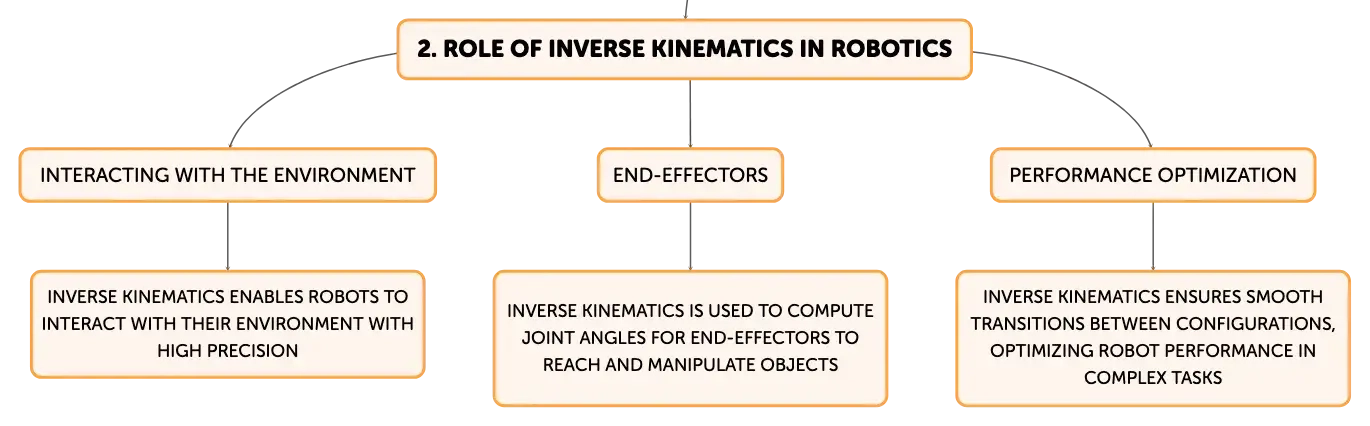

Role of Inverse Kinematics in Robotics
Interacting with the Environment
Inverse kinematics enables robots to interact with their environment with high precision
End-Effectors
Inverse kinematics is used to compute joint angles for end-effectors to reach and manipulate objects
Performance Optimization
Inverse kinematics ensures smooth transitions between configurations, optimizing robot performance in complex tasks

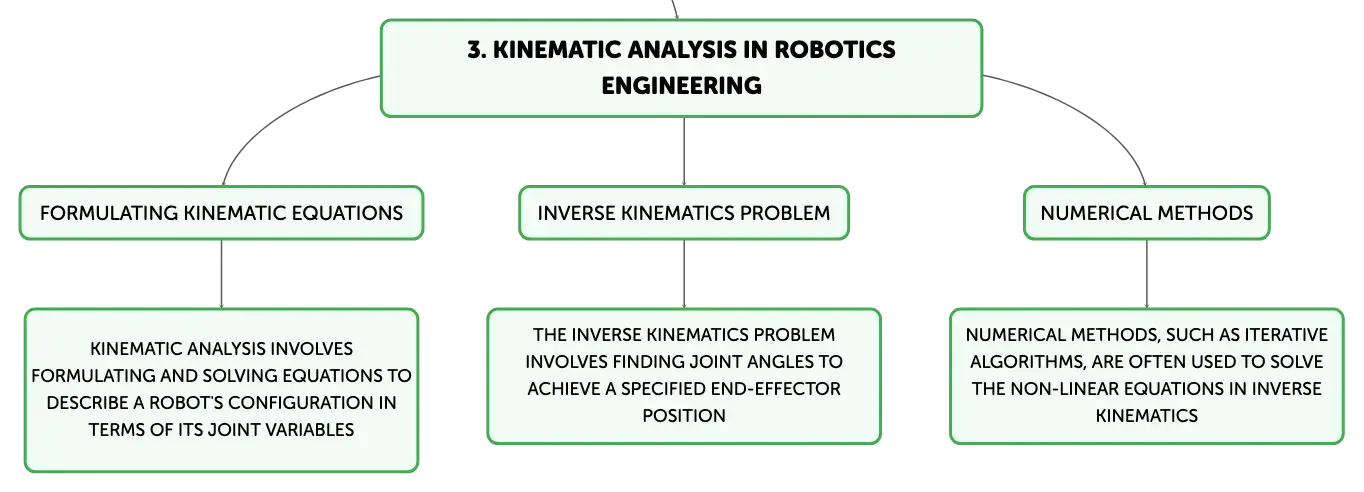

Kinematic Analysis in Robotics Engineering
Formulating Kinematic Equations
Kinematic analysis involves formulating and solving equations to describe a robot's configuration in terms of its joint variables
Inverse Kinematics Problem
The inverse kinematics problem involves finding joint angles to achieve a specified end-effector position
Numerical Methods
Numerical methods, such as iterative algorithms, are often used to solve the non-linear equations in inverse kinematics

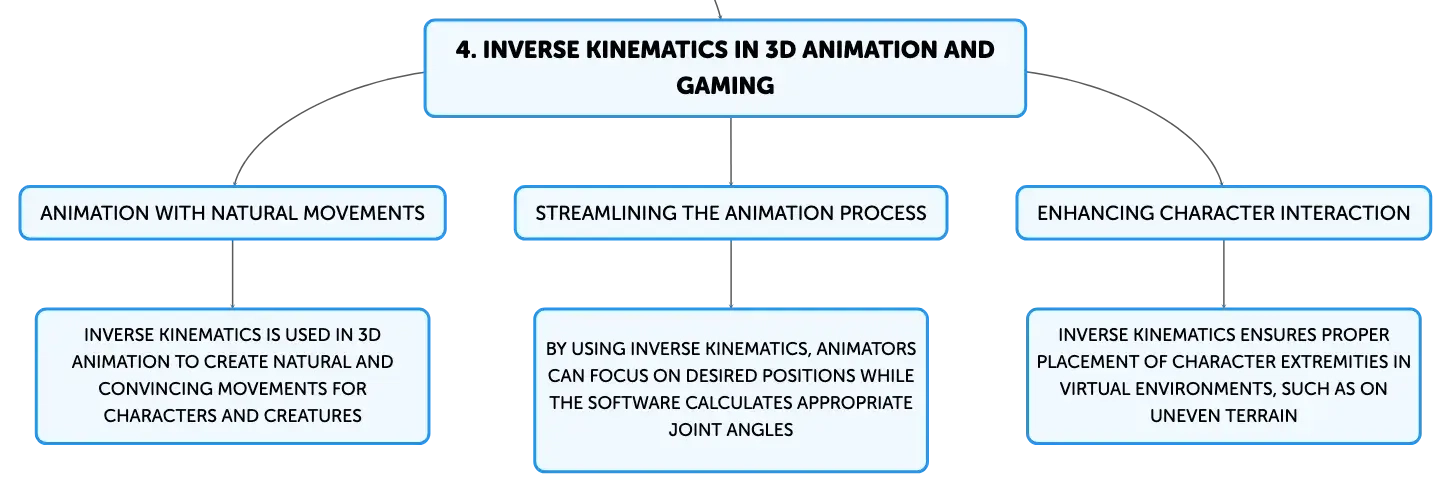

Inverse Kinematics in 3D Animation and Gaming
