Exploring the Fundamentals of Inverse Kinematics in Robotics

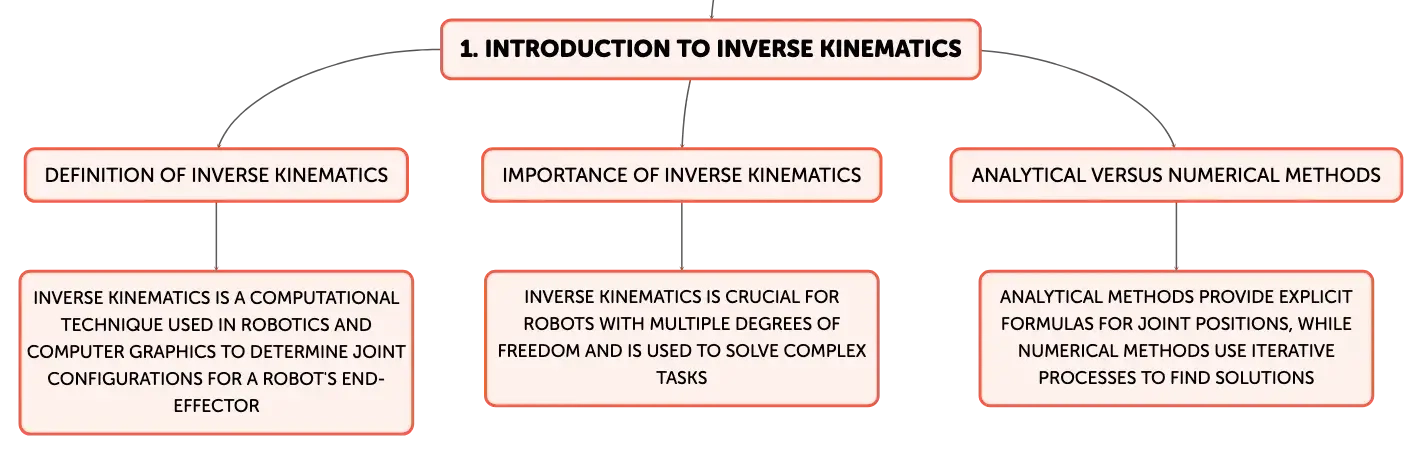

Inverse kinematics (IK) is an essential computational technique in robotics and computer graphics that determines the necessary joint configurations for a robot's end-effector to reach a specific position and orientation in space. This is particularly crucial for robots with multiple degrees of freedom (DoF), such as a 6-DoF robot with six revolute joints capable of moving in three-dimensional space, encompassing three positional and three rotational degrees of freedom. When a robot possesses more DoF than the task requires, for example, a 7-DoF robot, the IK problem may have an infinite number of solutions, and an analytical solution—a closed-form equation that directly relates the end-effector pose to joint positions—may not be possible. In such scenarios, numerical methods are employed to iteratively find a solution that satisfies additional constraints or optimizes certain criteria.

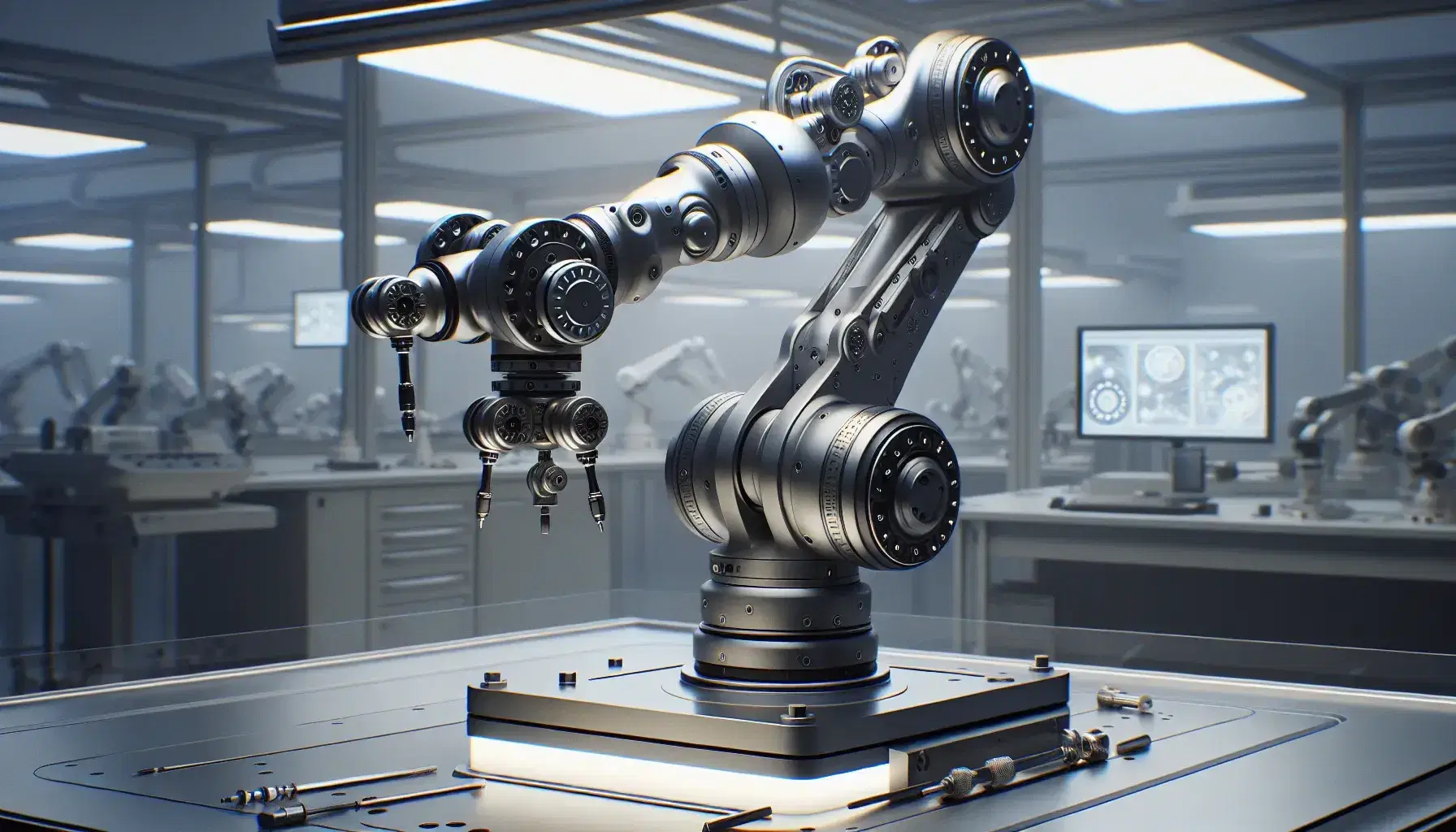

Articulated robotic arm on laboratory workbench, with multi-finger gripper ready to manipulate various mechanical components.

Analytical Versus Numerical Methods in Inverse Kinematics

Analytical solutions to inverse kinematics provide explicit formulas to compute joint positions from the end-effector's pose, expressed as \(q = f(x)\), where \(q\) represents the joint variables and \(x\) denotes the end-effector pose. These solutions are generally faster and can offer a finite set of solutions for a given pose. However, they are not always available for complex robotic systems. Numerical methods, on the other hand, can address more intricate kinematic structures by iteratively optimizing the joint variables to achieve the desired end-effector pose. These methods are adaptable to various constraints and are essential for dynamic applications requiring continuous IK problem-solving, such as in real-time control systems. Despite their versatility, numerical methods may produce less smooth transitions between joint configurations, potentially leading to instability in some robotic applications.

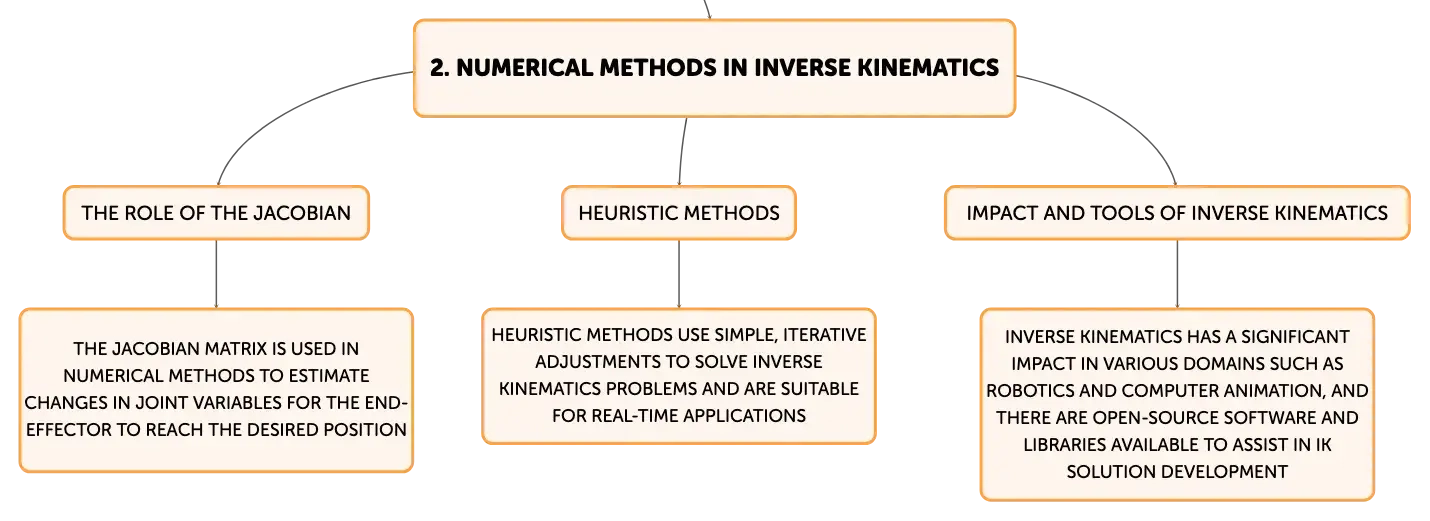

The Role of the Jacobian in Numerical Inverse Kinematics

The Jacobian inverse technique is a prominent numerical method for solving inverse kinematics problems. It utilizes an iterative approach, adjusting the robot's joint angles to reduce the discrepancy between the current and desired end-effector positions. The Jacobian matrix, which contains the partial derivatives of the end-effector's position with respect to the joint angles, is central to this method. By computing the Moore-Penrose pseudoinverse of the Jacobian, the method estimates the necessary changes in joint variables to move the end-effector towards the target. This iterative process, often employing the Newton-Raphson method, continues until the error is within an acceptable range. While generally effective, this method may require multiple iterations for convergence, and in some cases, methods utilizing the Hessian matrix or other optimization techniques may converge more rapidly.

Heuristic Methods for Solving Inverse Kinematics

Heuristic methods provide alternative strategies for solving inverse kinematics problems through simple, iterative adjustments of the robot's joints to align the end-effector with the target pose. These methods are known for their computational efficiency and suitability for real-time applications. They also accommodate joint constraints, ensuring the robot's movements remain within physically feasible limits. Notable heuristic algorithms include cyclic coordinate descent (CCD) and forward and backward reaching inverse kinematics (FABRIK). CCD sequentially adjusts each joint in a loop until the end-effector position converges to the target, whereas FABRIK alternates between forward and backward adjustments along the joint chain to iteratively refine their positions.

The Impact and Tools of Inverse Kinematics in Various Domains

Inverse kinematics is a pivotal component in diverse areas such as robotics, computer animation, and virtual reality, enabling the generation of lifelike movements for both virtual characters and physical machines. To support IK solution development, a variety of open-source software and libraries are available, including IKFast and the Inverse Kinematics Library, which implement efficient algorithms to address IK challenges. Despite the inherent difficulties, such as the potential for discontinuous solutions and the increased complexity with higher degrees of freedom, these tools offer invaluable assistance to researchers and industry professionals, facilitating advancements in the field and the practical application of inverse kinematics in real-world scenarios.
