Kinematics and Calculus in Classical Mechanics

Graphical Interpretation of Motion

Kinematic equations can be represented graphically, providing a visual interpretation of motion. Displacement-time graphs show how an object's position changes over time, while velocity-time graphs depict changes in an object's speed and direction. Acceleration-time graphs illustrate how an object's velocity changes. The slope of a displacement-time graph represents velocity, and the slope of a velocity-time graph represents acceleration. The area under a velocity-time graph corresponds to displacement, and the area under an acceleration-time graph corresponds to the change in velocity. These graphical representations are essential tools for analyzing and understanding the motion of objects.

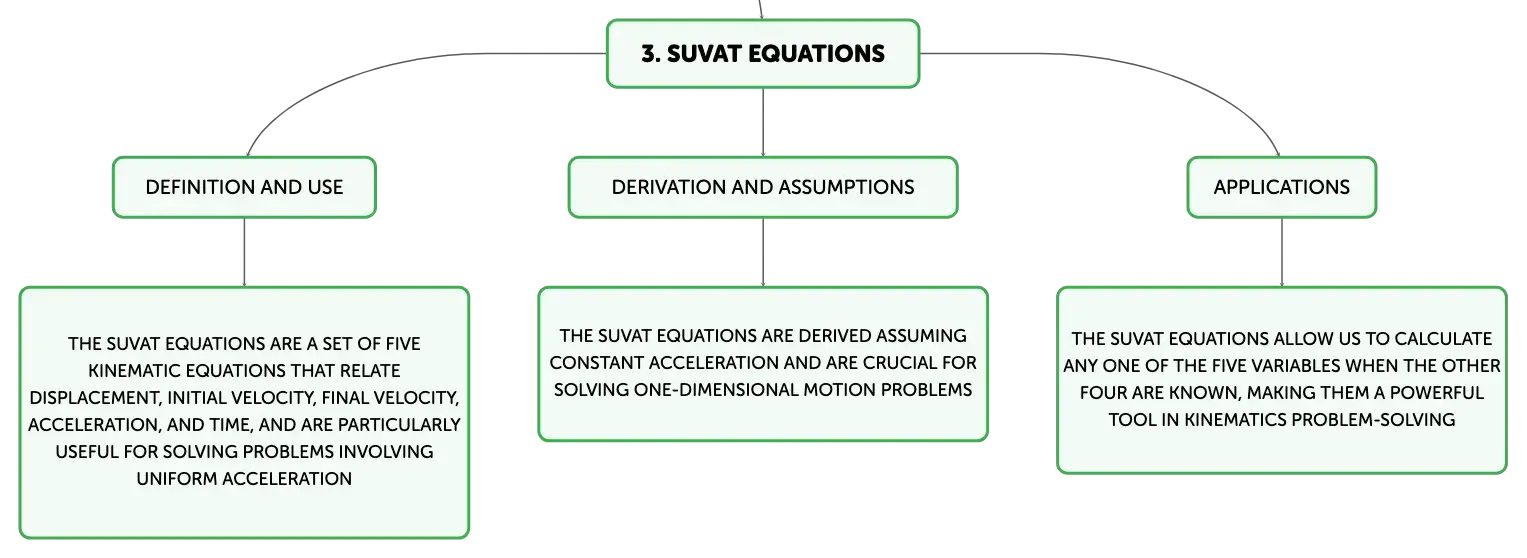

Simplifying Motion with Constant Acceleration: The SUVAT Equations

For uniformly accelerated motion, the SUVAT equations provide a set of five kinematic equations that relate displacement (s), initial velocity (u), final velocity (v), acceleration (a), and time (t). These equations are derived assuming constant acceleration and are particularly useful for solving problems in one-dimensional motion. They enable us to calculate any one of these variables when the other four are known. For example, the equation \( s = ut + \frac{1}{2}at^2 \) allows us to find the displacement of an object when the initial velocity, acceleration, and time are given. Mastery of these equations is crucial for students to solve a wide range of problems in kinematics.

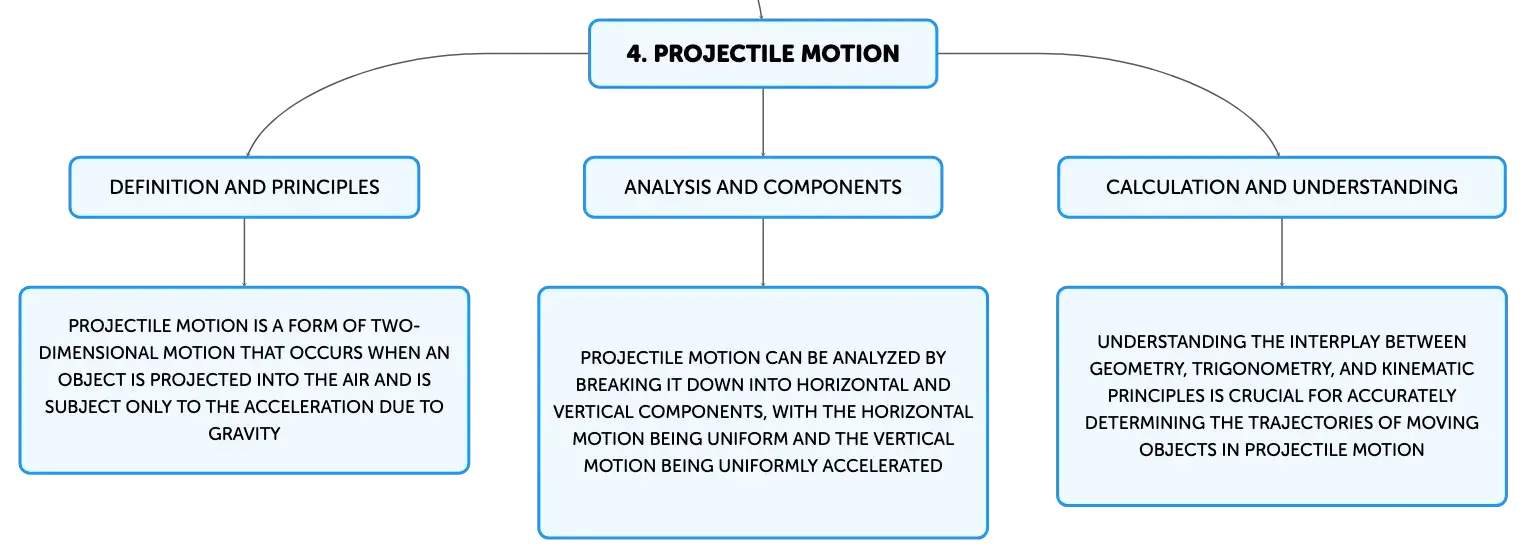

Analyzing Projectile Motion in Two Dimensions

Projectile motion is a form of two-dimensional motion that occurs when an object is projected into the air and is subject only to the acceleration due to gravity. The motion can be analyzed by breaking it down into horizontal and vertical components, assuming that the only acceleration is vertical and due to gravity. The horizontal motion is uniform, as there is no horizontal acceleration, while the vertical motion is uniformly accelerated. The initial velocity of the projectile is resolved into horizontal and vertical components using trigonometry. The SUVAT equations are then applied separately to each component to determine the time of flight, maximum height, and range of the projectile. Understanding projectile motion is essential for students to grasp the principles of two-dimensional kinematics.

Concluding Insights on Kinematics

Kinematics is a foundational concept in physics that enables the analysis of motion in a variety of contexts. It is important to recognize that while the acceleration due to gravity near the Earth's surface is approximately 9.8 m/s², it is often approximated as 10 m/s² for simplicity in calculations. Calculus is a vital tool in kinematics for handling non-uniform motion, while the SUVAT equations are particularly useful for problems involving uniform acceleration. In two-dimensional kinematics, such as projectile motion, understanding the interplay between geometry, trigonometry, and kinematic principles is crucial for accurately determining the trajectories of moving objects.
