Differential Amplifiers
Concept Map
Differential amplifiers play a crucial role in electronic circuits, amplifying voltage differences while rejecting common-mode noise. They are essential in applications like audio electronics, signal processing, and precision measurement systems. Understanding their gain characteristics, types such as Op-Amp, BJT, and MOSFET, and the operating principle is vital for electronic design and signal integrity.
Summary
Outline
Fundamentals of Differential Amplifiers
Differential amplifiers are integral components in electronic circuits, designed to amplify the voltage difference between two input signals while minimizing the amplification of any voltage common to both inputs. This selective amplification is critical for eliminating noise and interference, which is often present as a common-mode signal. The effectiveness of a differential amplifier in rejecting common-mode signals is quantified by its Common-Mode Rejection Ratio (CMRR). A typical differential amplifier consists of a pair of matched transistors and a network of resistors that set the gain of the amplifier. The output voltage (\( V_{out} \)) is proportional to the difference between the input voltages (\( V_2 - V_1 \)), multiplied by the differential gain (\( A_d \)), expressed as \( V_{out} = A_d \cdot (V_2 - V_1) \).Applications of Differential Amplifiers in Electronics
Differential amplifiers are pivotal in electronic signal processing, serving as the backbone of instrumentation amplifiers, active filters, and analog computational circuits such as integrators and differentiators. Their ability to reject common-mode noise is particularly valuable in precision measurement systems, where signal integrity is paramount. In audio electronics, differential amplifiers enhance sound quality by eliminating noise that affects both input signals. Their versatility and effectiveness in improving signal-to-noise ratio make them essential in the design of analog integrated circuits, operational amplifiers, and various other applications where signal fidelity is crucial.Gain Characteristics of Differential Amplifiers
The gain (\( A_d \)) of a differential amplifier is a measure of how much the input voltage difference is amplified. It is a key parameter that depends on the circuit configuration and the values of the resistors within the amplifier. In a perfectly balanced amplifier, the gain can be simply determined by the ratio of the collector resistor (\( R_C \)) to the emitter resistor (\( R_E \)). However, real-world amplifiers may have imbalances that complicate this calculation. The gain is also affected by external factors such as temperature variations, signal frequency, load impedance, and manufacturing tolerances of the components. Understanding these influences is essential for accurately determining the amplifier's gain in practical applications.Types of Differential Amplifiers and Their Characteristics
There are several types of differential amplifiers, each with unique features suited to different applications. Operational Amplifier (Op-Amp) based differential amplifiers are renowned for their high input impedance, high voltage gain, and low output impedance, making them ideal for signal conditioning in low-noise environments. Bipolar Junction Transistor (BJT) differential amplifiers, which can be constructed with either NPN or PNP transistors, offer high input impedance and excellent common-mode rejection, and are frequently used in the input stages of op-amps. Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) differential amplifiers are characterized by their high input impedance and fast switching capabilities, which are advantageous in digital circuits and applications requiring high input impedance amplifiers.Operating Principle of Differential Amplifiers
The fundamental operating principle of differential amplifiers is to amplify the differential mode voltage (\( v_d = v_2 - v_1 \)) while rejecting the common mode voltage (\( v_c \)). This is achieved through the symmetrical design of the amplifier circuit, which ideally treats both inputs identically except for the sign of their contribution to the output. The differential-mode gain (\( A_d \)) determines how much the differential input is amplified, while the common-mode gain (\( A_c \)) is ideally zero, indicating perfect rejection of common-mode signals. The CMRR, which is the ratio of \( A_d \) to \( A_c \), is a critical specification that indicates the amplifier's ability to distinguish between desired signals and noise.Advanced Applications and Understanding of Differential Amplifiers
Differential amplifiers are employed in a multitude of applications where signal integrity is essential. They are particularly useful in environments with significant electrical noise, such as audio systems, sensor signal conditioning, and power supply regulation. These amplifiers can effectively reduce electromagnetic interference in audio applications or amplify minute sensor outputs with high precision. A deeper understanding of differential amplifiers involves complex considerations such as the precise calculation of CMRR and the analysis of differential and common-mode impedances. Mastery of these concepts is crucial for the design and optimization of differential amplifier circuits to ensure their proper function in sophisticated electronic systems.
Show More

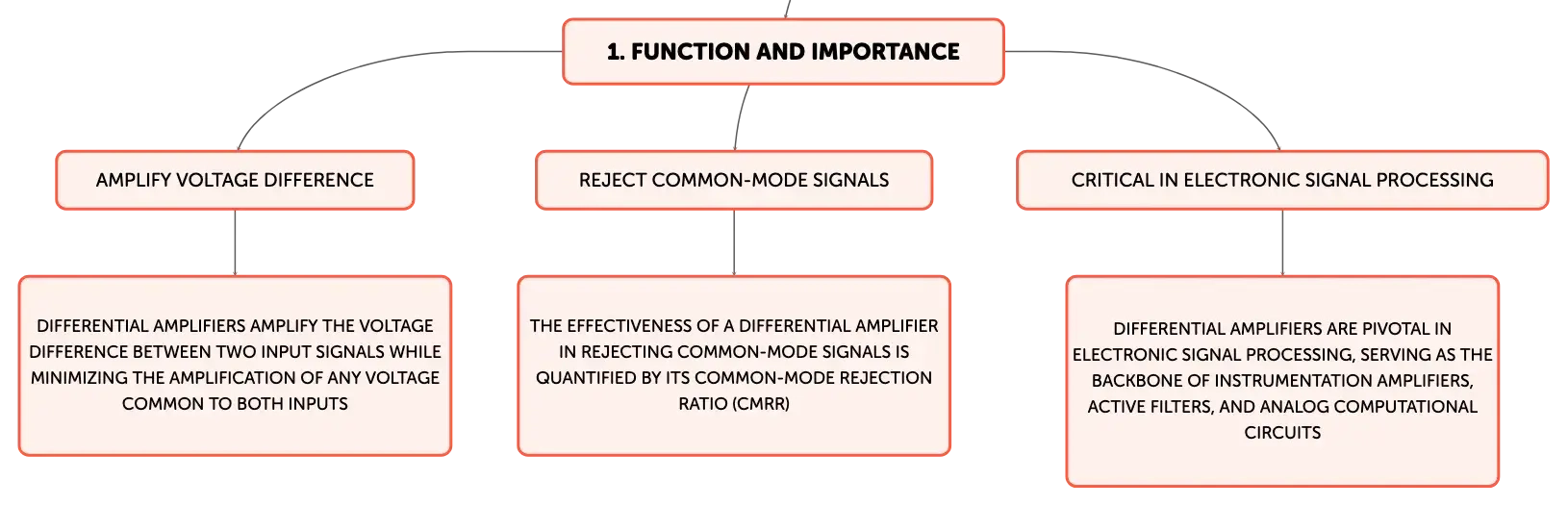

Function and Importance
Amplify voltage difference
Differential amplifiers amplify the voltage difference between two input signals while minimizing the amplification of any voltage common to both inputs
Reject common-mode signals
The effectiveness of a differential amplifier in rejecting common-mode signals is quantified by its Common-Mode Rejection Ratio (CMRR)
Critical in electronic signal processing
Differential amplifiers are pivotal in electronic signal processing, serving as the backbone of instrumentation amplifiers, active filters, and analog computational circuits

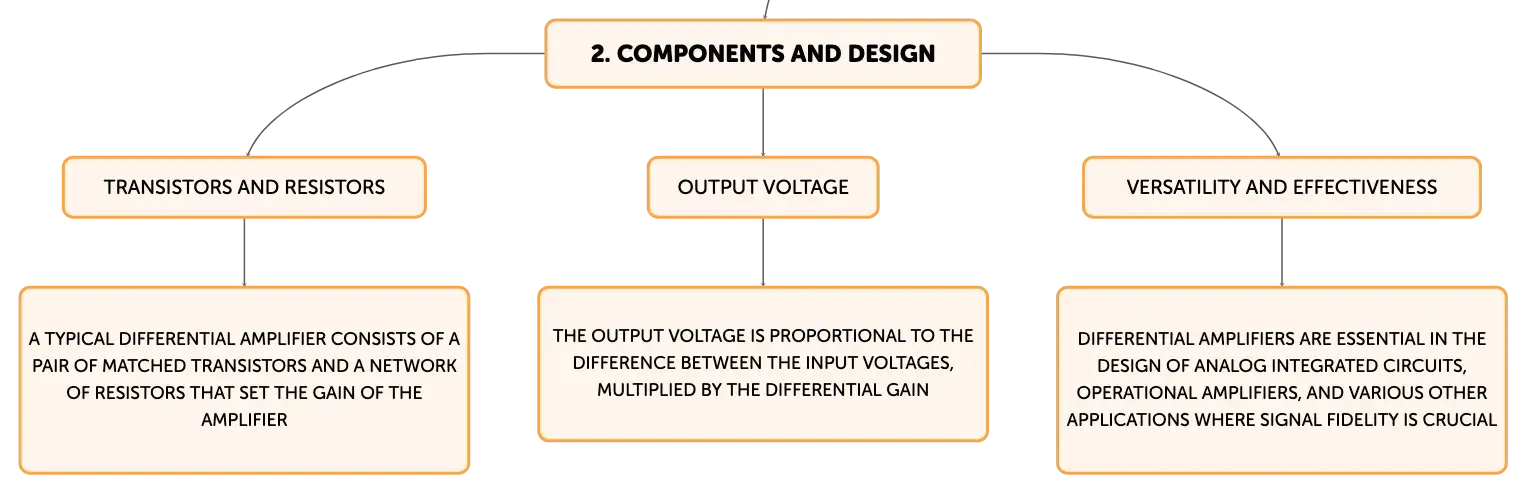

Components and Design
Transistors and resistors
A typical differential amplifier consists of a pair of matched transistors and a network of resistors that set the gain of the amplifier
Output voltage
The output voltage is proportional to the difference between the input voltages, multiplied by the differential gain
Versatility and effectiveness
Differential amplifiers are essential in the design of analog integrated circuits, operational amplifiers, and various other applications where signal fidelity is crucial
Types and Applications
Operational Amplifier (Op-Amp) based differential amplifiers
Op-Amp based differential amplifiers are renowned for their high input impedance, high voltage gain, and low output impedance, making them ideal for signal conditioning in low-noise environments
Bipolar Junction Transistor (BJT) differential amplifiers
BJT differential amplifiers offer high input impedance and excellent common-mode rejection, and are frequently used in the input stages of op-amps
Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) differential amplifiers
MOSFET differential amplifiers are characterized by their high input impedance and fast switching capabilities, which are advantageous in digital circuits and applications requiring high input impedance amplifiers
Operating Principles and Considerations
Amplification and rejection
The fundamental operating principle of differential amplifiers is to amplify the differential mode voltage while rejecting the common mode voltage
Gain and CMRR
The gain of a differential amplifier is a measure of how much the input voltage difference is amplified, and the CMRR is a critical specification that indicates the amplifier's ability to distinguish between desired signals and noise
External factors and design considerations
The gain of a differential amplifier is affected by external factors such as temperature variations, signal frequency, load impedance, and manufacturing tolerances of the components, which must be considered in the design process
Differential Amplifiers
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Differential amplifiers are crucial for ______ the voltage difference between two inputs while reducing the amplification of shared voltage.
amplifying
01
A typical differential amplifier's output voltage is the product of the ______ gain and the difference between the two input voltages.
differential
02
Role of differential amplifiers in signal integrity
Reject common-mode noise, crucial for precision measurement systems to maintain signal fidelity.
