An ellipse is a geometric shape defined by points where the sum of distances to two foci is constant. This text delves into the properties of ellipses, including their axes, foci, and eccentricity. It explains how to derive the equation of an ellipse and discusses its reflective properties, which are utilized in acoustical engineering and optics. Understanding the geometry of ellipses is crucial for solving related mathematical problems.

Summary

Outline

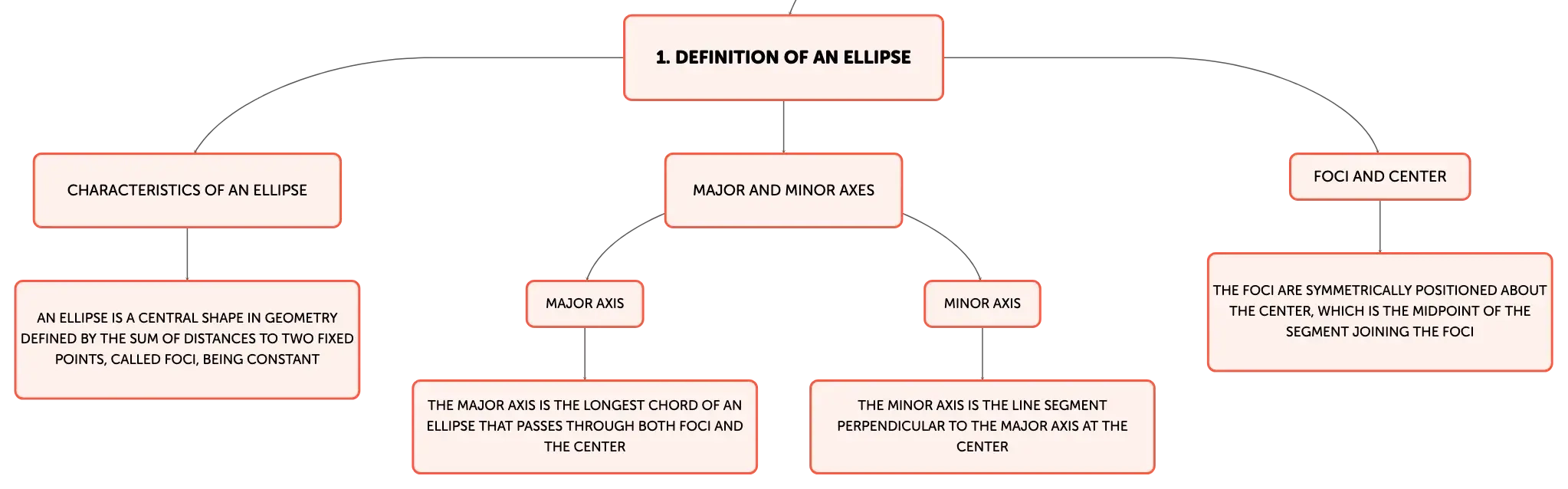

Exploring the Geometry of Ellipses

An ellipse is a central shape in geometry, characterized by its oval appearance. It is defined as the locus of points for which the sum of the distances to two fixed points, called foci, is constant. This definition underpins the distinctive properties and applications of ellipses. The major axis, the longest chord of the ellipse, passes through both foci and the center, which is equidistant from the foci. The endpoints of the major axis are the vertices, while the minor axis is the line segment perpendicular to the major axis at the center, with its endpoints called co-vertices.

Silver compass drawing an incomplete ellipse on white drafting paper, with aligned colored chalks and a glass paperweight on a matte black surface.

The Role of Foci and Center in an Ellipse

The foci are integral to the shape of an ellipse and are symmetrically positioned about the center, which is the midpoint of the segment joining the foci. The center is also the intersection of the major and minor axes, reflecting the ellipse's bilateral symmetry. The distances from any point on the ellipse to the foci are fundamental in formulating the ellipse's equation. The relative positions of the foci and the length of the major axis dictate the ellipse's eccentricity and overall dimensions.

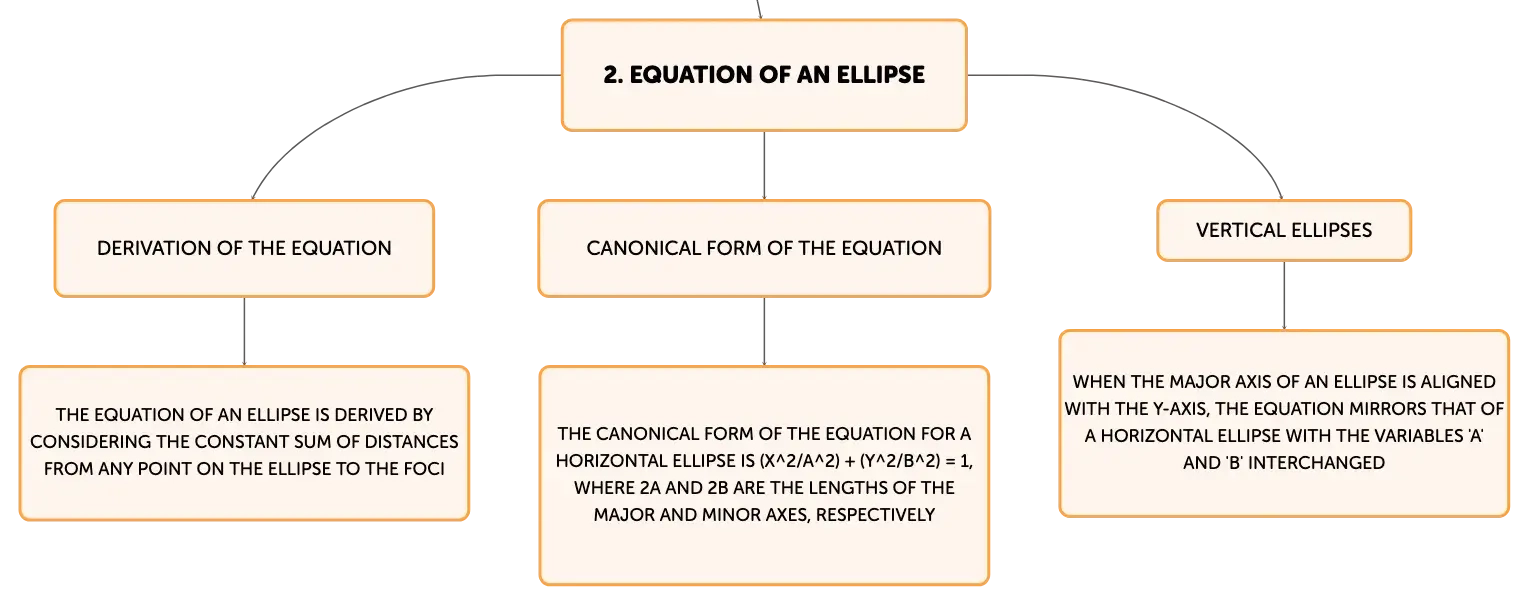

Formulating the Ellipse's Equation

The equation of an ellipse is derived by considering the constant sum of distances from any point on the ellipse to the foci. For a standard ellipse oriented along the x-axis, the foci have coordinates (-c,0) and (c,0), where c is the distance from the center to each focus. Using the distance formula and algebraic rearrangement, the canonical form of the equation for a horizontal ellipse is (x^2/a^2) + (y^2/b^2) = 1, where 2a and 2b are the lengths of the major and minor axes, respectively. The vertices are located at (±a, 0), and the ellipse intersects the y-axis at (0, ±b).

Characteristics of a Vertical Ellipse

When the major axis of an ellipse is aligned with the y-axis, the ellipse is said to be vertical. Its equation mirrors that of a horizontal ellipse, with the variables 'a' and 'b' interchanged: (x^2/b^2) + (y^2/a^2) = 1. The foci are situated at (0, ±c), and the vertices at (0, ±a). Ellipses possess reflective symmetry across both axes, which means that the equation remains valid when x and y coordinates are substituted with their opposites.

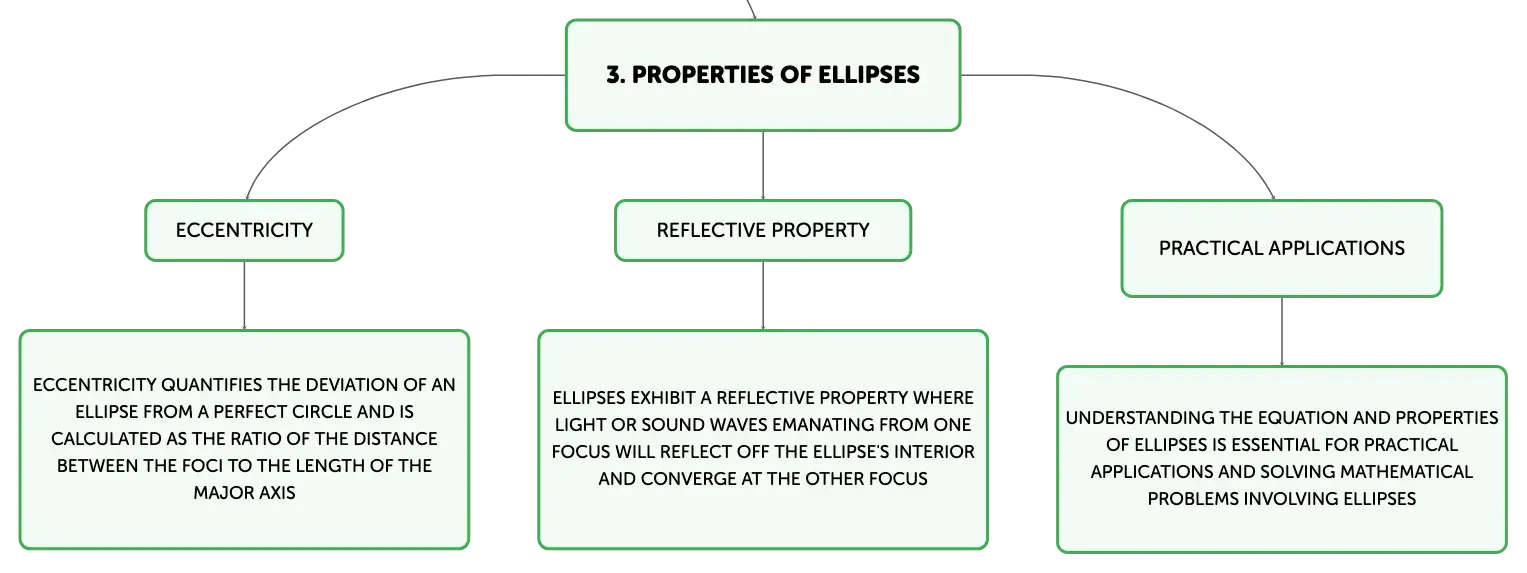

Eccentricity and Optical Properties of Ellipses

Eccentricity quantifies the deviation of an ellipse from a perfect circle and is calculated as the ratio of the distance between the foci to the length of the major axis (e = c/a). For all ellipses, the eccentricity is a positive number less than 1, with values approaching 0 indicating a more circular shape. Ellipses also exhibit a remarkable reflective property: light or sound waves emanating from one focus will reflect off the ellipse's interior and converge at the other focus. This phenomenon is exploited in acoustical engineering and optical devices.

Solving Geometric Problems with Ellipses

Addressing problems involving ellipses requires familiarity with their equations and properties. To find an ellipse's equation from its vertices and foci, one must determine the major axis's orientation and use the distances to the vertices (2a) and foci (2c) to ascertain 'a' and 'c'. Calculating the eccentricity from an ellipse's equation involves identifying 'a' and 'b' by comparing the given equation to the standard form. The lengths of the axes can be deduced from the coefficients of x^2 and y^2 in the equation.

Essential Concepts of Ellipse Geometry

In conclusion, an ellipse is a collection of points maintaining a constant sum of distances to two fixed foci. The major and minor axes determine the orientation and scale of the ellipse, with the foci and vertices aligned along the major axis. Mastery of the standard equation of an ellipse is vital for comprehending its geometry, while the eccentricity offers insights into its shape. These principles are indispensable for practical applications and for resolving mathematical challenges involving ellipses.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

The ______, which is the longest line through the center of an ellipse, connects the two points called ______, and intersects with the ______ axis at a right angle.

major axis

vertices

minor

01

Ellipse bilateral symmetry axes

Major and minor axes intersect at center, defining ellipse's symmetry.

02

Ellipse equation formulation

Sum of distances from any point on ellipse to foci equals major axis length.
