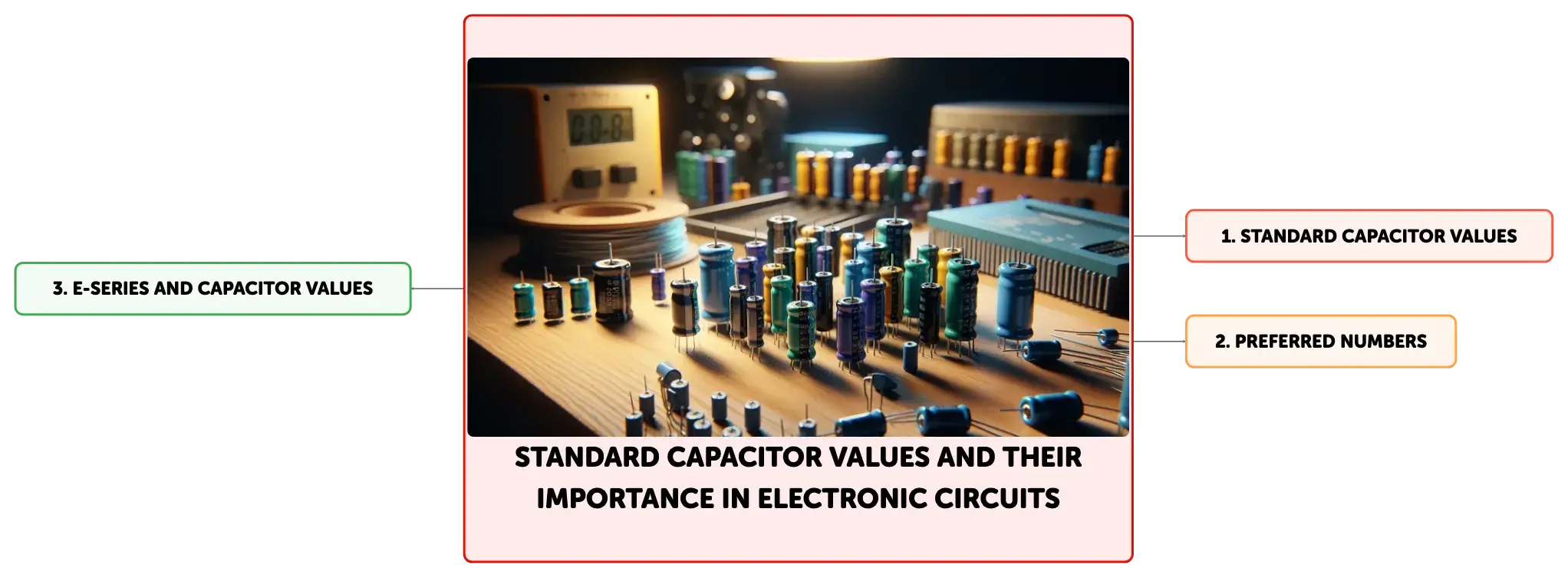

Concept Map

Understanding standard capacitor values is crucial in electronics, as they determine a circuit's functionality. The E-series, including E6, E12, E24, and E48, offers a range of values with specific tolerances, such as ±20% for E6. These values are logarithmically spaced, ensuring at least one standard value falls within the desired specification. The article explores the practical applications of these values in various electronic devices and the balance between precision and manufacturing constraints.

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

The E-series, such as E24 and E48, are established by the ______ and help standardize capacitor values.

International Electrotechnical Commission

Capacitor Tolerance Definition

Permissible deviation of actual capacitance from nominal value, expressed as a percentage.

Impact of Manufacturing on Capacitor Tolerance

Variation due to manufacturing processes; tighter tolerance equals higher cost.

Q&A

Here's a list of frequently asked questions on this topic

Standard Capacitor Values and their Importance in Electronic Circuits

Concept Map

Summary

Outline

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

The E-series, such as E24 and E48, are established by the ______ and help standardize capacitor values.

International Electrotechnical Commission

Capacitor Tolerance Definition

Permissible deviation of actual capacitance from nominal value, expressed as a percentage.

Impact of Manufacturing on Capacitor Tolerance

Variation due to manufacturing processes; tighter tolerance equals higher cost.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Explore other maps on similar topics

Modern workspace with sleek laptop, headphones, digital camera, notepad with pen, and potted plant on a desk against a neutral wall, reflecting a professional vibe.

Search Engine Optimization (SEO) Marketing

Modern minimalist office desk with a high-resolution monitor displaying a colorful abstract interface, wireless peripherals, and a potted plant.

E-procurement: Streamlining the Procurement Process

Modern computer monitor displaying colorful graphs, with a wireless mouse on the left and a black keyboard on the right, framed by a user's hands poised to type.

Behavioral Targeting

Can't find what you were looking for?

Search for a topic by entering a phrase or keyword

Understanding Standard Capacitor Values in Electronics

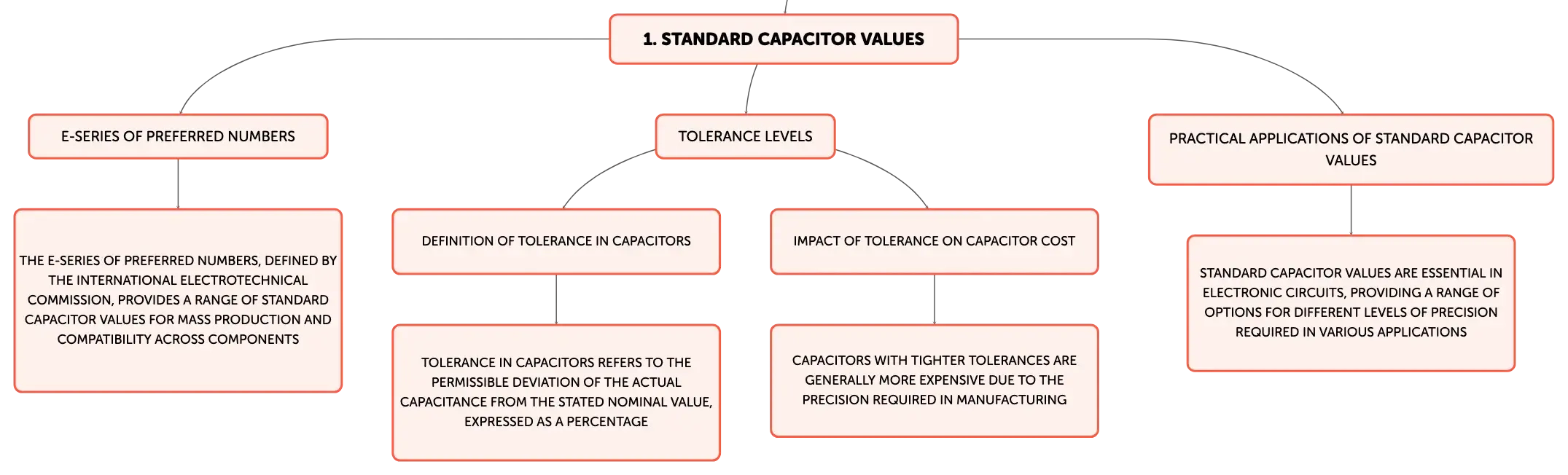

Capacitors are essential components in electronic circuits, with their values determining their role in circuit functionality. Standard capacitor values are provided by manufacturers in series such as E6, E12, E24, and E48, which are part of the E-series of preferred numbers defined by the International Electrotechnical Commission (IEC). These standardized values facilitate mass production and ensure compatibility across different components. Each series has a designated tolerance level, with E6 capacitors having a tolerance of ±20%, E12 capacitors having ±10%, and so on. The values in each series are logarithmically spaced to ensure that at least one standard value falls within the desired specification when accounting for tolerance.

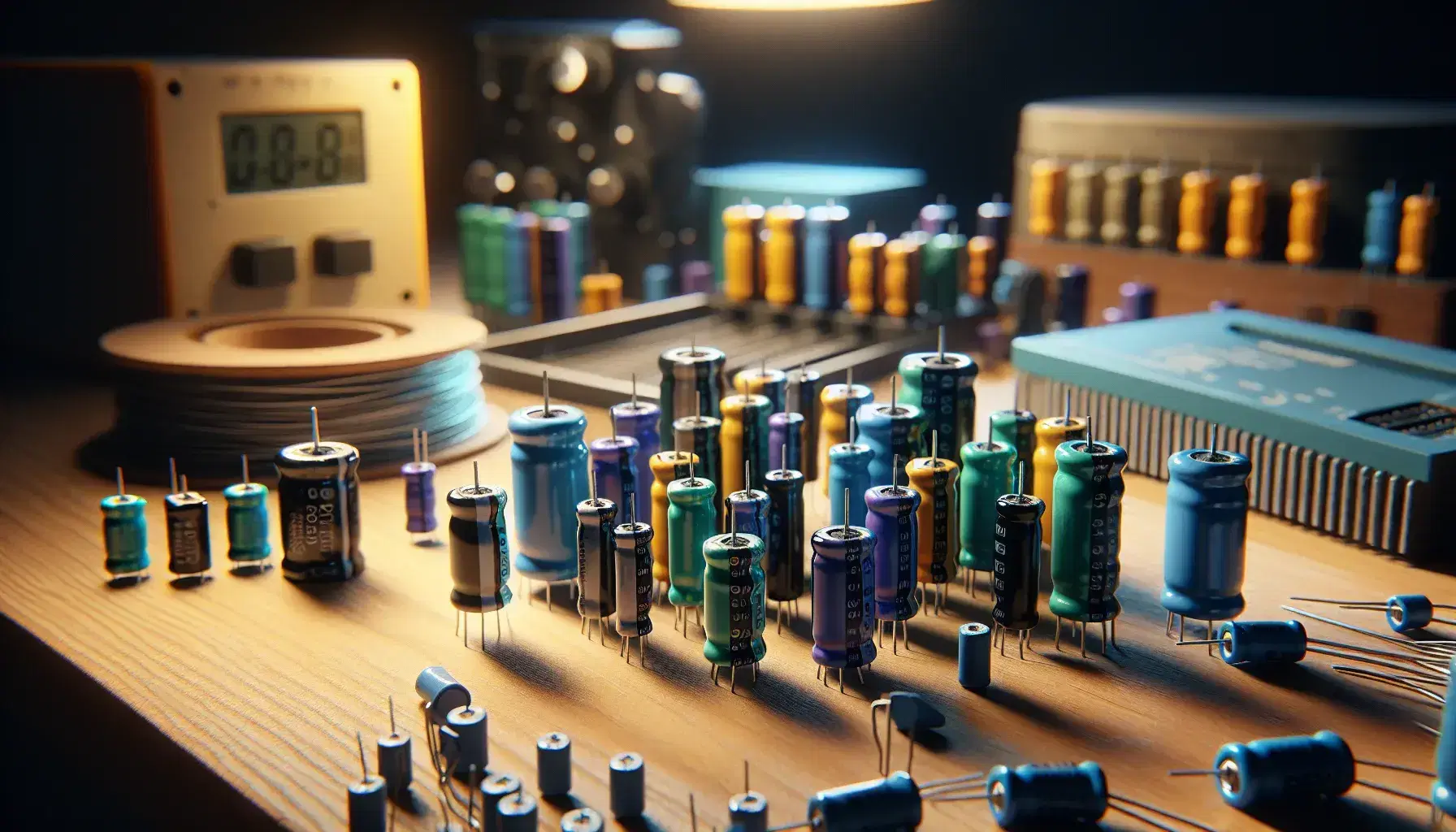

Assorted capacitors on a wooden workbench with cylindrical and box types in blue, green, black, and yellow, alongside out-of-focus soldering tools.

The Significance of Tolerance in Capacitor Values

Tolerance in capacitors indicates the permissible deviation of the actual capacitance from the stated nominal value, typically expressed as a percentage (e.g., ±10%, ±20%). This variation is a result of manufacturing processes, and capacitors with tighter tolerances are generally more expensive. The E-series of standard values is designed with tolerance in mind, ensuring that each series can cater to different levels of precision required by various applications. For example, the E6 series is suitable for applications where a 20% variance is acceptable, while the E12 series is appropriate for circuits that require a 10% variance. This system guarantees the availability of a standard capacitor value within an acceptable range for any given application, thus avoiding the need for an excessively detailed range of values.

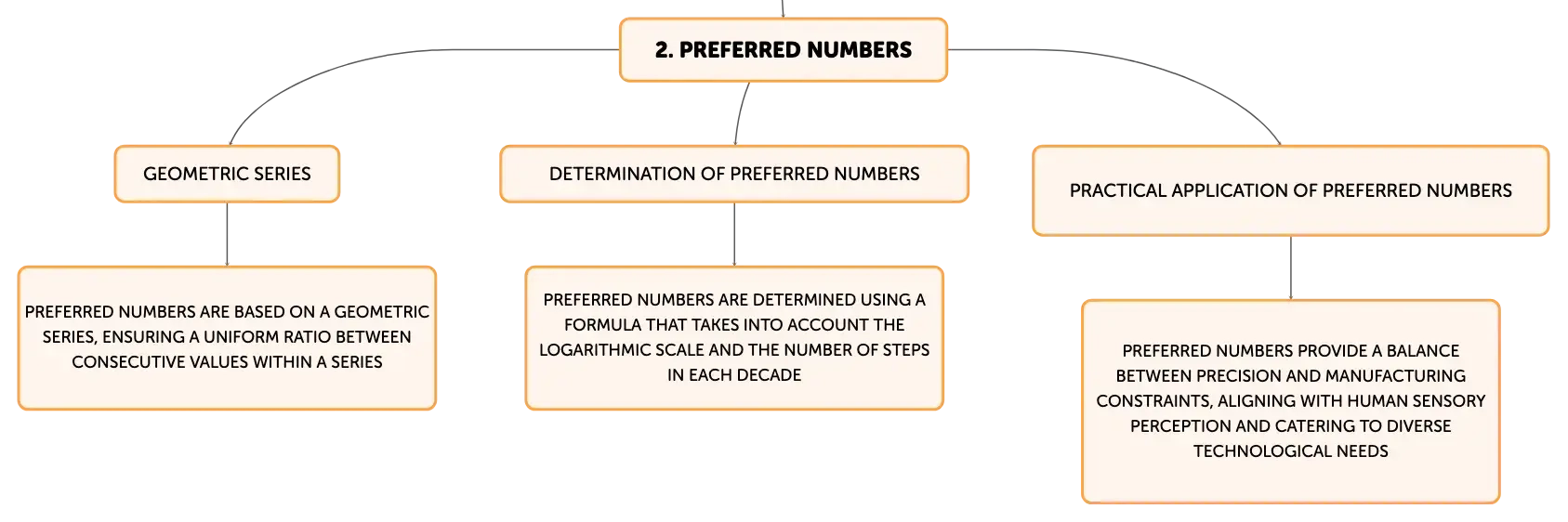

Preferred Numbers and Their Role in Standard Capacitor Values

Preferred numbers play a pivotal role in the establishment of standard capacitor values. These numbers are based on a geometric series, which ensures a uniform ratio between consecutive values within a series. For instance, the ratio is approximately 1.26 for the E6 series and 1.20 for the E12 series. Preferred numbers are determined using a formula that takes into account the logarithmic scale and the number of steps in each decade. This systematic selection of values aligns with the logarithmic nature of human sensory perception and provides a practical balance between the need for precision and manufacturing constraints.

Practical Applications and Examples of Standard Capacitor Values

The practicality of standard capacitor values is evident in various electronic applications. For example, in an electronic clock circuit, a capacitor with a precise value is necessary to maintain the correct timing frequency. If the exact value is not available, a standard value within the tolerance range can be substituted. For instance, if a circuit requires a 27μF capacitor and the E6 series does not offer this value, a 22μF or 33μF capacitor might be used instead, given the 20% tolerance. In precision-dependent applications, such as medical equipment, the E96 or E192 series may provide a closer match to specific requirements, showcasing the adaptability of the E-series to diverse technological needs.

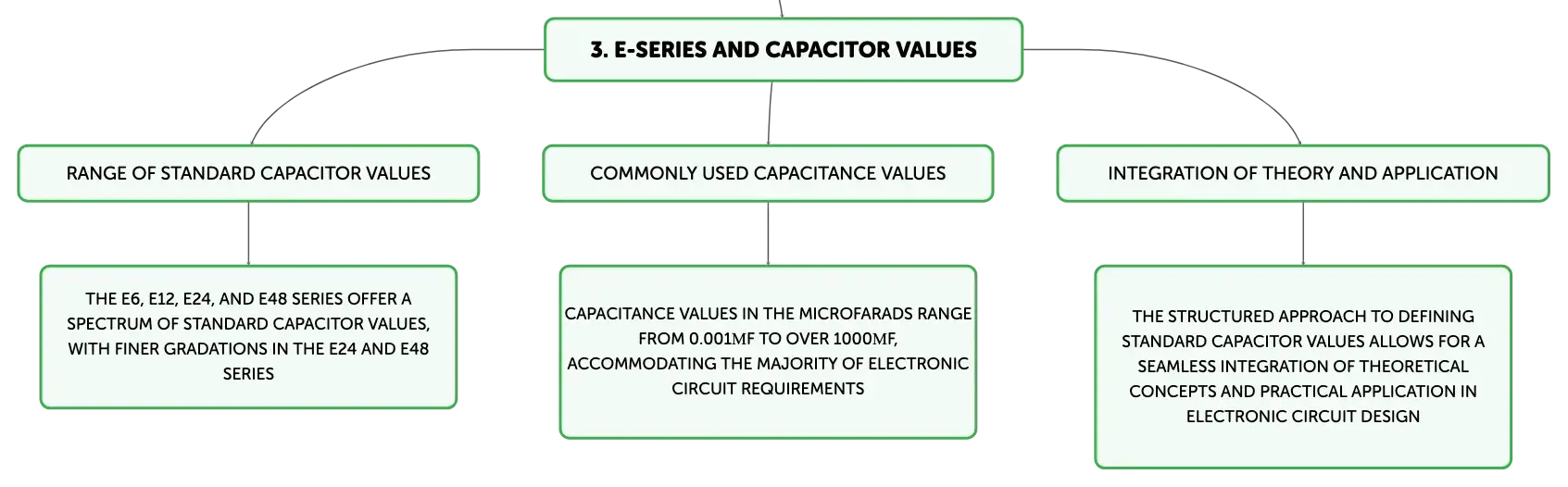

Comprehensive Listing of Standard Capacitor Values

The E-series of preferred numbers specifies the range of standard capacitor values available. These values are logically sequenced in multiples of ten, with the E6, E12, E24, and E48 series offering a spectrum of values for various tolerance levels. For instance, the E6 series includes 10, 15, 22, 33, 47, and 68, while the E12 series adds 12, 18, 27, 39, 56, and 82. The E24 and E48 series provide even finer gradations. Commonly used capacitance values in microfarads (μF) range from 0.001μF to over 1000μF, accommodating the majority of electronic circuit requirements.

The Interplay of Theory and Practice in Standard Capacitor Values

The theoretical underpinnings of standard capacitor values are seamlessly integrated with practical application. The structured approach to defining these values addresses a wide array of scenarios without an excessive number of variants, streamlining the design process and enabling manufacturers to balance precision with cost and utility. The synthesis of preferred numbers and tolerance considerations creates a framework that facilitates the transition from basic electronic principles to sophisticated circuit design, ensuring that theoretical concepts are effectively applied in real-world scenarios.
