Difference Amplifiers

The Functionality of Difference Amplifiers in Electronic Circuits

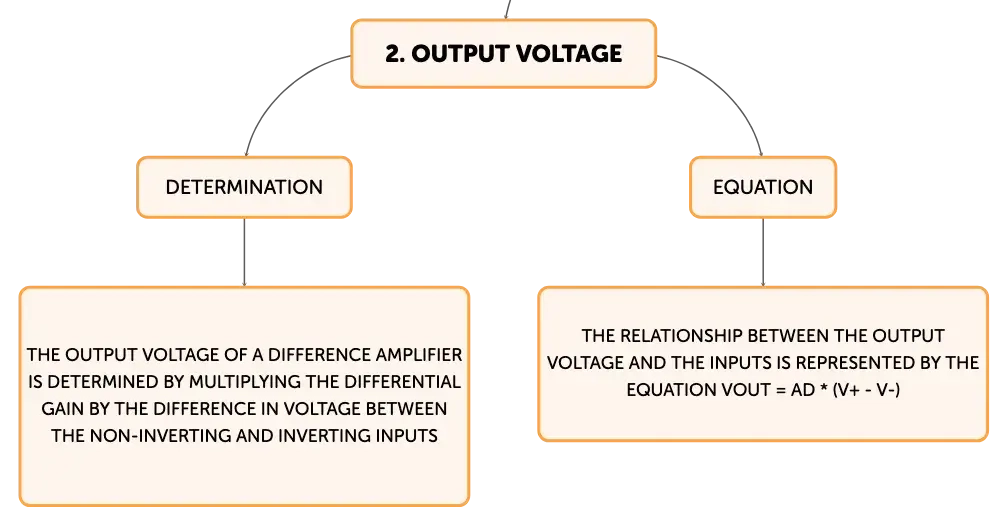

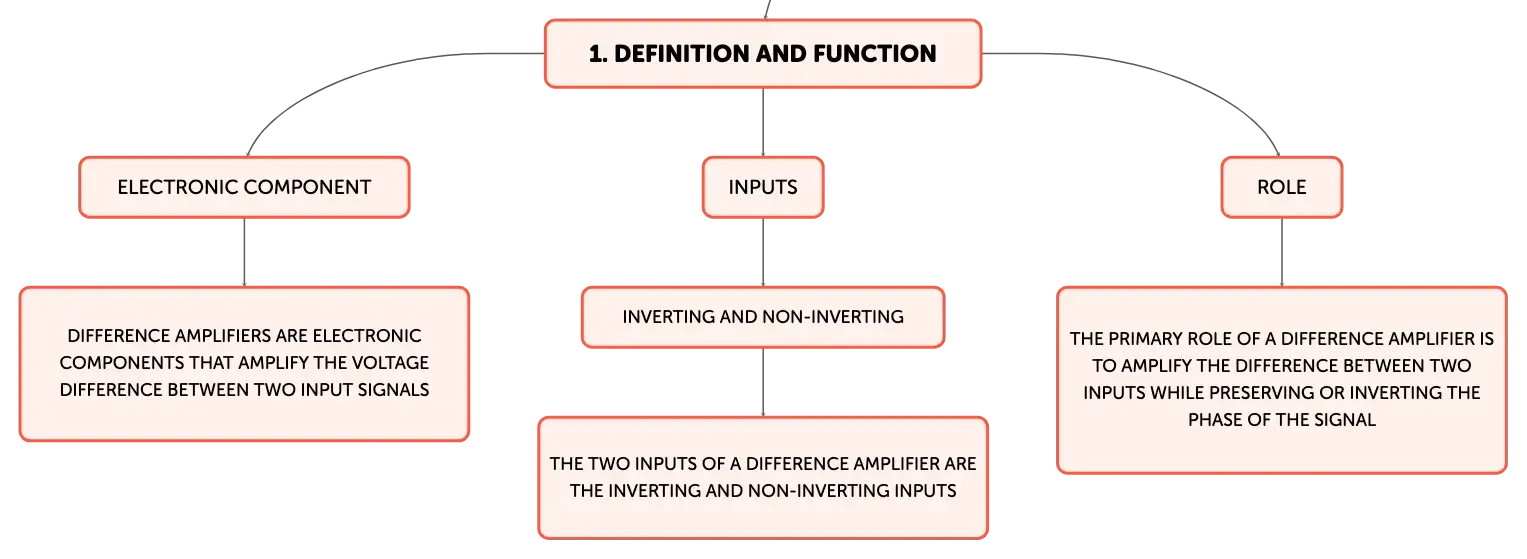

Difference amplifiers are a type of electronic component that amplify the voltage difference between two input signals. They are composed of two inputs: the inverting (−) and the non-inverting (+). The primary role of a difference amplifier is to amplify the difference between these inputs while either preserving or inverting the phase of the signal. The output voltage (\(V_{\text{out}}\)) is determined by multiplying the differential gain (\(A_d\)) by the difference in voltage between the non-inverting (\(V_+\)) and inverting (\(V_-\)) inputs. This relationship is crucial to understanding difference amplifiers and is represented by the equation \(V_{\text{out}} = A_d \cdot (V_+ - V_-)\).

Diverse Applications of Difference Amplifiers

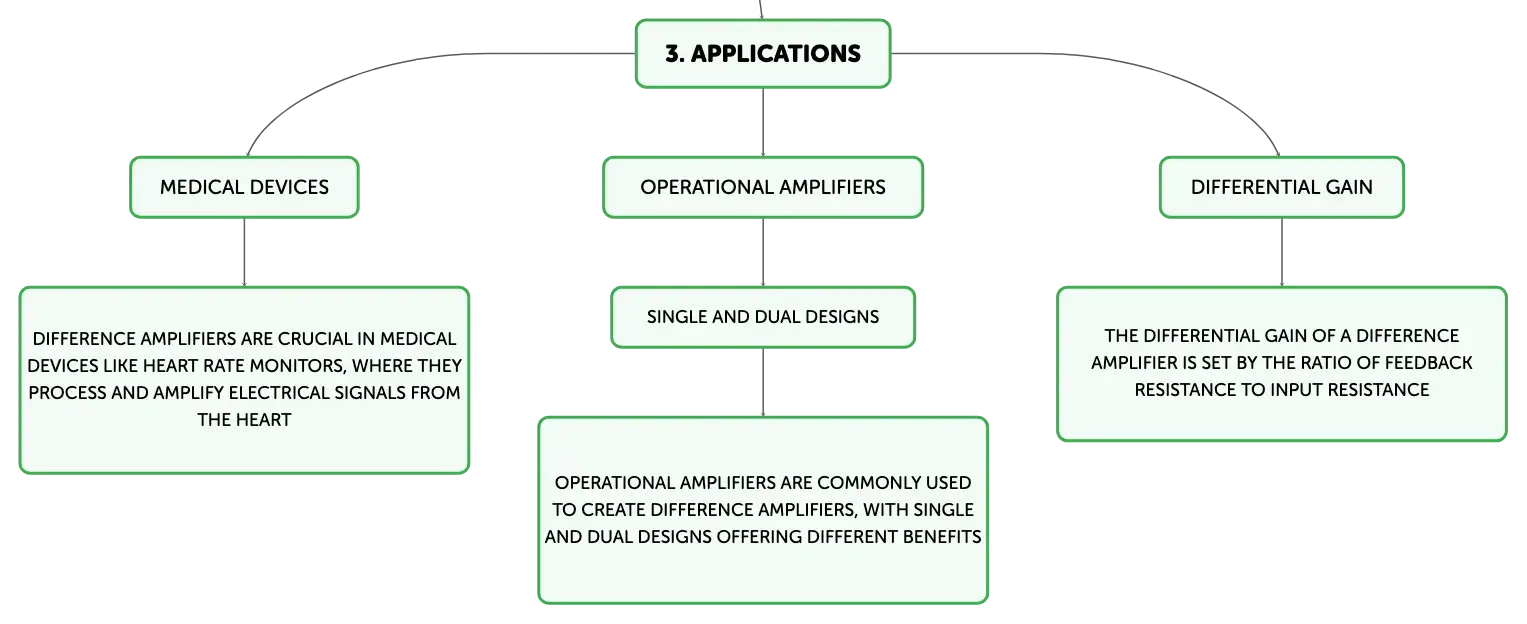

Difference amplifiers fulfill several roles in electronic systems, such as isolating signals, amplifying voltage differences, converting differential signals to single-ended outputs, and filtering unwanted frequencies. These capabilities are vital in medical devices like heart rate monitors, which rely on difference amplifiers to process the minute electrical signals from the heart, amplify them, filter out extraneous noise, and convert them into a form suitable for further analysis and display.

Operational Amplifiers as Building Blocks for Difference Amplifiers

Operational amplifiers, or op-amps, are frequently used to create difference amplifiers because of their high differential gain and input impedance. There are two main configurations for op-amp-based difference amplifiers: single op-amp and dual op-amp designs. The single op-amp design is simpler and more cost-effective, while the dual op-amp design provides higher input impedance and superior common-mode rejection. The differential gain (\(A_d\)) of these amplifiers is set by the ratio of the feedback resistance (\(R_f\)) to the input resistance (\(R_{\text{in}}\)), and is given by \(A_d = R_f / R_{\text{in}}\).

Constituent Components and Configuration of Difference Amplifier Circuits

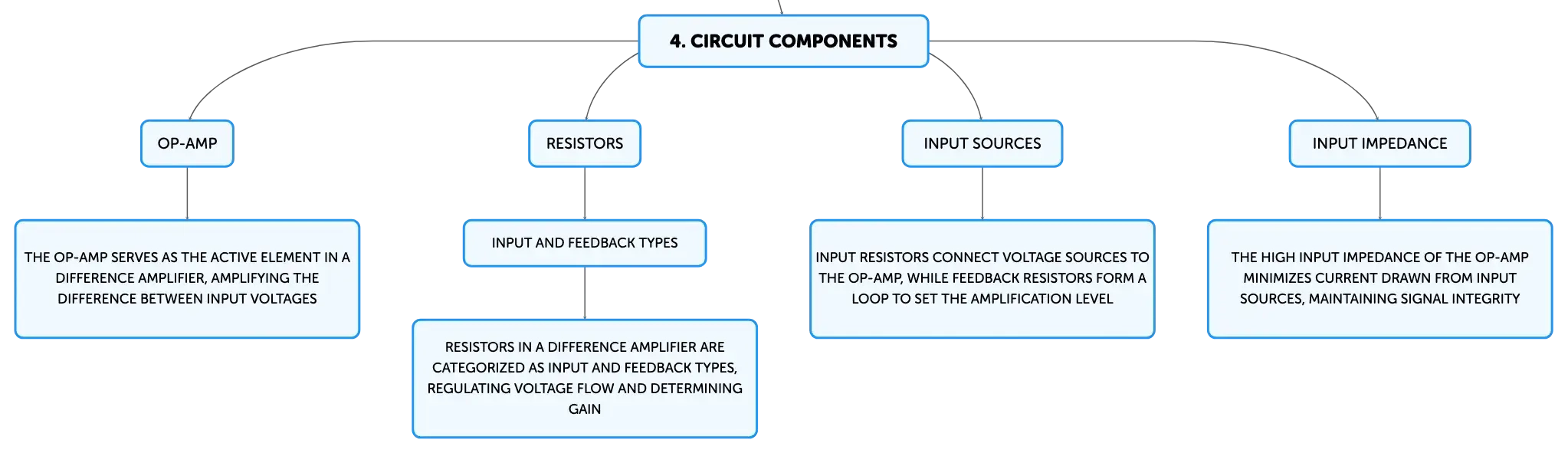

A difference amplifier circuit typically includes an op-amp, resistors, and two voltage inputs. The op-amp serves as the active element, amplifying the difference between the input voltages. Resistors are categorized into input and feedback types, which regulate the flow of voltage and determine the gain, thereby stabilizing the circuit. Input resistors connect the voltage sources to the op-amp, and feedback resistors form a loop from the op-amp's output back to its input, setting the amplification level according to their resistance values.

The Operational Characteristics of Op-amps in Difference Amplifiers

In a difference amplifier, the op-amp processes two input signals, amplifies the difference, and produces an output. The high input impedance of the op-amp is beneficial as it minimizes the current drawn from the input sources, which helps in maintaining signal integrity. The gain (\(A_v\)) of the amplifier is a critical parameter and is adjusted by the ratio of the feedback resistor (\(R_f\)) to the input resistor (\(R_{\text{in}}\)). This ratio allows for precise control over the amplifier's gain, enabling it to be tailored for specific applications.

Understanding the Equations Governing Difference Amplifiers

The fundamental equation for a difference amplifier relates the output voltage (\(V_{\text{out}}\)) to the amplified difference between the input voltages (\(V_2\) and \(V_1\)), expressed as \(V_{\text{out}} = A_v \cdot (V_2 - V_1)\). The gain (\(A_v\)) is determined by the resistance values within the circuit, particularly the feedback and input resistances. Adjusting these resistances allows for control over the amplifier's gain, which is essential for amplifying signals of varying magnitudes as required in different technological applications.

The Impact of Difference Amplifiers Across Various Disciplines

Difference amplifiers have a broad range of applications in fields such as physics, electronics, and audio engineering. They play a critical role in measuring temperature gradients with thermocouples, detecting variations in light intensity, and improving audio signals by amplifying the desired signal while reducing noise. In electronic circuits, they are indispensable for voltage regulation in power supplies, signal amplification in sensors, and signal refinement in processing units.

Theoretical and Practical Instances of Difference Amplifier Implementation

Theoretical applications of difference amplifiers demonstrate their basic function of amplifying voltage differences, such as increasing a 2-volt difference to a 20-volt output with a gain of 10. In practical settings, such as a recording studio, difference amplifiers enhance audio signals by amplifying the artist's voice and reducing background noise. These instances highlight the amplifier's significance in improving signal fidelity and precision in a variety of practical situations.
