Exploring the Magnetic Field and Its Properties

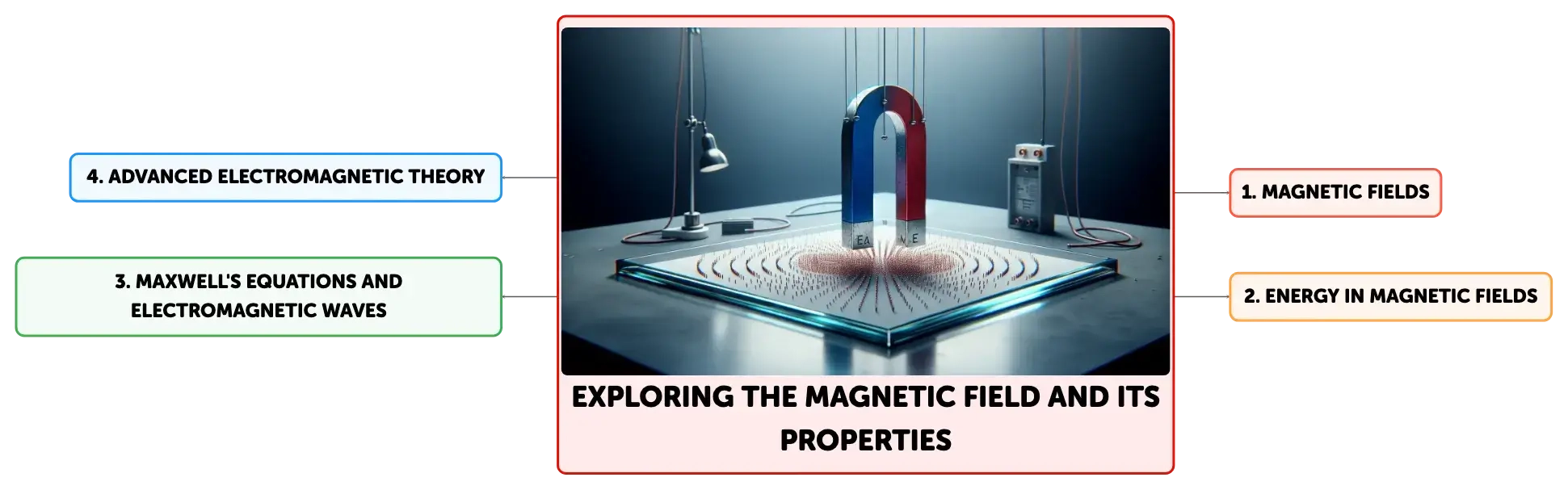

Concept Map
Exploring the magnetic H-field and B-field reveals their crucial roles in electromagnetism. The H-field, defined by the equation H = B/μ - M, is essential for analyzing magnetic circuits, while the B-field includes the material's magnetization response. Materials exhibit diverse reactions to magnetic fields, from diamagnetism to superconductivity, each with unique properties and applications. The text delves into magnetization, permeability, energy in magnetic fields, Maxwell's Equations, electromagnetic waves, and the relativistic perspective on fields.
Summary
Outline
Exploring the Magnetic H-Field and Its Distinction from the B-Field
The magnetic H-field, an integral concept in electromagnetism, is defined as the magnetic field intensity generated by free currents in a vacuum or a material, without considering the material's magnetization. In contrast, the magnetic B-field, also known as magnetic flux density, encompasses both the applied magnetic field and the material's response, including its magnetization. The H-field is particularly useful for analyzing magnetic circuits and is defined by the equation H = B/μ - M, where μ is the permeability of the material and M is its magnetization. The H-field is visualized as lines of force that loop around free currents, while the B-field lines are continuous and do not begin or end, reflecting the absence of magnetic monopoles.Classifying Material Responses to Magnetic Fields
Materials respond to an external magnetic B-field in various ways, classified into several categories based on their magnetic properties. Diamagnetic materials develop an induced magnetization that is weak and opposes the applied field. Paramagnetic materials have a weak attraction to magnetic fields and align with them. Ferromagnetic, ferrimagnetic, and antiferromagnetic materials exhibit strong interactions with magnetic fields, often retaining a significant magnetization even after the external field is removed. Superconductors are characterized by their ability to expel magnetic fields entirely below a certain critical temperature, a phenomenon known as the Meissner effect. Understanding these categories is essential for predicting material behavior in magnetic fields and for designing magnetic devices.Magnetization and Magnetic Permeability in Materials
Magnetization (M) in a material is the vector field that represents the density of permanent or induced magnetic dipole moments in response to an applied B-field. The relationship between the B-field and the H-field in a material is characterized by the material's magnetic permeability (μ), which is a measure of how easily the material can be magnetized. For many materials, this relationship is linear and is described by the equation B = μH + M, where B is the magnetic flux density, H is the magnetic field intensity, and M is the magnetization. However, in materials with nonlinear or complex magnetic behavior, such as ferromagnets, the relationship can be more complicated.Energy Considerations in Magnetic Fields
The energy associated with magnetic fields is a fundamental concept in electromagnetism. When a magnetic field changes, it requires energy to establish the field and to reorient the magnetic domains within materials. In linear, isotropic, and non-dispersive materials, the energy density stored in the magnetic field can be expressed as u = (B · H)/2. This relationship, however, does not apply to materials with nonlinear magnetic properties, such as ferromagnets, which exhibit hysteresis. In these cases, the energy required to magnetize the material is not fully recoverable, and the energy density depends on the magnetic history of the material.Maxwell's Equations and Magnetic Field Characteristics
Maxwell's Equations are the cornerstone of classical electromagnetism, encapsulating the fundamental laws governing electric and magnetic fields. Of these, Gauss's law for magnetism states that the net magnetic flux through any closed surface is zero, indicating that magnetic monopoles do not exist and that B-field lines are closed loops. Faraday's law of induction describes how a time-varying magnetic field can induce an electromotive force (EMF) in a closed loop, which is the principle behind the operation of transformers, generators, and electric motors. These laws are essential for understanding the behavior of magnetic fields in various applications.Electromagnetic Waves and Field Interactions
Electromagnetic waves are a manifestation of the dynamic interplay between electric and magnetic fields, as described by the Ampère-Maxwell law, which includes a term for the displacement current to account for changing electric fields. This interaction allows for the propagation of electromagnetic waves through space, with the electric and magnetic fields oscillating perpendicular to each other and to the direction of wave propagation. These waves, which include visible light, radio waves, and X-rays, are solutions to Maxwell's equations and are fundamental to wireless communication and many other technologies.The Relativistic Perspective on Electric and Magnetic Fields
Special relativity, formulated by Albert Einstein, provides a deeper understanding of the relationship between electric and magnetic fields. According to this theory, the distinction between electric and magnetic fields is relative and depends on the observer's state of motion. The electromagnetic field tensor in special relativity unifies electric and magnetic fields into a single framework, showing that an electric field observed in one inertial frame may be perceived as a magnetic field in another. This relativistic view is crucial for modern physics, including the development of technologies that rely on relativistic effects.The Role of Magnetic Vector Potential in Advanced Electromagnetic Theory
In advanced electromagnetic theory, the magnetic vector potential (A) and the electric scalar potential (φ) are fundamental quantities used to describe the electromagnetic field. The vector potential A is related to the B-field by the equation B = ∇ × A, where ∇ × denotes the curl operator, and it plays a significant role in quantum mechanics through the Aharonov-Bohm effect. The scalar potential φ is associated with the electric field E by the equation E = -∇φ - ∂A/∂t. These potentials are essential for formulating Maxwell's equations in a way that is consistent with both quantum mechanics and the principle of gauge invariance, which has profound implications for our understanding of electromagnetic interactions.
Show More

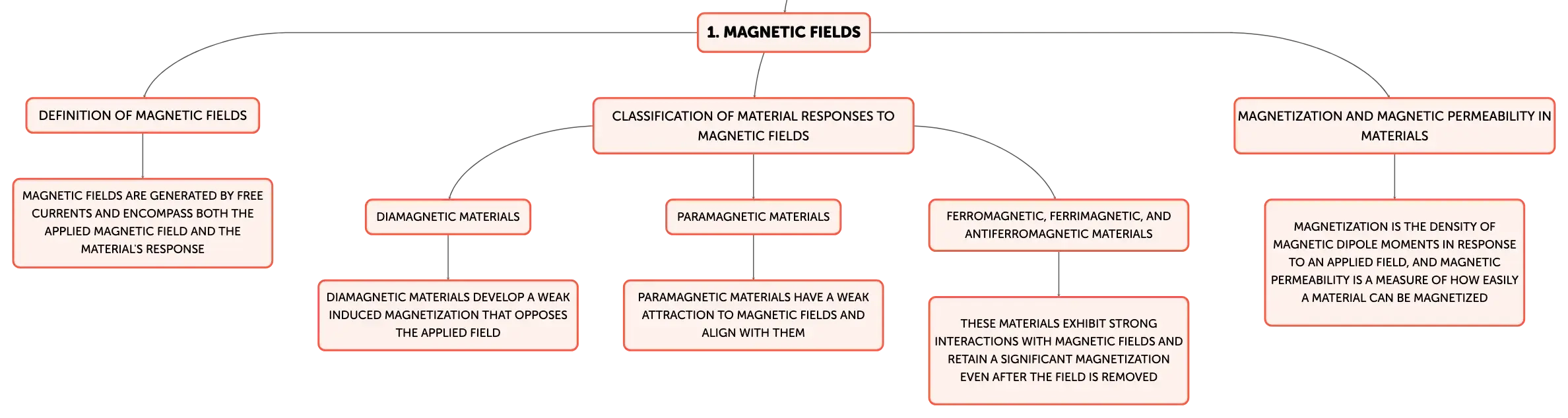

Magnetic Fields
Definition of Magnetic Fields
Magnetic fields are generated by free currents and encompass both the applied magnetic field and the material's response
Classification of Material Responses to Magnetic Fields
Diamagnetic Materials
Diamagnetic materials develop a weak induced magnetization that opposes the applied field
Paramagnetic Materials
Paramagnetic materials have a weak attraction to magnetic fields and align with them
Ferromagnetic, Ferrimagnetic, and Antiferromagnetic Materials
These materials exhibit strong interactions with magnetic fields and retain a significant magnetization even after the field is removed
Magnetization and Magnetic Permeability in Materials
Magnetization is the density of magnetic dipole moments in response to an applied field, and magnetic permeability is a measure of how easily a material can be magnetized

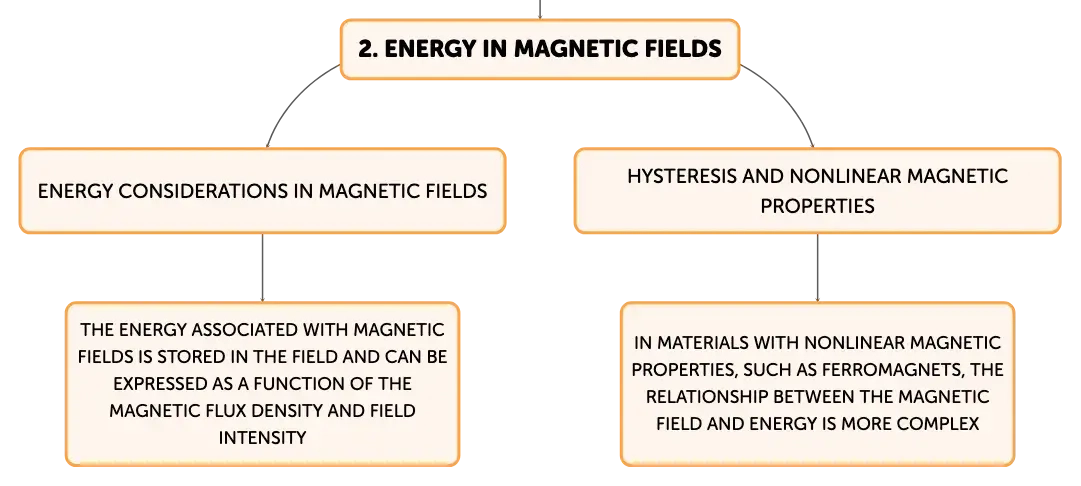

Energy in Magnetic Fields
Energy Considerations in Magnetic Fields
The energy associated with magnetic fields is stored in the field and can be expressed as a function of the magnetic flux density and field intensity
Hysteresis and Nonlinear Magnetic Properties
In materials with nonlinear magnetic properties, such as ferromagnets, the relationship between the magnetic field and energy is more complex

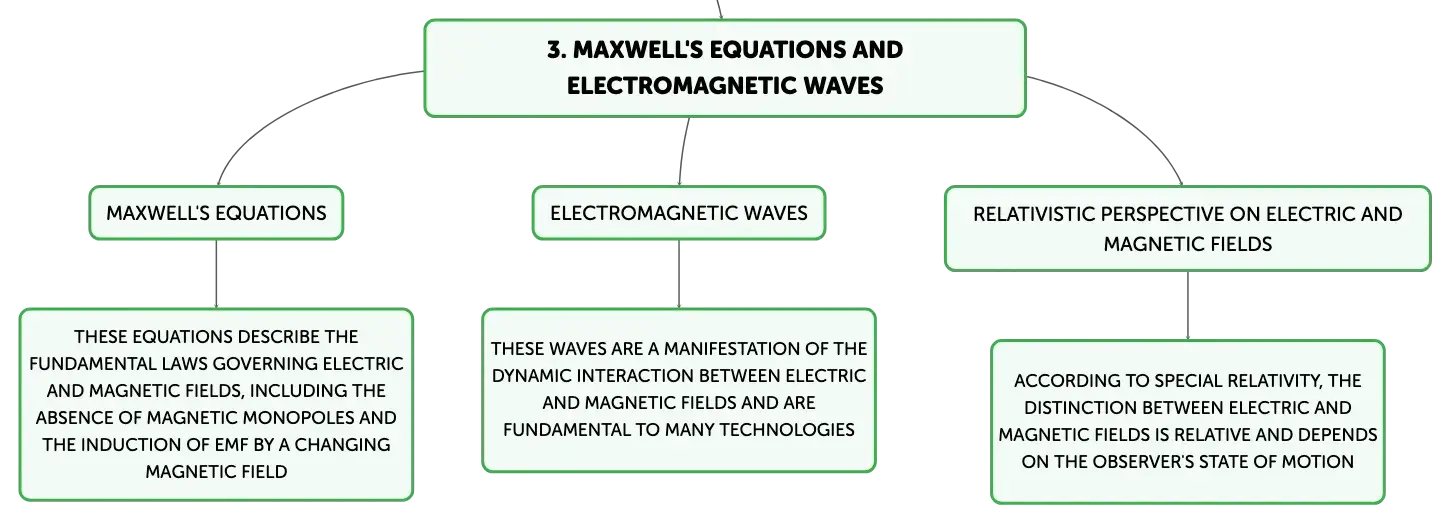

Maxwell's Equations and Electromagnetic Waves
Maxwell's Equations
These equations describe the fundamental laws governing electric and magnetic fields, including the absence of magnetic monopoles and the induction of EMF by a changing magnetic field
Electromagnetic Waves
These waves are a manifestation of the dynamic interaction between electric and magnetic fields and are fundamental to many technologies
Relativistic Perspective on Electric and Magnetic Fields
According to special relativity, the distinction between electric and magnetic fields is relative and depends on the observer's state of motion

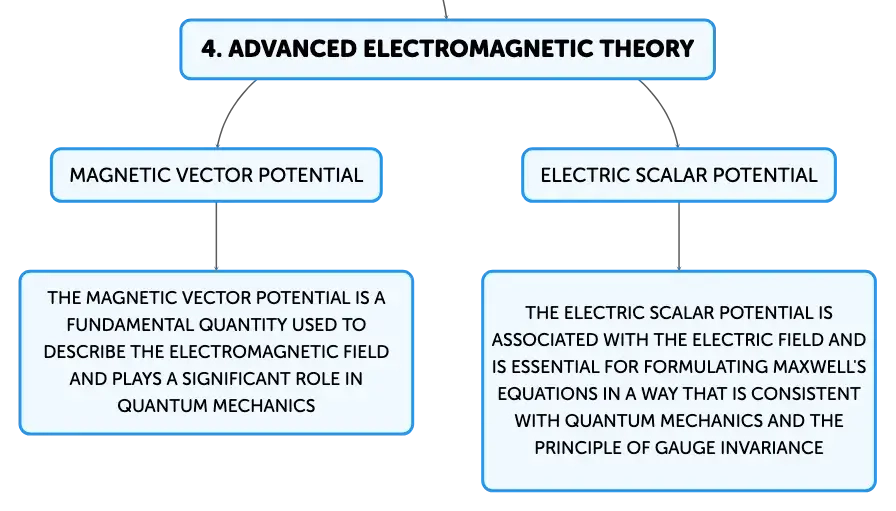

Advanced Electromagnetic Theory
