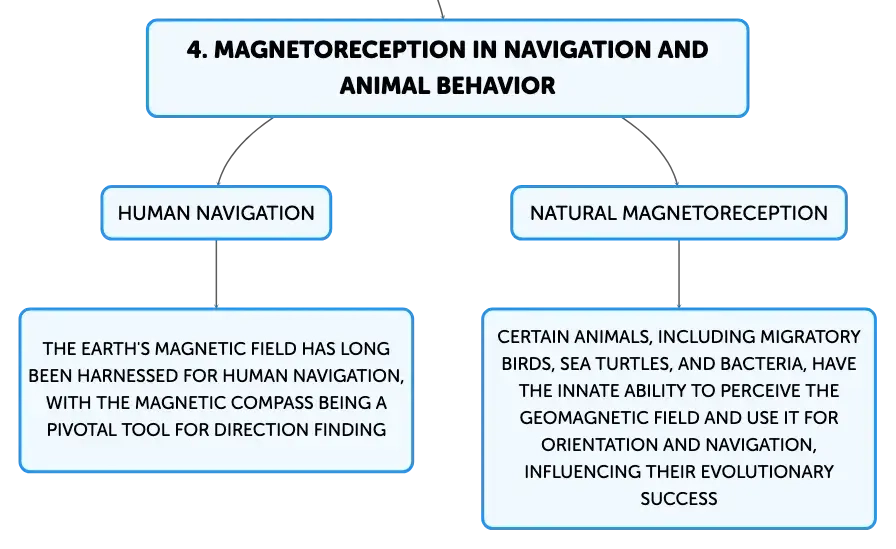

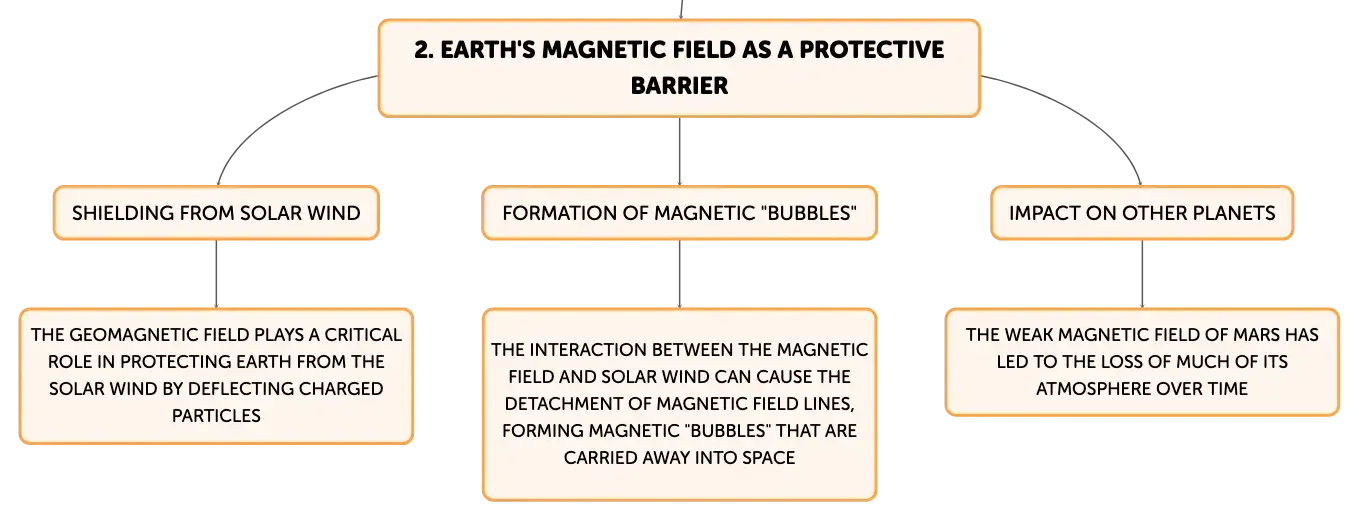

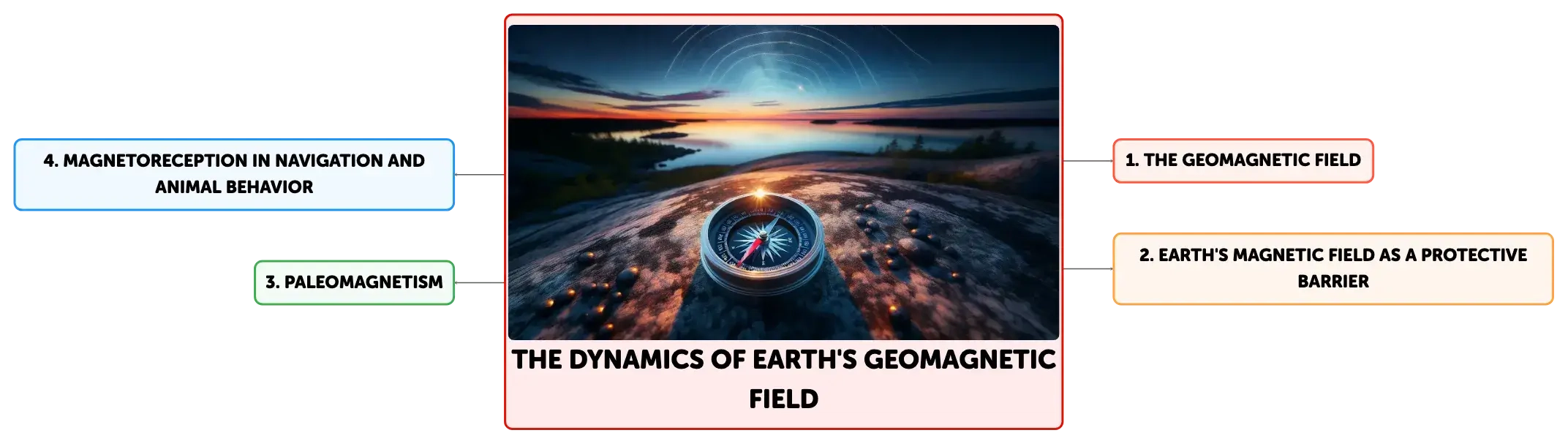

Exploring the dynamics of Earth's geomagnetic field, generated by the geodynamo effect in the outer core. This field is crucial for protecting the planet from solar wind and plays a significant role in navigation and animal migration. Historical pole reversals and the study of paleomagnetism provide insights into Earth's geological past and tectonic movements.

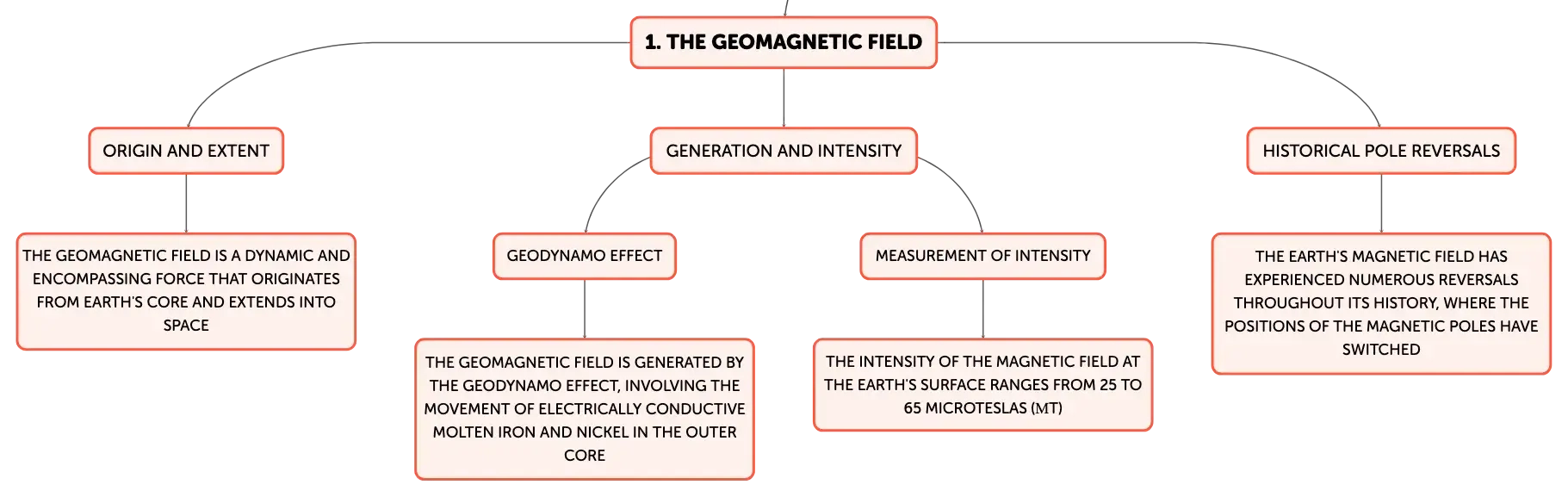

The Dynamics of Earth's Geomagnetic Field

The geomagnetic field is a dynamic and encompassing force that originates from Earth's core and extends into space, where it interacts with the solar wind—a stream of charged particles emitted by the Sun. This field is generated by the geodynamo effect, which involves the movement of electrically conductive molten iron and nickel in the outer core, driven by heat convection currents. The intensity of the magnetic field at the Earth's surface is not uniform, with typical measurements ranging from 25 to 65 microteslas (μT).
Serene landscape at dusk with compass on rock, magnetic needle pointing north, iron filings, starry sky and flock of birds in flight.

The Geomagnetic Dipole and Historical Pole Reversals

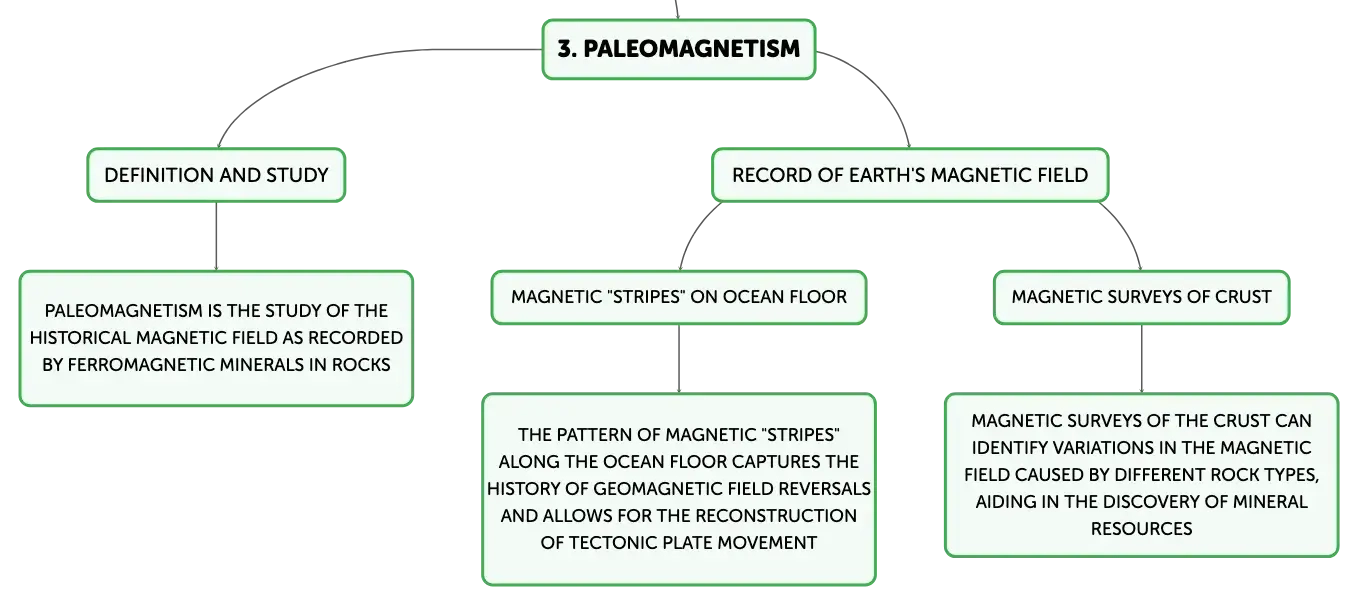

Earth's magnetic field is predominantly dipolar, with the geomagnetic poles located near the geographic poles. However, the geomagnetic field is not perfectly aligned with Earth's rotation axis and is tilted by approximately 11 degrees. The North geomagnetic pole is actually the south pole of the Earth's magnetic dipole, and the South geomagnetic pole is the north pole, which is a common source of confusion. The magnetic poles are not fixed and can migrate significantly over time. Moreover, the Earth's magnetic field has experienced numerous reversals throughout its history, where the positions of the magnetic poles have switched. These reversals, occurring at irregular intervals averaging several hundred thousand years, are documented in the magnetic signatures found in geological formations and are fundamental to the field of paleomagnetism.

Show More

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each card to learn more about the topic

00

The ______ field stems from the Earth's core and reaches out to space, where it meets the ______ wind.

geomagnetic

solar

01

The creation of this field is due to the ______ effect, involving the movement of ______ and ______ in the Earth's outer core.

geodynamo

molten iron

nickel

02

Heat ______ currents drive the motion of electrically conductive materials in the Earth's outer core, contributing to the geomagnetic field.

convection
