The Dynamics of Earth's Magnetic Field
Concept Map
Earth's magnetic field is a protective barrier generated by the geodynamo in the outer core, involving the movement of conductive iron-nickel alloy. This process is driven by thermal convection and the Coriolis effect, influenced by Earth's rotation. The initial magnetic field may have come from the solar magnetic field or core-mantle boundary interactions. Numerical models and observations of ocean tides and ionospheric currents help us understand the magnetic field's behavior and its variations.
Summary
Outline
The Dynamics of Earth's Magnetic Field
Earth's magnetic field, an essential shield against cosmic radiation, is generated by the geodynamo in the planet's outer core. This dynamo effect arises from the movement of electrically conductive iron-nickel alloy in the outer core, driven by thermal convection due to heat released from the solid inner core and the decay of radioactive isotopes. The inner core, with a radius of about 1,220 kilometers, is surrounded by the fluid outer core, which extends up to 3,400 kilometers from the center of the Earth. The temperature at the core-mantle boundary is cooler than the inner core, which is estimated to be as hot as 6,000 Kelvin, creating the necessary conditions for convection and the geodynamo process.The Geodynamo Process Explained
The geodynamo is the process by which Earth's magnetic field is sustained. Governed by the principles of magnetohydrodynamics (MHD), the geodynamo is described by the magnetic induction equation, which considers the velocity of the outer core's fluid, the existing magnetic field, and the magnetic diffusivity. This diffusivity is determined by the fluid's electrical conductivity and magnetic permeability. The geodynamo operates through a self-sustaining feedback loop: electric currents generate magnetic fields, which in turn induce electric fields. These electric fields then act on the fluid's charges to produce additional currents, thus maintaining the Earth's magnetic field.Convection Currents and the Coriolis Effect
The convection currents in the Earth's outer core are a primary force driving the geodynamo. These currents result from the buoyant rise of hot, less dense fluid and the sinking of cooler, denser fluid. The Earth's rotation significantly influences these currents through the Coriolis effect, which organizes the flow into columnar rolls aligned with the rotation axis. The solidification of iron onto the inner core releases lighter elements into the fluid outer core, further driving convection through compositional differences. This convective motion of the conductive fluid is essential for the generation of Earth's magnetic field.Origins of Earth's Initial Magnetic Field
The geodynamo requires an initial "seed" magnetic field to start amplifying Earth's magnetic field. This seed may have originated from the solar magnetic field during the Sun's T-Tauri phase, although the Earth's mantle likely shielded much of it. Alternatively, the initial field could have been produced by currents at the core-mantle boundary due to chemical reactions or variations in thermal or electrical conductivity. Once the seed field is present, the geodynamo can amplify it to levels much stronger in the outer core, approximately 25 gauss, compared to the Earth's surface.Simulating the Geodynamo
Numerical models play a crucial role in understanding the geodynamo by simulating the magnetohydrodynamics of the Earth's core. These models solve complex nonlinear partial differential equations on a three-dimensional grid, with computational power setting the resolution limit. Early kinematic dynamo models assumed fluid motions and calculated their magnetic effects. More sophisticated self-consistent models, developed since the mid-1990s, calculate both fluid motions and the magnetic field simultaneously. These models have successfully reproduced some characteristics of the Earth's magnetic field, including geomagnetic reversals.Ocean Tides and Earth's Magnetic Field
Ocean tides contribute to the Earth's magnetic field dynamics. Seawater, as an electrical conductor, interacts with the magnetic field, and tidal movements can cause minor alterations in geomagnetic field lines. This effect is relatively weak due to seawater's low conductivity but is detectable, especially with the regular lunar tide. The interaction's strength is influenced by the ocean water's temperature, and the ocean's thermal energy can be estimated from magnetic field observations.Ionospheric and Magnetospheric Contributions
The ionosphere, located above the Earth's surface, contains electric currents that affect the planet's magnetic field. In this ionospheric dynamo region, the magnetic field varies daily with the rotation of the atmosphere, which moves closer to or further from the Sun. These variations can cause minor deflections in the surface magnetic fields and are part of the normal daily fluctuations observed in the Earth's magnetic field strength.
Show More

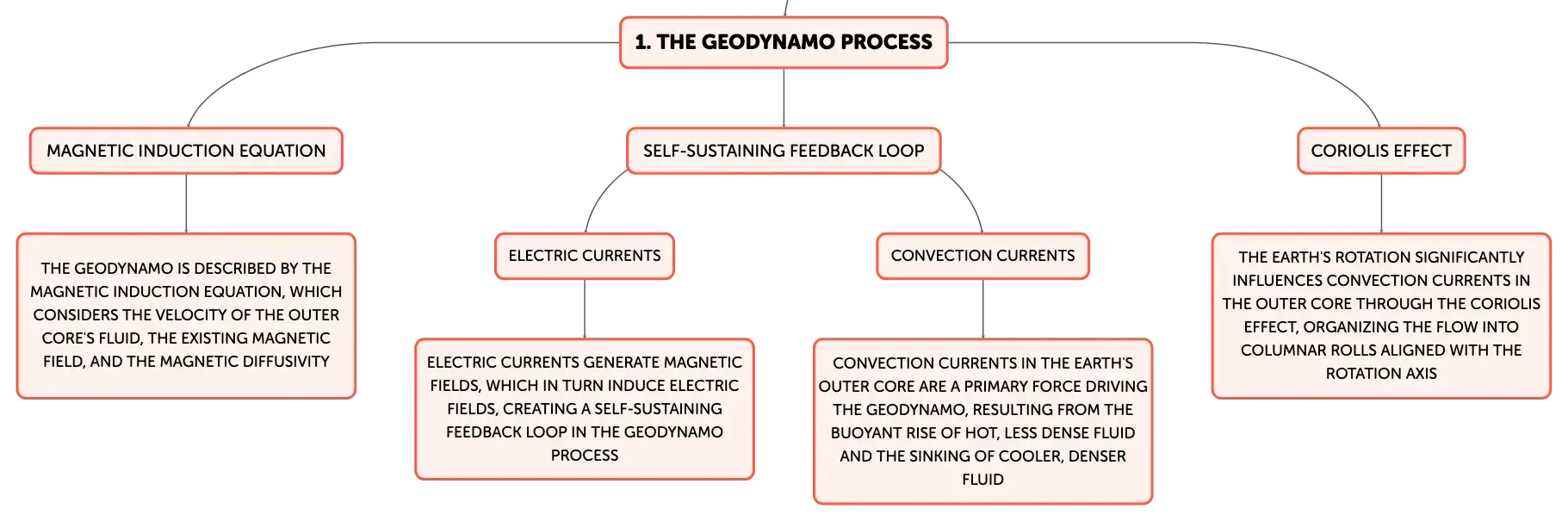

The Geodynamo Process
Magnetic Induction Equation
The geodynamo is described by the magnetic induction equation, which considers the velocity of the outer core's fluid, the existing magnetic field, and the magnetic diffusivity
Self-Sustaining Feedback Loop
Electric Currents
Electric currents generate magnetic fields, which in turn induce electric fields, creating a self-sustaining feedback loop in the geodynamo process
Convection Currents
Convection currents in the Earth's outer core are a primary force driving the geodynamo, resulting from the buoyant rise of hot, less dense fluid and the sinking of cooler, denser fluid
Coriolis Effect
The Earth's rotation significantly influences convection currents in the outer core through the Coriolis effect, organizing the flow into columnar rolls aligned with the rotation axis

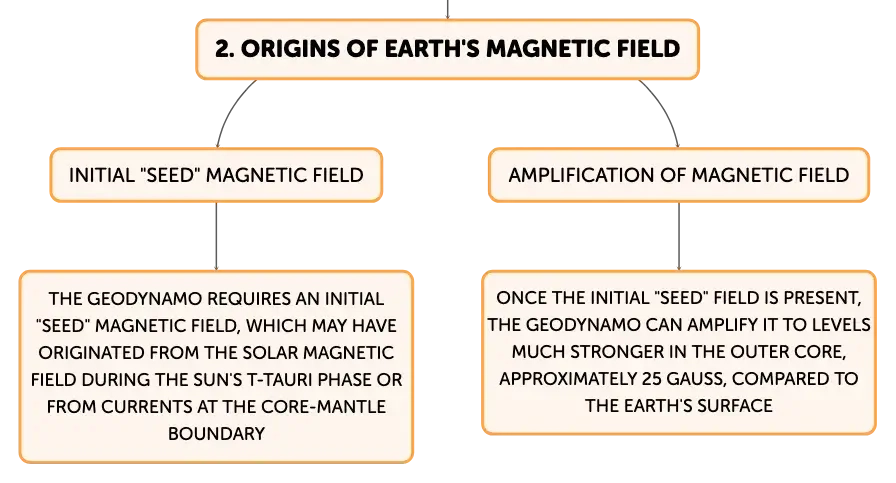

Origins of Earth's Magnetic Field
Initial "Seed" Magnetic Field
The geodynamo requires an initial "seed" magnetic field, which may have originated from the solar magnetic field during the Sun's T-Tauri phase or from currents at the core-mantle boundary
Amplification of Magnetic Field
Once the initial "seed" field is present, the geodynamo can amplify it to levels much stronger in the outer core, approximately 25 gauss, compared to the Earth's surface

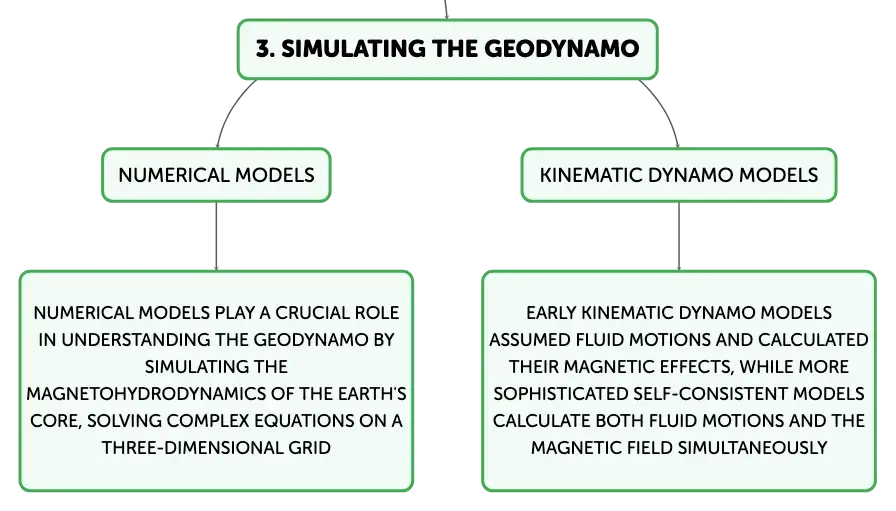

Simulating the Geodynamo
Numerical Models
Numerical models play a crucial role in understanding the geodynamo by simulating the magnetohydrodynamics of the Earth's core, solving complex equations on a three-dimensional grid
Kinematic Dynamo Models
Early kinematic dynamo models assumed fluid motions and calculated their magnetic effects, while more sophisticated self-consistent models calculate both fluid motions and the magnetic field simultaneously

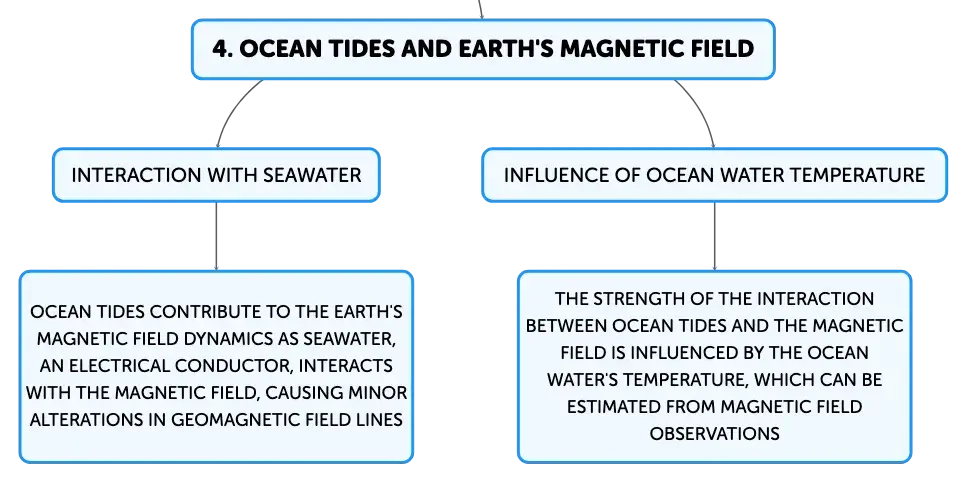

Ocean Tides and Earth's Magnetic Field
Interaction with Seawater
Ocean tides contribute to the Earth's magnetic field dynamics as seawater, an electrical conductor, interacts with the magnetic field, causing minor alterations in geomagnetic field lines
Influence of Ocean Water Temperature
The strength of the interaction between ocean tides and the magnetic field is influenced by the ocean water's temperature, which can be estimated from magnetic field observations
The Dynamics of Earth's Magnetic Field
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The protective barrier against ______ radiation is produced by the ______ in Earth's outer core.
cosmic
geodynamo
01
The ______ effect is caused by the movement of an iron-nickel alloy, which is ______, in the outer core.
dynamo
electrically conductive
02
Heat from the solid inner core and ______ isotope decay drives thermal ______, crucial for Earth's magnetic field generation.
radioactive
convection
