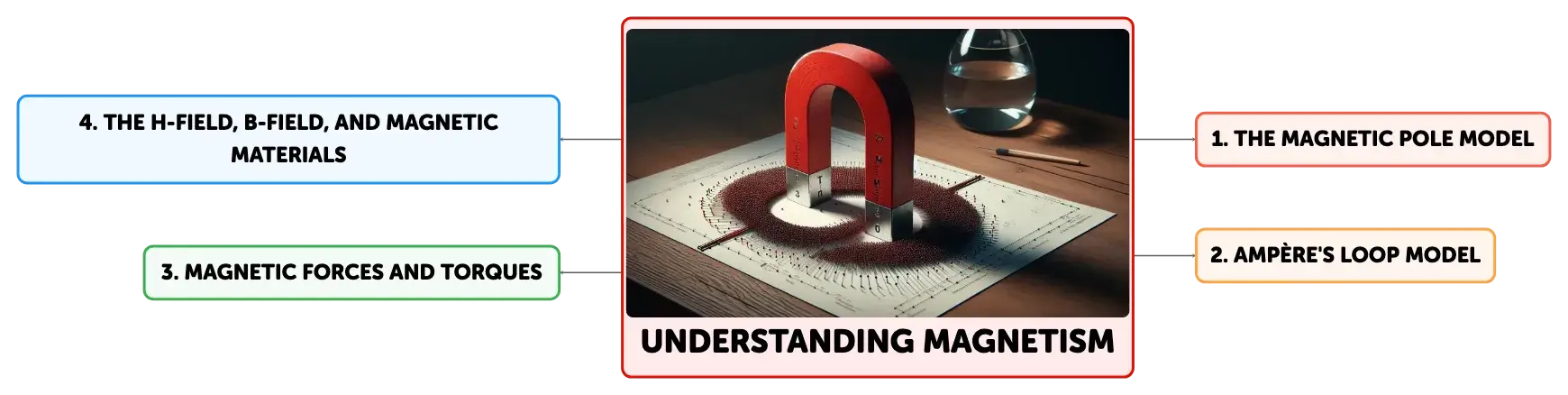

Understanding Magnetism

Explore the magnetic pole model, Ampère's loop model, and the nature of magnetic dipoles. Understand how magnetic forces, torques, and fields from electric currents shape the behavior of magnets and magnetic materials. Delve into the search for magnetic monopoles and the implications of their potential discovery. Learn about the critical concepts of the H-field and B-field in relation to magnetization and bound currents within materials.

See more

1

5

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Magnetic pole interaction analogy

Click to check the answer

Magnetic poles exert forces like electric charges, with attraction and repulsion between opposite and like poles.

2

Limitation of magnetic pole model at microscopic level

Click to check the answer

Pole model oversimplifies; doesn't accurately describe magnetic phenomena at the atomic and subatomic scales.

3

Magnetic H-field concept

Click to check the answer

H-field is analogous to electric field, visualized as lines from north to south pole, representing magnetic field direction/strength.

4

The ______ pole model is an idealization that assumes the existence of magnetic charges, which are actually nonexistent.

Click to check the answer

magnetic

5

If you divide a magnet, you end up with two smaller magnets, each having a ______ and a ______ pole.

Click to check the answer

north south

6

The traditional model fails to account for magnetism that is generated by ______ ______ or its inherent link with ______ ______.

Click to check the answer

electric currents angular momentum

7

A ______ ______ is a theoretical single-pole particle from advanced physics, yet it has not been confirmed through experiments.

Click to check the answer

magnetic monopole

8

Basic unit of magnetism in Ampère's loop model

Click to check the answer

Magnetic dipole, conceptualized as a tiny loop of current creating a magnetic B-field.

9

Determining factor of a magnetic dipole's moment

Click to check the answer

Product of current and loop area, direction given by right-hand rule.

10

Significance of angular momentum in magnetism

Click to check the answer

Connects to magnetic properties, crucial for understanding Einstein–de Haas and Barnett effects.

11

The magnetic pole model simplifies the understanding of magnetic interactions by considering the ______ field's effect on a magnet's poles.

Click to check the answer

H-field

12

In a nonuniform ______, a magnet will move towards areas with a stronger magnetic field and might also undergo a ______.

Click to check the answer

H-field torque

13

The ______ loop model explains the influence of magnetic fields on magnetic ______.

Click to check the answer

Amperian dipoles

14

The force on a magnetic ______ in a magnetic field ______ is calculated using the gradient of the dot product of the magnetic moment and the field.

Click to check the answer

dipole B

15

Understanding the relationship between the magnetic moment and magnetic field ______ is key to comprehending magnet behavior in various systems.

Click to check the answer

B

16

Effect of like poles on two close magnets

Click to check the answer

Like poles repel causing rotation until alignment if one magnet is free.

17

Role of magnetic torque in compass operation

Click to check the answer

Magnetic torque aligns compass needle with Earth's magnetic field lines.

18

Maximum torque condition in magnetic fields

Click to check the answer

Maximum torque occurs when magnetic moment is perpendicular to magnetic field.

19

The magnetic field around a conductor carrying current forms ______ circles.

Click to check the answer

concentric

20

The right-hand grip rule determines the ______ of the magnetic field around a straight conductor.

Click to check the answer

direction

21

As the distance from the conductor increases, the magnetic field's ______ decreases.

Click to check the answer

intensity

22

A wire wound into loops or a ______ produces a stronger magnetic field.

Click to check the answer

solenoid

23

Adding an ______ core to a coiled wire can turn it into a powerful electromagnet.

Click to check the answer

iron

24

The ______ law provides a quantitative description of the magnetic field from a steady current.

Click to check the answer

Biot–Savart

25

In symmetrical situations, Ampère's law connects the magnetic field with the ______.

Click to check the answer

current

26

Maxwell's equations, which are fundamental to classical electromagnetism, include these ______ as integral parts.

Click to check the answer

principles

27

H-field vs B-field

Click to check the answer

H-field quantifies magnetic field strength without material's response; B-field includes magnetization effects.

28

Modified Ampère's Law

Click to check the answer

Integrates H-field to show line integral around closed path is proportional to free, not bound, currents.

29

Components of H-field

Click to check the answer

H-field has two components: one from external magnetic field, another from material's magnetic response.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Exploring the Magnetic Field and Its Properties

Physics

The Evolution of Electromagnetic Theory

Earth Sciences

The Dynamics of Earth's Geomagnetic Field

Earth Sciences

Structure of Earth's Magnetosphere

Understanding Magnetism: The Magnetic Pole Model

Magnetism is often introduced through the magnetic pole model, which simplifies the complex interactions between magnets. This model proposes that magnets have north and south poles that exert forces on each other, similar to the forces between electric charges. While this analogy is useful for macroscopic analysis, it is not entirely accurate at the microscopic level. The model employs the concept of a magnetic H-field, which is analogous to the electric field and is thought to be produced by magnetic charges, although such charges do not actually exist. The H-field lines are visualized as emerging from the north pole and ending at the south pole, providing a way to represent the direction and strength of the magnetic field.
Physical experiment with red U-shaped magnet, iron filings on paper, compass with red and blue needle and bar magnet immersed in beaker on wooden table.

Theoretical Limitations and the Search for Magnetic Monopoles

The magnetic pole model, while useful, is based on the theoretical construct of magnetic charges, which do not exist in reality. Magnetic poles are always found in pairs; cutting a magnet in half simply creates two smaller magnets, each with its own north and south pole. The model also does not explain magnetism arising from electric currents or the intrinsic connection between magnetism and angular momentum. The concept of a magnetic monopole—a particle with a single magnetic pole—arises from advanced theoretical physics but has not been observed experimentally. The search for magnetic monopoles continues, as their discovery would have profound implications for our understanding of the universe.

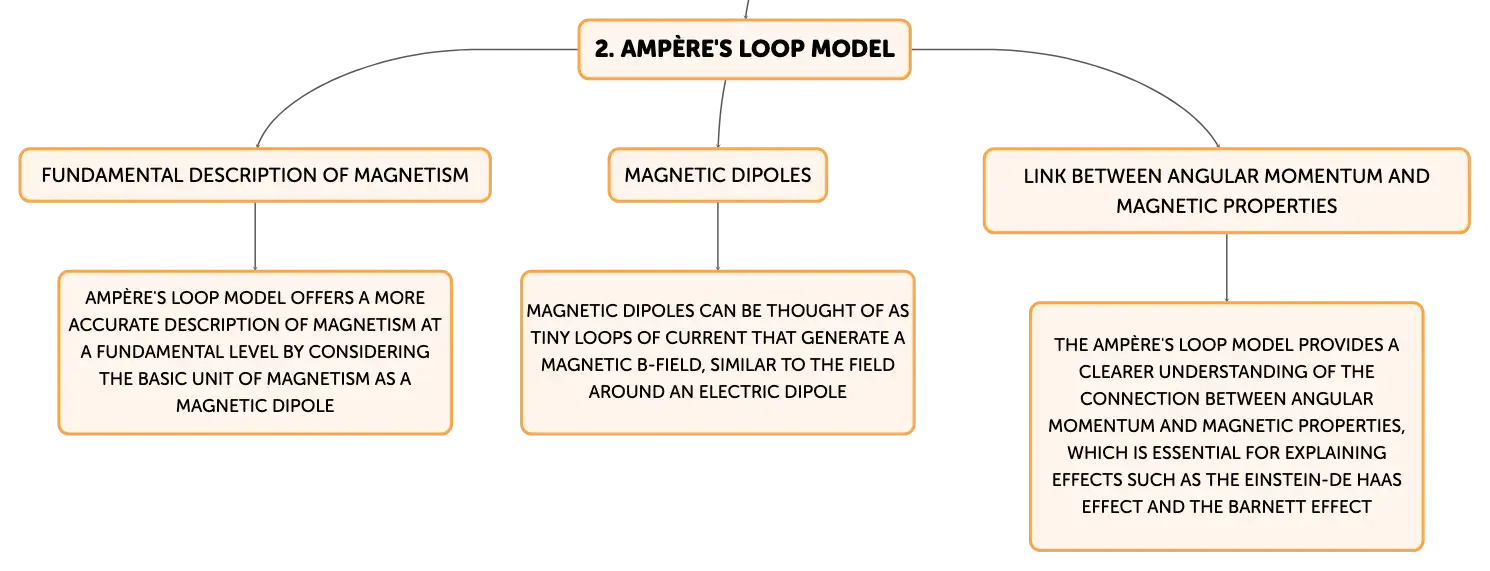

Ampère's Loop Model and the Nature of Magnetic Dipoles

Ampère's loop model offers a more accurate description of magnetism at a fundamental level. According to this model, the basic unit of magnetism is the magnetic dipole, which can be thought of as a tiny loop of current. This loop generates a magnetic B-field, which is analogous to the field around an electric dipole. The magnetic moment of the dipole, a vector quantity, is determined by the product of the current and the area of the loop and is directed according to the right-hand rule. This model provides a clearer understanding of the link between angular momentum and magnetic properties, which is essential for explaining effects such as the Einstein–de Haas effect and the Barnett effect.

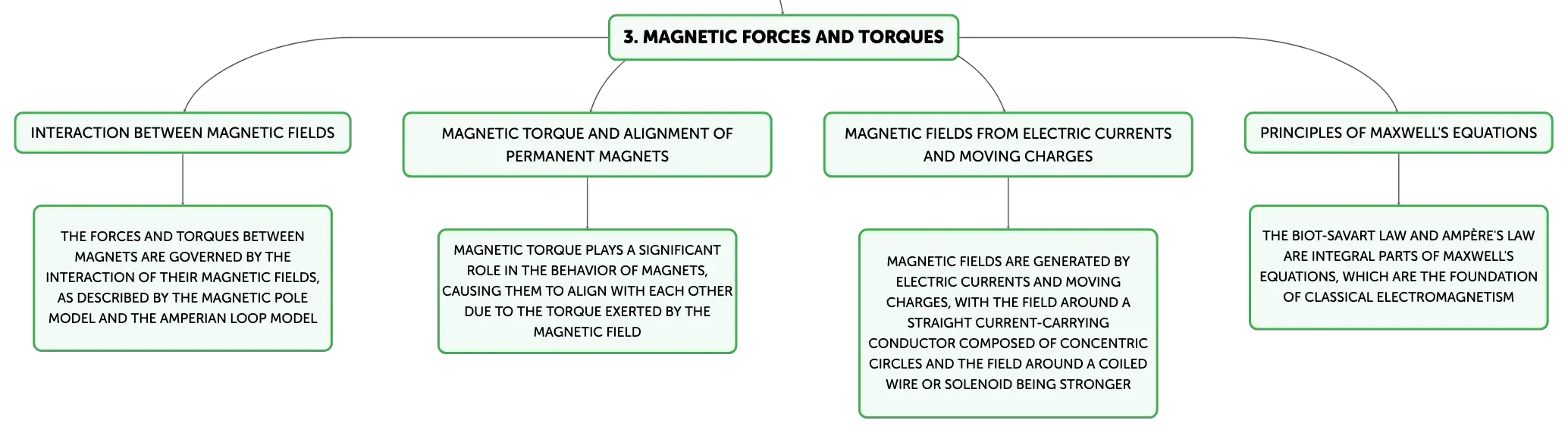

Magnetic Forces and Torques Between Magnets

The forces and torques between magnets are governed by the interaction of their magnetic fields. The magnetic pole model helps visualize these interactions by considering the effect of the H-field on the poles of a magnet. When a magnet is placed in a nonuniform H-field, it experiences a force that moves it toward regions of stronger magnetic field and may also experience a torque. The Amperian loop model similarly describes how magnetic dipoles are influenced by magnetic fields. The force on a magnetic dipole in a magnetic field B is given by the gradient of the dot product of the magnetic moment m and B. This relationship is crucial for understanding the behavior of magnets, from small magnetic particles to larger, complex systems.

Magnetic Torque and Alignment of Permanent Magnets

Magnetic torque plays a significant role in the behavior of magnets. When two magnets are brought close together, the like poles repel, and if one magnet is free to rotate, it will align itself with the other due to the torque exerted by the magnetic field. This torque tends to align the magnet's poles with the field lines, as demonstrated by a compass needle aligning with Earth's magnetic field. The torque τ experienced by a magnet is proportional to the cross product of the magnetic moment m and the magnetic field B, reaching its maximum when m is perpendicular to B. This principle is fundamental to the operation of many devices that rely on magnetic alignment.

Magnetic Fields from Electric Currents and Moving Charges

Magnetic fields are generated by electric currents and moving charges. The field around a straight current-carrying conductor is composed of concentric circles, with the direction given by the right-hand grip rule. The field's intensity diminishes with increasing distance from the conductor. When a wire is coiled into loops or a solenoid, the resulting magnetic field is stronger, and the addition of an iron core can create a powerful electromagnet. The Biot–Savart law quantitatively describes the magnetic field from a steady current, while Ampère's law relates the magnetic field to the current in symmetrical situations. These principles are integral parts of Maxwell's equations, the foundation of classical electromagnetism.

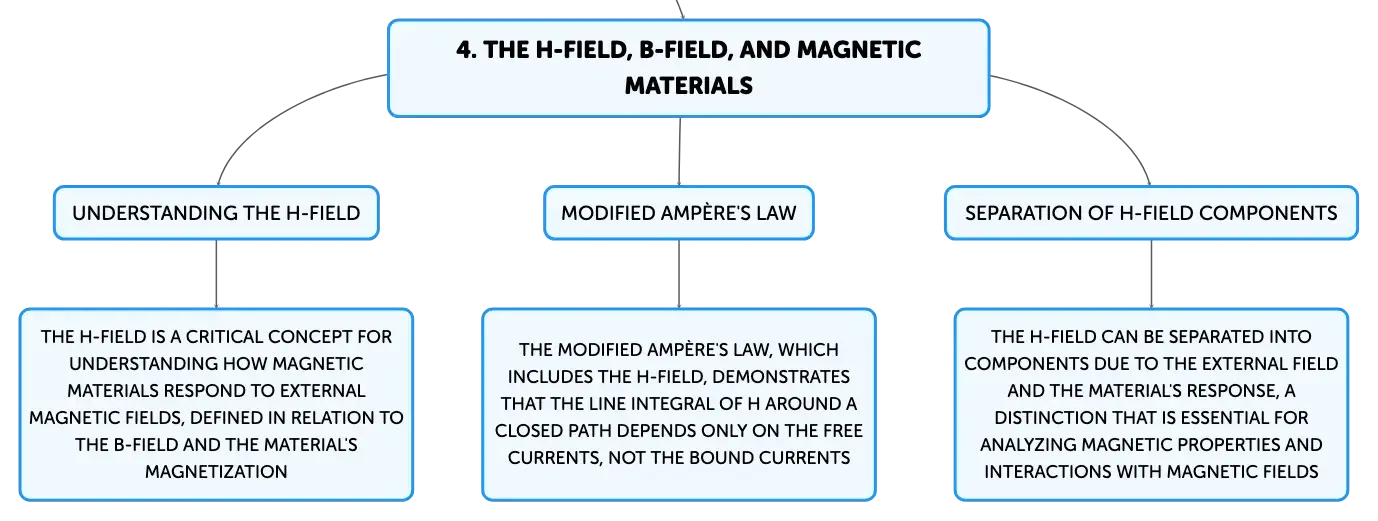

The H-field, B-field, and Magnetic Materials

The H-field is a critical concept for understanding how magnetic materials respond to external magnetic fields. It is defined in relation to the B-field and the material's magnetization M, allowing for the consideration of bound currents within the material. The modified Ampère's law, which includes the H-field, demonstrates that the line integral of H around a closed path depends only on the free currents, not the bound currents. The H-field can be separated into components due to the external field and the material's response, a distinction that is essential for analyzing magnetic properties and interactions with magnetic fields.
