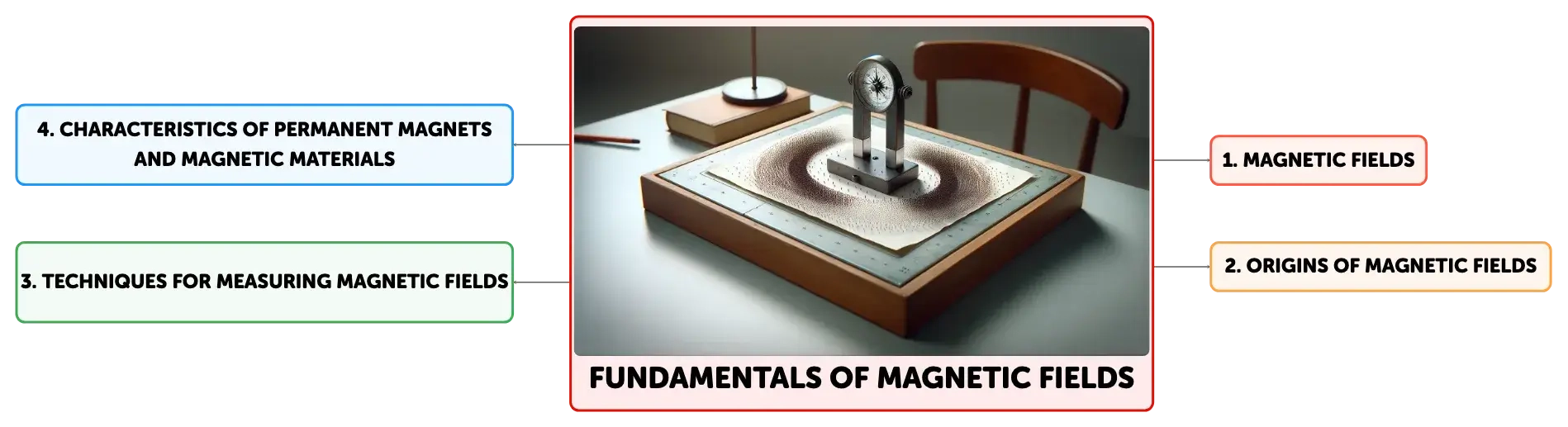

Fundamentals of Magnetic Fields

Exploring the Fundamentals of Magnetic Fields

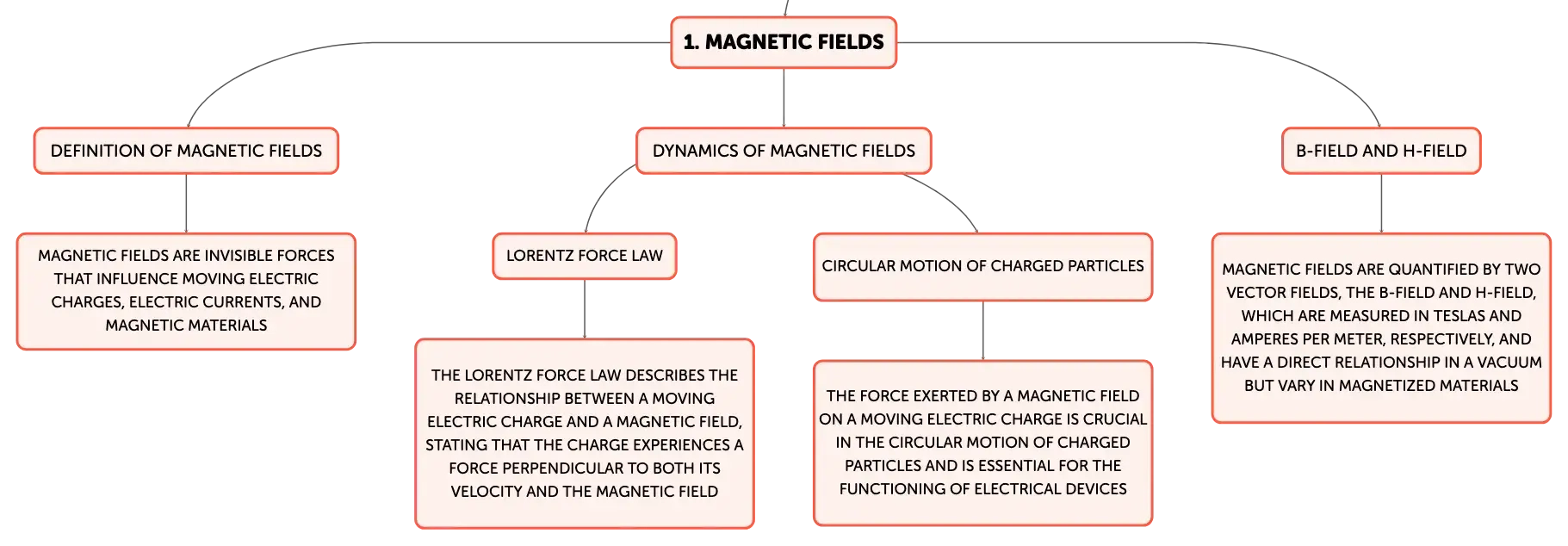

Magnetic fields are fundamental forces that are invisible yet vital to the workings of electromagnetism, one of the four fundamental interactions in nature. These fields influence moving electric charges, electric currents, and magnetic materials. A magnetic field is represented as a vector field, where each point in space is associated with a vector that denotes the magnetic field's magnitude and direction at that point. The dynamics of magnetic fields are described by the Lorentz force law, which dictates that a moving electric charge in a magnetic field experiences a force that is perpendicular to both the velocity of the charge and the magnetic field. This force is pivotal in the circular motion of charged particles and is integral to the functioning of electrical devices such as motors and generators.

Delineating the B-Field and H-Field in Magnetic Fields

Magnetic fields are quantified by two distinct vector fields: the B-field, or magnetic flux density, and the H-field, or magnetic field strength. The B-field is measured in teslas (T) and is the vector field used in the Lorentz force law to calculate the force on moving charges. The H-field, measured in amperes per meter (A/m), differs from the B-field in that it takes into account the magnetization and properties of the medium through which the magnetic field is passing. While B and H are directly proportional in a vacuum, their relationship varies within magnetized materials. Understanding the nuances between the B-field and H-field is crucial for comprehending the interaction of magnetic fields with different substances.

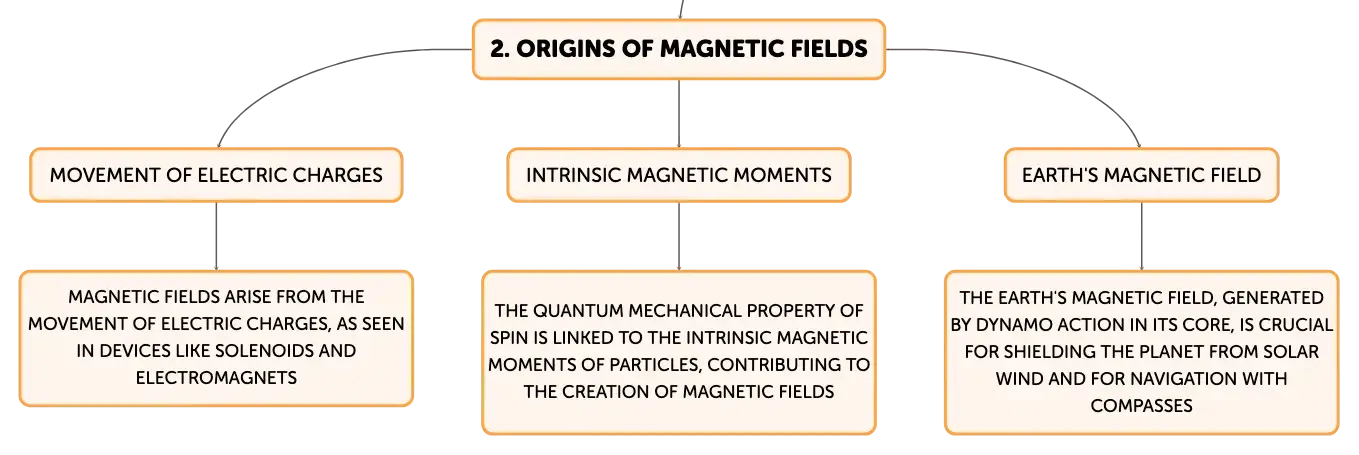

Origins of Magnetic Fields: Electric Currents and Magnetic Moments

Magnetic fields arise from the movement of electric charges and the intrinsic magnetic moments of particles, which are linked to the quantum mechanical property known as spin. The interplay between electricity and magnetism is exemplified by the creation of magnetic fields around electric currents, observable in devices like solenoids and electromagnets. The Earth's magnetic field, generated by dynamo action in its core, is essential for shielding the planet from solar wind and for orienting compasses for navigation. The study of magnetic fields is indispensable for grasping various physical phenomena and for the advancement of technological innovations.

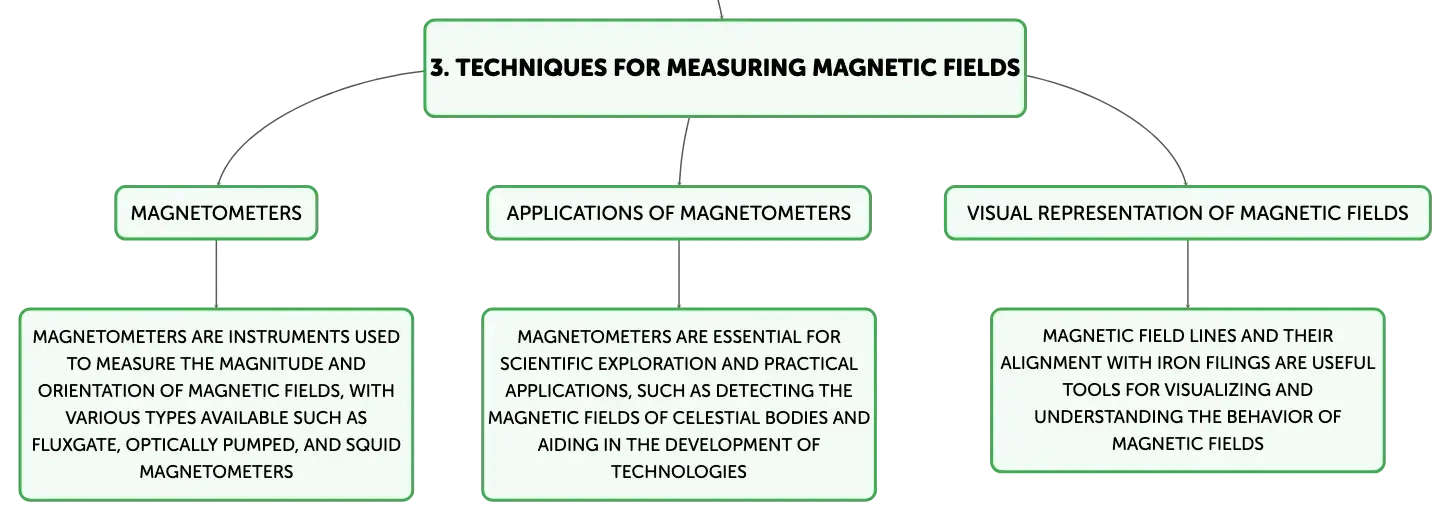

Techniques for Measuring Magnetic Fields

Magnetometers are the primary tools for measuring magnetic fields, with various types available, such as fluxgate, optically pumped, and superconducting quantum interference device (SQUID) magnetometers. These instruments are capable of detecting the magnitude and orientation of magnetic fields, which is critical for scientific exploration and practical applications. For instance, magnetometers are employed to discern the magnetic fields of celestial bodies by detecting the influence on nearby charged particles, including the synchrotron radiation emitted by electrons spiraling within a magnetic field.

Visual Representation of Magnetic Fields with Field Lines

Magnetic field lines are conceptual lines that represent the direction and relative strength of a magnetic field. These lines are an invaluable tool for visualizing and understanding the behavior of magnetic fields. The alignment of iron filings along magnetic field lines in the presence of a magnet is a classic demonstration of this concept. Field lines also elucidate natural phenomena such as auroras, where charged particles from the solar wind are guided by the Earth's magnetic field, resulting in the emission of light along these lines.

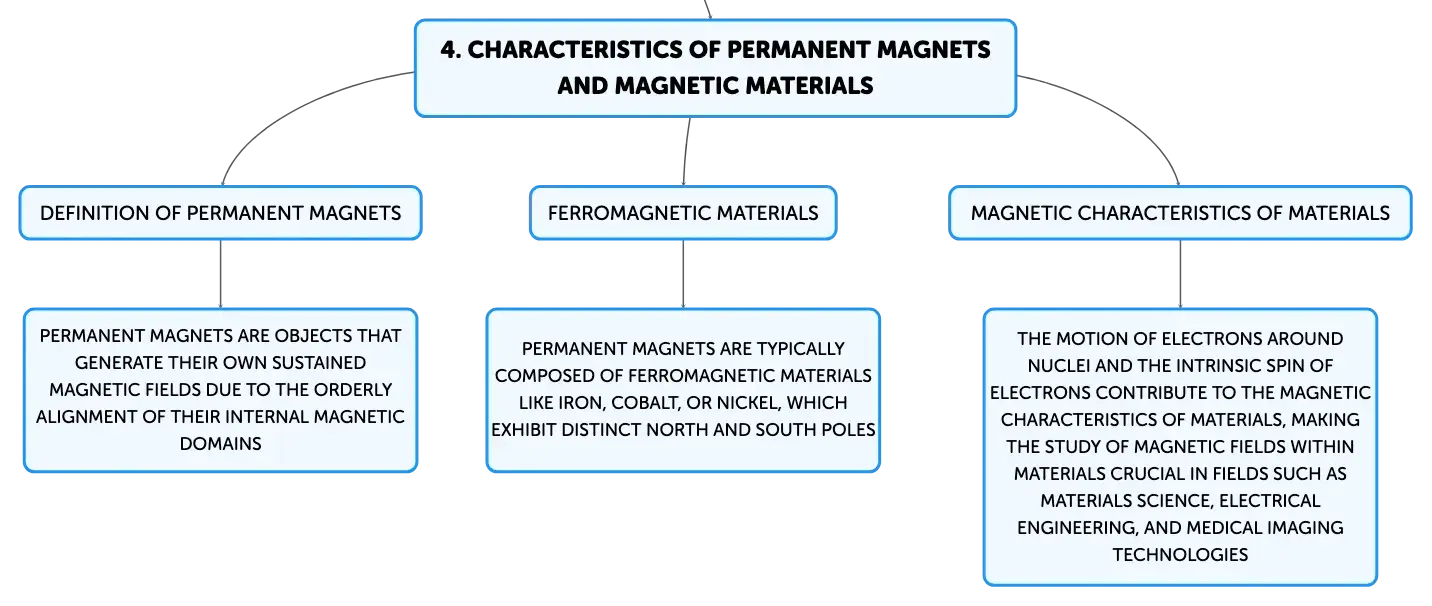

Characteristics of Permanent Magnets and Magnetic Materials

Permanent magnets are objects that generate their own sustained magnetic fields due to the orderly alignment of their internal magnetic domains. These magnets are usually composed of ferromagnetic materials like iron, cobalt, or nickel, and exhibit distinct north and south poles. The magnetic field surrounding a permanent magnet is intricate, particularly in proximity to the magnet, and can be conceptualized as an array of numerous tiny dipoles. A comprehensive understanding of these dipoles is vital for explaining the magnetic characteristics of materials, which stem from the motion of electrons around nuclei and the electrons' intrinsic spin. The study of magnetic fields within materials is of profound theoretical and practical importance, influencing fields such as materials science, electrical engineering, and medical imaging technologies.
