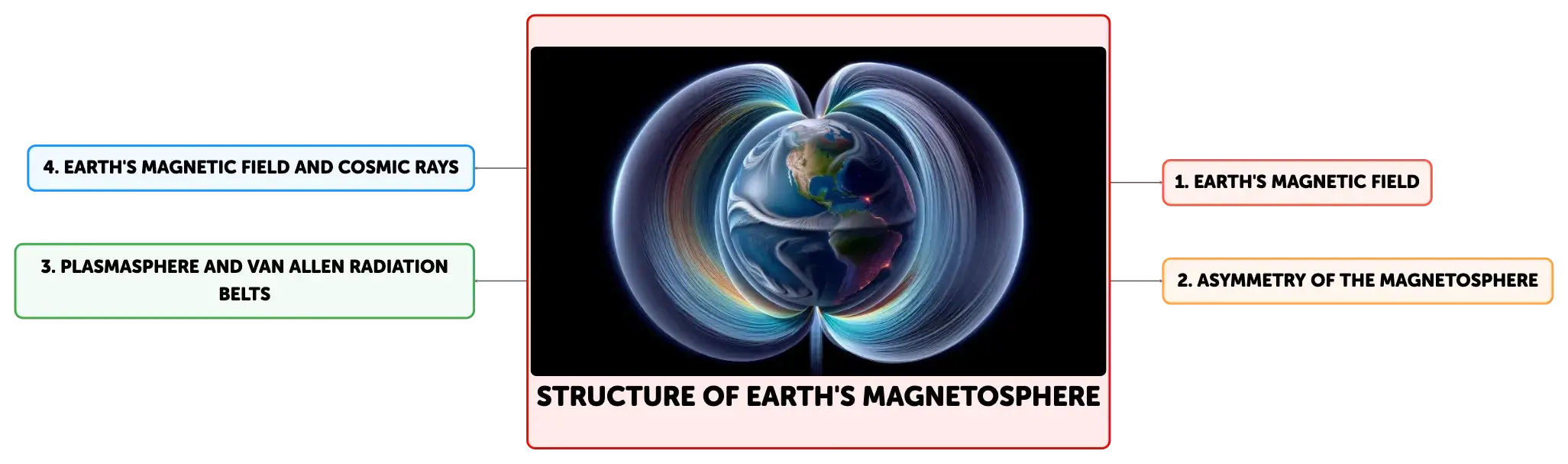

Structure of Earth's Magnetosphere

Exploring Earth's magnetosphere reveals its critical role in shielding our planet from solar wind and cosmic rays. This vast region, shaped by Earth's magnetic field, features the magnetopause, plasmasphere, Van Allen radiation belts, and experiences geomagnetic storms. Understanding its asymmetry, dynamics, and interaction with the atmosphere is key to appreciating how it protects life and technology from space weather.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

The region of space influenced by ______'s magnetic field is known as the magnetosphere.

Click to check the answer

Earth

2

The magnetic field around the planet is similar to a ______, especially at the surface.

Click to check the answer

dipole

3

The solar wind, emanating from the Sun's ______, distorts Earth's magnetic field.

Click to check the answer

corona

4

Solar wind travels at speeds ranging from ______ to ______ kilometers per second.

Click to check the answer

200 1000

5

Earth's magnetosphere acts as a protective shield, preventing the solar wind from stripping away the ______.

Click to check the answer

atmosphere

6

Magnetosphere compression on sunward side

Click to check the answer

Compressed to about 10 Earth radii due to solar wind pressure.

7

Magnetotail length and direction

Click to check the answer

Extends beyond 200 Earth radii on the night side, forming a long tail.

8

Function of Earth's magnetosphere

Click to check the answer

Acts as a shield against harmful solar and cosmic radiation.

9

The ______ is a cool, low-energy particle region extending from about 60 km to 3 or 4 Earth radii within the magnetosphere.

Click to check the answer

plasmasphere

10

The ______, which includes the ionosphere, spins together with the Earth within the magnetosphere.

Click to check the answer

plasmasphere

11

The Van Allen radiation belts are composed of two ______-shaped zones with high-energy charged particles.

Click to check the answer

doughnut

12

Ions within the Van Allen belts possess energies ranging from ______ to 10 MeV.

Click to check the answer

0.1

13

The plasmasphere and Van Allen belts are dynamic, changing with varying levels of ______ activity.

Click to check the answer

solar

14

Role of Sun's magnetosphere in cosmic ray deflection

Click to check the answer

Sun's magnetosphere, the heliosphere, deflects many cosmic rays before reaching Earth.

15

Additional risks for astronauts outside Earth's magnetic field

Click to check the answer

Astronauts in space or on the Moon face increased health risks from cosmic radiation due to less protection.

16

The state of Earth's ______ is significantly affected by the Sun's emissions, with stronger solar winds compressing it.

Click to check the answer

magnetosphere

17

The geomagnetic storm named the '______' in 2003 caused damage to satellites and technological systems.

Click to check the answer

Halloween

18

In 1859, the most severe geomagnetic storm on record, known as the ______ Event, disrupted telegraph networks and was visible in tropical regions.

Click to check the answer

Carrington

19

Magnetosphere's role in Earth protection

Click to check the answer

Shields Earth from harmful solar wind; some particles penetrate, follow magnetic lines to poles.

20

Ring current formation and effect

Click to check the answer

Solar particles trapped in magnetosphere create ring current; can weaken Earth's magnetic field.

21

X-ray production in magnetosphere

Click to check the answer

Particle collisions with atmospheric atoms produce X-rays; adds to magnetosphere's complex dynamics.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Earth Sciences

Dynamics of Earth's Geomagnetic Field

View document

Earth Sciences

The Dynamics of Earth's Magnetic Field

View document

Music

Introduction to The Magnetic Fields

View document

Physics

Fundamentals of Magnetic Fields

View document

Exploring the Structure of Earth's Magnetosphere

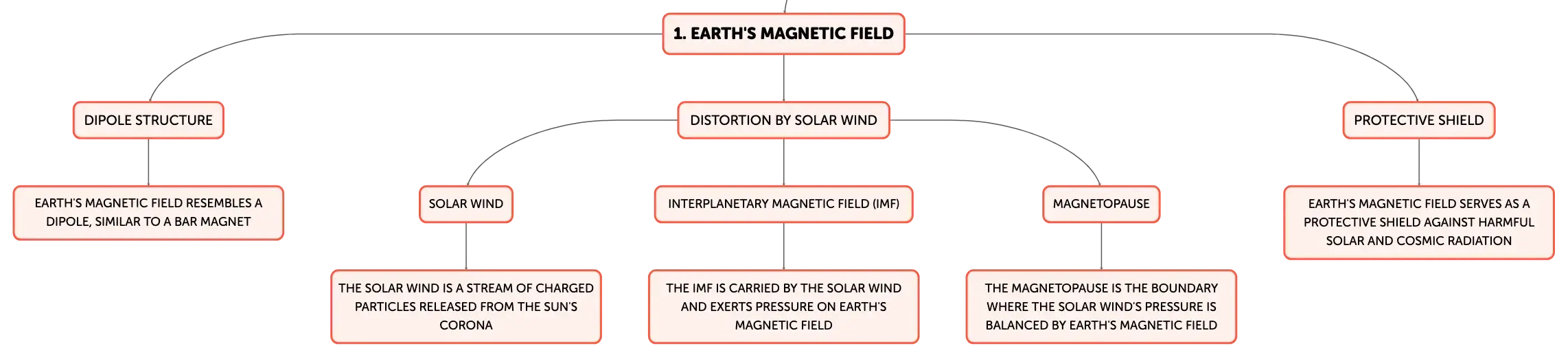

The Earth's magnetosphere is a vast region of space dominated by Earth's magnetic field, which resembles a dipole, akin to a bar magnet, at the planet's surface. However, as one moves away from the Earth, this field is distorted by the solar wind—a stream of charged particles released from the Sun's corona at speeds between 200 to 1000 kilometers per second. These particles carry the interplanetary magnetic field (IMF) and exert pressure on Earth's magnetic field. The magnetopause is the boundary where the solar wind's pressure is balanced by Earth's magnetic field, delineating the outer limits of the magnetosphere. Without this protective shield, the solar wind could erode our atmosphere, endangering life and technology on Earth.
Three-dimensional view of Earth from space with magnetosphere, Van Allen belts and magnetic field lines on starry background.

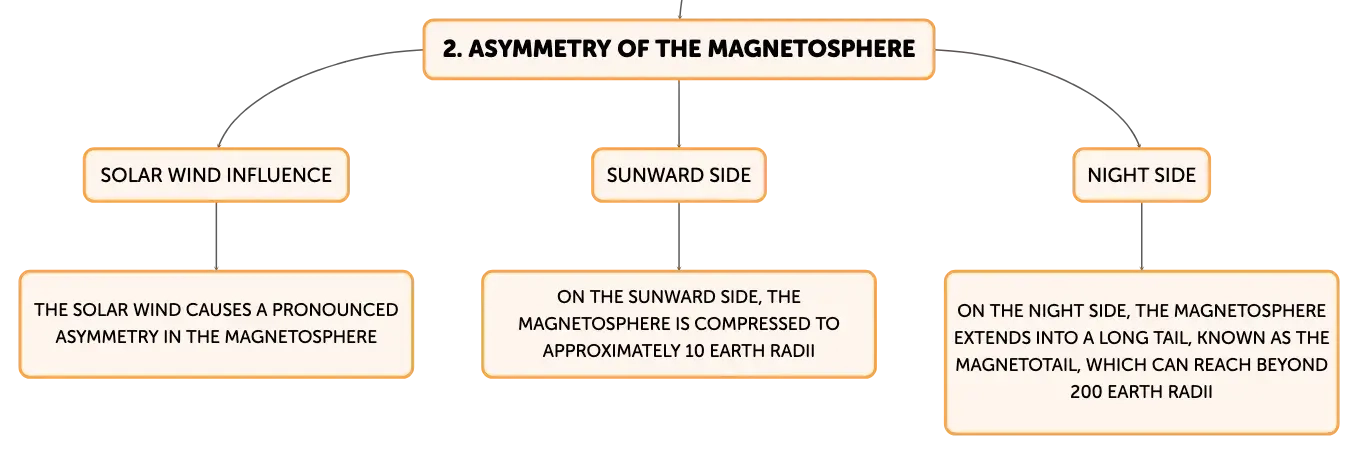

The Asymmetrical Nature of the Magnetosphere

The magnetosphere exhibits a pronounced asymmetry due to the solar wind's influence. On the sunward side, it is compressed to approximately 10 Earth radii, while on the night side, it extends into a long tail, known as the magnetotail, which can reach beyond 200 Earth radii. The bow shock is the area where the solar wind decelerates sharply upon encountering the magnetosphere. This interaction between the solar wind and Earth's magnetic field creates a dynamic and complex environment that serves as a shield against harmful solar and cosmic radiation.

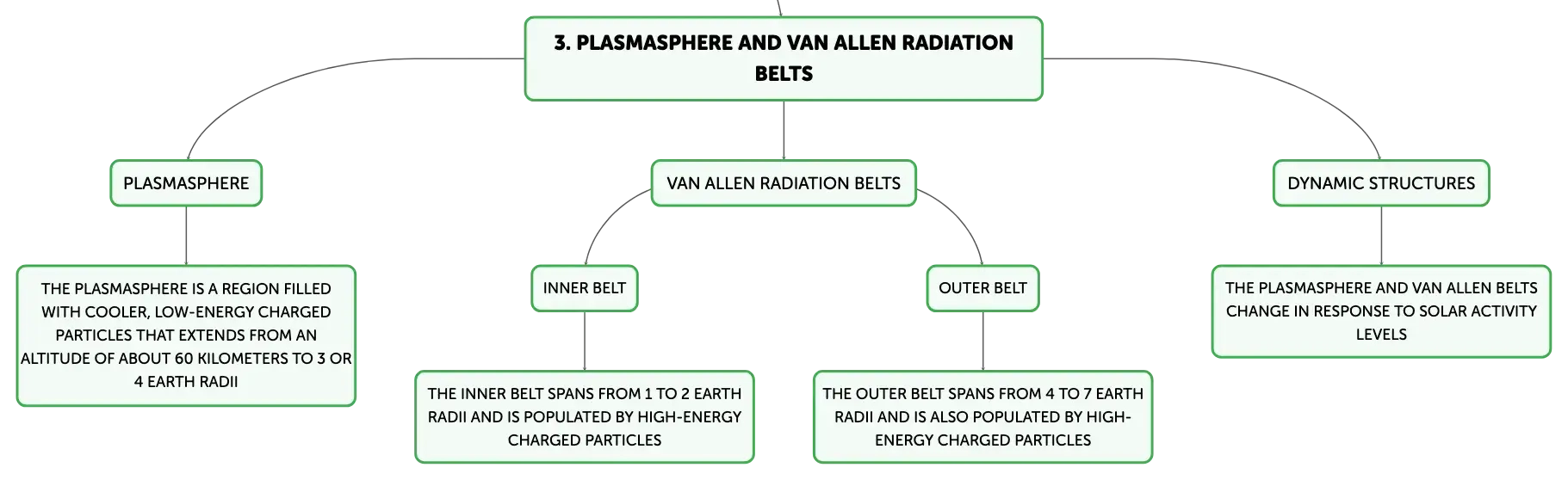

The Plasmasphere and Van Allen Radiation Belts

Within the magnetosphere, the plasmasphere is a region filled with cooler, low-energy charged particles that extends from an altitude of about 60 kilometers to 3 or 4 Earth radii. This region, which encompasses the ionosphere, co-rotates with the Earth. Surrounding the plasmasphere are the Van Allen radiation belts, two doughnut-shaped zones of high-energy charged particles. The inner belt spans from 1 to 2 Earth radii, and the outer belt from 4 to 7 Earth radii. These belts are populated by ions with energies from 0.1 to 10 MeV. The plasmasphere and Van Allen belts are dynamic structures that change in response to solar activity levels.

Deflection of Cosmic Rays by Earth's Magnetic Field

Earth's magnetic field also plays a vital role in shielding our planet from cosmic rays—high-energy particles from outside the Solar System. While many cosmic rays are deflected by the Sun's magnetosphere, the heliosphere, Earth's magnetic field provides an additional layer of protection. This is particularly crucial for astronauts in space or on the Moon, who are more vulnerable to the health risks posed by cosmic radiation.

Magnetospheric Dynamics and Space Weather

Space weather, the conditions within the magnetosphere, is heavily influenced by solar activity. A weaker solar wind allows the magnetosphere to expand, while a stronger solar wind compresses it, increasing the penetration of solar particles. Geomagnetic storms, intense disturbances in Earth's magnetosphere, can be triggered by coronal mass ejections (CMEs) from the Sun. These storms can travel through the Solar System and reach Earth within a matter of days, potentially causing significant disruptions. The "Halloween" storm of 2003, for example, damaged satellites and other technologies. The most intense recorded geomagnetic storm, the Carrington Event of 1859, disrupted telegraph systems and produced aurorae visible as far south as Hawaii.

Atmospheric Interactions with Charged Particles

Despite the protective nature of the magnetosphere, some solar wind particles penetrate and follow spiral paths along magnetic field lines, moving between the poles. This flow of particles generates a ring current around Earth, which can lead to a decrease in the magnetic field strength at the surface. Collisions between these particles and atmospheric atoms result in the aurorae—spectacular light displays near the poles. These interactions also produce X-rays and contribute to the complex dynamics of the magnetosphere, highlighting its role as a protective barrier for Earth.
