Operational Amplifiers and Gain Theory

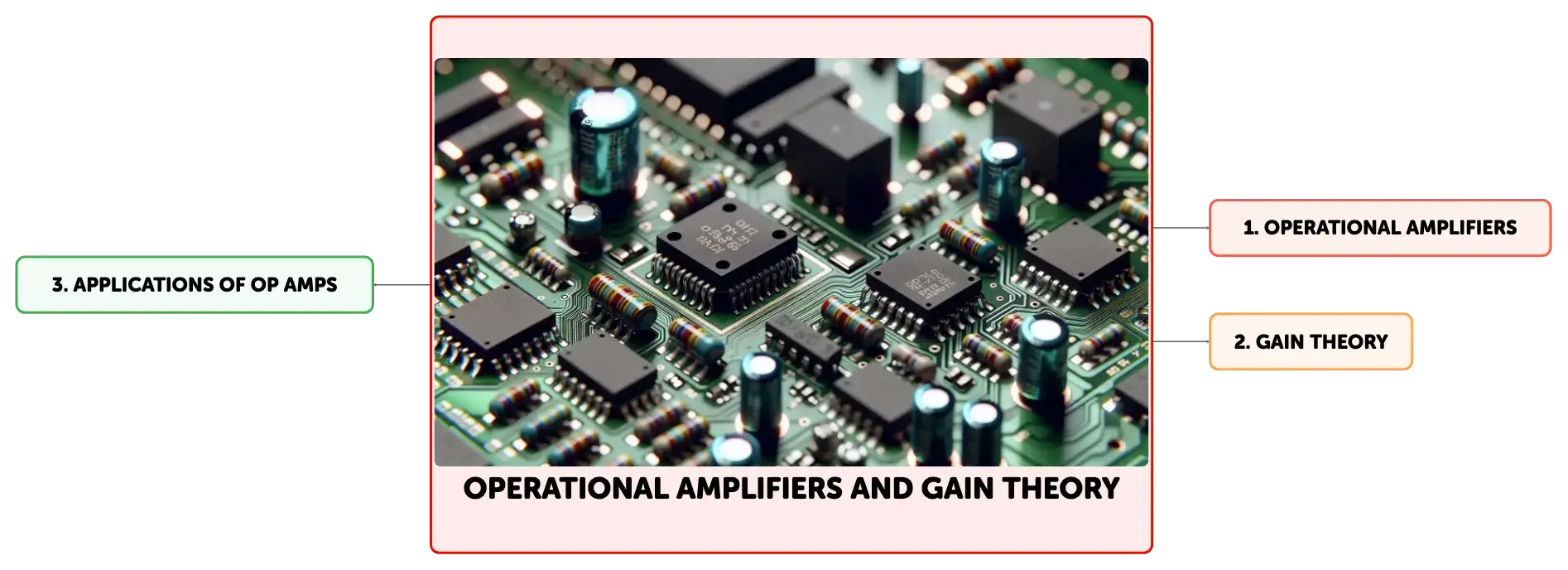

Concept Map
Operational Amplifiers (Op Amps) are pivotal in electronics, amplifying voltage differences between inputs. Gain, the output-to-input voltage ratio, is crucial for applications like signal conditioning and analog computation. Gain is influenced by feedback, frequency, and temperature, and varies with configurations such as inverting, non-inverting, and unity gain. Understanding gain is key for designing circuits with optimal performance.
Summary
Outline
Understanding Operational Amplifier (Op Amp) Gain
An Operational Amplifier, or Op Amp, is an electronic device that amplifies the voltage difference between its two input terminals. The gain of an Op Amp is a crucial specification that quantifies this amplification capability. It is defined as the ratio of the output voltage to the input voltage difference, and it sets the theoretical limit for the maximum output signal achievable from a given input signal. Op Amps are integral to a myriad of applications, such as signal conditioning, filtering, and analog computation. The gain is affected by various factors including the feedback network, operational frequency, and temperature, each of which is essential to the circuit's performance and stability.The Role and Functionality of Op Amps in Electrical Circuits
Operational Amplifiers are fundamental components in electronic circuits, tasked with functions that include signal amplification, filtering, and execution of analog computational operations like addition, subtraction, integration, and differentiation. In a typical audio amplifier circuit, an Op Amp can increase the amplitude of a low-level audio signal to a level sufficient for driving a speaker. The configuration of the Op Amp, whether it is inverting or non-inverting, determines the phase relationship between the output and input signals, which is critical for signal processing tasks.Key Concepts in Op Amp Gain Theory
Op Amp Gain theory encompasses several key concepts that are vital for understanding how these devices operate. High input impedance is sought after to minimize the current drawn from the signal source, while low output impedance is preferred to efficiently drive the load with minimal signal degradation. Op Amps are designed to have very high open-loop gains, often exceeding 100,000, to allow for a wide range of amplification possibilities. The voltage gain of an Op Amp in a closed-loop configuration is determined by external components and is given by the formula \(Voltage\: Gain (A_v) = \frac{Output\: Voltage (V_{out})}{Input\: Voltage\: Difference (V_{in+} - V_{in-})}\).Influence of Op Amp Gain on Circuit Functionality
The gain setting of an Op Amp is pivotal to the functionality of the circuit in which it is used. Excessive gain can lead to undesirable effects such as signal clipping and distortion, which compromise the integrity of the output signal. It is therefore imperative to select or design the gain of the Op Amp to match the requirements of the specific application, ensuring optimal performance and fidelity of the signal processing.Variations in Op Amp Gain: Inverting, Non-Inverting, and Unity Gain
The gain of an Op Amp varies with its configuration. Inverting Op Amps provide an output that is phase-inverted relative to the input, with a gain determined by the ratio of the feedback resistor to the input resistor. Non-Inverting Op Amps maintain the same phase between output and input signals, with a gain that is influenced by both the feedback and input resistors. Unity Gain Op Amps, also known as voltage followers, have a gain of exactly one, which is useful in applications where signal buffering without amplification is necessary, such as impedance matching.Open Loop Gain and Its Relevance in Electrical Engineering
Open Loop Gain refers to the intrinsic gain of an Op Amp without any external feedback. While this gain is exceedingly high, it is not practical for most applications due to its instability and performance issues at high frequencies. In real-world applications, Op Amps are typically used in closed-loop configurations, where feedback is used to control the gain. The open-loop gain, however, still plays a role in determining the performance characteristics of the Op Amp, such as bandwidth and linearity.Practical Application and Analysis of Op Amp Gain
Practical understanding of Op Amp Gain is essential for designing and analyzing electronic circuits. For example, in an audio amplifier, calculating the Op Amp's gain helps determine the required amplification level for driving a speaker. The gain formulas for inverting (\(A_v = -\frac{R_f}{R_i}\)) and non-inverting (\(A_v = 1 + \frac{R_f}{R_i}\)) configurations allow for precise control over the gain by selecting appropriate resistor values. This precision and versatility make Op Amps indispensable in the design of electronic systems, from simple amplifiers to complex signal processing circuits.
Show More

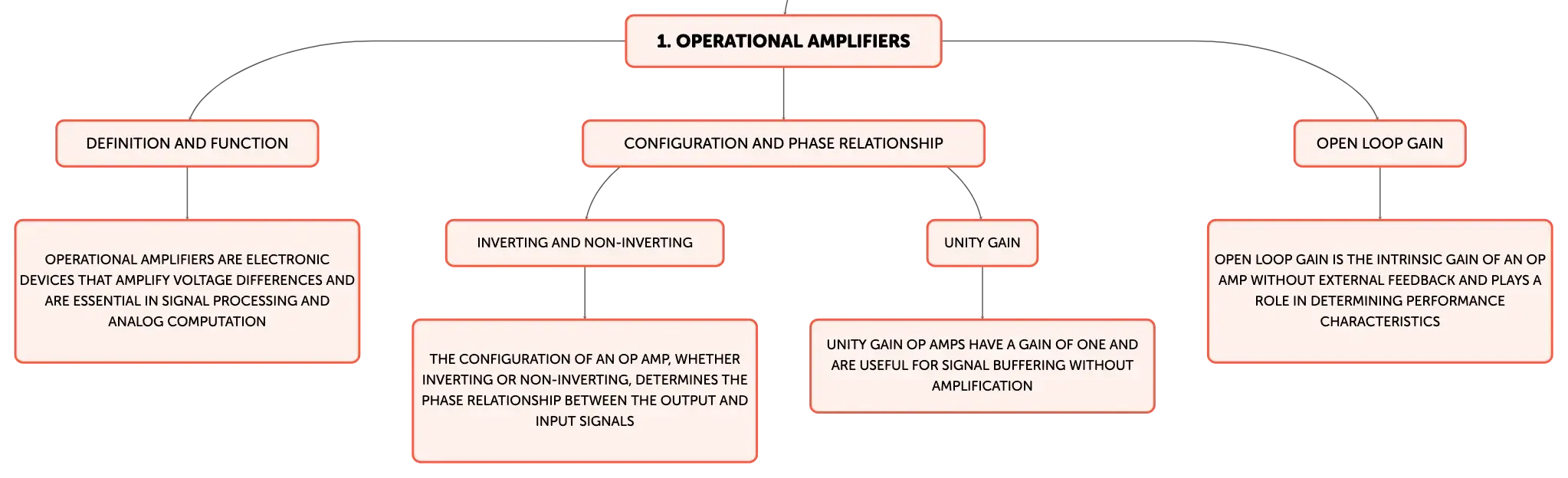

Operational Amplifiers
Definition and Function
Operational Amplifiers are electronic devices that amplify voltage differences and are essential in signal processing and analog computation
Configuration and Phase Relationship
Inverting and Non-Inverting
The configuration of an Op Amp, whether inverting or non-inverting, determines the phase relationship between the output and input signals
Unity Gain
Unity Gain Op Amps have a gain of one and are useful for signal buffering without amplification
Open Loop Gain
Open Loop Gain is the intrinsic gain of an Op Amp without external feedback and plays a role in determining performance characteristics

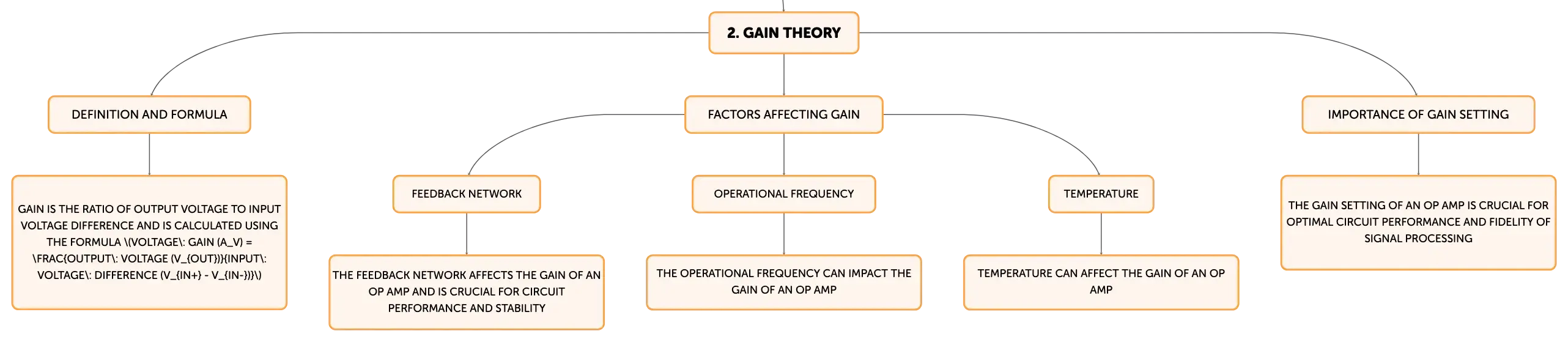

Gain Theory
Definition and Formula
Gain is the ratio of output voltage to input voltage difference and is calculated using the formula \(Voltage\: Gain (A_v) = \frac{Output\: Voltage (V_{out})}{Input\: Voltage\: Difference (V_{in+} - V_{in-})}\)
Factors Affecting Gain
Feedback Network
The feedback network affects the gain of an Op Amp and is crucial for circuit performance and stability
Operational Frequency
The operational frequency can impact the gain of an Op Amp
Temperature
Temperature can affect the gain of an Op Amp
Importance of Gain Setting
The gain setting of an Op Amp is crucial for optimal circuit performance and fidelity of signal processing

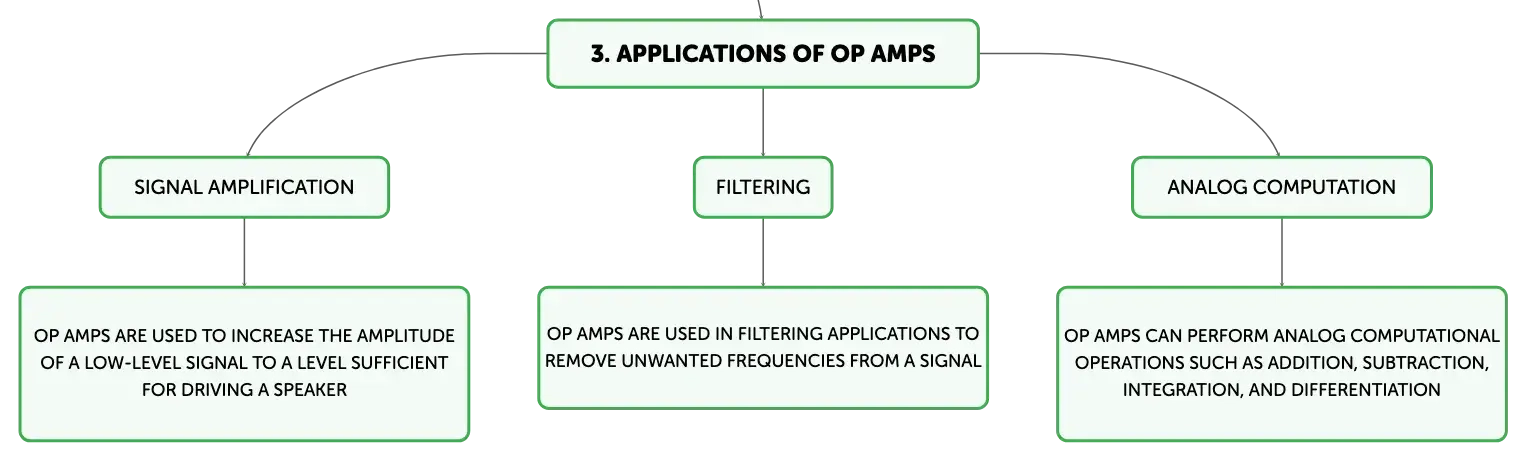

Applications of Op Amps
Signal Amplification
Op Amps are used to increase the amplitude of a low-level signal to a level sufficient for driving a speaker
Filtering
Op Amps are used in filtering applications to remove unwanted frequencies from a signal
Analog Computation
Op Amps can perform analog computational operations such as addition, subtraction, integration, and differentiation
Operational Amplifiers and Gain Theory
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
An ______, commonly known as an Op Amp, boosts the voltage disparity between its two ______.
Operational Amplifier
input terminals
01
Op Amp basic functions
Signal amplification, filtering, analog computations (addition, subtraction, integration, differentiation).
02
Op Amp role in audio amplifiers
Increases low-level audio signal amplitude for speaker driving.
