The Circle: A Fundamental Shape in Mathematics

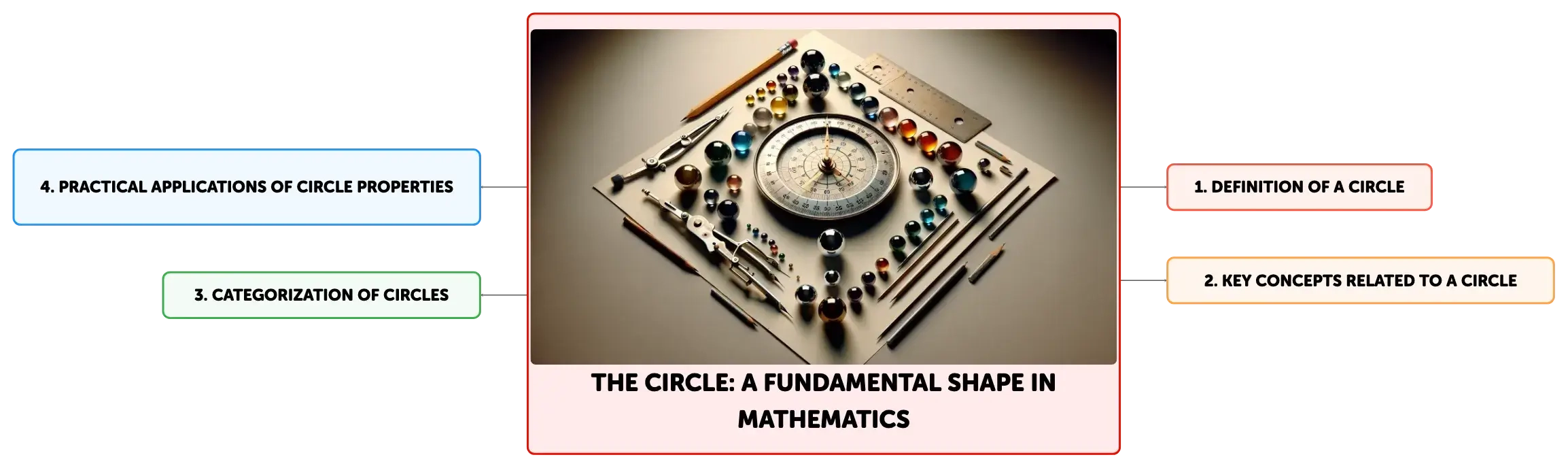

Concept Map
Exploring the circle, this fundamental shape in mathematics is defined by all points equidistant from a center, with the radius being a key element. Understanding the circle's properties, such as the radius, diameter, chord, circumference, and area, is crucial for practical applications in various fields. The text delves into the circle's geometry, including its equations and classifications like tangent, concentric, and congruent circles, highlighting their significance in both theoretical and practical contexts.
Summary
Outline
Exploring the Circle: A Fundamental Shape in Mathematics
The circle is a fundamental shape in mathematics, characterized by its set of points that are equidistant from a fixed central point. This central point is referred to as the center of the circle, and the constant distance from the center to any point on the circle's edge is the radius. As a conic section, a circle can be generated by the intersection of a cone with a plane that is perpendicular to the cone's axis. The circle's perfect symmetry and its definition as a conic section highlight its pivotal role in the study of geometry.The Circle's Radius, Diameter, and Chord
The radius of a circle is a key concept that relates to other important properties, such as the diameter and the chord. A chord is a straight line segment whose endpoints lie on the circle's circumference, and the diameter is the longest chord, passing through the center and having a length twice that of the radius. These elements are essential for delving into the circle's properties and for computing its circumference, area, and other geometric features.Circumference: The Perimeter of a Circle
The circumference of a circle is the total length around the circle, similar to the perimeter of a polygon. It is calculated using the mathematical constant pi (π), which is the ratio of a circle's circumference to its diameter. Pi is an irrational number, approximately equal to 3.14159, and is often approximated as 3.14 or 22/7 for ease of calculation. The formula for the circumference is C = 2πr, where r represents the radius of the circle.Calculating the Area of a Circle
The area of a circle quantifies the extent of the surface enclosed by the circle's boundary. This area can be visualized by reassembling the circle's thin triangular slices into a parallelogram, with the base being half the circumference (πr) and the height being the radius (r). The formula for the area of a circle is A = πr^2, where r is the radius. This formula is vital for various practical applications, such as calculating the materials needed to cover a circular region.Classifying Circles in Geometry
Circles can be categorized based on their spatial relationships with one another. Tangent circles touch at precisely one point, sharing only that single point of tangency. Concentric circles share the same center but have different radii, creating a series of non-intersecting circles. Congruent circles are equal in size and shape, although they may be positioned differently. These classifications are instrumental in analyzing the interactions and relationships between circles in geometric contexts.Practical Applications of Circle Properties
Circle properties have numerous practical applications in daily life. For example, knowing the circumference of a circular object allows for the determination of its radius, and conversely, using the formula C = 2πr. The area of a circle is also significant for tasks that involve understanding the space it encompasses, such as planning a garden layout or designing a round tablecloth, where the formula A = πr^2 is utilized.Key Takeaways from Circle Geometry
To conclude, a circle is defined by its points equidistant from a central point, with the radius being central to understanding its geometry. The circumference and area are derived using the constant π, which is integral to the circle's unique properties. The standard equation of a circle in Cartesian coordinates is (x-h)^2 + (y-k)^2 = r^2, where (h, k) represents the center and r the radius. A comprehensive grasp of the different types of circles—tangent, concentric, and congruent—enhances the study of this essential geometric shape.
Show More

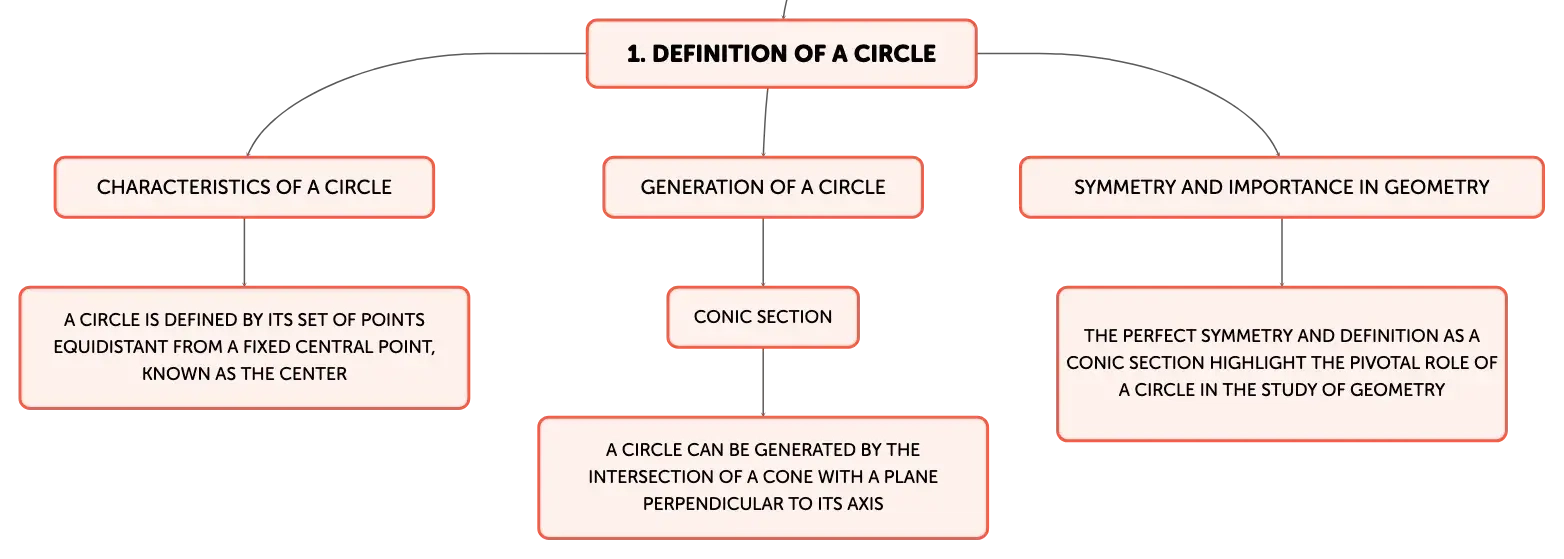

Definition of a Circle
Characteristics of a Circle
A circle is defined by its set of points equidistant from a fixed central point, known as the center
Generation of a Circle
Conic Section
A circle can be generated by the intersection of a cone with a plane perpendicular to its axis
Symmetry and Importance in Geometry
The perfect symmetry and definition as a conic section highlight the pivotal role of a circle in the study of geometry

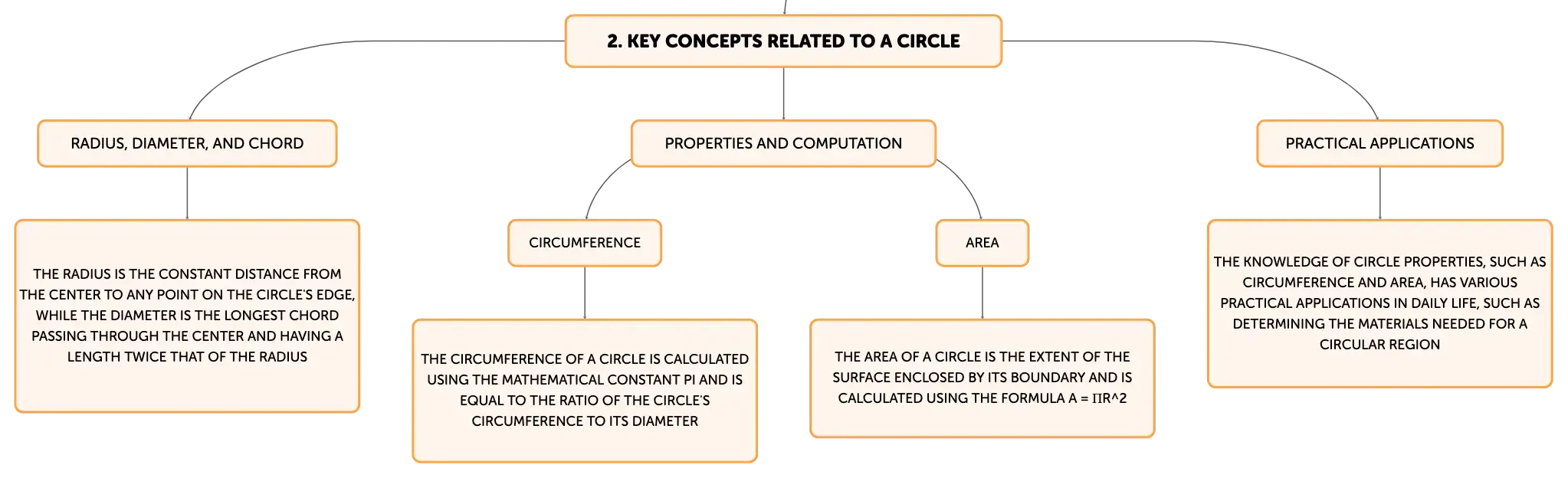

Key Concepts Related to a Circle
Radius, Diameter, and Chord
The radius is the constant distance from the center to any point on the circle's edge, while the diameter is the longest chord passing through the center and having a length twice that of the radius
Properties and Computation
Circumference
The circumference of a circle is calculated using the mathematical constant pi and is equal to the ratio of the circle's circumference to its diameter
Area
The area of a circle is the extent of the surface enclosed by its boundary and is calculated using the formula A = πr^2
Practical Applications
The knowledge of circle properties, such as circumference and area, has various practical applications in daily life, such as determining the materials needed for a circular region

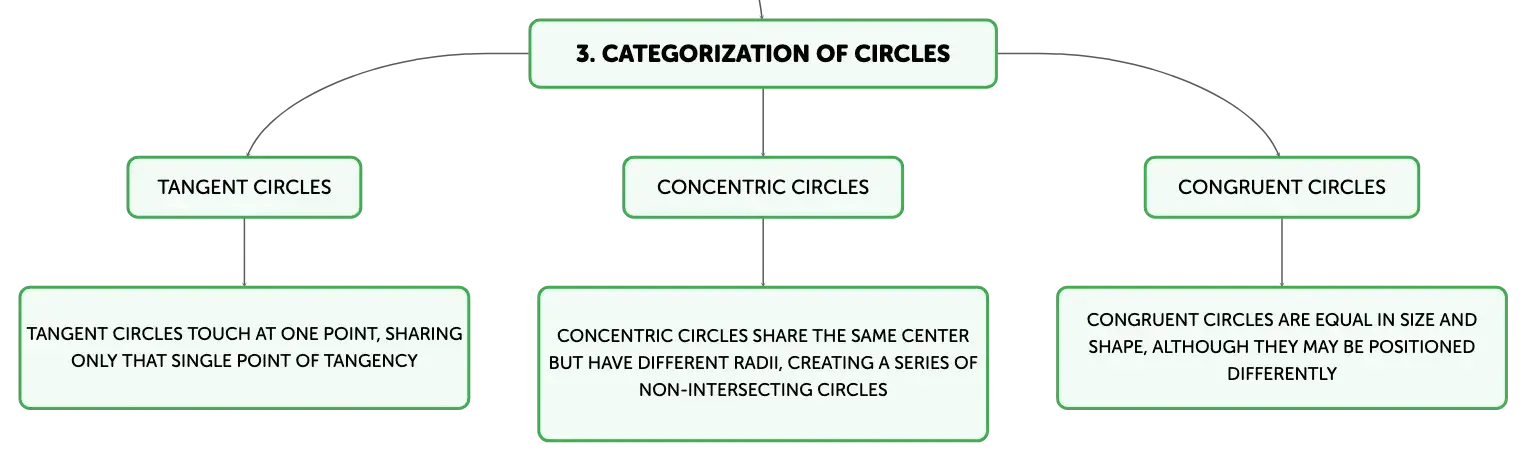

Categorization of Circles
Tangent Circles
Tangent circles touch at one point, sharing only that single point of tangency
Concentric Circles
Concentric circles share the same center but have different radii, creating a series of non-intersecting circles
Congruent Circles
Congruent circles are equal in size and shape, although they may be positioned differently

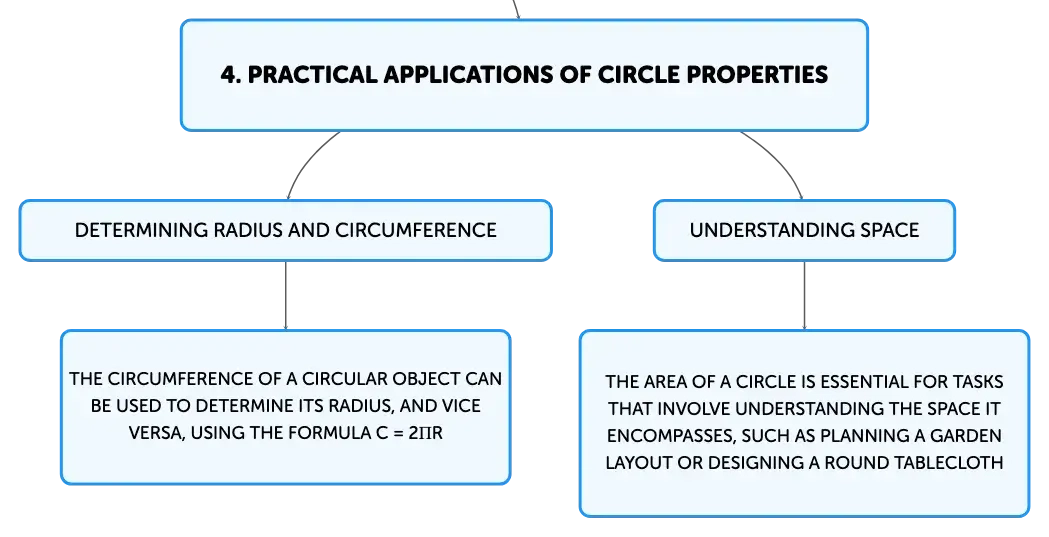

Practical Applications of Circle Properties
Determining Radius and Circumference
The circumference of a circular object can be used to determine its radius, and vice versa, using the formula C = 2πr
Understanding Space
The area of a circle is essential for tasks that involve understanding the space it encompasses, such as planning a garden layout or designing a round tablecloth
The Circle: A Fundamental Shape in Mathematics
Learn with Algor Education flashcards
Click on each card to learn more about the topic
00
A ______, when intersected by a plane at right angles to its axis, creates a ______ as a conic section.
cone
circle
01
Circle's radius to circumference relationship
Circumference equals 2 times pi times radius (C = 2πr)
02
Circle's radius to area relationship
Area equals pi times radius squared (A = πr^2)
