The Equation of a Circle

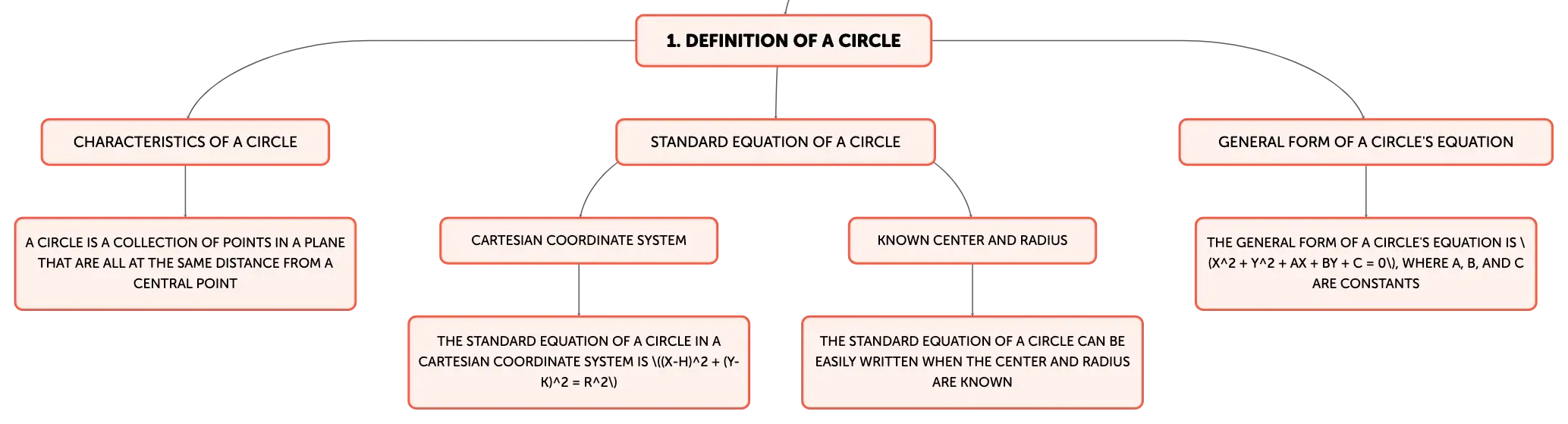

Understanding the Equation of a Circle

A circle is a collection of points in a plane that are all at the same distance, known as the radius, from a central point. This defining characteristic of a circle is encapsulated in its equation. In a Cartesian coordinate system, the standard equation of a circle with a center at coordinates (h, k) and a radius of r is given by \((x-h)^2 + (y-k)^2 = r^2\). In this equation, (x, y) represents any point on the circumference of the circle, while (h, k) denotes the fixed center. The radius r is the distance from the center to any point on the circle's edge. This equation is a direct application of the Pythagorean theorem, reflecting the constant distance from the center to the circumference.

Deriving the Circle's Equation from Center and Radius

When the center and radius of a circle are known, the standard equation of the circle can be easily written. For instance, if a circle's center is located at (-1, -2) and it has a radius of 5 units, the equation becomes \((x+1)^2 + (y+2)^2 = 25\). This is derived by substituting the center's coordinates into the general equation \((x-h)^2 + (y-k)^2 = r^2\), replacing (h, k) with (-1, -2) and r with 5. The resulting equation precisely defines the locus of points forming the perimeter of the circle.

General Form of a Circle's Equation

The general form of a circle's equation is used when the equation is fully expanded and the center's coordinates are not immediately identifiable. By expanding the standard form, we obtain \(x^2 + y^2 - 2hx - 2ky + h^2 + k^2 - r^2 = 0\). To simplify, we define constants \(A = -2h\), \(B = -2k\), and \(C = h^2 + k^2 - r^2\), resulting in the general form \(x^2 + y^2 + Ax + By + C = 0\). The radius can be found using the relationship \(r = \sqrt{(A/2)^2 + (B/2)^2 - C}\), which is valid when the discriminant \((A/2)^2 + (B/2)^2 - C\) is positive, ensuring a real and positive radius.

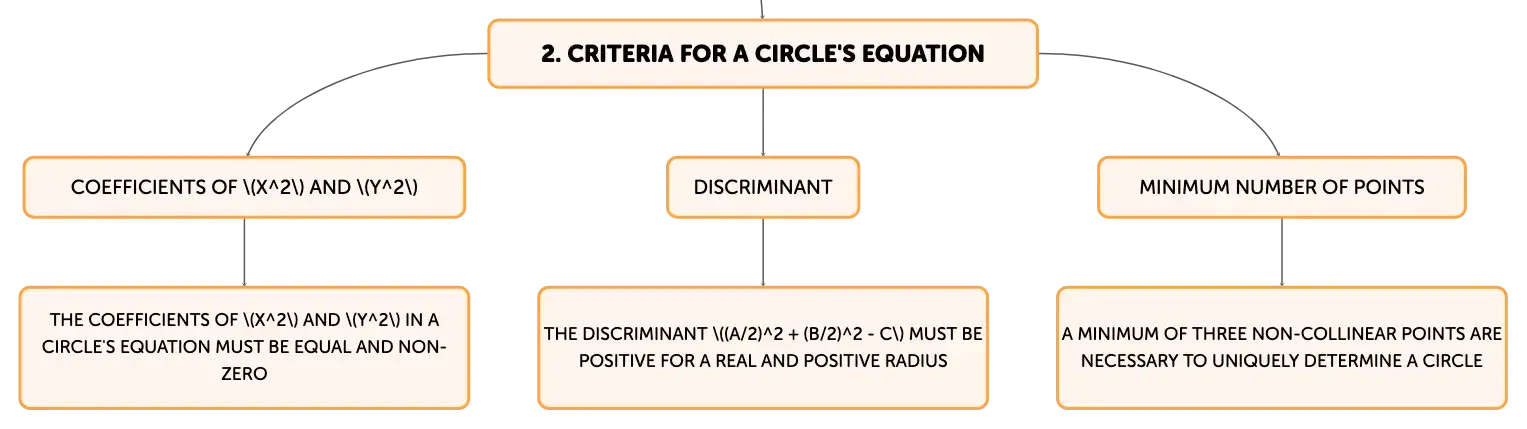

Criteria for a Valid Circle Equation

To confirm that an equation represents a circle, certain criteria must be satisfied. The coefficients of \(x^2\) and \(y^2\) must be equal and non-zero, which ensures the shape is a circle rather than an ellipse or another conic section. Additionally, the discriminant \((A/2)^2 + (B/2)^2 - C\) must be positive to guarantee a real, positive radius. If these conditions are not met, the equation does not define a circle. It is also essential to recognize that a minimum of three non-collinear points are necessary to uniquely determine a circle.

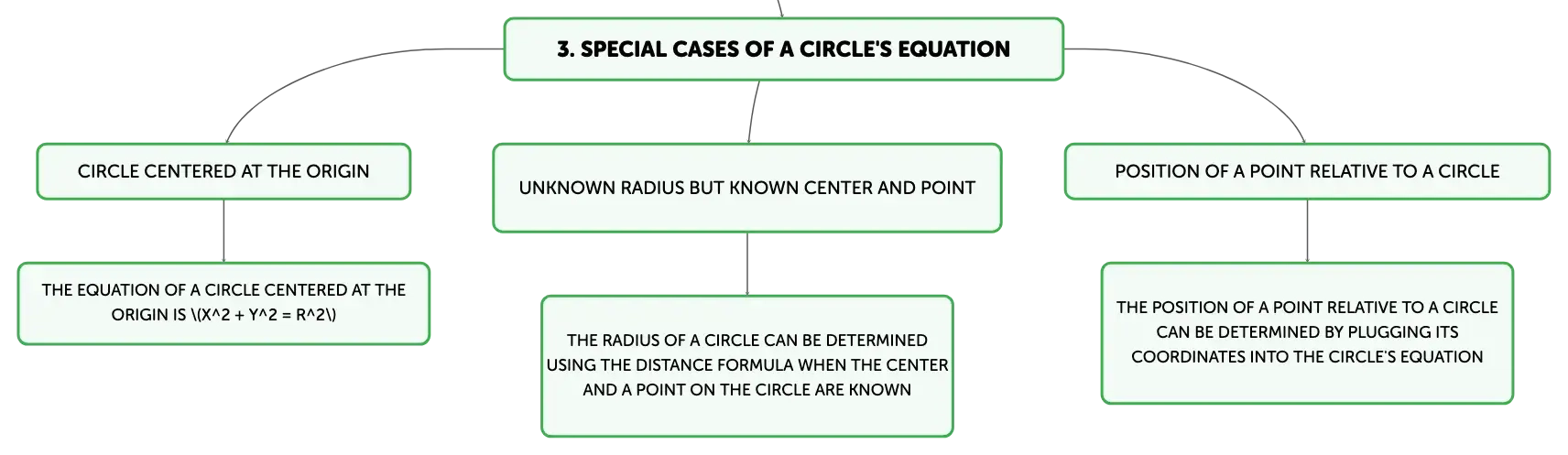

Equation of a Circle Centered at the Origin

The equation of a circle centered at the origin (0, 0) simplifies to \(x^2 + y^2 = r^2\). This form is particularly straightforward because it involves only the radius r and the coordinates (x, y) of points on the circle. The absence of h and k in the equation reflects the circle's symmetry about the origin and simplifies computations and geometric interpretations.

Determining a Circle's Equation from a Center and a Point

When the radius is not known but the center (h, k) and a point on the circle (x_1, y_1) are given, the radius can be determined using the distance formula \(r = \sqrt{(x_1 - h)^2 + (y_1 - k)^2}\). Substituting this value for r back into the standard form yields the circle's equation. This approach is useful for constructing the equation of a circle when only the center and one point on the circumference are known.

Locating a Point Relative to a Circle

The position of a point relative to a circle can be ascertained by plugging the point's coordinates into the circle's equation. If the result is greater than \(r^2\), the point lies outside the circle; if it is less than \(r^2\), the point is inside the circle; and if it is equal to \(r^2\), the point is on the circle. This technique is a simple yet effective way to determine the spatial relationship between a point and a circle in a Cartesian plane.

Key Takeaways on the Equation of a Circle

The equation of a circle is an essential concept for understanding circular geometry on a Cartesian plane. The standard form \((x-h)^2 + (y-k)^2 = r^2\) is used when the center and radius are known, while the general form \(x^2 + y^2 + Ax + By + C = 0\) is applicable when the equation is expanded. Determining the position of a point relative to a circle involves substituting the point's coordinates into the circle's equation. Mastery of these equations and their applications is crucial for the study of circles in geometry.
