Fundamentals of Summing Amplifiers in Electronic Circuits

Summing amplifiers, integral to both analog and digital electronics, are operational amplifiers (Op-Amps) that output a voltage equal to the weighted sum of multiple input voltages. These devices are versatile, found in both alternating current (AC) and direct current (DC) applications, and are designed to scale each input by a factor determined by the circuit's resistive network before summing them. The output voltage (\(V_{out}\)) is given by the formula \(V_{out} = -(\frac{R_f}{R_1}V_{input1} + \frac{R_f}{R_2}V_{input2} + ... + \frac{R_f}{R_n}V_{inputn})\), where \(R_f\) is the feedback resistor and \(R_1, R_2, ..., R_n\) are the resistors corresponding to the input voltages \(V_{input1}, V_{input2}, ..., V_{inputn}\).

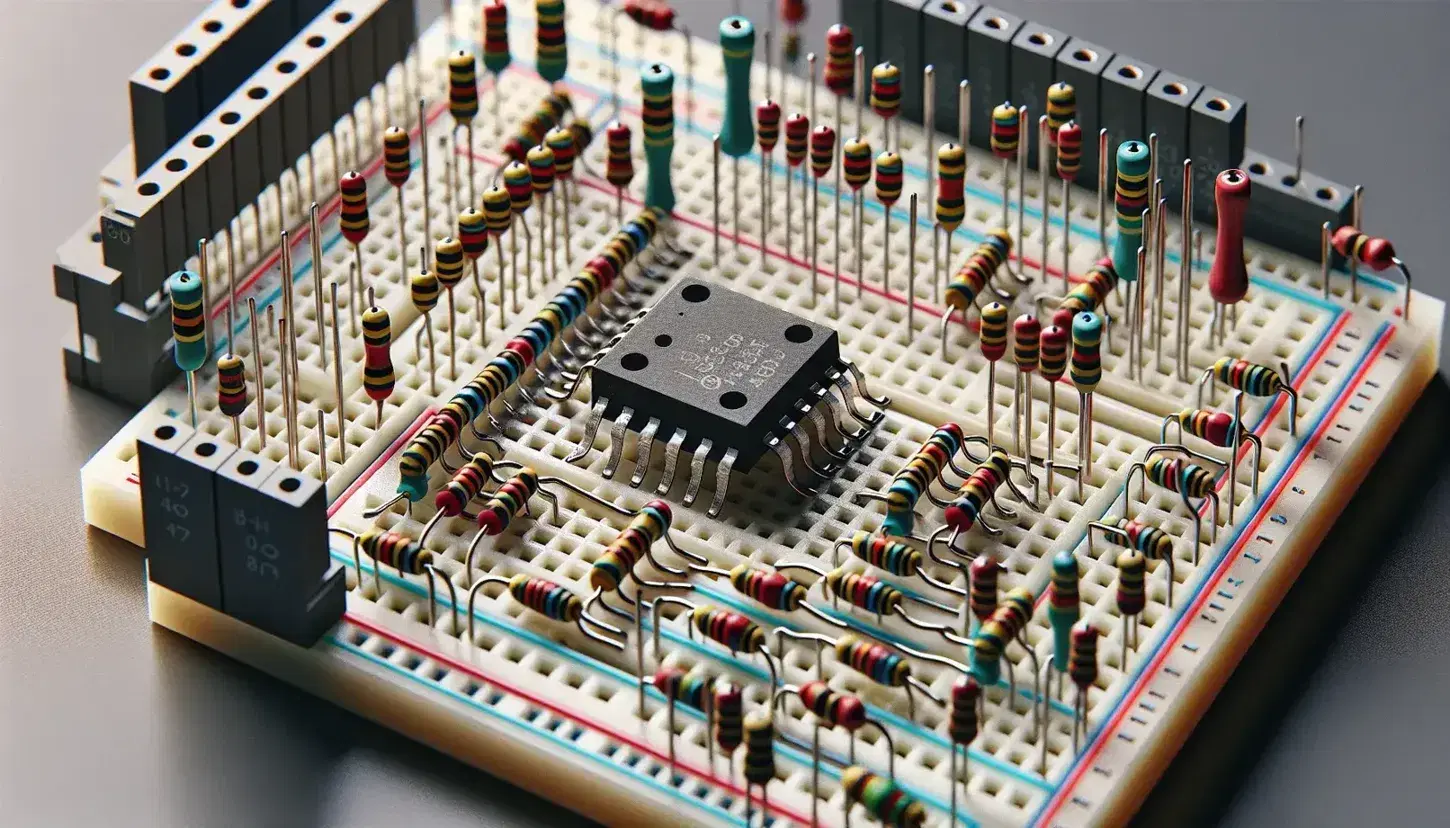

Close-up view of an operational amplifier on a breadboard with resistors and jumper wires, showcasing an electronic circuit setup.

Characteristics and Applications of Summing Amplifiers

Summing amplifiers are characterized by high input impedance, which minimizes the loading effect on the source circuit and preserves signal integrity. They also have low output impedance, facilitating the driving of subsequent stages in a system. The gain for each input can be individually adjusted by altering the resistor values in the circuit. In audio mixing, for instance, summing amplifiers allow for the independent control of each channel's volume before combining them into a single output, exemplifying their utility in signal processing tasks.

Inverting and Non-Inverting Summing Amplifiers

Summing amplifiers are classified into inverting and non-inverting types based on their phase relationship with the input signals. Non-Inverting Summing Amplifiers provide an output in phase with the input, with an output voltage formula \(V_{out} = (1 + \frac{R_f}{R_1})V_{in}\). In contrast, Inverting Summing Amplifiers produce an output that is 180 degrees out of phase with the input, described by the formula \(V_{out} = -(\frac{R_f}{R_1}V_{input1} + \frac{R_f}{R_2}V_{input2} + ... + \frac{R_f}{R_n}V_{inputn})\). The selection between inverting and non-inverting types is determined by the specific needs of the application.

The Role of Operational Amplifiers in Summing Circuits

The operational amplifier is the cornerstone of the summing amplifier circuit, defining its functionality. An Op-Amp is a high-gain electronic voltage amplifier with differential inputs and, typically, a single-ended output. It operates in various modes, including as a voltage follower, where the output mirrors the input, and as an inverter, where the output is an amplified, inverted replica of the input. The configuration of the Op-Amp in the summing circuit dictates whether the output is an inverted sum or a direct copy of the input voltages.

Interpreting the Summing Amplifier Equation

The summing amplifier equation is crucial for understanding the operation of the device, as it mathematically expresses the relationship between the output and input voltages, incorporating the circuit's resistive elements. For an Inverting Summing Amplifier, the equation is \(V_{out} = -(\frac{R_f}{R_1}V_{input1} + \frac{R_f}{R_2}V_{input2} + ... + \frac{R_f}{R_n}V_{inputn})\), while for a Non-Inverting Summing Amplifier, it is \(V_{out} = (1 + \frac{R_f}{R_1})V_{in}\). These formulas demonstrate how the output voltage is dependent on the input voltages and the values of the resistors, which are critical to the design and function of the circuit.

Everyday Uses of Summing Amplifiers

Summing amplifiers are employed in a wide array of everyday devices and systems. In audio mixing consoles, they combine multiple inputs to produce a single output without cross-channel interference. In mobile phones, they merge different frequency signals to generate complex notification sounds. Digital-to-analog converters (DACs), essential in video game consoles and digital audio players, utilize summing amplifiers to transform digital data into analog signals. Furthermore, digital weighing scales incorporate summing amplifiers to sum signals from various sensors, providing an accurate measurement of the total weight. These applications highlight the summing amplifier's capability to merge multiple inputs into a coherent output with precision and reliability.

Summing Amplifiers

Concept Map

Summary

Outline

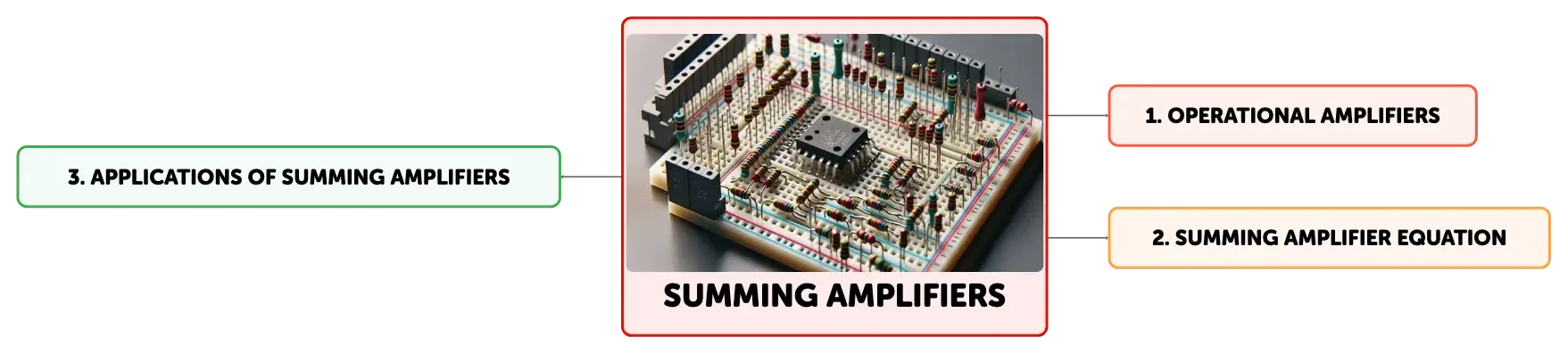

Summing Amplifiers

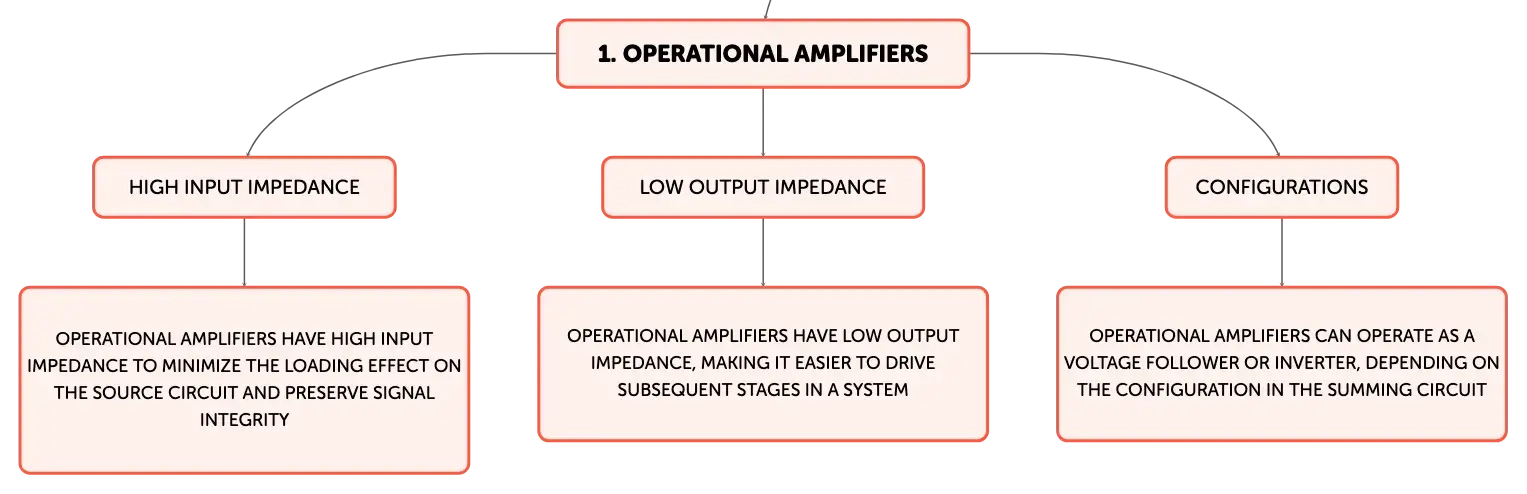

Operational Amplifiers

High input impedance

Low output impedance

Configurations

Summing Amplifier Equation

Inverting Summing Amplifier Equation

Non-Inverting Summing Amplifier Equation

Dependence on resistors

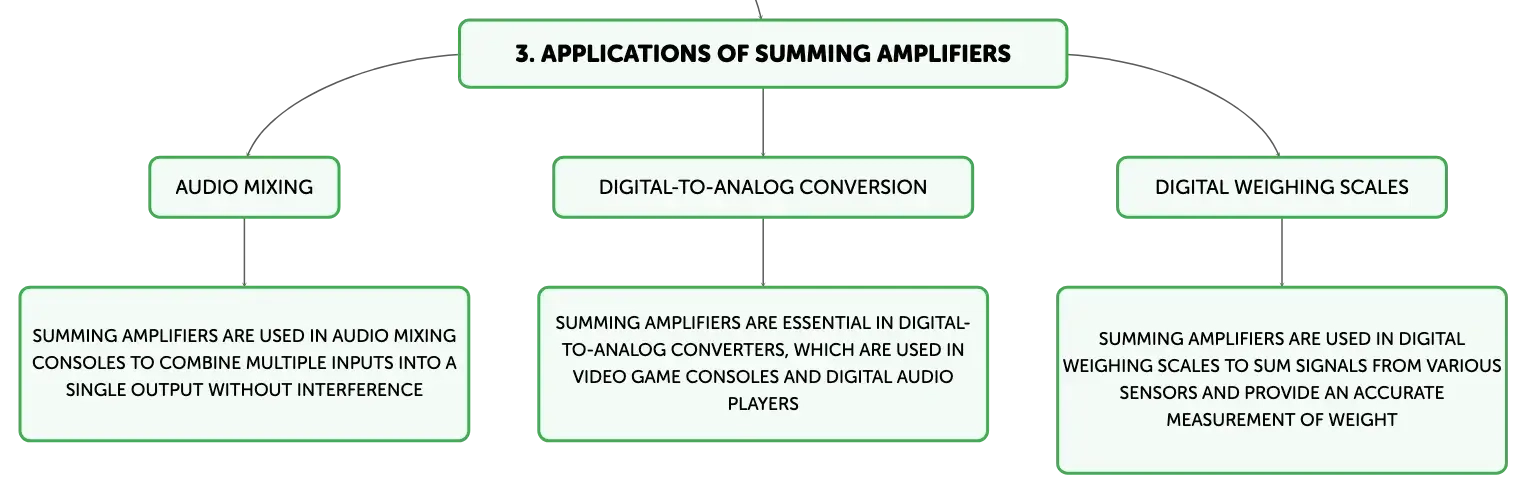

Applications of Summing Amplifiers
