Fundamentals of Sound and Ultrasound Technology

Sound is a mechanical wave that results from the vibration of particles in a medium, which can be a gas, liquid, or solid. These vibrations create longitudinal waves that travel through the medium at a speed dependent on its properties. The range of frequencies that the average human ear can perceive is from about 20 hertz (Hz) to 20,000 Hz, known as the audible range. Frequencies below 20 Hz are classified as infrasound, while those above 20,000 Hz are termed ultrasound. Various animals, such as bats and dolphins, utilize these ultrasonic frequencies for navigation and communication. Ultrasound has numerous applications in different fields due to its ability to penetrate different materials and reflect off surfaces, providing valuable information about the properties and dimensions of the object it encounters.

Modern ultrasound machine with large screen and attached transducer probe on examination table, next to medical professional in teal scrubs and a steel cart with supplies.

Ultrasound in Aquatic Navigation

In aquatic environments, where visibility is limited and light waves are quickly absorbed, ultrasound is indispensable for navigation and mapping. SONAR (Sound Navigation And Ranging) systems emit ultrasonic pulses and measure the time it takes for the echoes to return after bouncing off underwater objects or the sea floor. The distance to an object is determined using the equation d = (v × t) / 2, where 'd' represents distance, 'v' is the speed of sound in water, and 't' is the time elapsed. This technology is crucial for a variety of marine activities, including navigation by ships and submarines, fishing operations, and scientific exploration of the ocean depths.

Ultrasonic Cleaning Techniques

Ultrasonic cleaning utilizes high-frequency sound waves to agitate a liquid, creating cavitation bubbles that produce a high force on contaminants adhering to substrates like metals, plastics, glass, rubber, and ceramics. This process is gentle yet effective, making it ideal for cleaning intricate items such as jewelry, lenses, and precision instruments. In dentistry, ultrasonic scalers are used to remove calculus from teeth surfaces efficiently, with minimal discomfort to the patient. The ultrasonic vibrations can reach into small crevices and remove debris without damaging the tooth enamel, promoting oral health.

Medical Imaging and Therapeutic Uses of Ultrasound

Ultrasound imaging, or sonography, is a non-invasive diagnostic procedure that uses high-frequency sound waves to produce images of the body's internal structures. It is widely used in obstetrics for monitoring fetal development, as well as in cardiology, radiology, and other medical specialties for examining organs and tissues. Ultrasound is also employed therapeutically in physical therapy to promote tissue healing and in lithotripsy to fragment kidney stones. The absence of ionizing radiation makes ultrasound a safer alternative to X-rays, particularly for fetal imaging.

Ultrasound in Non-Destructive Testing and Material Analysis

Ultrasound is a powerful tool for non-destructive testing (NDT) in industrial applications, where it is used to inspect the integrity of materials and detect internal flaws such as cracks, voids, and inclusions. Ultrasonic testing involves transmitting sound waves into materials and analyzing the reflected waves for discontinuities. This method is essential for ensuring the safety and reliability of critical components in aerospace, automotive, and construction industries. It allows for the detection of defects without causing damage to the tested items, thereby preserving their utility and value.

Concluding Insights on Ultrasound Applications

Ultrasound technology, operating at frequencies beyond the human audible range, has a broad spectrum of applications that leverage its unique properties. It is a pivotal tool for navigation in murky waters, for cleaning sensitive items without abrasion, and for providing a non-invasive means of medical diagnosis and treatment. In the industrial sector, it plays a critical role in maintaining the quality and safety of products. The diverse applications of ultrasound, from echo sounding to medical imaging, highlight its significance and utility in both everyday life and specialized professional domains.

Applications of Ultrasound

Concept Map

Summary

Outline

Applications of Ultrasound

Properties of Sound

Mechanical Wave

Longitudinal Waves

Infrasound and Ultrasound

Applications in Nature

Animal Navigation and Communication

SONAR Technology

Ultrasonic Cleaning

Medical Applications

Ultrasound Imaging

Therapeutic Uses

Non-Destructive Testing

Industrial Applications

Non-Destructive Testing

Cleaning and Maintenance

Quality Control

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

Q&A

Here's a list of frequently asked questions on this topic

What is the definition of sound and what are the frequency ranges for audible, infrasound, and ultrasound?

How does SONAR technology work in underwater environments?

What are the applications of ultrasonic cleaning and how does it work?

What are some medical uses of ultrasound imaging and therapy?

How is ultrasound used in non-destructive testing (NDT)?

Can you summarize the diverse applications of ultrasound technology?

Similar Contents

Explore other maps on similar topics

Applications of Ultrasound

Concept Map

Summary

Outline

Applications of Ultrasound

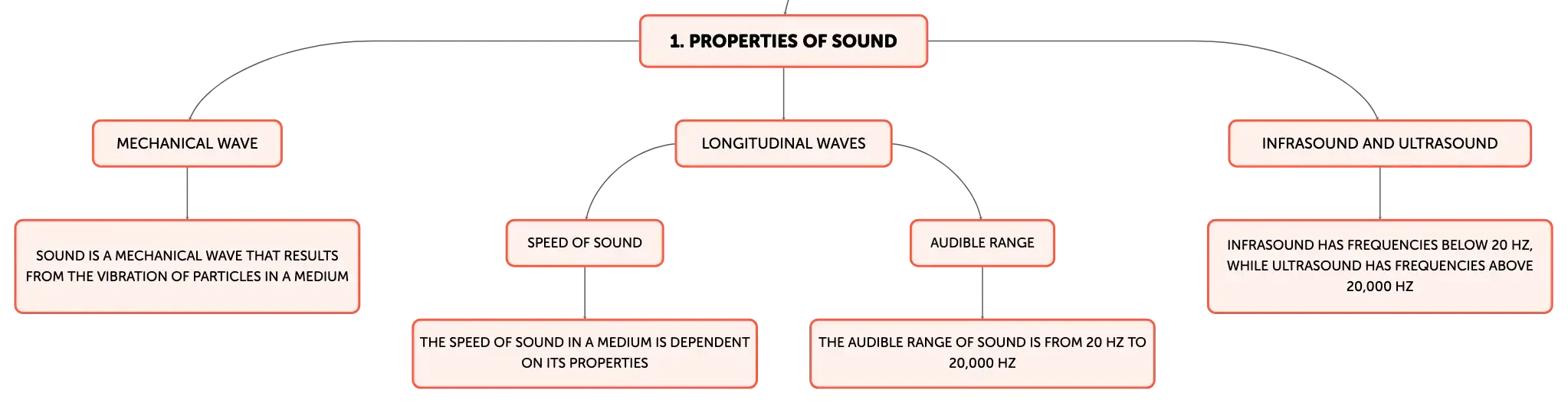

Properties of Sound

Mechanical Wave

Longitudinal Waves

Infrasound and Ultrasound

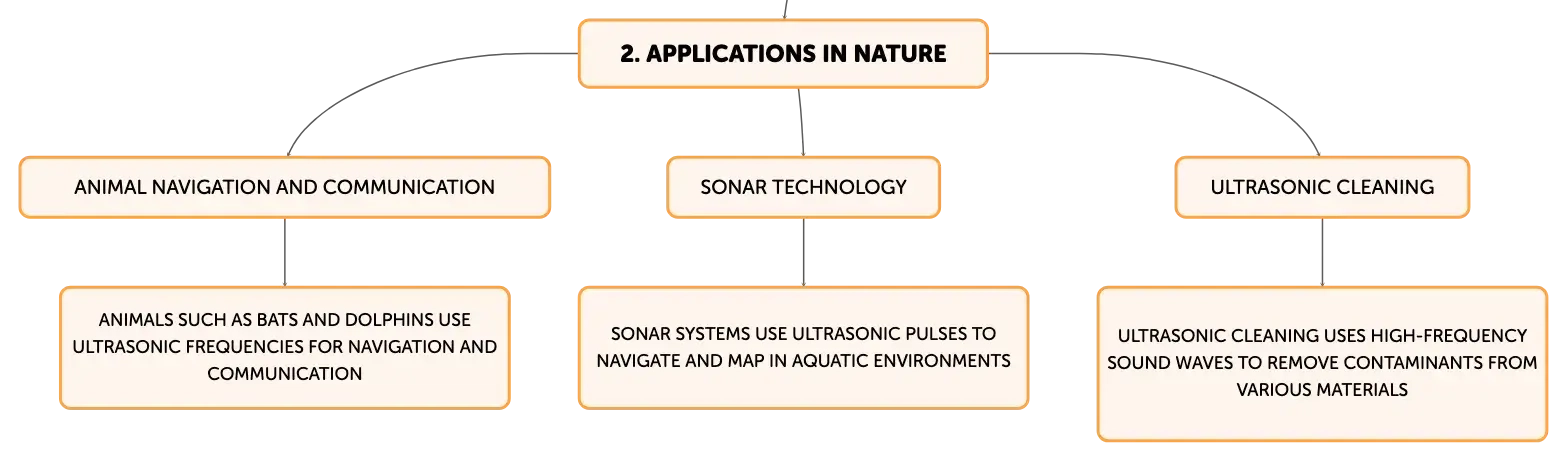

Applications in Nature

Animal Navigation and Communication

SONAR Technology

Ultrasonic Cleaning

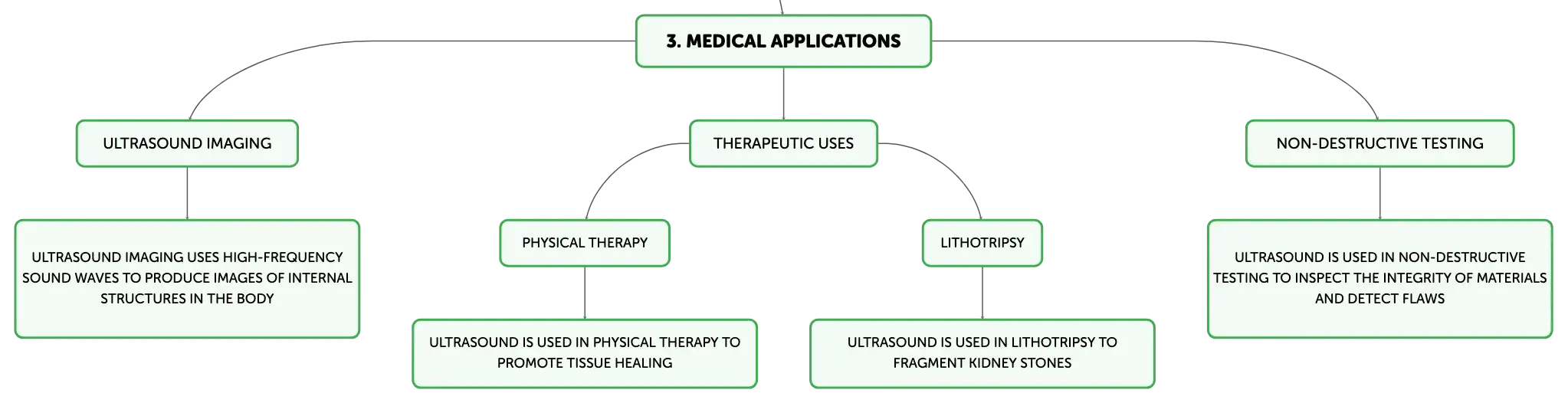

Medical Applications

Ultrasound Imaging

Therapeutic Uses

Non-Destructive Testing

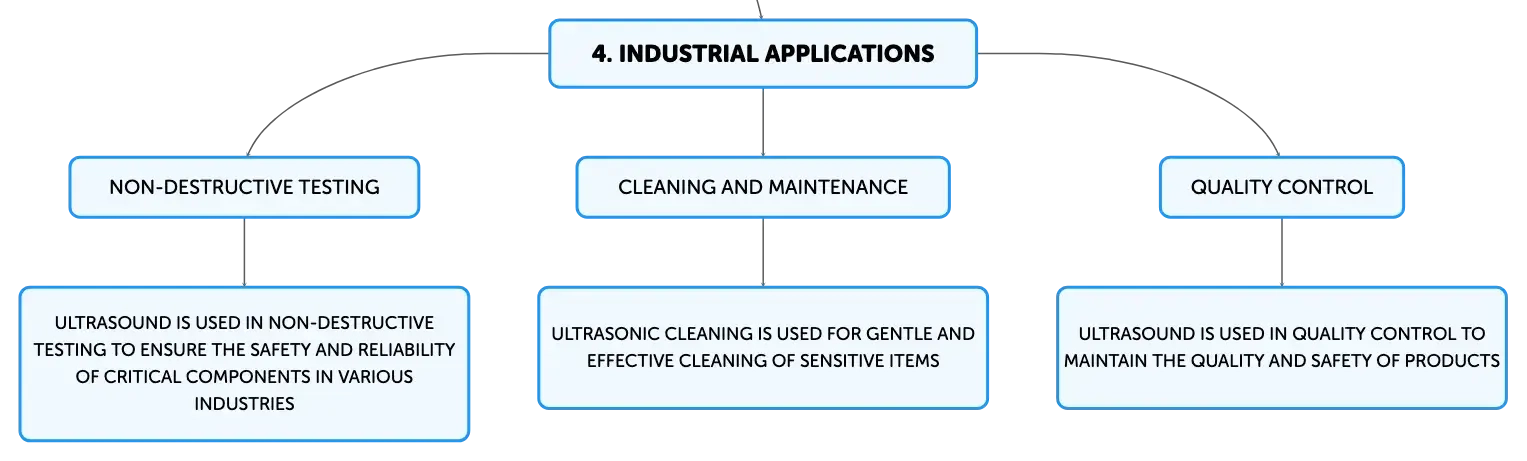

Industrial Applications
