Quadrilaterals: Properties and Formulas
Quadrilaterals are four-sided polygons integral to geometry, with types like squares, rectangles, and kites. Each has unique properties, such as side lengths and angles, which determine formulas for calculating their perimeter and area. Understanding these properties is crucial for solving geometric problems involving these shapes.
See moreExploring the Basics of Quadrilaterals
Quadrilaterals are four-sided polygons that are a key subject in the study of geometry. These shapes are characterized by having four straight sides, four vertices (corners), and four angles. The name "quadrilateral" originates from the Latin "quadri-" meaning four and "lateral" referring to sides. Quadrilaterals are also known as tetragons or quadrangles. A fundamental property of quadrilaterals is that the sum of their interior angles is always 360 degrees. This invariant feature, along with the presence of two diagonals that connect non-adjacent vertices, is essential for understanding the diverse family of quadrilaterals and their respective properties.Classifying Quadrilaterals by Their Unique Properties
Quadrilaterals are categorized into several types based on their side lengths, angles, and symmetry: squares, rectangles, parallelograms, trapezoids (or trapeziums), rhombuses, and kites. Squares are equilateral and equiangular, with perpendicular diagonals that bisect each other. Rectangles are defined by equal opposite sides and four right angles, with congruent diagonals that bisect each other. Parallelograms have equal opposite sides and angles, with diagonals that bisect each other but are not necessarily equal. Trapezoids have a single pair of parallel sides and may have non-parallel sides of different lengths. Rhombuses possess four equal sides with diagonals that are perpendicular and bisect each other, but unlike squares, their angles are not required to be right angles. Kites are distinguished by two distinct pairs of adjacent equal sides and diagonals that intersect at a right angle, with one diagonal bisecting the other.The Geometry of Naming and Measuring Quadrilaterals
The naming of a quadrilateral is based on the sequence of its vertices, which are typically labeled alphabetically. A quadrilateral with vertices labeled A, B, C, and D can be named ABCD, BCDA, CDAB, or DABC, following a consecutive path. Measuring quadrilaterals involves calculating the lengths of sides, diagonals, and angles. The sides are line segments that join vertices, and the point of intersection is called a vertex. Diagonals are line segments that connect opposite vertices. Interior angles of a quadrilateral add up to 360 degrees, and adjacent angles may be supplementary (adding up to 180 degrees) or complementary (adding up to 90 degrees), depending on their relationship.Calculating Perimeter and Area of Quadrilaterals
The perimeter of a quadrilateral is the sum of the lengths of its sides. For a quadrilateral with sides a, b, c, and d, the perimeter P is given by P = a + b + c + d. The area of a quadrilateral is the region enclosed by its sides and varies according to the type of quadrilateral. For a square with side length s, the area A is A = s^2. A rectangle with length l and width w has an area A = l × w. The area of a parallelogram with base b and height h is A = b × h, while a trapezoid with bases b1, b2 and height h has an area A = (1/2) × (b1 + b2) × h. Rhombuses and kites have an area formula A = (1/2) × d1 × d2, where d1 and d2 are the lengths of the diagonals.Understanding Angles in Quadrilaterals

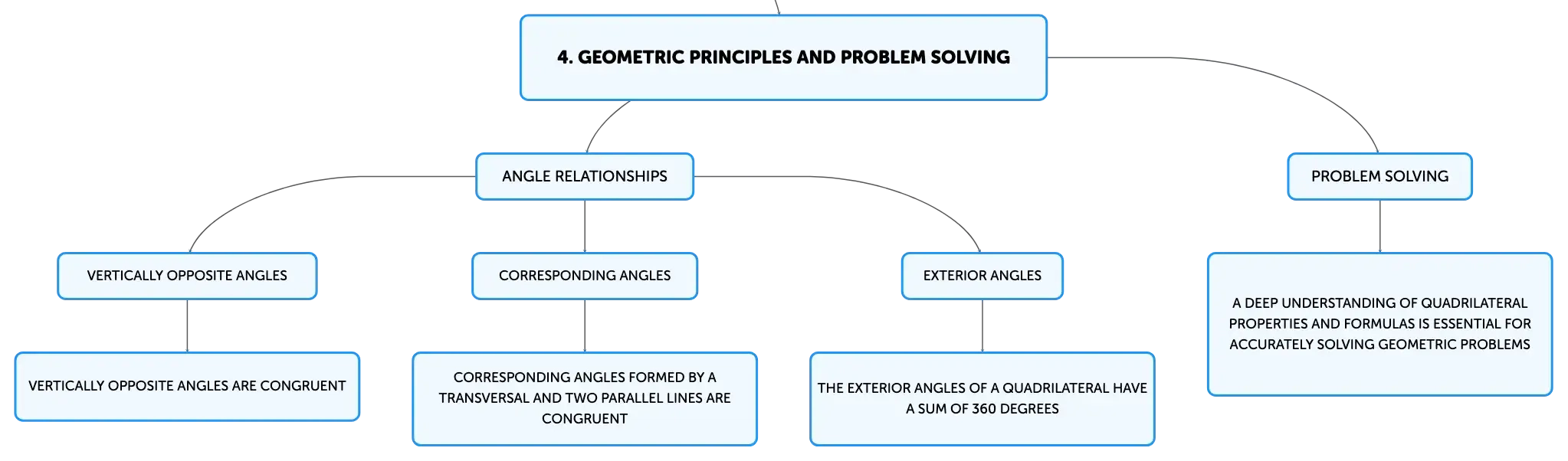

The angles in quadrilaterals are interconnected through various geometric principles. Vertically opposite angles, formed when two lines intersect, are congruent. Corresponding angles, created when a transversal cuts across two parallel lines, are also congruent. The exterior angles of a quadrilateral, formed by extending its sides, have a sum of 360 degrees. These angle relationships are fundamental for solving geometric problems involving quadrilaterals, as they provide a basis for determining unknown angle measures and side lengths under specific conditions.Problem-Solving with Quadrilaterals
Mastery of quadrilateral properties and formulas is crucial for solving geometric problems. To find the perimeter of a parallelogram, one must sum the lengths of its opposite sides. Calculating its area requires knowledge of the base and height. In a trapezoid, the length of an unknown side can be found by using the perimeter and subtracting the lengths of the known sides. The length of a rectangle's diagonal can be determined using the Pythagorean theorem, as it forms a right triangle with the rectangle's sides. A deep understanding of quadrilateral properties is essential for accurately solving such problems and is a fundamental aspect of geometry education.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
A key characteristic of a ______ is that the total of its interior angles always adds up to ______ degrees.
Click to check the answer
2
Square properties
Click to check the answer
3
Rectangle distinctives
Click to check the answer
4
Rhombus vs Square
Click to check the answer
5
The sum of the ______ angles inside a quadrilateral equals ______ degrees.
Click to check the answer
6
In a quadrilateral, opposite vertices are connected by line segments known as ______.
Click to check the answer
7
Quadrilateral Perimeter Formula
Click to check the answer
8
Square Area Calculation
Click to check the answer
9
Trapezoid Area Formula
Click to check the answer
10
When two lines cross, the angles directly across from each other, known as ______ angles, are equal in measure.
Click to check the answer
11
The total measure of the ______ angles of a quadrilateral, which are formed by extending its sides, is ______ degrees.
Click to check the answer
12
Parallelogram Perimeter Calculation
Click to check the answer
13
Parallelogram Area Formula
Click to check the answer
14
Trapezoid Unknown Side Determination
Click to check the answer
