Fundamentals of Linear Operational Amplifiers (Op-Amps)

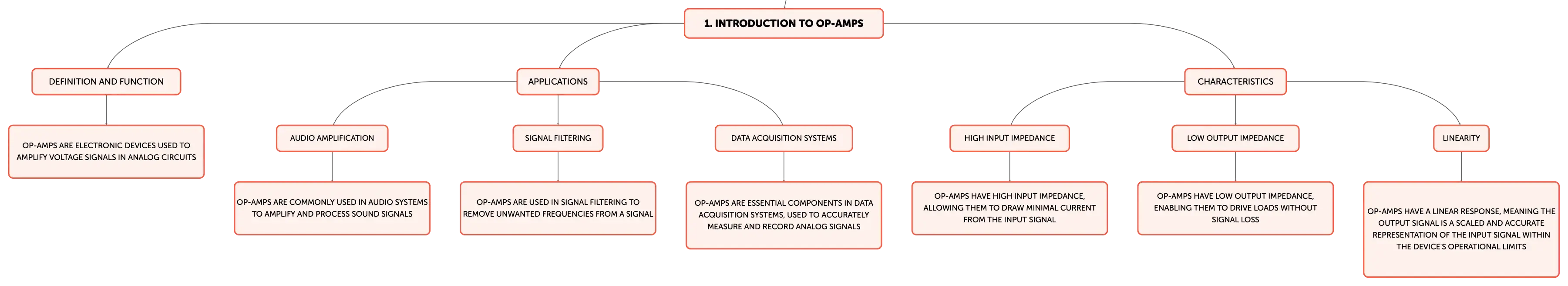

Linear Operational Amplifiers, or Op-Amps, are fundamental building blocks in analog circuit design, utilized for their ability to amplify voltage signals. An Op-Amp amplifies the difference in voltage between its two input terminals, which is vital for a host of applications such as audio amplification, signal filtering, and data acquisition systems. Characterized by high input impedance and low output impedance, an Op-Amp's linearity ensures that the output signal is a scaled, accurate representation of the input, preserving the integrity of the original signal within the operational limits of the device.Operational Modes of Linear Op-Amps

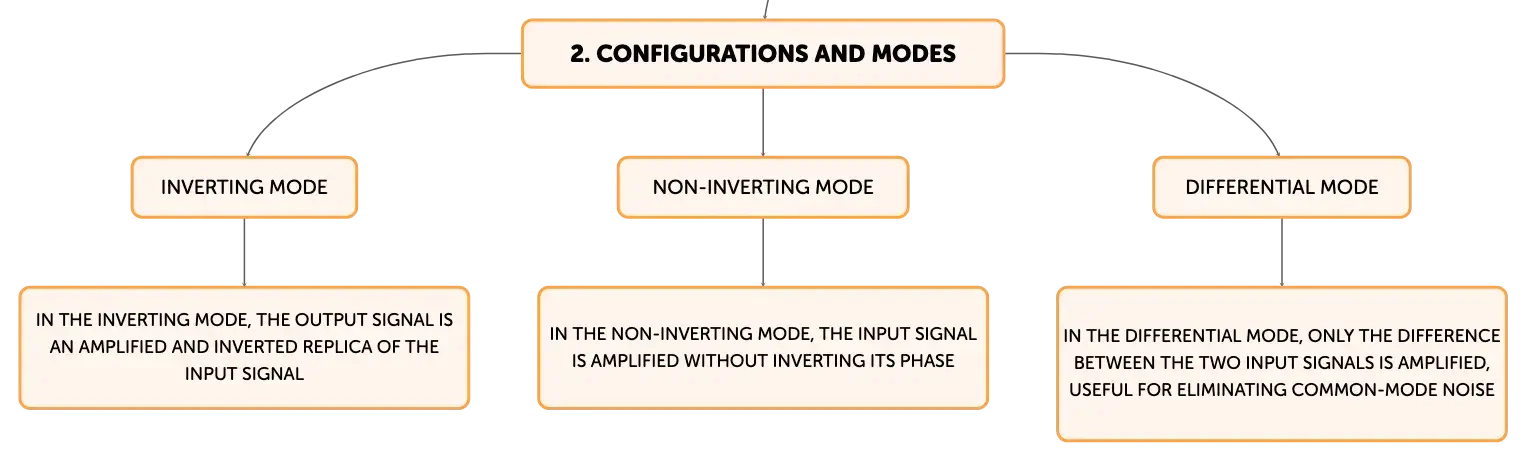

Linear Op-Amps can be configured in various modes to suit different applications. The Inverting mode provides an output that is an amplified, inverted replica of the input signal, useful for signal inversion and scaling. The Non-inverting mode amplifies the input signal without inverting its phase, ideal for applications requiring signal buffering. The Differential mode amplifies only the difference between the two input signals, which is essential for eliminating common-mode noise. Mastery of these modes enables designers to tailor Op-Amp circuits to specific functions and performance criteria.Technical Terminology in Linear Op-Amps
Proficiency in the technical terminology associated with Linear Op-Amps is crucial for understanding their operation and specifications. 'Gain' quantifies the Op-Amp's voltage amplification capability, while 'Bandwidth' specifies the frequency range over which the Op-Amp can operate effectively. 'Input offset voltage' is the differential input voltage that results in a zero output when no signal is present, and 'Input bias currents' are the DC currents required by the inputs to function properly. The 'Slew rate' defines the maximum rate of change of the output voltage, impacting the Op-Amp's ability to respond to rapidly changing signals. These terms are fundamental to evaluating Op-Amp performance in electronic circuits.Key Concepts in Linear Op-Amp Design

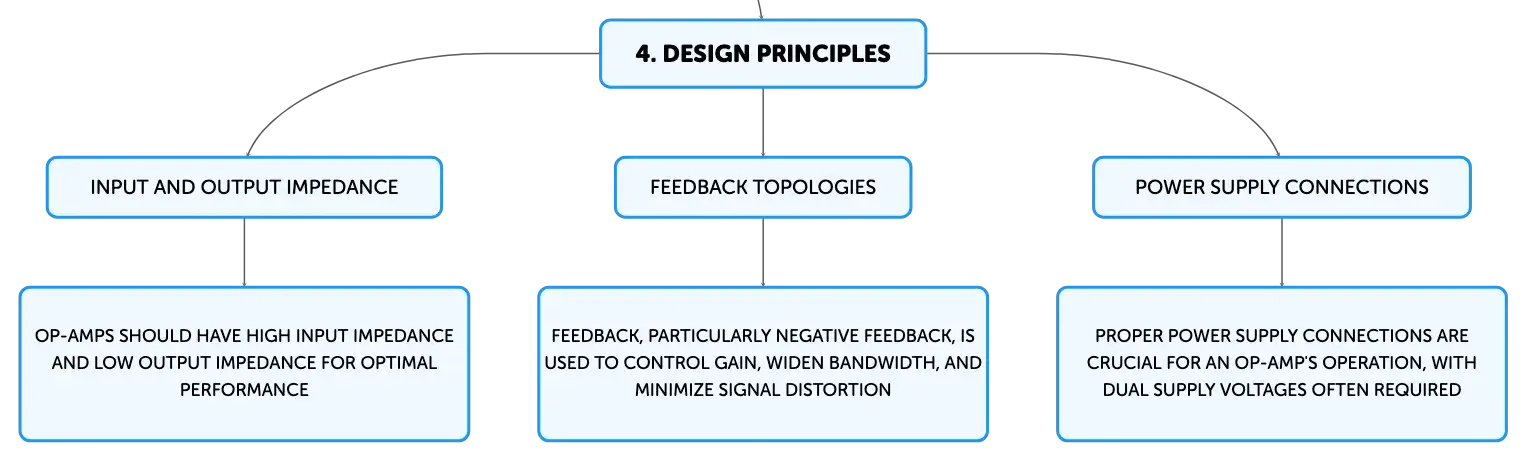

Essential concepts in Linear Op-Amp design include input and output impedance, input capacitance, and feedback topologies. An Op-Amp should ideally exhibit infinite input impedance to minimize current draw and negligible output impedance to drive loads without signal loss. Feedback, particularly negative feedback, is implemented to control the gain, widen the bandwidth, and minimize signal distortion. These design principles are critical for creating effective and reliable Op-Amp circuits that perform as intended across various applications.Constructing and Understanding Linear Op-Amp Circuits
Building Linear Op-Amp circuits necessitates a comprehensive understanding of their configuration and feedback networks. Proper power supply connections are essential for the Op-Amp's operation, with dual supply voltages often required. The inverting and non-inverting input terminals set the stage for the desired signal processing, while feedback components regulate the gain and stability of the circuit. Knowledge of these elements and their interactions is imperative for constructing Op-Amp circuits that accurately process and amplify signals.Practical Applications and Troubleshooting of Linear Op-Amps

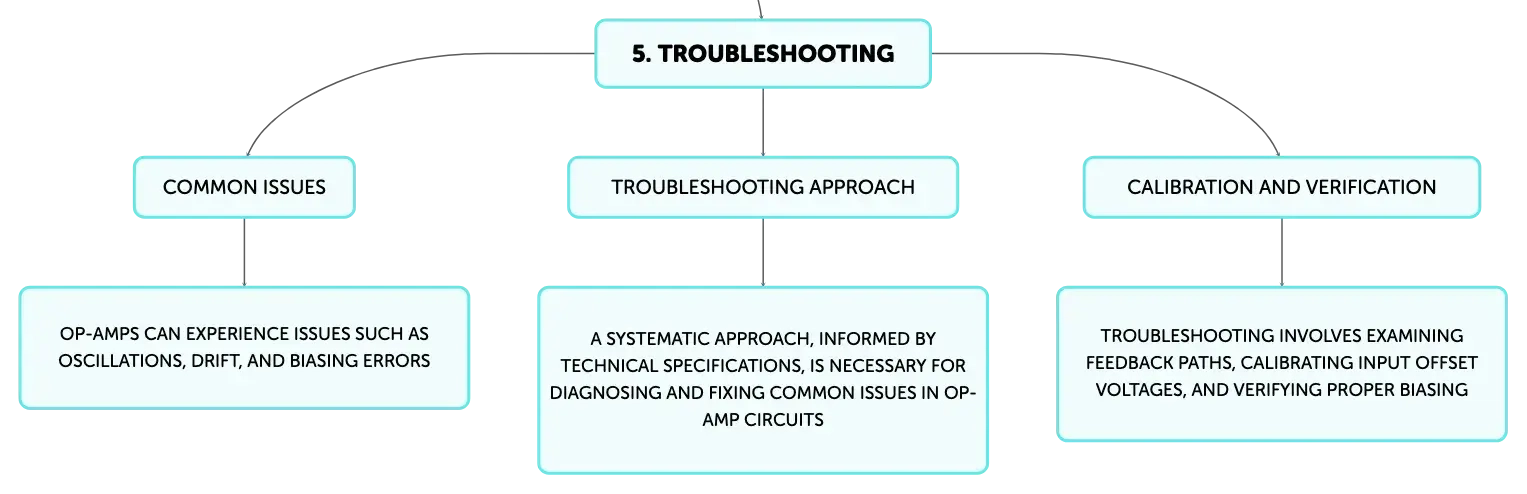

Linear Op-Amps are ubiquitous in practical applications, from controlling audio volume to processing video signals, due to their high gain, stability, and precision. Nonetheless, they can experience issues such as oscillations, drift, and biasing errors. Troubleshooting involves methodical examination of feedback paths, calibration of input offset voltages, and verification of proper biasing. A systematic troubleshooting approach, informed by the Op-Amp's technical specifications, is essential for diagnosing and rectifying common issues encountered in these circuits.Advancements and Future Prospects in Linear Op-Amp Technology

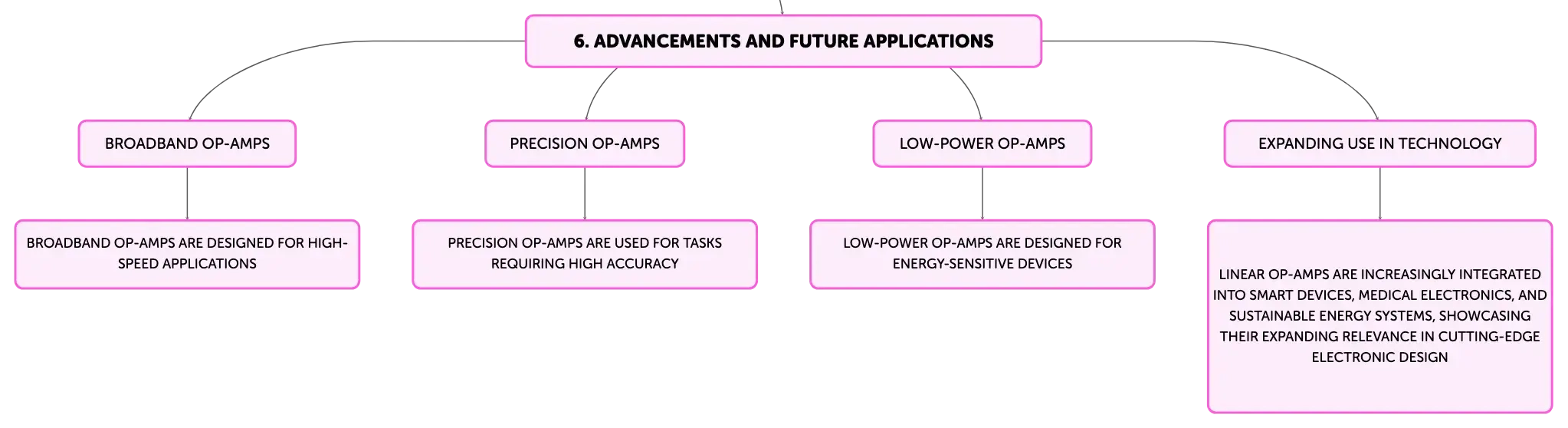

The domain of Linear Op-Amps is advancing, with innovations expanding their use in smart devices, medical electronics, and sustainable energy systems. Developments include Broadband Op-Amps for high-speed applications, Precision Op-Amps for tasks requiring high accuracy, and Low-Power Op-Amps for energy-sensitive devices. The future is poised to see greater integration of Linear Op-Amps in the expanding Internet of Things (IoT), in medical diagnostics and treatments, and in systems prioritizing energy efficiency, underscoring their increasing relevance in cutting-edge electronic design.Want to create maps from your material?
