Transformations in Geometry

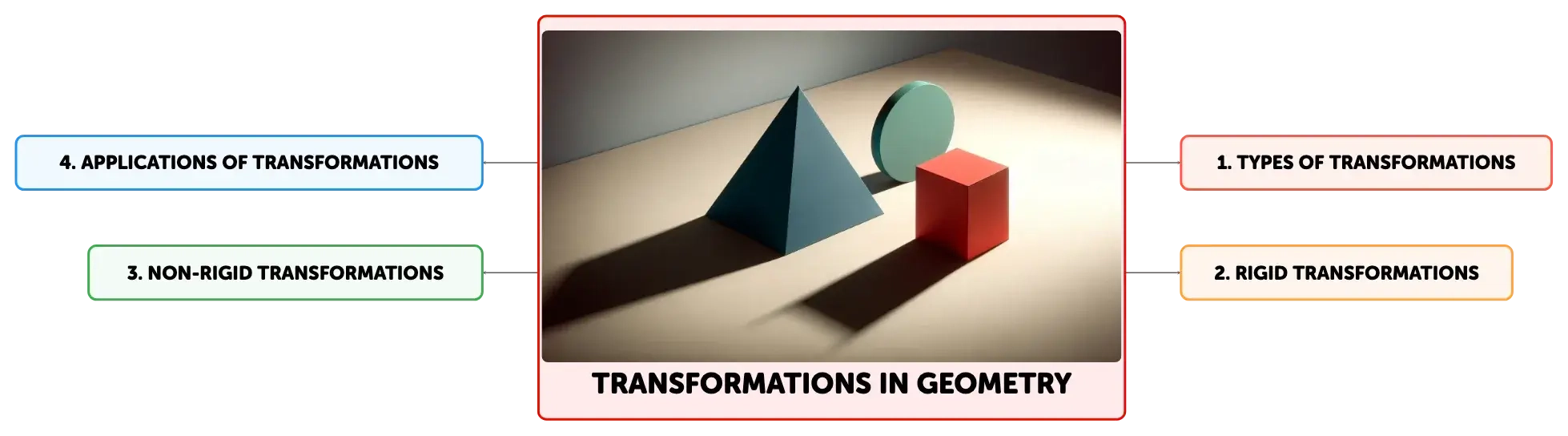

Concept Map
Exploring the realm of geometric transformations, this overview delves into rigid transformations like translations, reflections, and rotations that preserve shape and size, as well as non-rigid transformations such as dilations that maintain shape but alter size. Understanding these concepts is vital for applications across various scientific and mathematical fields, providing a structured method to analyze and manipulate figures in a plane.
Summary
Outline
Exploring Transformations in the Coordinate Plane
In the study of geometry, transformations refer to operations that alter the position, orientation, or size of figures in a two-dimensional space, specifically the coordinate plane. These operations are essential in understanding the spatial relationships and properties of geometric shapes. Transformations are broadly categorized into two types: rigid (isometric) transformations, which preserve both the size and shape of figures, and non-rigid (similarity) transformations, which may change the size but not the shape. Mastery of these concepts is crucial for applications in various scientific and mathematical disciplines.Rigid Transformations: Maintaining Geometric Integrity
Rigid transformations, also known as isometries, include translations, reflections, and rotations. A translation shifts a figure horizontally and vertically without altering its shape or size, defined by a directional vector. Reflection creates a mirror image of a figure across a line of reflection, such as an axis or any arbitrary line, maintaining congruence between the original and reflected figures. Rotation involves turning a figure around a fixed point, known as the center of rotation, through a specified angle, preserving the figure's shape and size throughout the process.Non-Rigid Transformations: Altering Size with Similarity
Non-rigid transformations, or similarity transformations, include dilations which change the size of a figure while preserving its shape. A dilation scales a figure by a factor relative to a fixed point called the center of dilation. If the scale factor is greater than one, the figure enlarges; if less than one but greater than zero, it contracts. Despite the change in size, the angles remain congruent, and the proportions between corresponding sides are constant, resulting in a figure that is similar to the original.Translation: Vector-Defined Movement
Translation moves every point of a figure the same distance in the same direction, as defined by a vector with components \((\Delta x, \Delta y)\). The vector's horizontal component, \(\Delta x\), indicates movement along the x-axis, while the vertical component, \(\Delta y\), indicates movement along the y-axis. For instance, a translation by the vector \((2, -3)\) moves a figure two units to the right and three units downward, with each point of the figure maintaining its relative position to the others.Reflection: Symmetry Across a Line
Reflection across a line produces a symmetrical image of a figure, with the line acting as a mirror. The line of reflection can be the x-axis, y-axis, or any line defined by a linear equation. Points on the figure are inverted across the line to corresponding points on the reflected image, maintaining equal distance from the line of reflection. When reflecting across a line parallel to one of the axes, the coordinates perpendicular to that axis remain unchanged, while the coordinates parallel to the axis are transformed to create the symmetry.Rotation: Circular Movement Around a Central Point
Rotation turns a figure around a central point, the center of rotation, through a given angle measured in degrees or radians. The direction of rotation is determined by the angle's sign: positive angles indicate counterclockwise rotation, while negative angles indicate clockwise rotation. The rotation transformation is defined by the original and new positions of the figure's points, which follow a specific rule based on the angle of rotation. For example, a 90-degree counterclockwise rotation switches the coordinates \((x, y)\) to \((-y, x)\), and a clockwise rotation to \((y, -x)\).Dilation: Proportional Scaling of Figures
Dilation resizes a figure by multiplying the coordinates of each point by a constant scale factor, with respect to a center of dilation. This transformation can either expand or contract the figure, while maintaining its proportional dimensions. The rule for dilation is straightforward: a point \((x, y)\) scaled by a factor \(k\) results in a new point \((kx, ky)\), where \(k > 1\) indicates enlargement and \(0 < k < 1\) indicates reduction.Composite Transformations: Sequential Application of Operations
Composite transformations involve applying multiple transformations to a figure in a specific sequence. The cumulative effect of these operations determines the final position, orientation, and size of the figure. The order of transformations is significant, as different sequences can result in different final images. For example, a figure may undergo a rotation followed by a reflection and then a translation, with each step building upon the last to produce the final transformed figure.The Importance of Transformations in Mathematical Education
Transformations play a pivotal role in the curriculum of geometry, offering a structured method to analyze and understand the manipulation of figures in a plane. Rigid transformations, which include translation, reflection, and rotation, preserve the original size and shape of figures, while non-rigid transformations, such as dilation, alter size but maintain shape. These principles are foundational for students, as they underpin more complex mathematical concepts and are applicable in solving practical problems in fields such as physics, engineering, and computer graphics.
Show More

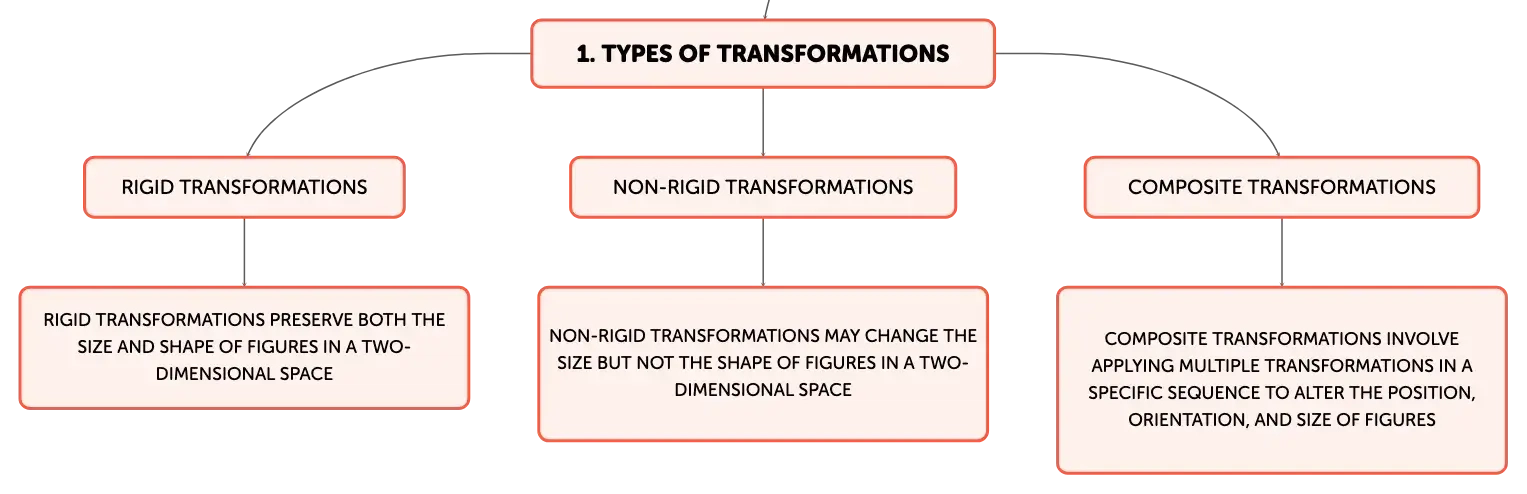

Types of Transformations
Rigid Transformations
Rigid transformations preserve both the size and shape of figures in a two-dimensional space
Non-Rigid Transformations
Non-rigid transformations may change the size but not the shape of figures in a two-dimensional space
Composite Transformations
Composite transformations involve applying multiple transformations in a specific sequence to alter the position, orientation, and size of figures

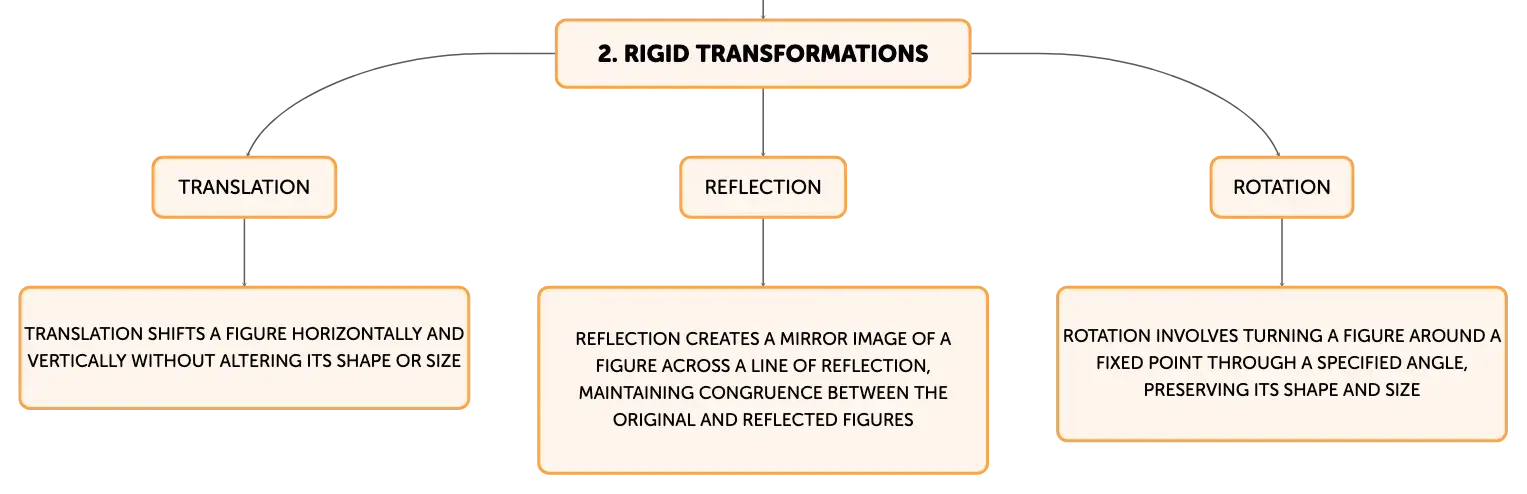

Rigid Transformations
Translation
Translation shifts a figure horizontally and vertically without altering its shape or size
Reflection
Reflection creates a mirror image of a figure across a line of reflection, maintaining congruence between the original and reflected figures
Rotation
Rotation involves turning a figure around a fixed point through a specified angle, preserving its shape and size

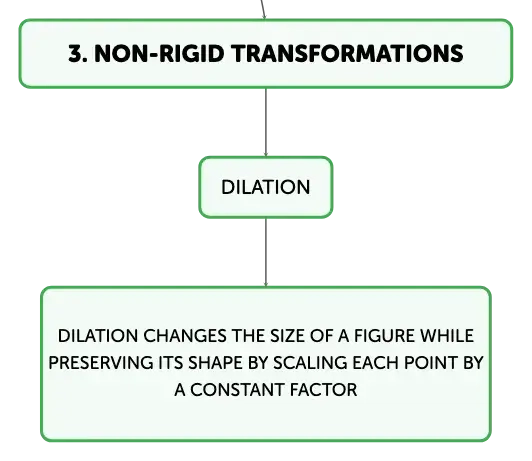

Non-Rigid Transformations
Dilation
Dilation changes the size of a figure while preserving its shape by scaling each point by a constant factor

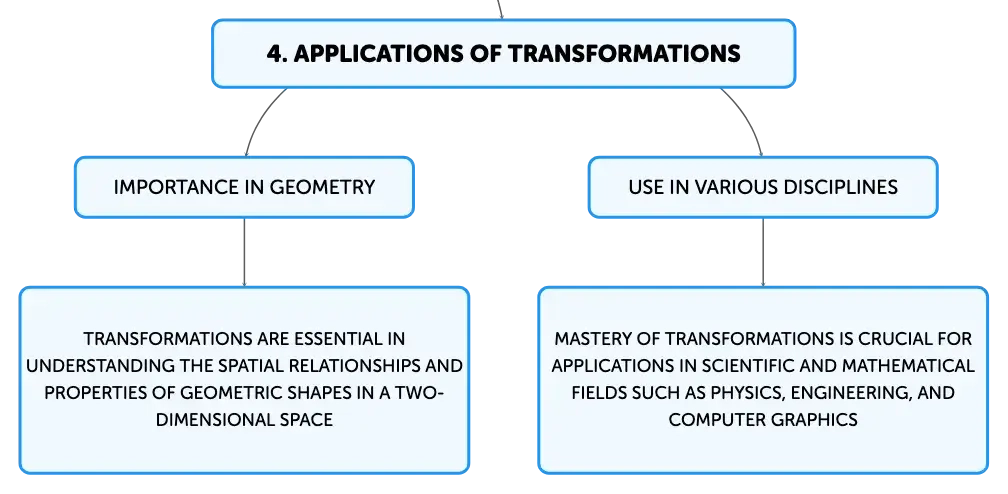

Applications of Transformations
Importance in Geometry
Transformations are essential in understanding the spatial relationships and properties of geometric shapes in a two-dimensional space
Use in Various Disciplines
Mastery of transformations is crucial for applications in scientific and mathematical fields such as physics, engineering, and computer graphics
Transformations in Geometry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
In geometry, ______ are operations that change a figure's position, orientation, or size on a coordinate plane.
transformations
01
Translation Definition
Shifts figure horizontally/vertically; shape/size unchanged; defined by vector.
02
Reflection Characteristics
Creates mirror image across line; original/reflected figures congruent.
