Deuterium, a stable isotope of hydrogen, gives heavy water unique properties that are crucial in nuclear reactors and biological research. Heavy water, denser than ordinary water, is used as a neutron moderator in reactors and affects biochemical reactions. Variants like semiheavy water and tritiated water have specialized uses, while heavy water's influence on biological systems is significant, impacting enzymatic activity and cell division.

Summary

Outline

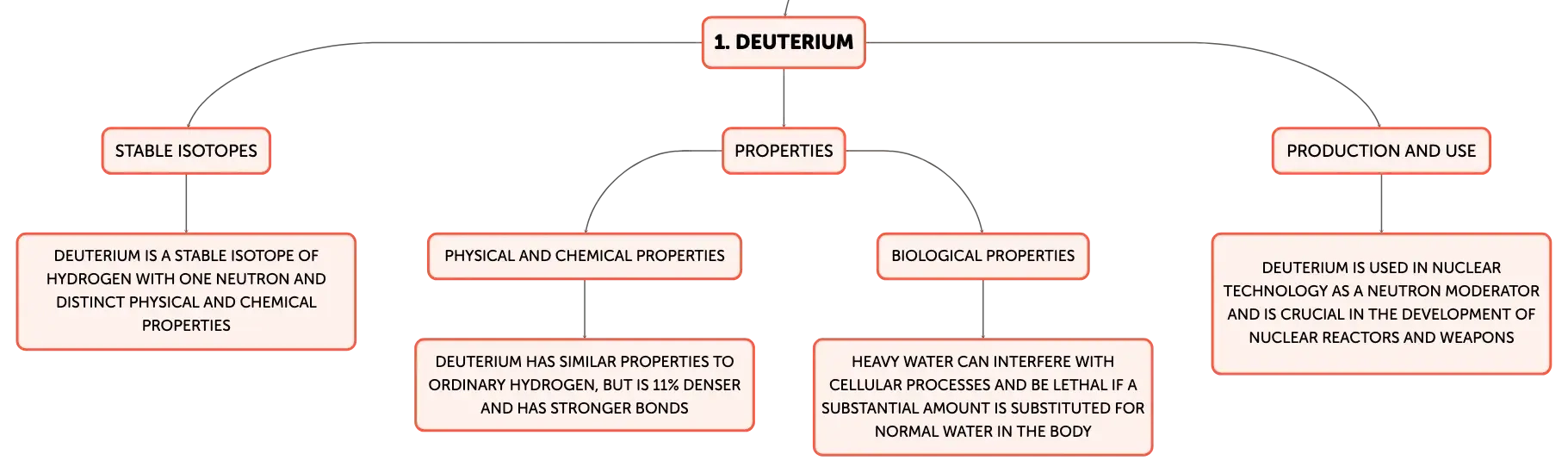

Exploring Deuterium and the Nature of Heavy Water

Deuterium is one of the stable isotopes of hydrogen, characterized by a nucleus that includes one neutron in addition to the usual single proton, unlike the most common hydrogen isotope, protium, which has no neutrons. This additional neutron endows deuterium with distinct physical and chemical properties, which are also imparted to substances like heavy water (D₂O), where the hydrogen atoms are replaced by deuterium. The International Union of Pure and Applied Chemistry (IUPAC) defines heavy water more broadly as water with a deuterium atom proportion exceeding that in typical water. For example, Vienna Standard Mean Ocean Water, a benchmark for ordinary water, contains roughly 156 deuterium atoms for every million hydrogen atoms, equating to about 0.0156%. In contrast, heavy water utilized in nuclear reactors, such as the CANDU reactor, is highly enriched with deuterium, reaching levels of 99.75%. Despite the significant isotopic difference, the mass of a heavy water molecule is only marginally greater than that of a normal water molecule, largely because the mass is predominantly due to the oxygen atom.

Glass bottle with colorless liquid on blue reflective surface in laboratory with safety glasses and metal gas cylinder.

Comparing the Properties of Heavy Water and Ordinary Water

Heavy water is non-radioactive and shares many physical and chemical properties with ordinary water, being colorless, tasteless, and odorless. It is, however, about 11% denser than ordinary water and exhibits marginally higher melting and boiling points. These variances are attributable to the more robust hydrogen-oxygen bonds in heavy water, a consequence of deuterium's increased mass relative to protium. The enhanced bond strength can affect certain biochemical reactions. While the human body naturally contains deuterium at harmless levels, substituting a substantial amount of the body's water with heavy water can interfere with cellular processes and is potentially lethal.

The Role of Heavy Water in Nuclear Research and Reactor Design

The production of heavy water commenced in 1932 following the discovery of deuterium. Its significance in nuclear technology surged after the realization of nuclear fission in 1938, as heavy water proved to be an efficient neutron moderator that captures neutrons less readily than other moderators. This characteristic has been crucial in the development of nuclear reactors for power generation and isotope production, including those used in nuclear weapons programs. Heavy water reactors have the advantage of operating with natural uranium, which eliminates the need for enriched uranium or graphite moderators. The latter can present safety hazards during decommissioning due to radiological concerns and the risk of dust explosions. The Chernobyl disaster underscored the dangers of non-heavy water reactors, as the RBMK reactor's design, which lacked heavy water, was a factor in the reactor's instability and subsequent meltdown.

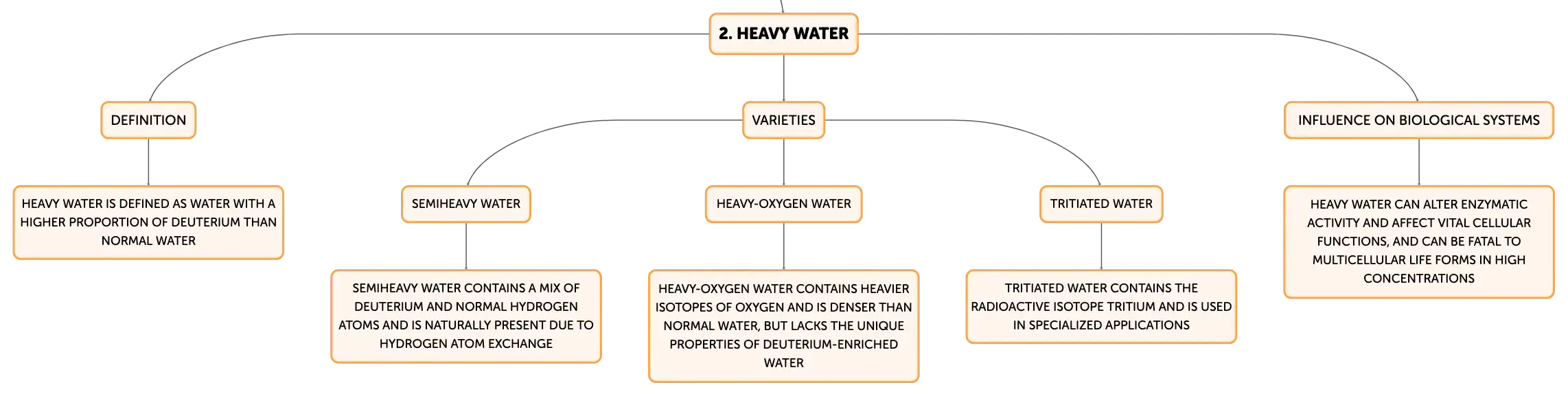

Varieties of Heavy Water and Their Natural Occurrence

Beyond deuterium-enriched water, there exist variants of heavy water that incorporate different isotopes of hydrogen and oxygen. Semiheavy water (HDO) is naturally present due to the dynamic exchange of hydrogen atoms among water molecules. Water enriched with the isotopes oxygen-17 or oxygen-18, known as heavy-oxygen water, is denser than normal water but lacks the distinctive nuclear and biological properties of deuterium-enriched water. Tritiated water, which contains the radioactive isotope tritium, is itself radioactive. These various forms of heavy water are utilized in specialized applications, such as the production of certain radiopharmaceuticals.

Heavy Water's Influence on Biological Systems

Heavy water's impact on biological systems is profound, stemming from deuterium's unique properties. Enzymatic activity, which relies heavily on precise hydrogen bonding, can be altered in a deuterated environment, affecting vital cellular functions, especially cell division in eukaryotic organisms. Research has demonstrated that plant growth and seed germination are inhibited in heavy water, and concentrations exceeding 50% can be fatal to multicellular life forms. Nonetheless, some species, including particular plants and anhydrobiotic organisms, have displayed a remarkable resilience to high concentrations of heavy water. These observations highlight the critical role of isotopic composition in biological systems and suggest potential research applications for heavy water in the field of biology.
