Trigonometry and Non-Right Triangles

The sine and cosine laws are fundamental in trigonometry for solving non-right triangles. These laws allow for the calculation of unknown sides or angles when certain measurements are known. The sine law relates the ratio of a side to the sine of its opposite angle, while the cosine law connects the sides of a triangle to the cosine of one of its angles. Both are derived from basic trigonometric and geometric principles and are indispensable in various applications, from academic to professional settings.

See more
Open map in editor

1

5

Open map in editor

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Sine Law Ratio Expression

Click to check the answer

a/sin(A) = b/sin(B) = c/sin(C), where a, b, c are triangle sides and A, B, C are opposite angles.

2

Sine Law Use Cases

Click to check the answer

Used when two angles and a non-included side, or two sides and a non-included angle are known.

3

Sine Law Purpose

Click to check the answer

Facilitates calculation of missing sides or angles in non-right triangles.

4

To calculate an unknown side 'x' in a triangle, you might use the proportion ______ = 12/sin(30°) and find 'x' to be around ______.

Click to check the answer

x/sin(80°) 23.6

5

When determining an unknown angle 'y', the sine law can be used as sin(y)/19 = ______/15, resulting in 'y' being approximately ______ degrees.

Click to check the answer

sin(40°) 54.5

6

Cosine Law Formula for Side Length

Click to check the answer

a² = b² + c² - 2bc · cos(A); calculates side 'a' given sides 'b', 'c' and angle 'A'.

7

Cosine Law Formula for Angle Calculation

Click to check the answer

A = arccos((b² + c² - a²)/(2bc)); computes angle 'A' given sides 'a', 'b', and 'c'.

8

When calculating an angle in a triangle with sides 10, 7, and 5, the ______ is rearranged to find angle 'y', which is approximately ______ degrees.

Click to check the answer

cosine law 27.7

9

Sine Law Formula

Click to check the answer

For any triangle ABC, with sides a, b, c and opposite angles A, B, C: (a/sinA) = (b/sinB) = (c/sinC).

10

Cosine Law Formula

Click to check the answer

For any triangle ABC, with sides a, b, c and opposite angles A, B, C: c^2 = a^2 + b^2 - 2ab*cosC.

11

For determining an unknown in triangles with at least one angle and two sides known, the ______ law is utilized.

Click to check the answer

cosine

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Geometry

The Concept of Area in Mathematics

View document

Geometry

Conic Sections

View document

Geometry

Tangents to Circles

View document

Geometry

Trigonometry and its Applications

View document

Exploring the Sine and Cosine Laws in Non-Right Triangles

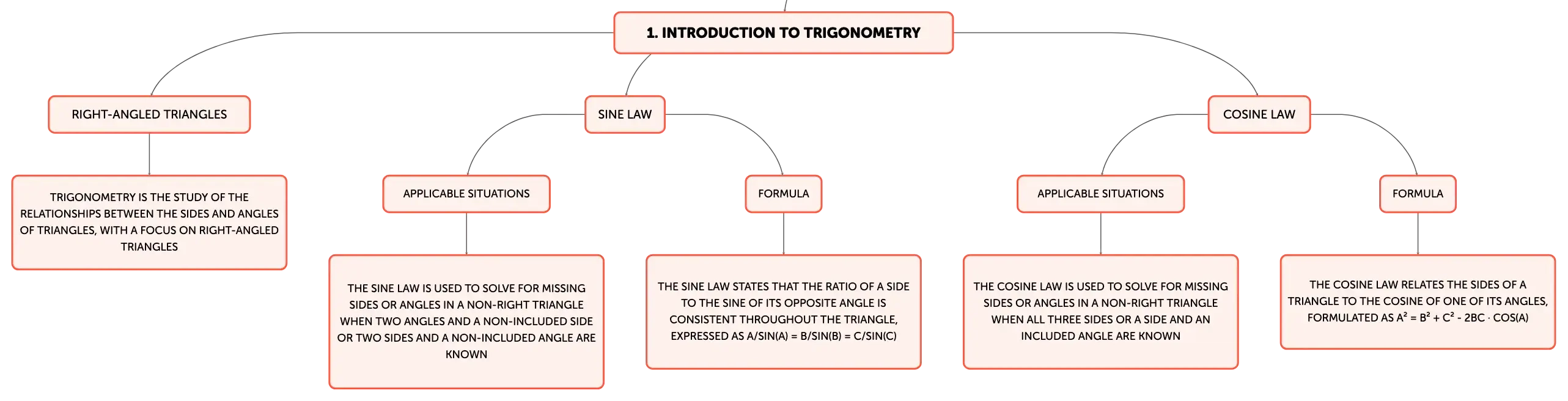

Trigonometry extends beyond right-angled triangles, introducing the sine and cosine laws to address the complexities of non-right triangles. The sine law, applicable when two angles and a non-included side or two sides and a non-included angle are known, states that the ratio of a side to the sine of its opposite angle is consistent throughout the triangle. This is expressed as a/sin(A) = b/sin(B) = c/sin(C). It is a crucial tool for calculating missing sides or angles when adequate data is available.
Three colorful kites—a red and yellow diamond, a blue and green triangle, and a purple delta-wing—soar in a clear blue sky above a grassy field with distant trees.

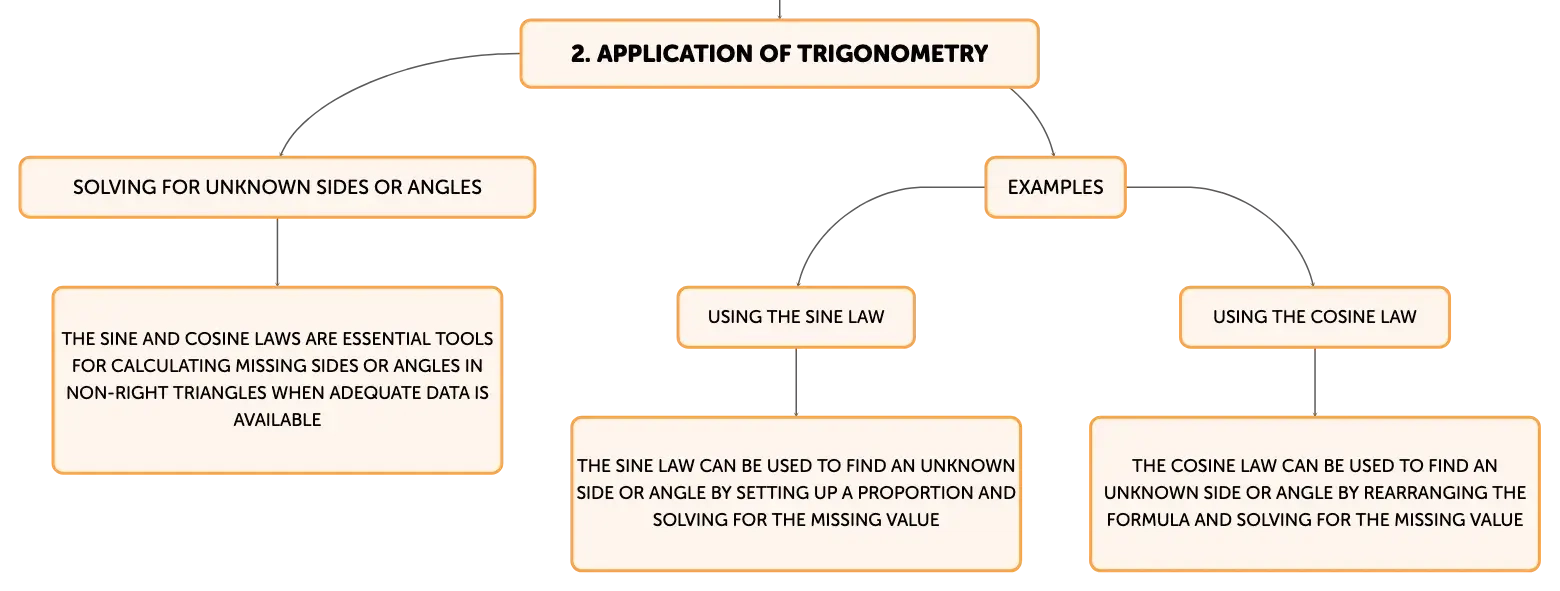

Practical Application of the Sine Law

The sine law is exemplified by solving for unknown sides or angles in a triangle. For instance, given two angles and a side, we can find another side by setting up a proportion such as x/sin(80°) = 12/sin(30°). Solving for 'x' yields a value of approximately 23.6, to three significant figures. Conversely, to find an unknown angle 'y', the sine law is rearranged to sin(y)/19 = sin(40°)/15, and solving for 'y' with the inverse sine function gives an angle of about 54.5 degrees.

Understanding the Cosine Law

The cosine law is indispensable when a non-right triangle's sides and an included angle, or all three sides, are known. It relates the sides of a triangle to the cosine of one of its angles, formulated as a² = b² + c² - 2bc · cos(A). To find an angle, the law is rearranged to A = arccos((b² + c² - a²)/(2bc)). This law is essential for determining an unknown side or angle with the given dimensions.

Implementing the Cosine Law in Problem-Solving

The cosine law is applied to find unknown sides or angles in a triangle. For example, to find side 'x' given sides 15 and 19 and the included angle of 40 degrees, the law is used as x² = 15² + 19² - 2 · 15 · 19 · cos(40°). The length 'x' is found to be approximately 12.2 upon taking the square root of the calculated value. To find an angle 'y', given sides 10, 7, and 5, the cosine law is rearranged and solved as y = arccos((10² + 7² - 5²)/(2 · 10 · 7)), resulting in an angle of about 27.7 degrees.

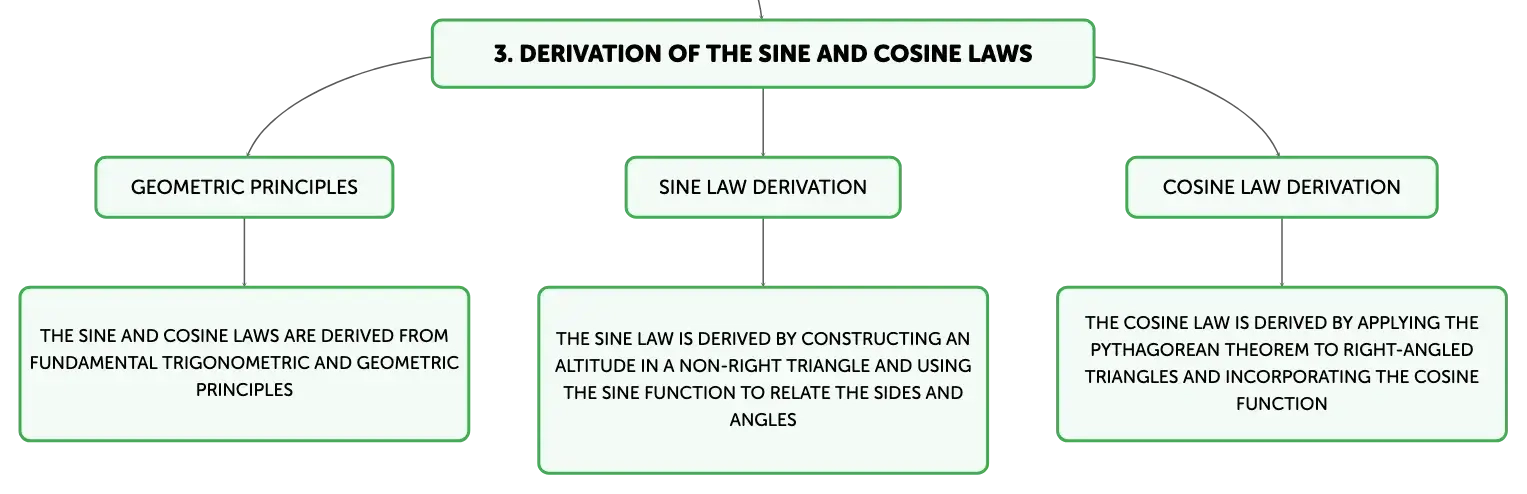

Derivation of the Sine and Cosine Laws

The sine and cosine laws are grounded in fundamental trigonometric and geometric principles. The sine law is derived by constructing an altitude in a non-right triangle to form two right-angled triangles, then using the sine function to relate the sides and angles, leading to the sine law. The cosine law is derived by applying the Pythagorean theorem to these right-angled triangles and incorporating the cosine function, which simplifies to the cosine law's formula.

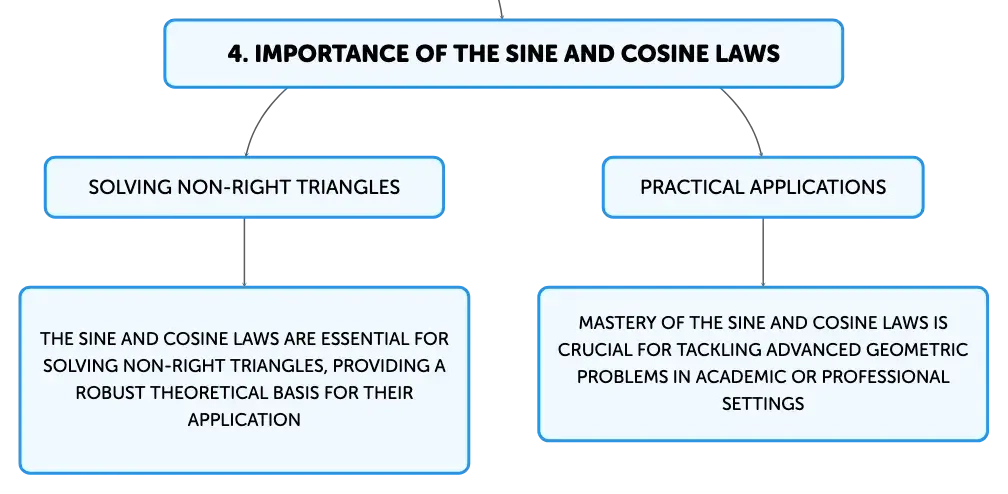

Essential Insights on the Sine and Cosine Laws

The sine and cosine laws are vital for solving non-right triangles. The sine law is employed when an unknown is to be found with three known values, involving at least two angles and a side or two sides and an angle. The cosine law is used when an unknown is to be determined with three known values, involving at least one angle and two sides. Both laws are derived from first principles, providing a robust theoretical basis for their application. Mastery of these laws is essential for those tackling advanced geometric problems in academic or professional settings.
