Exploring the Fundamentals of Complex Numbers and the Argand Diagram

Complex numbers are fundamental components of mathematics, particularly useful in fields such as electrical engineering and quantum physics. A complex number \(z\) is defined as \(z=a+bi\), where \(a\) (the real part) and \(b\) (the imaginary part) are real numbers, and \(i\) is the imaginary unit satisfying \(i^2=-1\). The real and imaginary parts of \(z\) are denoted as \(\text{Re}(z)\) and \(\text{Im}(z)\), respectively. These numbers can be graphically represented on the complex plane, also known as the Argand diagram, which mirrors the Cartesian plane with a horizontal real axis and a vertical imaginary axis, providing a powerful visual tool for understanding complex numbers.

Drawing compass with pencil and blue protractor on white paper, ready for geometric measurements, with soft shadows adding depth.

Visualizing Complex Numbers on the Argand Plane

The Argand diagram offers a visual means to plot complex numbers, with the horizontal axis representing the real component and the vertical axis representing the imaginary component. For instance, the complex number \(3+2i\) is located at the point \((3,2)\) on the Argand plane. This graphical approach aids in comprehending complex number operations, such as addition, subtraction, and multiplication, by allowing for the geometric interpretation of these operations.

Quadrant Analysis in the Argand Diagram

The Argand diagram is divided into four quadrants, analogous to the Cartesian coordinate system. The first quadrant contains complex numbers with positive real and imaginary parts, while the second quadrant includes those with a negative real part and a positive imaginary part. The third quadrant houses numbers with both negative real and imaginary parts, and the fourth quadrant contains those with a positive real part and a negative imaginary part. This quadrant structure is instrumental in analyzing the signs of the real and imaginary components of complex numbers and in understanding the symmetry in complex number operations.

Polar Form of Complex Numbers

Complex numbers can also be expressed in polar form, which is particularly useful when dealing with multiplication and division. A complex number \(z=a+bi\) can be represented as \(z=re^{i\theta}\), where \(r\) is the modulus (or magnitude) of \(z\), given by \(r=\sqrt{a^2+b^2}\), and \(\theta\) is the argument (or angle) of \(z\), measured from the positive real axis to the line segment connecting the origin to the point representing \(z\). The argument \(\theta\) is determined using the arctangent function, with necessary adjustments for the quadrant in which \(z\) resides.

Geometric Interpretations on the Argand Diagram

The Argand diagram is not only for plotting individual complex numbers but also for representing geometric figures and loci. A circle centered at a point \(z_0\) with radius \(k\) is described by the equation \(|z-z_0|=k\). Loci, such as the set of points where the real part of \(z\) is constant (\(\text{Re}(z)=k\)), form a vertical line, while those where the imaginary part is constant (\(\text{Im}(z)=k\)) form a horizontal line. The locus of points equidistant from two complex numbers \(a\) and \(b\) is the perpendicular bisector of the line segment joining \(a\) and \(b\), illustrating the connection between algebraic conditions and geometric shapes.

Practical Applications of the Argand Diagram

To exemplify the use of the Argand diagram, consider plotting the complex numbers \(4+3i\) and \(-3-4i\). The number \(4+3i\) is in the first quadrant, indicating a positive argument \(\theta\), while \(-3-4i\) is in the third quadrant, suggesting a negative argument. The intersection of loci, such as the lines \(\text{Im}(z) = -2\) and \(\text{Re}(z)= 4\), can be graphically determined, pinpointing the complex number \(4-2i\) at their crossing. The Argand diagram thus serves as a versatile tool, enabling visual and analytical exploration of complex numbers, their operations, and geometric properties.

Complex Numbers and the Argand Diagram

Concept Map

Summary

Outline

Complex Numbers and the Argand Diagram

Definition of Complex Numbers

Real and Imaginary Parts

Imaginary Unit

Graphical Representation

Operations with Complex Numbers

Addition and Subtraction

Multiplication and Division

Quadrant Structure

Polar Form of Complex Numbers

Modulus and Argument

Determining the Argument

Geometric Figures and Loci

Applications of the Argand Diagram

Plotting Complex Numbers

Intersection of Loci

Visual and Analytical Exploration

Learn with Algor Education flashcards

Click on each card to learn more about the topic

Q&A

Here's a list of frequently asked questions on this topic

What is the definition of a complex number and how is it represented graphically?

How does the Argand diagram facilitate the understanding of complex number operations?

What does the quadrant system in the Argand diagram indicate about complex numbers?

Why is the polar form of complex numbers useful, and how is it defined?

How can geometric shapes and loci be represented on the Argand diagram?

Can you provide an example of how the Argand diagram is used in practice?

Similar Contents

Explore other maps on similar topics

Complex Numbers and the Argand Diagram

Concept Map

Summary

Outline

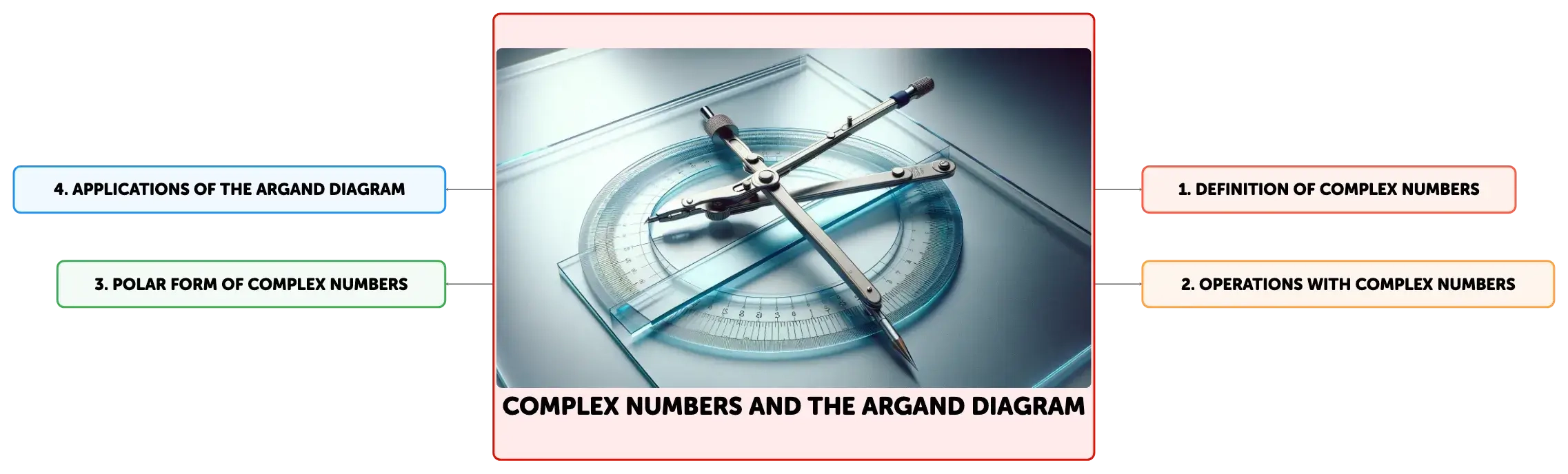

Complex Numbers and the Argand Diagram

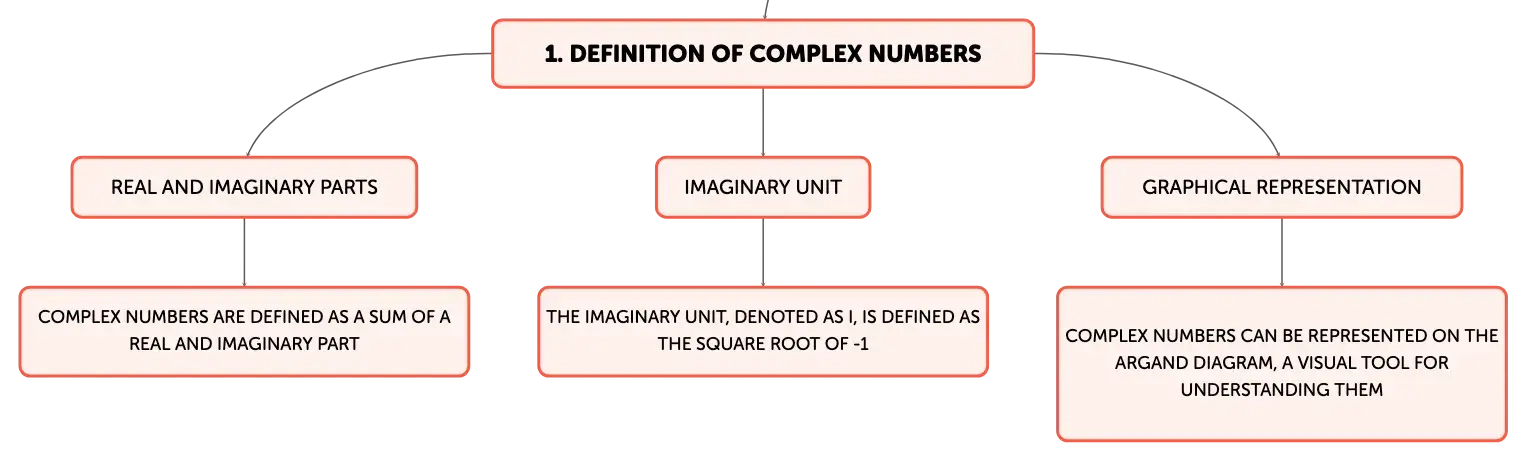

Definition of Complex Numbers

Real and Imaginary Parts

Imaginary Unit

Graphical Representation

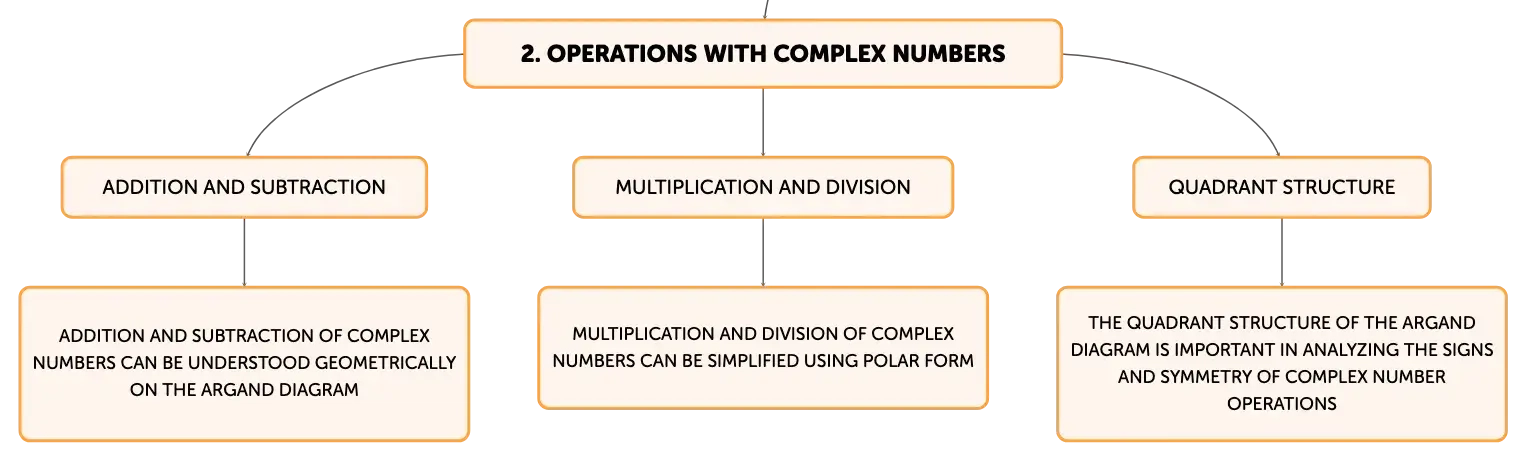

Operations with Complex Numbers

Addition and Subtraction

Multiplication and Division

Quadrant Structure

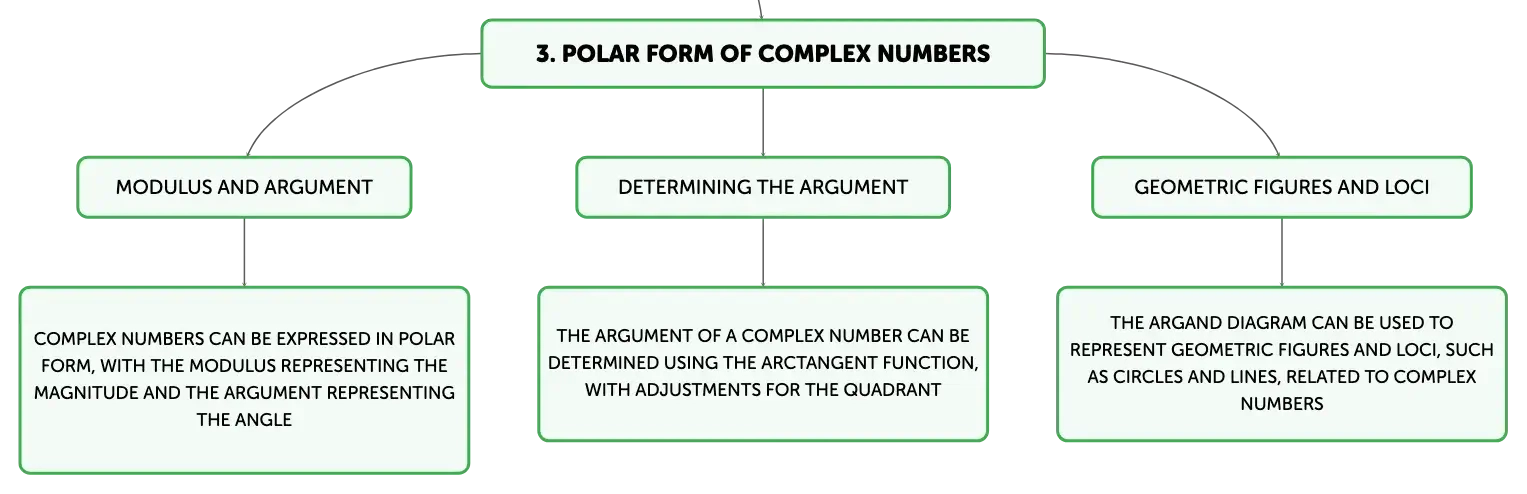

Polar Form of Complex Numbers

Modulus and Argument

Determining the Argument

Geometric Figures and Loci

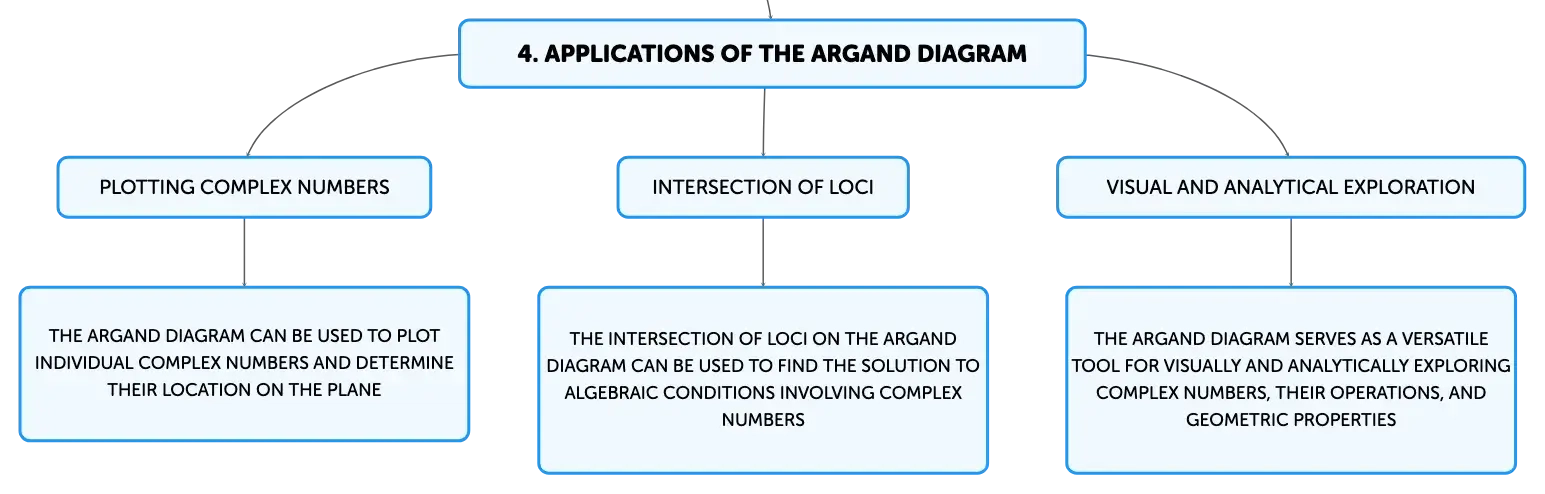

Applications of the Argand Diagram
