Hyperbolic Functions and Their Derivatives

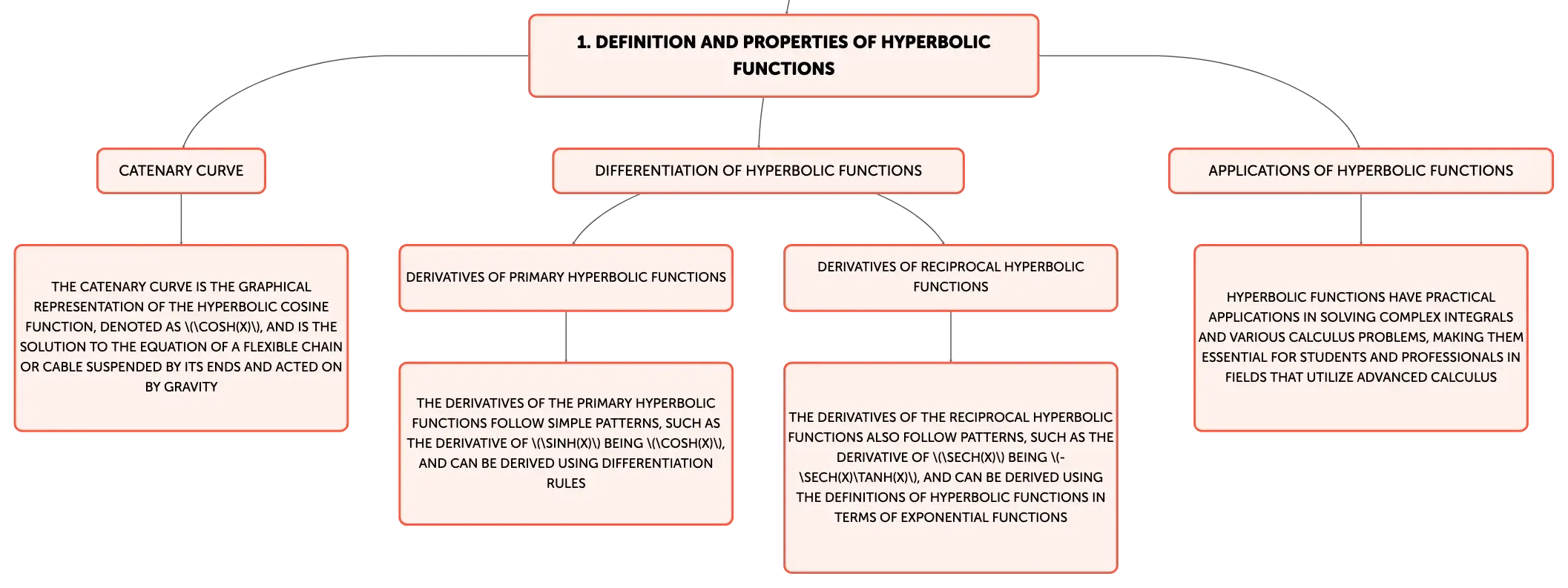

Exploring the Catenary Curve and Hyperbolic Functions

The graceful arc of a suspension bridge is an example of a catenary curve, which is the graphical representation of the hyperbolic cosine function, denoted as \(\cosh(x)\). This curve is the solution to the equation of a flexible chain or cable suspended by its ends and acted on by gravity. To find the slope of the curve at any point, which indicates the direction of an object moving along the curve, one must differentiate \(\cosh(x)\). Hyperbolic functions, which include hyperbolic sine (\(\sinh(x)\)), cosine (\(\cosh(x)\)), and tangent (\(\tanh(x)\)), as well as their reciprocals—hyperbolic secant (\(\sech(x)\)), cosecant (\(\csch(x)\)), and cotangent (\(\coth(x)\))—are analogous to trigonometric functions but arise from relations with the unit hyperbola \(x^2 - y^2 = 1\), as opposed to the unit circle.

Differentiation of Hyperbolic Functions and Their Reciprocals

Differentiating hyperbolic functions is a key operation in calculus, akin to differentiating trigonometric functions. The derivatives of the primary hyperbolic functions follow simple patterns: the derivative of \(\sinh(x)\) is \(\cosh(x)\), the derivative of \(\cosh(x)\) is \(\sinh(x)\), and the derivative of \(\tanh(x)\) is \(\sech^2(x)\). The derivatives of the reciprocal hyperbolic functions are similarly patterned: the derivative of \(\sech(x)\) is \(-\sech(x)\tanh(x)\), the derivative of \(\csch(x)\) is \(-\csch(x)\coth(x)\), and the derivative of \(\coth(x)\) is \(-\csch^2(x)\). These derivatives can be derived using the definitions of hyperbolic functions in terms of exponential functions and applying differentiation rules such as the product, quotient, and chain rules.

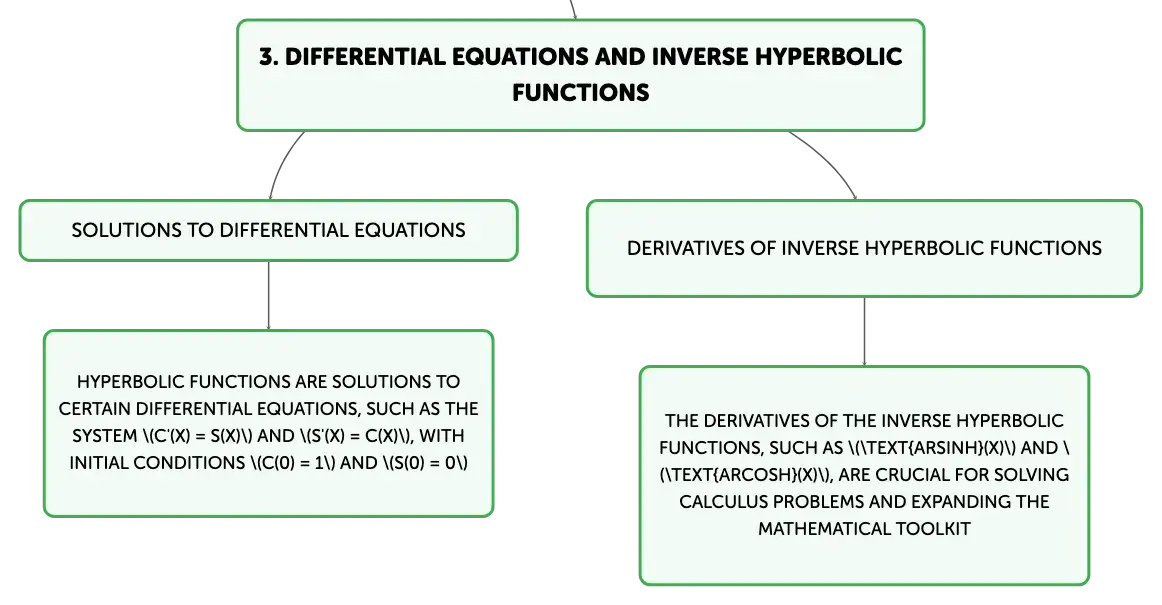

Hyperbolic Functions in Differential Equations

Hyperbolic functions are solutions to certain differential equations. For example, the system \(c'(x) = s(x)\) and \(s'(x) = c(x)\), with initial conditions \(c(0) = 1\) and \(s(0) = 0\), is solved by the hyperbolic cosine and sine functions, respectively. This system is reminiscent of the differential equations for trigonometric functions, with the notable difference that the hyperbolic equations do not involve a change in sign. The hyperbolic cosine function, \(\cosh(x)\), also satisfies the second-order differential equation \(y'' = y\) with initial conditions \(y(0) = 1\) and \(y'(0) = 0\), confirming its role as a solution when expressed in terms of exponential functions.

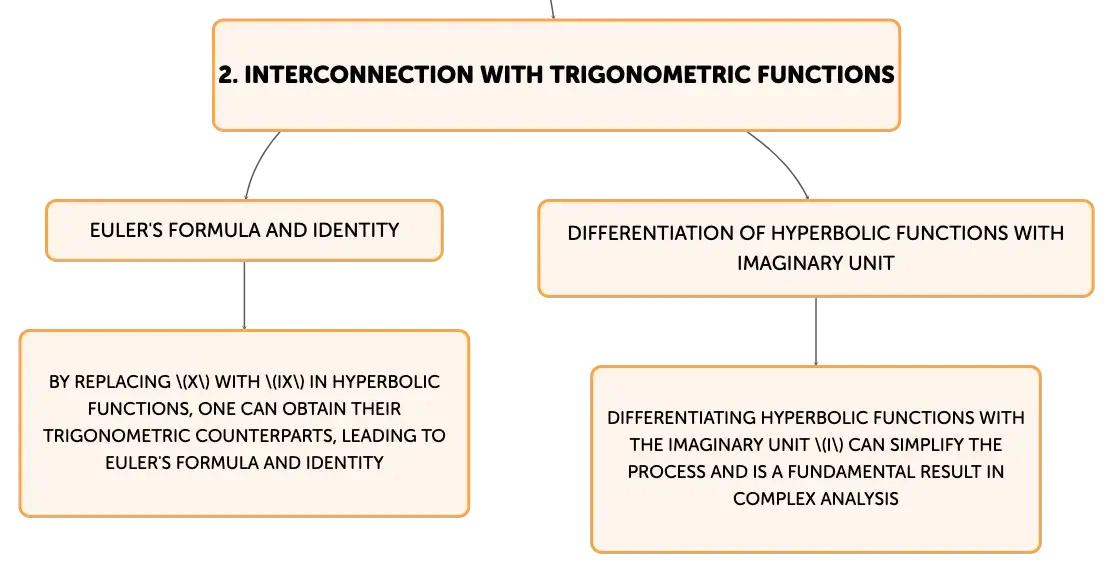

The Relationship Between Hyperbolic and Trigonometric Functions

Hyperbolic and trigonometric functions are interconnected, a relationship that becomes apparent when considering the effects of the imaginary unit \(i\). By replacing \(x\) with \(ix\) in hyperbolic functions, one can obtain their trigonometric counterparts. This leads to the exponential definitions of sine and cosine, encapsulated in Euler's formula, \(e^{ix} = \cos(x) + i\sin(x)\). Euler's formula is a fundamental result in complex analysis and gives rise to Euler's identity, \(e^{i\pi} + 1 = 0\), when \(x = \pi\).

Practical Applications of Hyperbolic Function Differentiation

Differentiating hyperbolic functions has practical applications beyond theoretical mathematics, such as in solving complex integrals and various calculus problems. For example, the differentiation of the function \(y = x^2 \sinh(e^x)\) can be approached using the product and chain rules. Converting hyperbolic functions to their exponential forms can simplify the differentiation process, as demonstrated when differentiating \(f(x) = e^x \cosh(x)\). Proficiency in these differentiation techniques is essential for students and professionals in fields that utilize advanced calculus, such as engineering and physics.

Derivatives of Inverse Hyperbolic Functions

The inverse hyperbolic functions, like their direct counterparts, have derivatives that are crucial for solving calculus problems. The derivatives of the inverse hyperbolic sine (\(\text{arsinh}(x)\)), cosine (\(\text{arcosh}(x)\)), and tangent (\(\text{artanh}(x)\)) functions are \(\frac{1}{\sqrt{1+x^2}}\), \(\frac{1}{\sqrt{x^2 - 1}}\) (for \(x > 1\)), and \(\frac{1}{1-x^2}\) (for \(|x| < 1\)), respectively. These derivatives are similar to those of the inverse trigonometric functions and are invaluable for integrating expressions that involve inverse hyperbolic functions. Mastery of these derivatives expands the mathematical toolkit for tackling a broad range of calculus applications.
