Modulus functions measure the distance of numbers from zero on the number line, always yielding non-negative results. They are represented as f(x) = |x| and have a 'V' shaped graph. Understanding their properties is key to solving related equations and inequalities. In calculus, the derivative and integration of modulus functions require careful consideration due to their piecewise nature. The inverse of a modulus function also demands domain restriction.

Summary

Outline

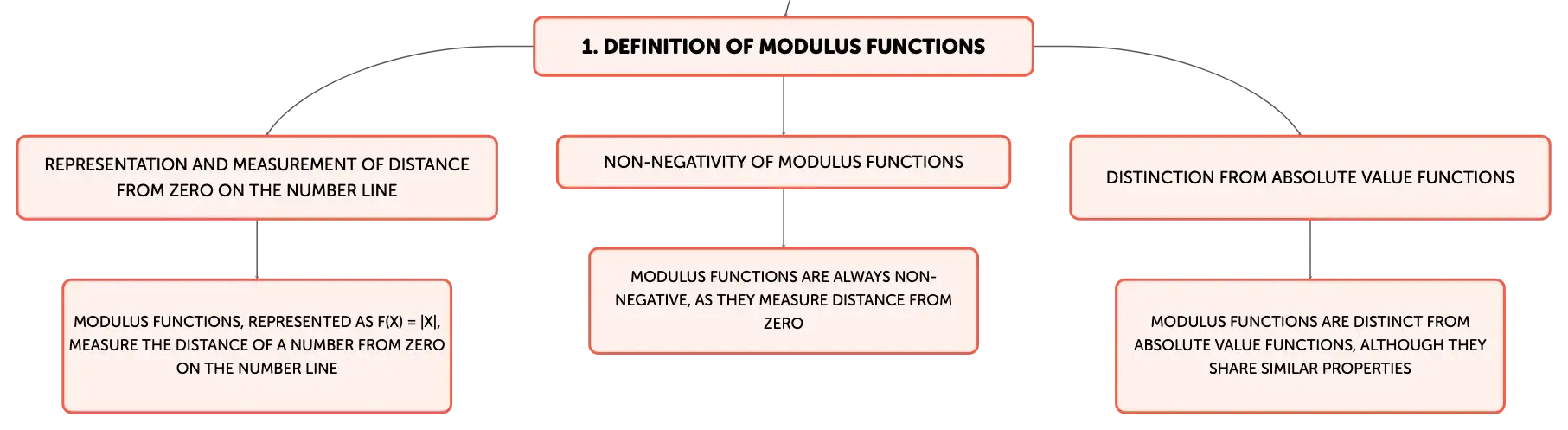

Understanding Modulus Functions

Modulus functions, often represented as f(x) = |x|, measure the distance of a number from zero on the number line, which is why they are always non-negative. The modulus of a positive number is the number itself, while the modulus of a negative number is its opposite. The domain of a modulus function is the set of all real numbers, and its range is the set of non-negative real numbers. It is important to note that modulus functions are distinct from absolute value functions, although they share similar properties.

Clear acrylic ruler diagonally placed on white paper with a matte black pencil beside it, on a light wood grain desk, soft lighting.

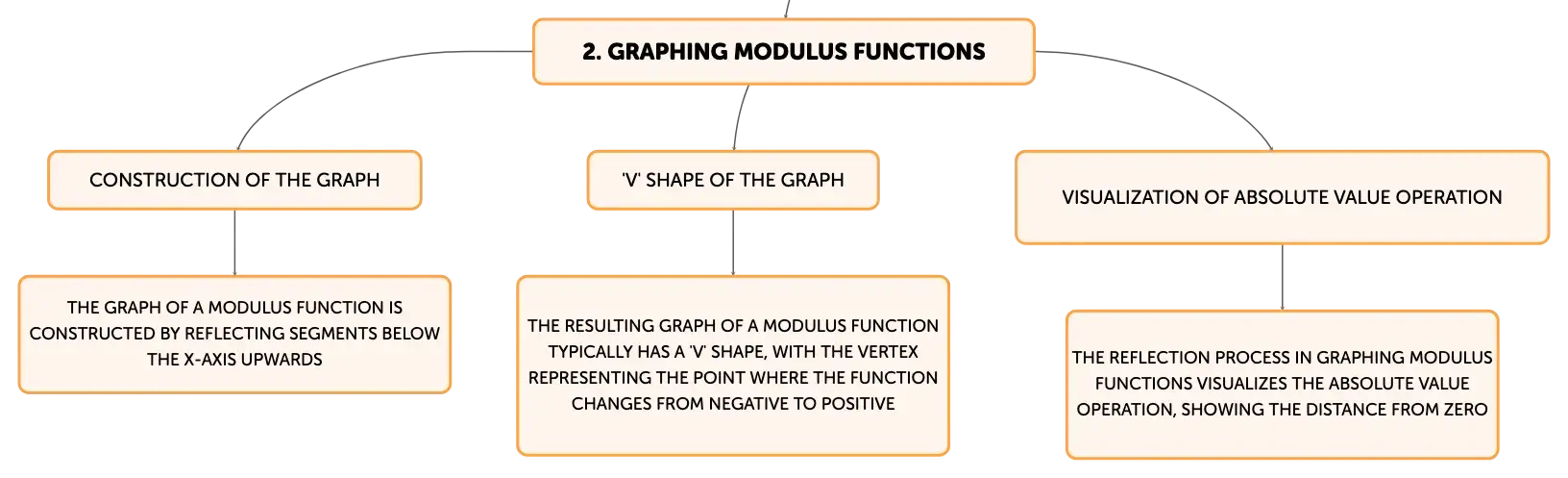

Graphical Representation of Modulus Functions

The graph of a modulus function, such as y = |ax + b|, is constructed by plotting the function y = ax + b and then reflecting the segments that fall below the x-axis upwards. This reflection process visualizes the absolute value operation, which ensures that all y-values are non-negative, effectively showing the distance from zero. The resulting graph typically has a 'V' shape, with the vertex representing the point where the function changes from negative to positive.

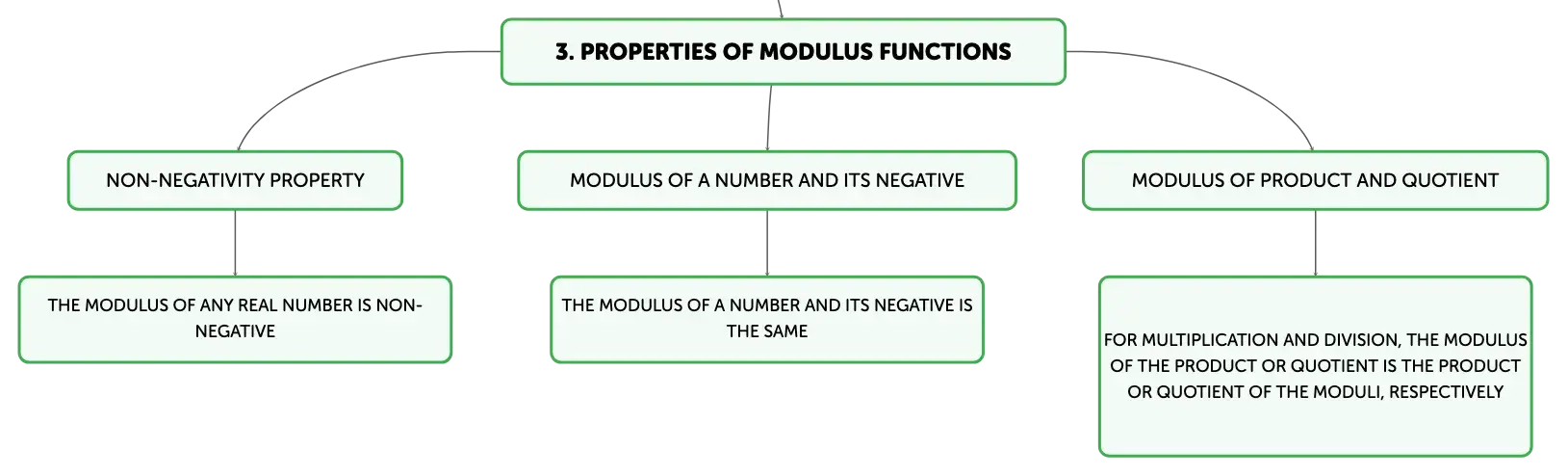

Properties of Modulus Functions

Modulus functions have several key properties. The modulus of any real number is non-negative, and the modulus of a number and its negative is the same. For multiplication and division, the modulus of the product or quotient is the product or quotient of the moduli, respectively. However, the modulus of a sum or difference is not necessarily the sum or difference of the moduli, which is a common misconception.

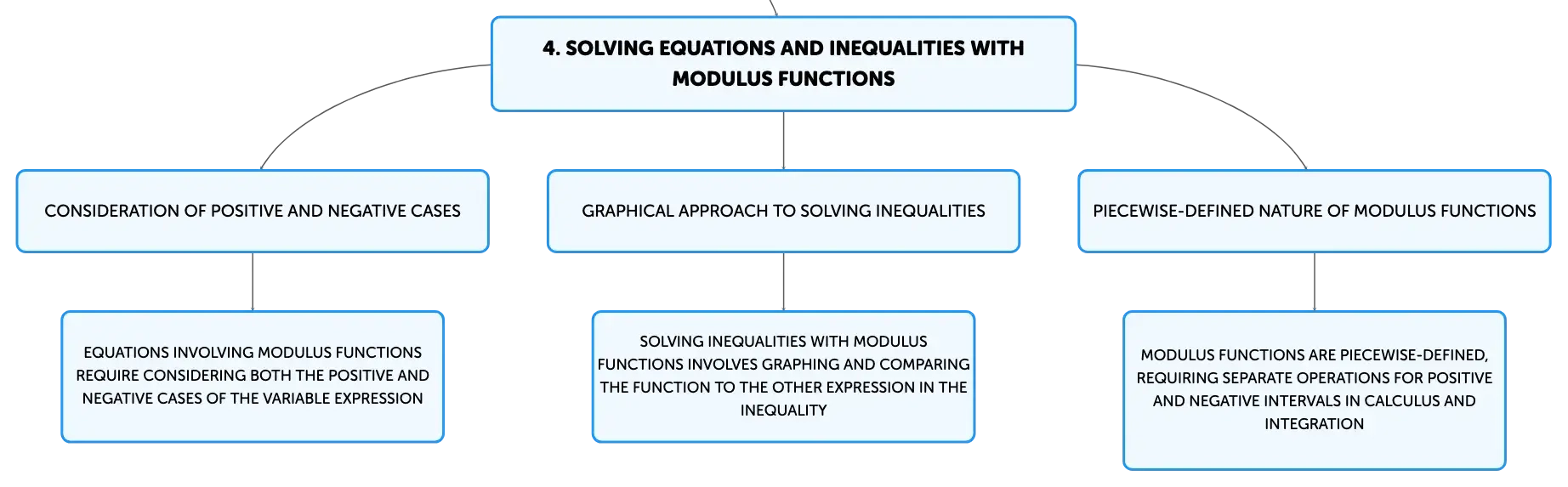

Solving Equations with Modulus Functions

Equations involving modulus functions require considering both the positive and negative cases of the variable expression. For instance, the equation |3x - 2| = 4 leads to two separate equations: 3x - 2 = 4 and 3x - 2 = -4. Solving these equations provides the two possible solutions for x. This approach is necessary because the expression inside the modulus can be either positive or negative and still satisfy the original equation.

Solving Inequalities Involving Modulus Functions

Solving inequalities with modulus functions involves determining the intervals of x that satisfy the inequality. This can be done by graphing the modulus function and comparing it to the other expression in the inequality. The solution set includes the x-values where the graph of the modulus function is above (for 'greater than' inequalities) or below (for 'less than' inequalities) the graph of the other expression.

Inverse and Calculus of Modulus Functions

The inverse of a modulus function is not a function unless the domain is restricted to ensure a one-to-one relationship. In calculus, the derivative of |x| is 1 for x > 0 and -1 for x < 0, but it is undefined at x = 0 due to the sharp corner in the graph. Integration of a modulus function requires evaluating separate integrals for the positive and negative intervals of the function. These operations account for the piecewise-defined nature of modulus functions.

Key Takeaways on Modulus Functions

Modulus functions are crucial for understanding distances on the number line and exhibit unique properties that set them apart from other functions. They are instrumental in solving equations and inequalities involving absolute values. Graphing modulus functions involves reflecting negative portions to display all distances as positive. Calculus operations with modulus functions must consider the behavior on both sides of zero, and finding inverses requires domain restriction to preserve function characteristics.

Want to create maps from your material?

Enter text, upload a photo, or audio to Algor. In a few seconds, Algorino will transform it into a conceptual map, summary, and much more!

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

00

While the ______ of a modulus function includes all real numbers, its ______ consists only of non-negative real numbers.

domain

range

01

Modulus function graph shape

V-shaped due to absolute value operation

02

Vertex of modulus function graph

Point where function switches from negative to positive
