The Unit Circle in Trigonometry

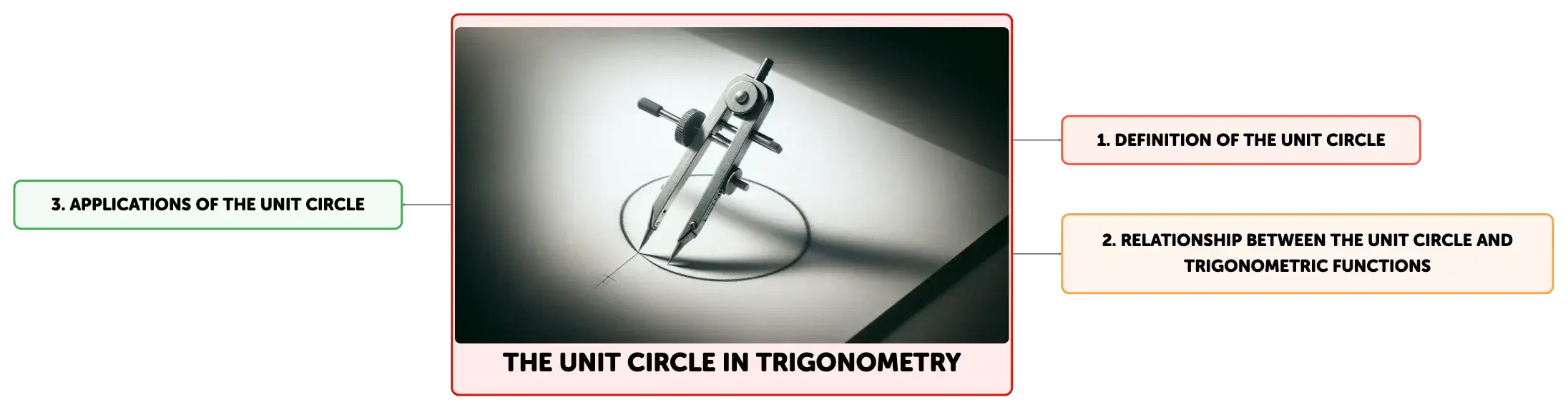

Concept Map
The unit circle in trigonometry is a fundamental tool for understanding the sine, cosine, and tangent functions. It is defined by the equation x^2 + y^2 = 1 and is centered at the origin of the Cartesian coordinate system. Points on the circle correspond to angles, with their coordinates representing the values of trigonometric functions. The circle is divided into four quadrants, each indicating different sign patterns for these functions. The unit circle also visually demonstrates the Pythagorean identity, sin^2(θ) + cos^2(θ) = 1, which is essential in the study of right triangles.
Summary
Outline
Exploring the Unit Circle in Trigonometry
The unit circle is an essential concept in trigonometry, defined by a radius of one unit and centered at the origin of the Cartesian coordinate system, which is the point (0,0). The equation x^2 + y^2 = 1 represents the unit circle and is pivotal for understanding trigonometric functions and their relationships. The unit circle enables the computation of sine (sin), cosine (cos), and tangent (tan) for angles measured in degrees from 0° to 360° or in radians from 0 to 2π. These functions are fundamental to various fields of mathematics, physics, and engineering.Trigonometric Functions Defined via the Unit Circle
The unit circle is crucial for defining and visualizing trigonometric functions. Any point (x, y) on the circumference corresponds to an angle θ, with the x-coordinate representing cos(θ) and the y-coordinate representing sin(θ). This relationship allows for the determination of the sine and cosine values for standard angles. The tangent function, tan(θ), is the ratio of the sine to the cosine and can be represented on the unit circle as the slope of the line connecting the origin to the point (x, y).Quadrant Analysis and Sign Patterns in the Unit Circle
The unit circle is divided into four quadrants, each representing a unique combination of signs for sine and cosine values. In the first quadrant, both sine and cosine are positive, while in the second quadrant, sine is positive and cosine is negative. The third quadrant has both sine and cosine as negative, and in the fourth quadrant, sine is negative and cosine is positive. Understanding these sign patterns is crucial for students to accurately determine the trigonometric function values for angles in different quadrants.Calculating Sine and Cosine Values Using the Unit Circle
To calculate sine and cosine values, one can refer to specific angles on the unit circle. For example, at 0° (or 0 radians), the corresponding point on the unit circle is (1, 0), indicating a cosine value of 1 and a sine value of 0. At 90° (or π/2 radians), the point is (0, 1), yielding a sine value of 1 and a cosine value of 0. These examples illustrate the direct correlation between the unit circle's coordinates and the sine and cosine values, which are the projections of the radius onto the y-axis and x-axis, respectively.The Unit Circle's Role in the Pythagorean Identity
The unit circle offers a geometric representation of the Pythagorean identity, which is a cornerstone of trigonometry. By inscribing a right triangle within the unit circle, with the hypotenuse as the radius (equal to 1), the other two sides represent the sine and cosine of the angle at the origin. The Pythagorean theorem states that the sum of the squares of the legs of a right triangle equals the square of the hypotenuse. In the unit circle, this theorem manifests as the identity sin^2(θ) + cos^2(θ) = 1, which is a fundamental relationship in trigonometry.Comprehensive Insights from the Unit Circle
The unit circle is a pivotal element in trigonometry, with its simple equation x^2 + y^2 = 1 serving as the foundation for defining trigonometric functions and exploring their properties. It is instrumental in determining the sine, cosine, and tangent values for angles in all four quadrants of the circle. The coordinates of points on the unit circle's circumference are directly linked to the trigonometric values of angles, and the quadrants indicate the sign patterns of these functions. The unit circle also provides a geometric basis for the Pythagorean identity, highlighting the profound interconnection between geometry and trigonometry.
Show More

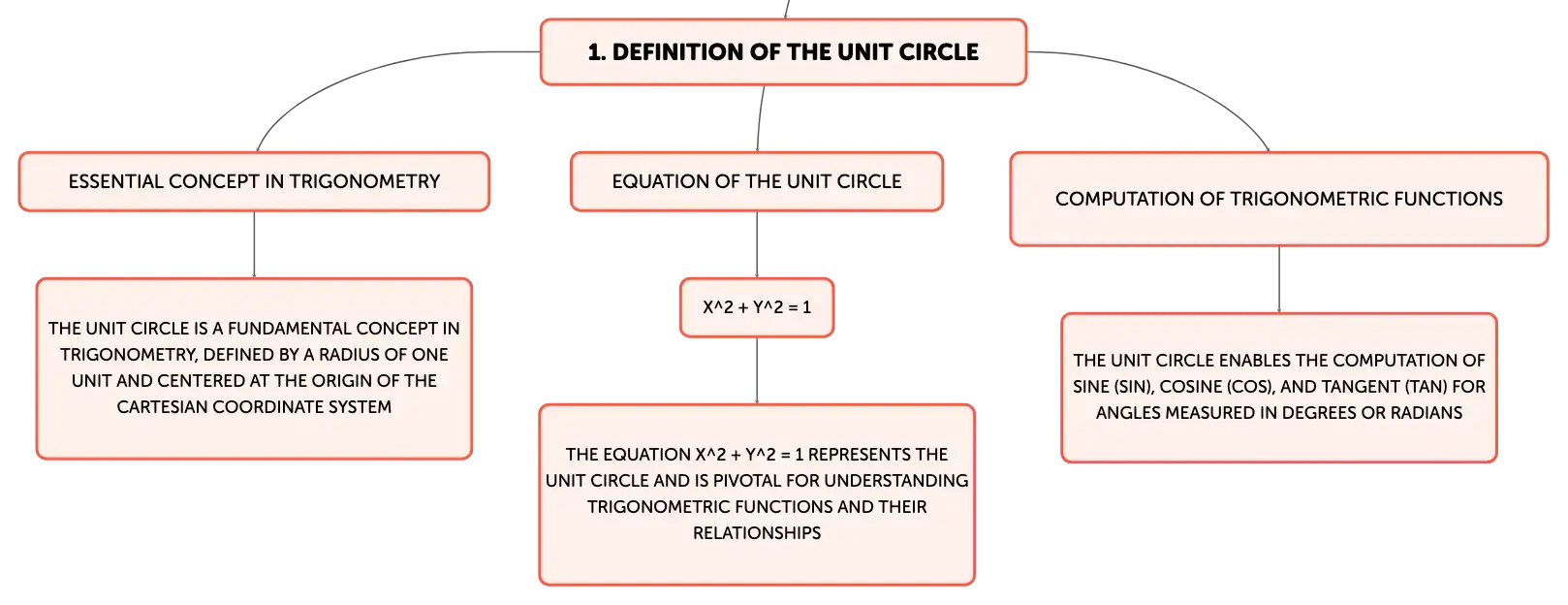

Definition of the Unit Circle
Essential concept in trigonometry
The unit circle is a fundamental concept in trigonometry, defined by a radius of one unit and centered at the origin of the Cartesian coordinate system
Equation of the unit circle
x^2 + y^2 = 1
The equation x^2 + y^2 = 1 represents the unit circle and is pivotal for understanding trigonometric functions and their relationships
Computation of trigonometric functions
The unit circle enables the computation of sine (sin), cosine (cos), and tangent (tan) for angles measured in degrees or radians

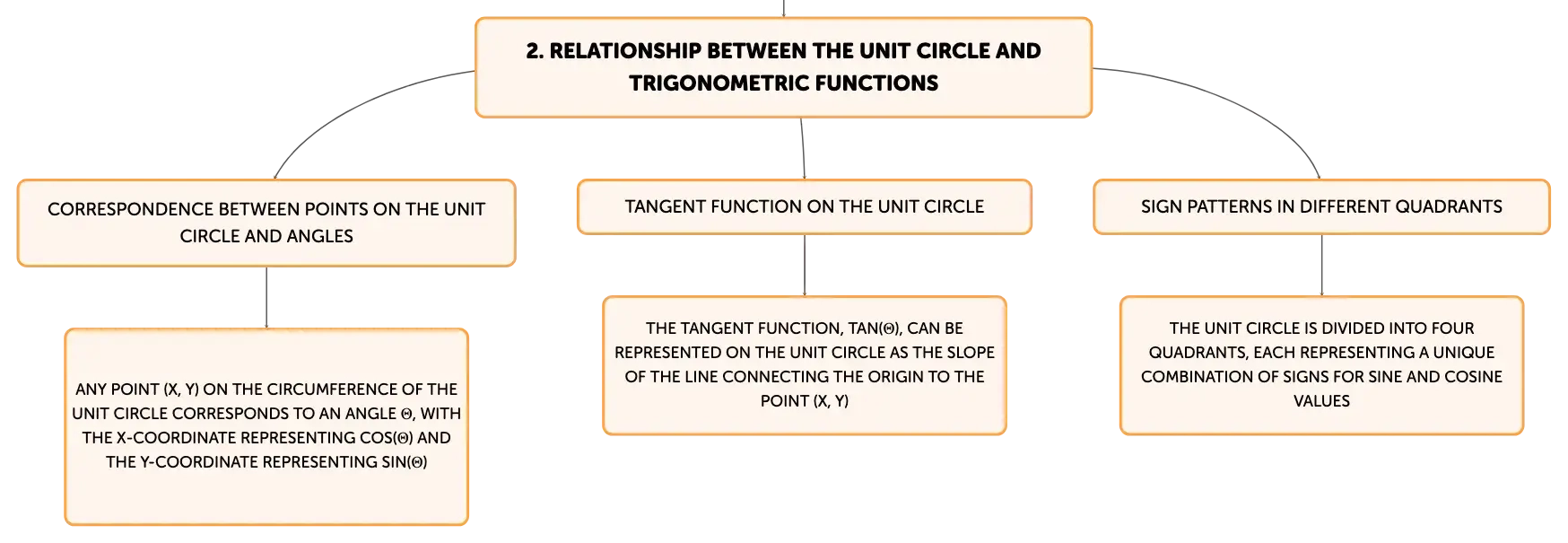

Relationship between the Unit Circle and Trigonometric Functions
Correspondence between points on the unit circle and angles
Any point (x, y) on the circumference of the unit circle corresponds to an angle θ, with the x-coordinate representing cos(θ) and the y-coordinate representing sin(θ)
Tangent function on the unit circle
The tangent function, tan(θ), can be represented on the unit circle as the slope of the line connecting the origin to the point (x, y)
Sign patterns in different quadrants
The unit circle is divided into four quadrants, each representing a unique combination of signs for sine and cosine values

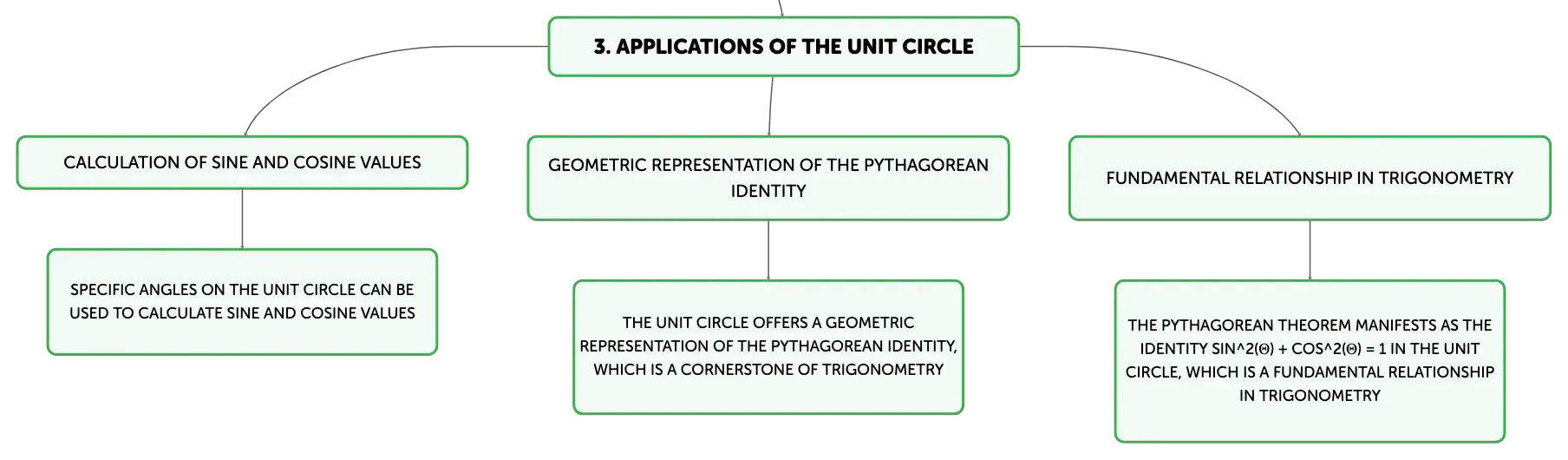

Applications of the Unit Circle
Calculation of sine and cosine values
Specific angles on the unit circle can be used to calculate sine and cosine values
Geometric representation of the Pythagorean identity
The unit circle offers a geometric representation of the Pythagorean identity, which is a cornerstone of trigonometry
Fundamental relationship in trigonometry
The Pythagorean theorem manifests as the identity sin^2(θ) + cos^2(θ) = 1 in the unit circle, which is a fundamental relationship in trigonometry
The Unit Circle in Trigonometry
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The equation ______ represents the unit circle, which is crucial for understanding the relationships between trigonometric functions.
x^2 + y^2 = 1
01
Unit Circle Point Coordinates
Point (x, y) on circumference; x = cos(θ), y = sin(θ).
02
Tangent Function on Unit Circle
tan(θ) equals sine over cosine; slope of line from origin to (x, y).
