Proportionality in Mathematics

Exploring the Concept of Proportion in Mathematics

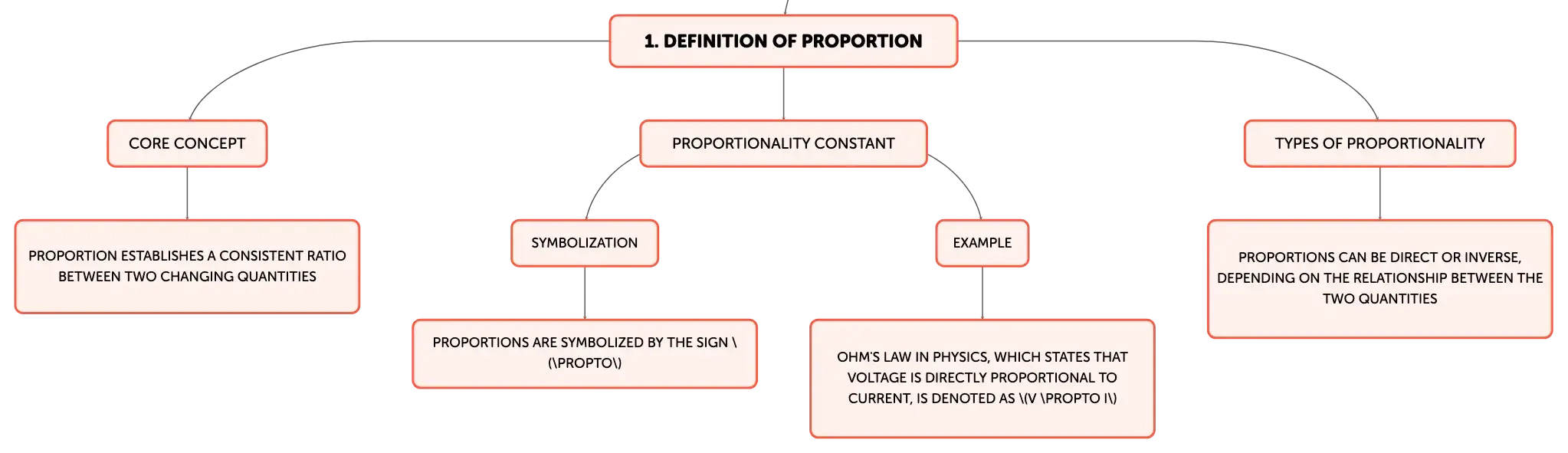

Proportion is a core concept in mathematics that establishes a relationship between two quantities that change in a consistent ratio to each other. When one quantity varies, the other does so in a manner that the ratio between them remains constant. This constant ratio is known as the proportionality constant. Proportions are symbolized by the sign \(\propto\). For example, Ohm's law in physics, which posits that voltage (V) is directly proportional to current (I), is denoted as \(V \propto I\). Introducing the proportionality constant \(k\), we can express this relationship as an equation: \(V = kI\), where \(k\) represents the resistance in the circuit.

Direct Proportionality and Its Graphical Depiction

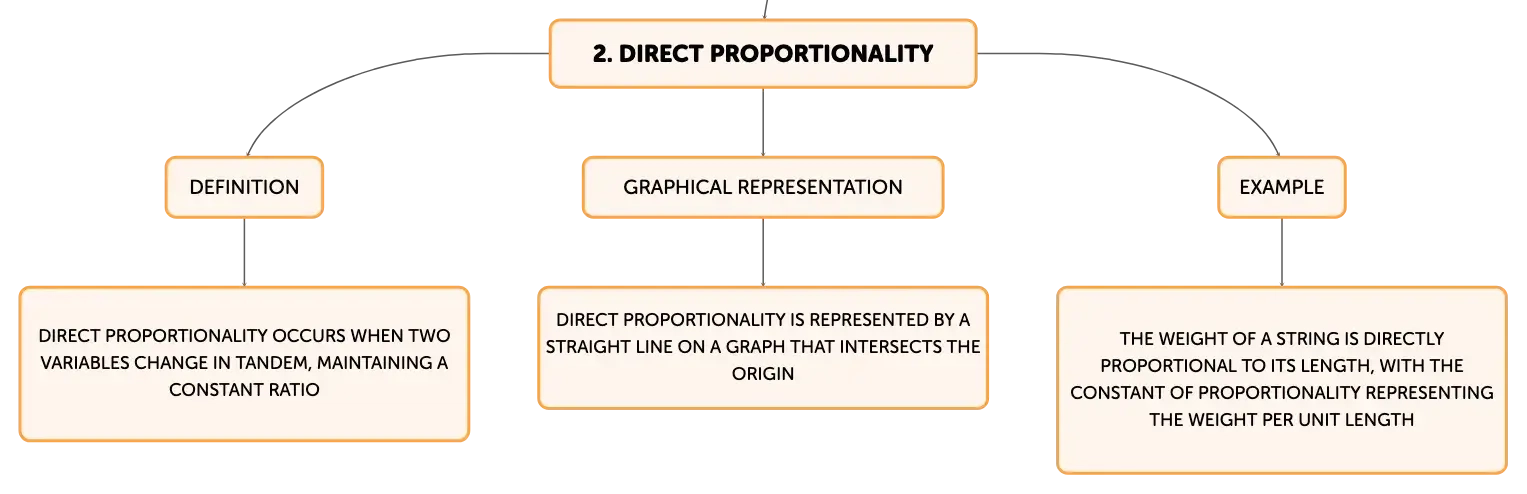

Direct proportionality is present when two variables increase or decrease in tandem, maintaining a constant ratio. If variables A and B are directly proportional, the relationship is expressed as \(A = kB\), where \(k\) is the constant of proportionality. On a graph, this relationship is represented by a straight line that intersects the origin, illustrating that the ratio of A to B is invariant. For instance, the weight of a string (W) is directly proportional to its length (L), expressed as \(W \propto L\) or \(W = aL\), with \(a\) being the constant. Given a 30cm string that weighs 0.2N, we can determine the weight of a 50cm string by first calculating the constant \(a = \frac{W}{L} = \frac{0.2N}{30cm}\) and then using it to find the new weight \(W = a \times 50cm\).

Characteristics of Inverse Proportions

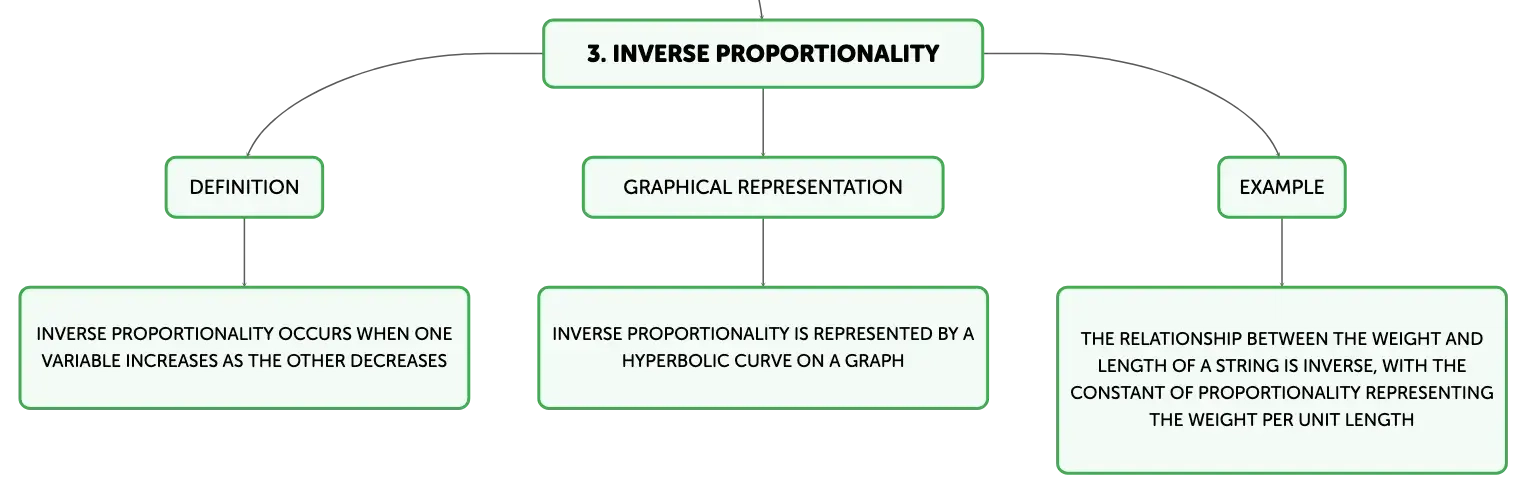

Inverse proportionality describes a scenario where one variable increases as the other decreases. The mathematical expression for an inverse proportion between two variables, c and d, is \(c \propto \frac{1}{d}\) or \(c = \frac{k}{d}\), where \(k\) is the constant of proportionality. This relationship is graphically represented by a hyperbolic curve that never touches the axes, indicating that as one variable increases indefinitely, the other approaches zero but never reaches it. For instance, if b and n are inversely proportional and \(b = 6\) when \(n = 2\), we deduce that \(k = b \times n = 12\). To find the value of \(n\) when \(b = 15\), we solve the equation \(15 = \frac{12}{n}\), which gives \(n = \frac{12}{15}\).

Proportional Relationships in Geometric Figures

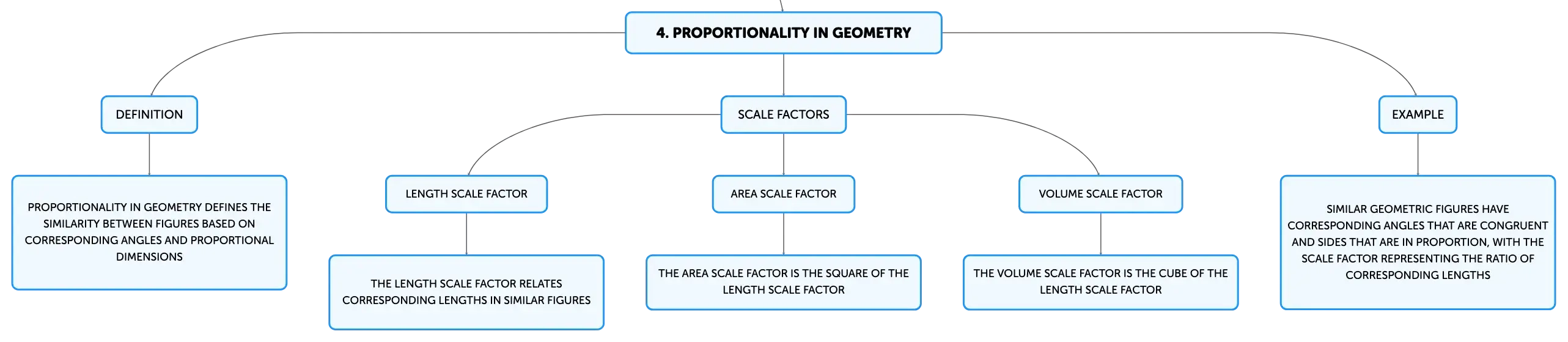

Proportionality is also a key concept in geometry, where it defines the similarity between figures. Similar geometric figures have corresponding angles that are congruent and sides that are in proportion. The constant of proportionality in geometry can be a scale factor that relates corresponding lengths, areas, or volumes. The area scale factor is the square of the length scale factor, while the volume scale factor is the cube of the length scale factor. For example, if two cubes are similar and the edge of the second cube is half the length of the first, the volume of the second cube is \(\frac{1}{8}\) that of the first. If the first cube has a volume of 64 cubic units, the second cube's volume is 8 cubic units. Similarly, if triangles ABE and ACD are similar with a length scale factor of 1.5 between sides AB and AC, then side CD is 1.5 times the length of side BE.

Concluding Insights on Proportional Relationships

To conclude, proportionality is an essential mathematical concept, symbolized by \(\propto\). Direct proportions, where variables change together, are expressed as \(y \propto x\), and inverse proportions, where one variable increases as the other decreases, are expressed as \(y \propto \frac{1}{x}\). In the realm of geometry, similar figures maintain proportional dimensions and equal angles, with the relationship between corresponding dimensions described by scale factors. Mastery of these principles enables the application of proportionality in diverse mathematical scenarios and practical situations, such as computing electrical currents or determining the similarity of geometric figures.
