Understanding Mechanical Energy and Its Forms

Mechanical energy is the sum of kinetic energy, which is the energy of motion, and potential energy, which is the energy stored due to an object's position or configuration. Kinetic energy is given by the formula \( \frac{1}{2}mv^2 \), where \( m \) is the mass and \( v \) is the velocity of the object. Potential energy, on the other hand, can take various forms such as gravitational potential energy, given by \( mgh \), where \( h \) is the height above a reference point, and \( g \) is the acceleration due to gravity. Elastic potential energy is another form, calculated based on the deformation of an elastic object, such as a spring. The principle of conservation of mechanical energy is a specific case of the law of conservation of energy, which states that within a closed system, energy can neither be created nor destroyed, but only transformed from one form to another or transferred from one object to another.

Serene waterfall cascading into a tranquil pond with a red apple on a boulder and a child leaping towards it, surrounded by lush greenery.

The Principle of Conservation of Mechanical Energy

The principle of conservation of mechanical energy states that in an isolated system where only conservative forces are acting, the total mechanical energy remains constant. Conservative forces, such as gravity and spring forces, are path-independent and do not dissipate mechanical energy as heat. In contrast, non-conservative forces like friction result in the conversion of mechanical energy into thermal energy, which is not recoverable as mechanical energy. For example, when a pendulum swings, its mechanical energy is conserved if we neglect air resistance and friction at the pivot. At the highest points of its swing, the pendulum has maximum potential energy and minimum kinetic energy. At the lowest point, the kinetic energy is at its maximum and potential energy is at its minimum. The sum of kinetic and potential energy at any point in the swing is equal to the total mechanical energy, which remains constant throughout the motion.

Calculating Mechanical Energy in Practical Situations

To calculate the mechanical energy of an object, one must account for both its kinetic and potential energies. The total mechanical energy (E) of a system is given by the sum \( E = KE + PE \), where KE is the kinetic energy and PE is the potential energy. For instance, a projectile launched into the air has kinetic energy due to its motion and gravitational potential energy due to its height. As the projectile rises, its kinetic energy decreases while its potential energy increases, keeping the total mechanical energy constant if air resistance is negligible. The formulas for kinetic energy (\( \frac{1}{2}mv^2 \)) and gravitational potential energy (\( mgh \)) can be used to calculate the mechanical energy at any point in the projectile's trajectory.

Demonstrating Conservation of Mechanical Energy Through Free Fall

The conservation of mechanical energy can be demonstrated with the example of an object in free fall. At the moment of release, the object possesses maximum potential energy and negligible kinetic energy if released from rest. As the object falls, its potential energy is converted into kinetic energy. If we neglect air resistance, the sum of the potential and kinetic energies at any point during the fall is equal to the initial potential energy. This can be verified by measuring the object's velocity at various heights and using the kinetic energy formula to calculate the corresponding kinetic energy, which should match the loss in potential energy.

Examples Illustrating the Conservation of Mechanical Energy

The conservation of mechanical energy can be observed in various scenarios. A classic example is a roller coaster, where the cars convert potential energy to kinetic energy as they descend from the highest point and vice versa as they ascend. Another example is a pendulum, as mentioned earlier, where the energy continuously oscillates between kinetic and potential forms. In all these cases, if we ignore the effects of non-conservative forces such as air resistance and friction, the total mechanical energy of the system remains constant throughout the motion. These examples help students visualize and understand the practical applications of the conservation of mechanical energy in real-world situations.

Key Takeaways on Conservation of Mechanical Energy

The conservation of mechanical energy is a pivotal concept in physics, providing insight into the behavior of objects and systems in motion. It underscores the predictability of mechanical systems in ideal conditions, where non-conservative forces are absent. The conservation is encapsulated in the equation \( KE_{initial} + PE_{initial} = KE_{final} + PE_{final} \), which can be applied to solve a wide range of physics problems. Understanding this principle is essential for students as it forms the basis for analyzing and predicting the outcome of various physical processes and phenomena.

Conservation of Mechanical Energy

Concept Map

Summary

Outline

Conservation of Mechanical Energy

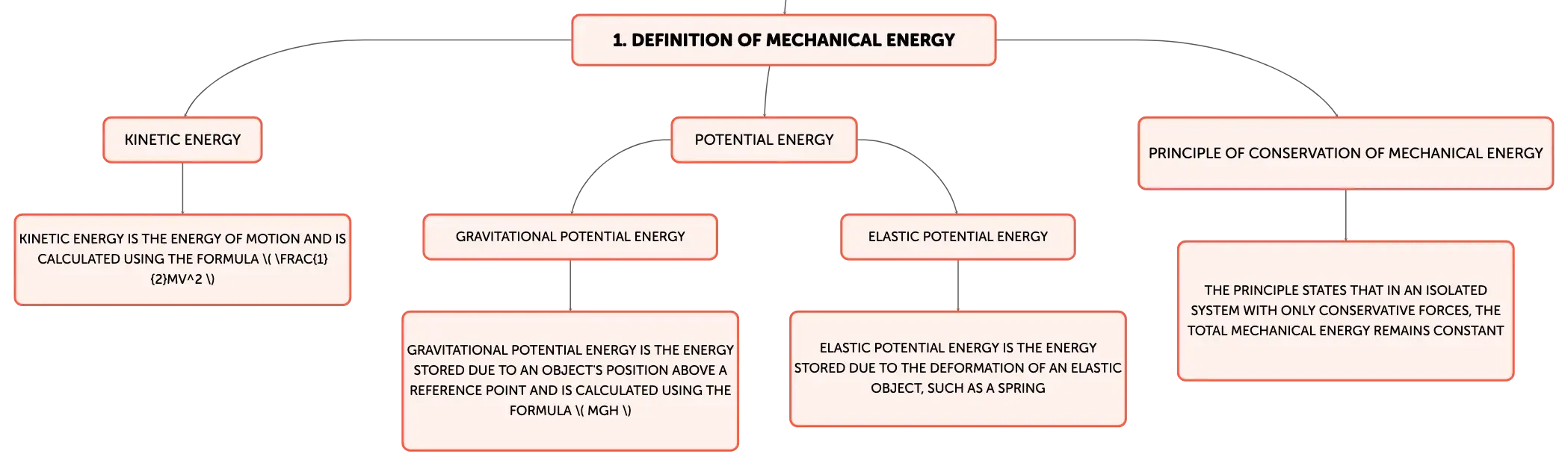

Definition of Mechanical Energy

Kinetic Energy

Potential Energy

Principle of Conservation of Mechanical Energy

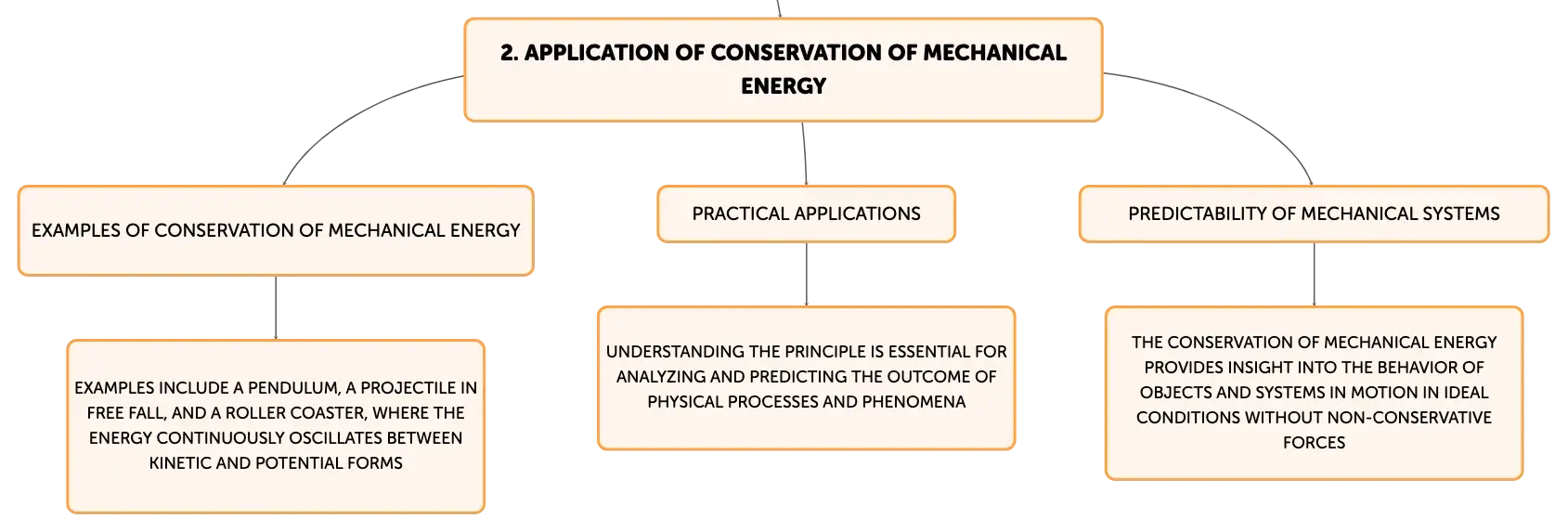

Application of Conservation of Mechanical Energy
