Graphing Cubic Functions

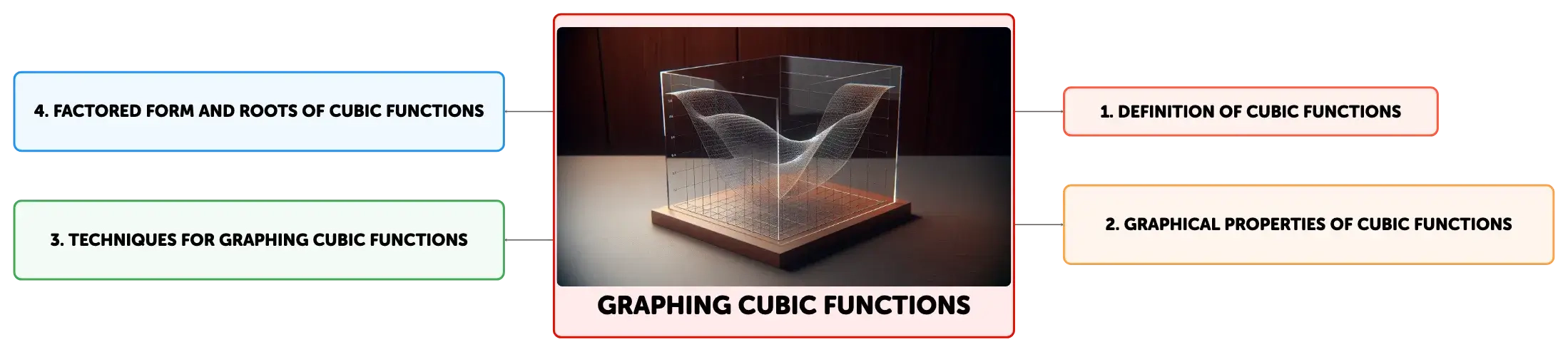

Concept Map
Cubic functions, represented by the polynomial equation f(x) = ax^3 + bx^2 + cx + d, have distinct characteristics such as up to three real roots, a point of inflection, and no axis of symmetry. This text delves into the graphical behavior of cubic functions, contrasting them with quadratic functions, and provides strategies for sketching their graphs, including transformation techniques and factorization. Understanding the relationship between a function's roots and its graph is emphasized for accurate graphing.
Summary
Outline
Exploring the Nature of Cubic Functions
A cubic function is a polynomial of degree three, characterized by its highest degree term, \(x^3\). The general form of a cubic function is \(f(x) = ax^3 + bx^2 + cx + d\), where \(a\), \(b\), \(c\), and \(d\) are real numbers, and \(a\) is non-zero. This form allows for a variety of cubic functions, such as \(f(x) = x^3 - 2x + 1\) or \(g(x) = 3x^3 + 5\). The coefficient \(a\) determines the end behavior of the graph, with positive values indicating that the graph rises to the right and negative values that it falls to the right. The cubic term is responsible for the function's distinctive shape and behavior, which includes the possibility of having one, two, or three real roots.Graphical Characteristics of Cubic Functions
The graph of a cubic function is a curve that can intersect the x-axis at up to three points, corresponding to the function's real roots, and the y-axis at one point, the y-intercept. These functions do not have an axis of symmetry but possess a point of inflection where the curvature changes direction. The graph typically has two turning points, which are the local maxima and minima. The end behavior of the graph is determined by the leading coefficient: if \(a > 0\), the graph will rise to the right and fall to the left; if \(a < 0\), the graph will fall to the right and rise to the left. The point of inflection is not necessarily at the origin, and its location can be determined by analyzing the function's second derivative.Distinctions Between Cubic and Quadratic Functions
Cubic and quadratic functions exhibit distinct graphical properties. A quadratic function, represented by \(f(x) = ax^2 + bx + c\), has a single peak or trough, known as the vertex, and is symmetric about a vertical axis through this vertex. In contrast, a cubic function's graph has no such axis of symmetry and typically features a point of inflection and two turning points. While a quadratic function has at most two x-intercepts, a cubic function can have one, two, or three, reflecting the possible number of real roots. The domain of both functions is all real numbers, but their symmetry properties differ: quadratic functions are either even or neither even nor odd, while cubic functions are odd if they are symmetric about the origin.Strategies for Sketching Cubic Functions
To sketch the graph of a cubic function, one can employ several techniques. Plotting points is a straightforward method, where selected values of \(x\) are substituted into the function to find corresponding \(y\) values. The points are then plotted and connected to reveal the curve. Transformation techniques involve shifting, stretching, or reflecting the basic cubic graph \(y = x^3\) according to the function's coefficients. Factorization can be used when the cubic function can be expressed as a product of factors, allowing for easy identification of x-intercepts. Additionally, calculus methods such as finding the first and second derivatives can help locate turning points and points of inflection, respectively.Vertex Form and Factored Form of Cubic Functions
While cubic functions do not have a vertex form analogous to quadratic functions, they can be expressed in a factored form when they have real roots. The factored form is \(f(x) = a(x - r_1)(x - r_2)(x - r_3)\), where \(r_1\), \(r_2\), and \(r_3\) are the roots of the cubic equation. This form is particularly useful for graphing because it directly reveals the x-intercepts. When a cubic function does not factor over the real numbers, synthetic division or numerical methods may be used to approximate the roots. Understanding the relationship between a function's roots and its graph is crucial for accurately sketching the behavior of cubic functions.Practice with Graphing Cubic Functions
Applying the concepts of graphing cubic functions can be reinforced through practice problems. For example, given the function \(f(x) = 2x^3 - 3x^2 - 12x + 6\), one could use the Rational Root Theorem to find potential rational roots and then employ synthetic division or the Factor Theorem to verify them. Once the roots are found, the function can be factored, and the x-intercepts and y-intercept can be plotted. By connecting these points with a smooth curve and considering the end behavior, the graph of the cubic function can be completed. Practice with various forms of cubic functions, including those with complex roots, enhances students' understanding of the diverse shapes and properties of their graphs.Concluding Insights on Cubic Function Graphs
Graphing cubic functions is an essential skill in algebra that requires a deep understanding of polynomial behavior, standard and factored forms, and graphing techniques. Key insights include the potential for multiple real roots, the lack of an axis of symmetry, the presence of a point of inflection, and the occurrence of turning points. Proficiency in plotting points, applying transformations, utilizing factorization, and employing calculus techniques enables students to graph cubic functions accurately. This knowledge not only aids in visualizing polynomial functions but also lays the groundwork for further studies in mathematics and its applications.
Show More

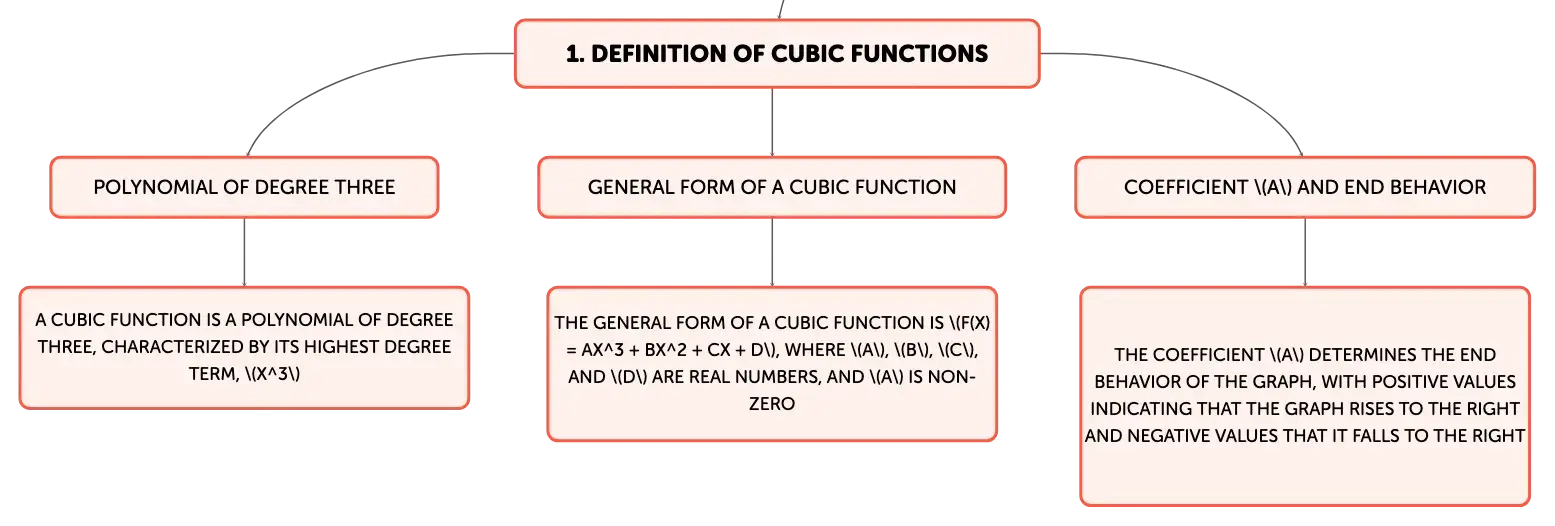

Definition of Cubic Functions
Polynomial of degree three
A cubic function is a polynomial of degree three, characterized by its highest degree term, \(x^3\)
General form of a cubic function
The general form of a cubic function is \(f(x) = ax^3 + bx^2 + cx + d\), where \(a\), \(b\), \(c\), and \(d\) are real numbers, and \(a\) is non-zero
Coefficient \(a\) and end behavior
The coefficient \(a\) determines the end behavior of the graph, with positive values indicating that the graph rises to the right and negative values that it falls to the right

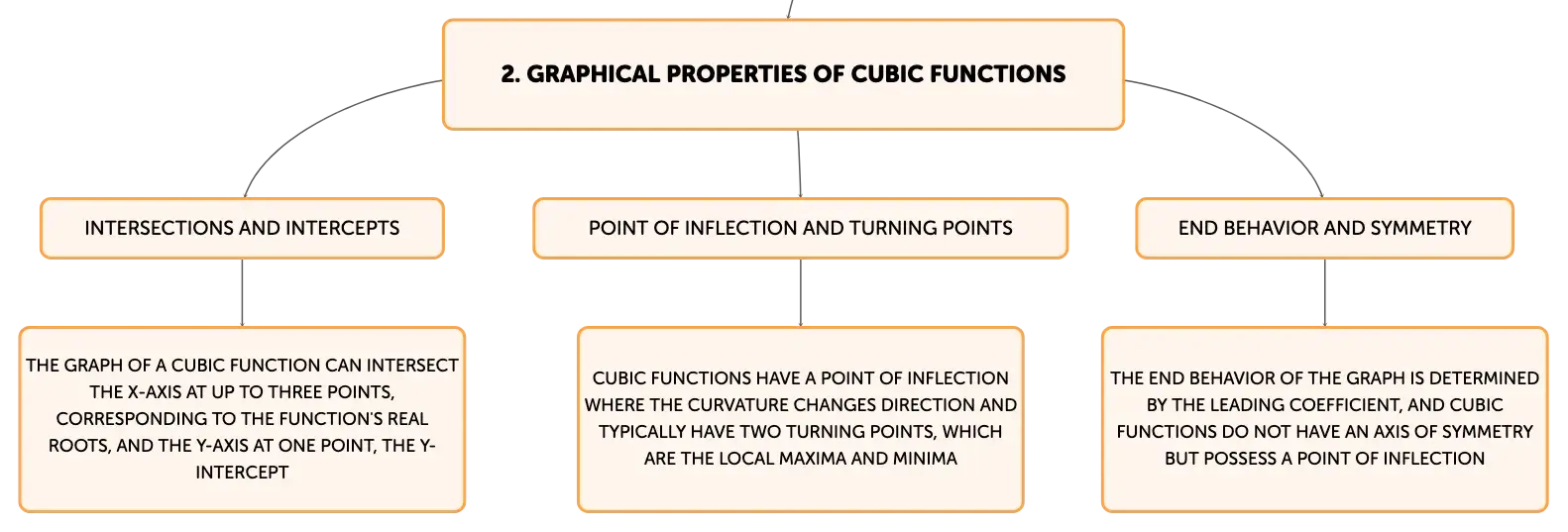

Graphical Properties of Cubic Functions
Intersections and intercepts
The graph of a cubic function can intersect the x-axis at up to three points, corresponding to the function's real roots, and the y-axis at one point, the y-intercept
Point of inflection and turning points
Cubic functions have a point of inflection where the curvature changes direction and typically have two turning points, which are the local maxima and minima
End behavior and symmetry
The end behavior of the graph is determined by the leading coefficient, and cubic functions do not have an axis of symmetry but possess a point of inflection

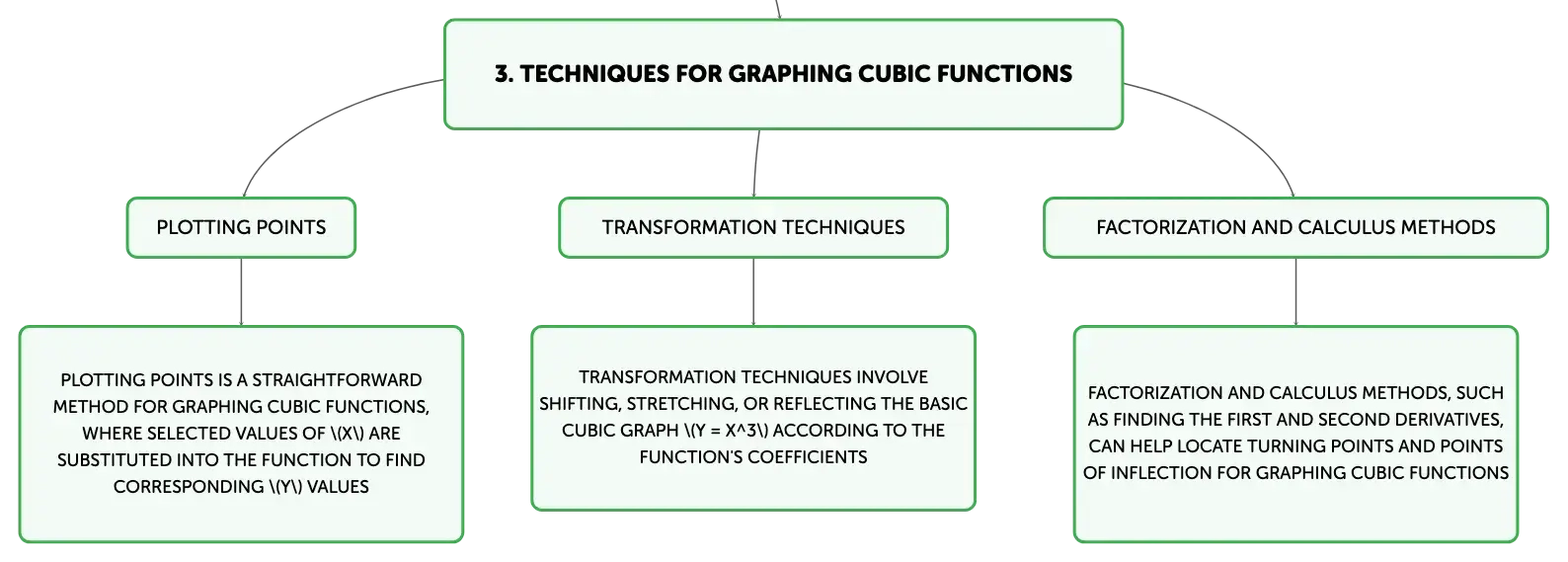

Techniques for Graphing Cubic Functions
Plotting points
Plotting points is a straightforward method for graphing cubic functions, where selected values of \(x\) are substituted into the function to find corresponding \(y\) values
Transformation techniques
Transformation techniques involve shifting, stretching, or reflecting the basic cubic graph \(y = x^3\) according to the function's coefficients
Factorization and calculus methods
Factorization and calculus methods, such as finding the first and second derivatives, can help locate turning points and points of inflection for graphing cubic functions

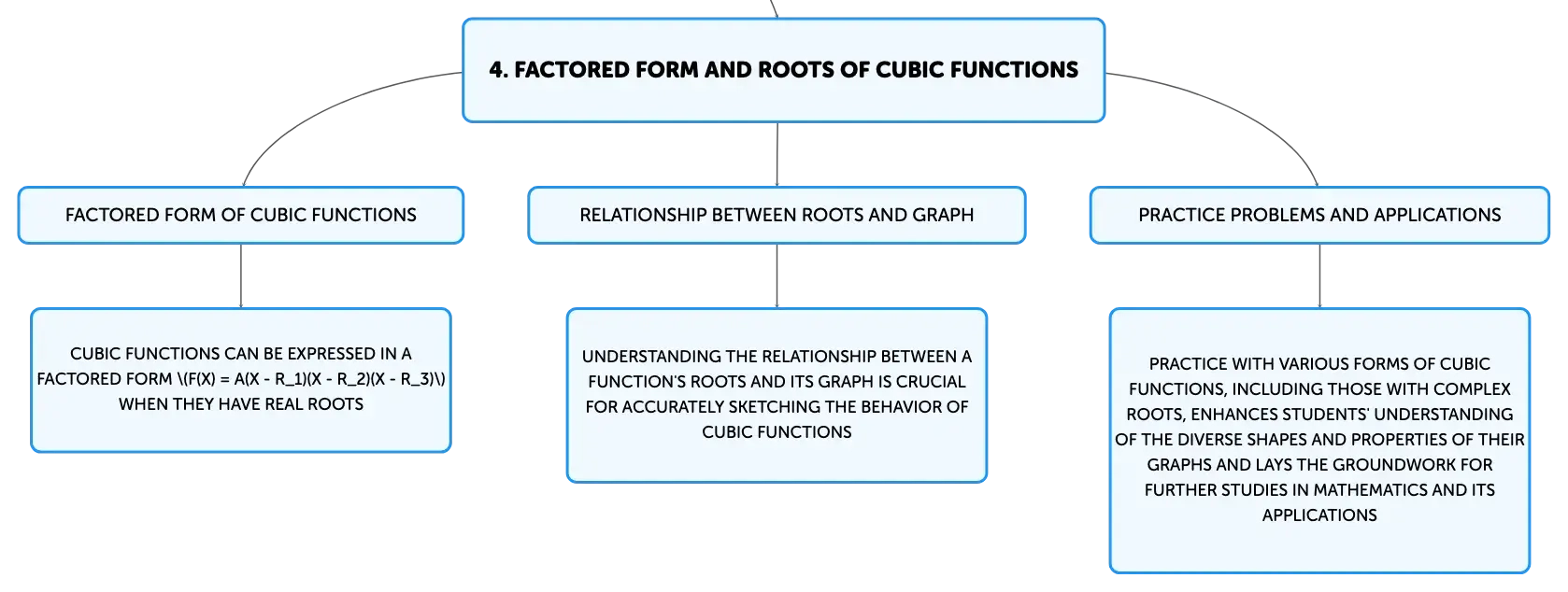

Factored Form and Roots of Cubic Functions
Factored form of cubic functions
Cubic functions can be expressed in a factored form \(f(x) = a(x - r_1)(x - r_2)(x - r_3)\) when they have real roots
Relationship between roots and graph
Understanding the relationship between a function's roots and its graph is crucial for accurately sketching the behavior of cubic functions
Practice problems and applications
Practice with various forms of cubic functions, including those with complex roots, enhances students' understanding of the diverse shapes and properties of their graphs and lays the groundwork for further studies in mathematics and its applications
Graphing Cubic Functions
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Cubic function x-axis intersections
Up to three points where graph intersects x-axis, representing real roots.
01
Cubic function y-intercept
Single point where graph intersects y-axis, indicating initial value.
02
Cubic function end behavior
Determined by leading coefficient: a > 0 rises right/falls left, a < 0 falls right/rises left.
