Vector Addition and Subtraction
Vector addition is a fundamental concept in physics, engineering, and mathematics, involving the combination of vectors to form a resultant. This process can be performed algebraically by adding corresponding components or geometrically using the Triangle or Parallelogram Laws. Understanding zero vectors, additive inverses, and vector subtraction is essential for applications in real-world scenarios, such as combining forces or calculating displacements.
See moreFundamentals of Vector Addition

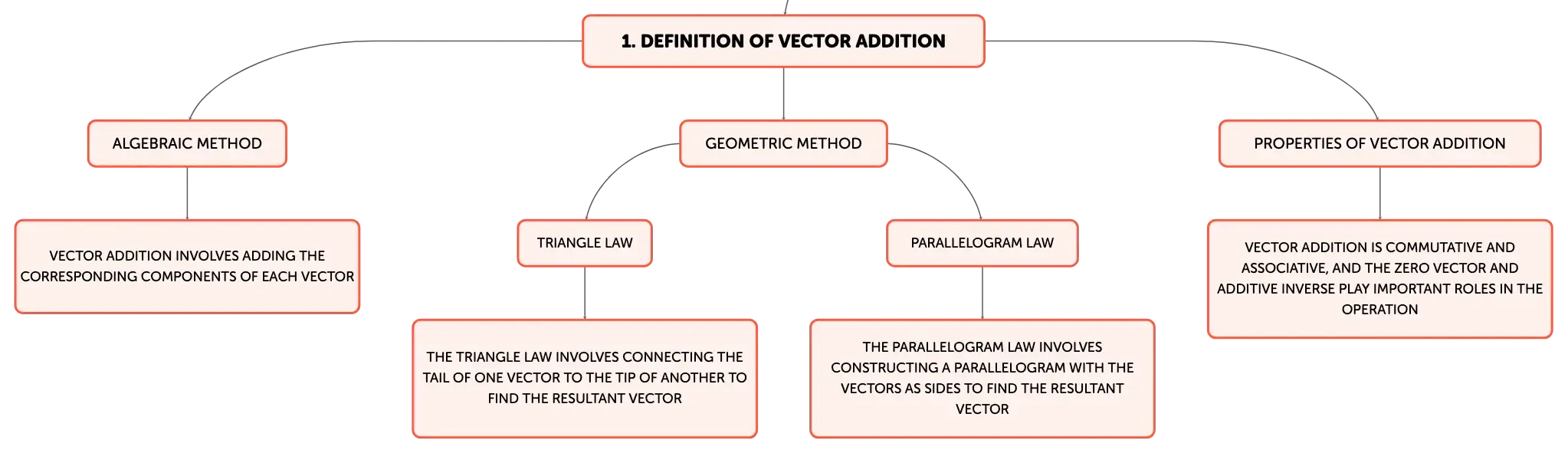

Vector addition is a key operation in vector algebra, which is integral to fields such as physics, engineering, and mathematics. A vector is defined by its magnitude and direction, and vector addition involves combining two or more vectors to produce a single vector known as the resultant. The resultant vector embodies the cumulative effect of the individual vectors. This operation can be performed either algebraically, using coordinates, or geometrically, using graphical representations.Algebraic Approach to Vector Addition
Algebraically, vector addition is performed by adding the corresponding components of each vector. If vectors A and B have coordinates A=(a1, a2) and B=(b1, b2) respectively, their sum is given by A + B = (a1 + b1, a2 + b2). This method is precise and allows for easy computation, especially in higher dimensions. Vector addition is commutative, meaning A + B = B + A, and associative, meaning (A + B) + C = A + (B + C), which are properties that facilitate the manipulation and simplification of vector expressions.Geometric Interpretation of Vector Addition
Geometrically, vectors can be added using either the Triangle Law or the Parallelogram Law. The Triangle Law, also known as the tip-to-tail method, involves connecting the tail of one vector to the tip of another and drawing the resultant from the tail of the first to the tip of the last. This is particularly useful for sequential vector addition. The Parallelogram Law applies when two vectors start from the same point; by constructing a parallelogram with the vectors as sides, the resultant is represented by the diagonal that extends from the shared starting point.The Role of Zero Vectors and Additive Inverses
In vector addition, the zero vector plays the role of an identity element, having zero magnitude and no specific direction, represented as 0⃗ = (0,0). It has the unique property that adding it to any vector yields the original vector unchanged (A + 0⃗ = A). The additive inverse of a vector A is denoted as -A and has the property that A + (-A) = 0⃗, effectively canceling the original vector. These concepts are fundamental for understanding vector subtraction and the broader algebraic structure of vector spaces.Understanding Vector Subtraction

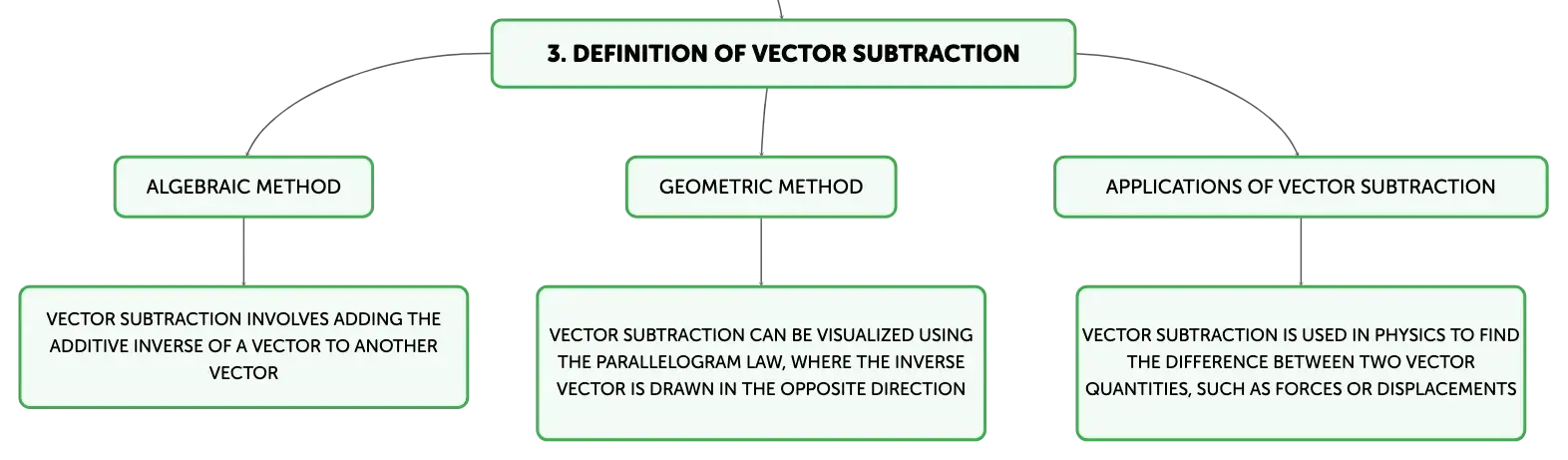

Vector subtraction is closely related to vector addition and involves adding the additive inverse of a vector. To subtract vector B from vector A, denoted as A - B, we calculate A + (-B). This can be visualized geometrically using the Parallelogram Law, where the inverse vector -B is drawn in the opposite direction from B, and the resultant vector is the diagonal that completes the parallelogram, representing the difference between the two vectors.Real-World Applications of Vector Operations

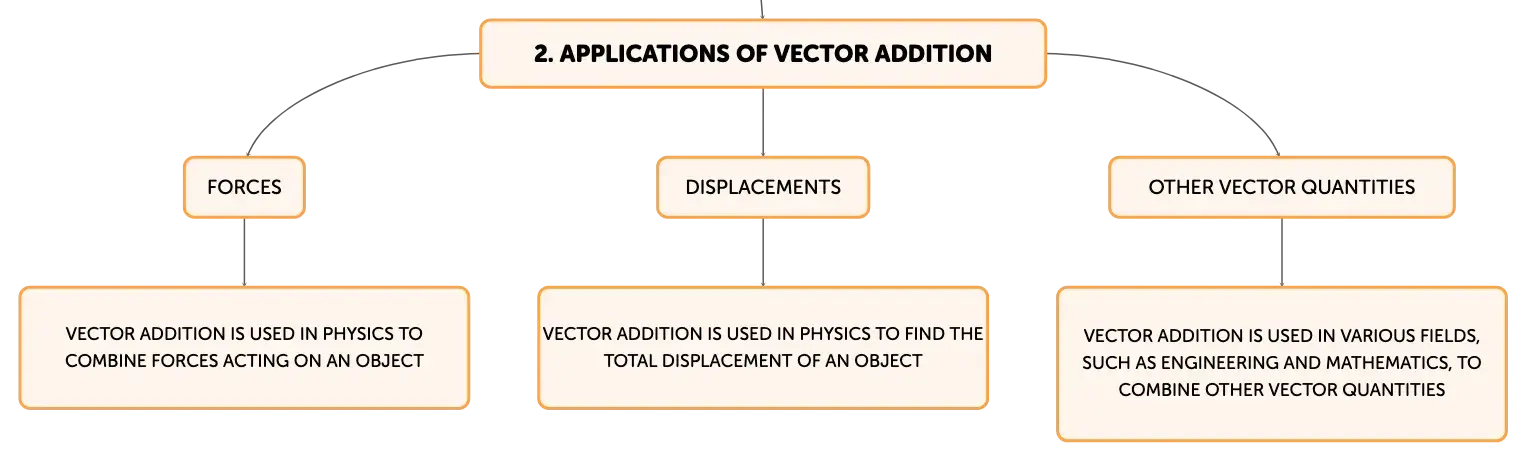

Vector addition and subtraction are not just theoretical concepts but have practical applications. For instance, if vectors A = (2, 4) and B = (-2, 5) represent forces, their sum A + B = (2 - 2, 4 + 5) = (0, 9) represents the combined force. Similarly, if A = (1, 7) and B = (5, -7) represent displacements, their sum A + B = (1 + 5, 7 - 7) = (6, 0) represents the total displacement. These operations are essential in physics for combining forces, velocities, or other vector quantities.Concluding Insights on Vector Addition
In conclusion, vector addition is a fundamental operation that combines multiple vectors into a single resultant vector. It can be performed both algebraically and geometrically, with methods such as the parallelogram and triangle laws providing intuitive visual interpretations. The principles of vector addition, including the properties of commutativity and associativity, as well as the concepts of zero vectors and additive inverses, are crucial for a wide range of applications in science and engineering. Mastery of these concepts is essential for anyone working with vectors in various disciplines.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
In fields like ______, ______, and ______, the process of combining two or more vectors to form a single 'resultant' vector is a fundamental operation.
Click to check the answer
2
Vector addition formula
Click to check the answer
3
Component-wise addition in vectors
Click to check the answer
4
Vector addition in higher dimensions
Click to check the answer
5
The ______ Law is useful for sequential vector addition and involves connecting vectors from end to start, while the ______ Law is used when vectors originate from a common point.
Click to check the answer
6
Zero vector representation
Click to check the answer
7
Additive inverse property
Click to check the answer
8
Vector subtraction via addition
Click to check the answer
9
The geometric representation of vector subtraction using the ______ Law involves drawing the inverse vector in the ______ direction and finding the diagonal that represents the difference.
Click to check the answer
10
Vector addition formula
Click to check the answer
11
Vector subtraction application
Click to check the answer
12
Vector addition merges several vectors into one ______ vector, which can be done using ______ or ______ approaches.
Click to check the answer
