Parametric Differentiation
Parametric differentiation is a calculus method used to determine the rate of change in functions defined by a third variable, or parameter. It employs the Chain Rule to find the slope and curvature of curves, which is vital for understanding geometric behaviors and calculating tangents and normals. This technique is especially useful for curves that intersect themselves or have complicated structures not easily described by Cartesian equations.
See moreExploring the Basics of Parametric Differentiation

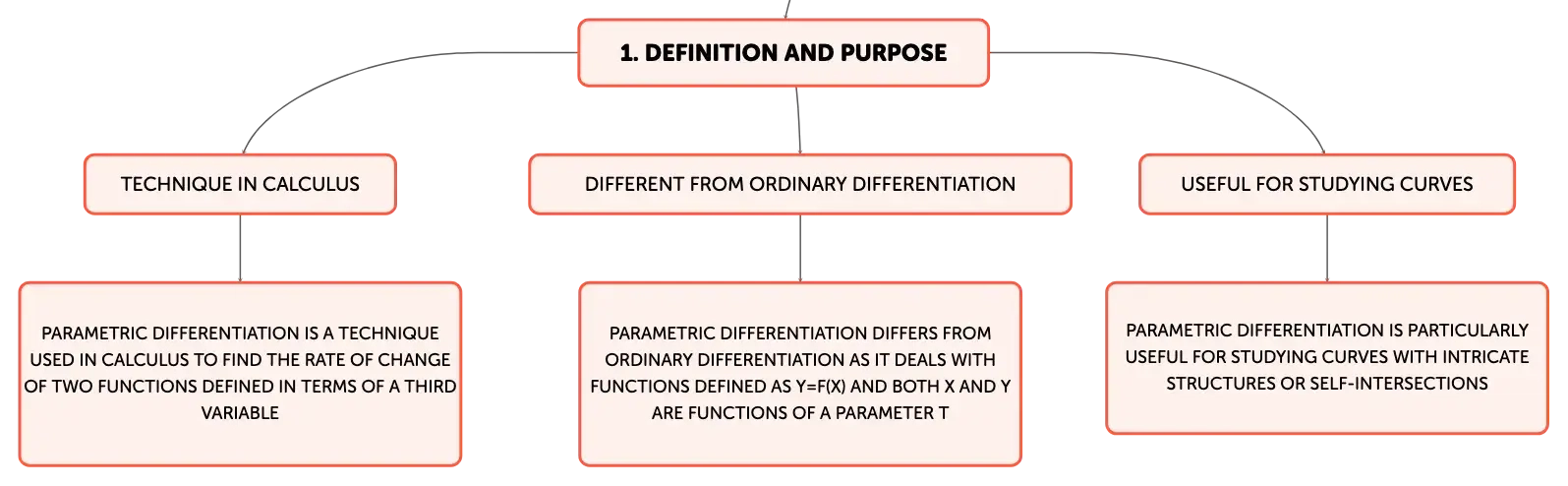

Parametric Differentiation is a technique in calculus used to find the rate of change of two functions that are both defined in terms of a third variable, called a parameter. This approach differs from ordinary differentiation, which deals with functions explicitly defined as y=f(x). In parametric equations, both x and y are functions of a parameter t (x=f(t), y=g(t)). This method is particularly useful for studying curves that may intersect themselves or have intricate structures not easily described by standard Cartesian equations. By employing parametric differentiation, we can determine the slope and curvature of these curves at any point, which is crucial for understanding their geometric behavior and for computing tangents and normals at particular points.Implementing the Chain Rule in Parametric Differentiation

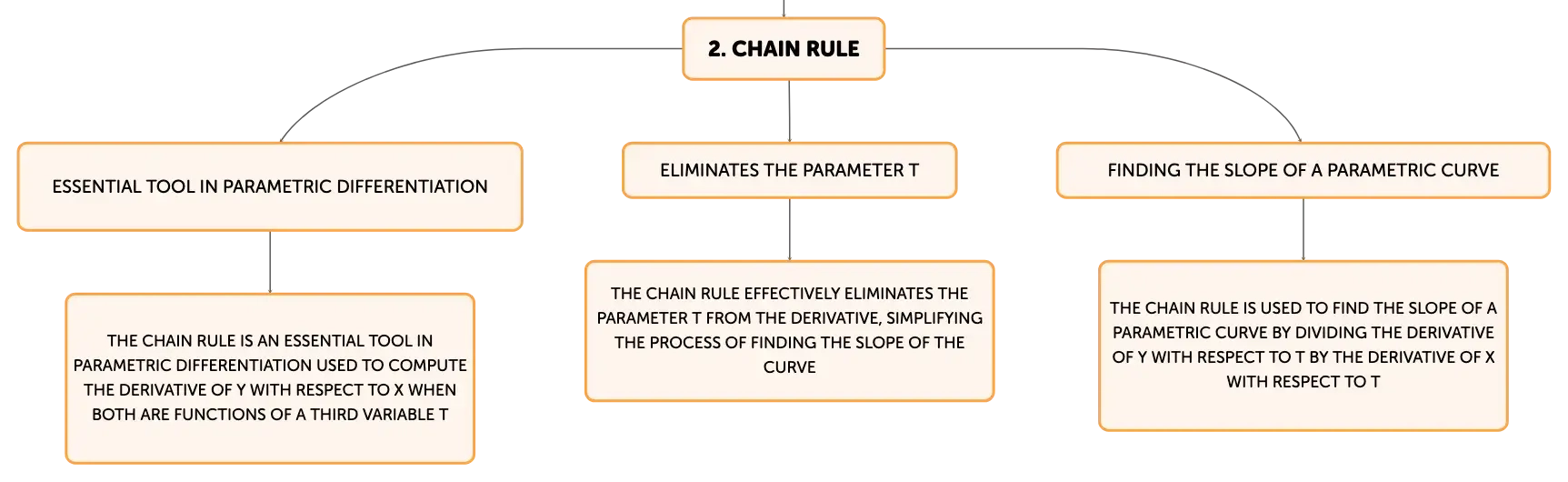

The Chain Rule is an essential tool in parametric differentiation. It is used to compute the derivative of y with respect to x, denoted as dy/dx, when y and x are both functions of a third variable t. The Chain Rule states that dy/dx can be found by taking the derivative of y with respect to t (dy/dt) and dividing it by the derivative of x with respect to t (dx/dt), expressed as dy/dx = (dy/dt) / (dx/dt). This approach effectively eliminates the parameter t from the derivative, simplifying the process of finding the slope of the curve as defined by the parametric equations.Differentiating Parametric Equations with Respect to the Parameter

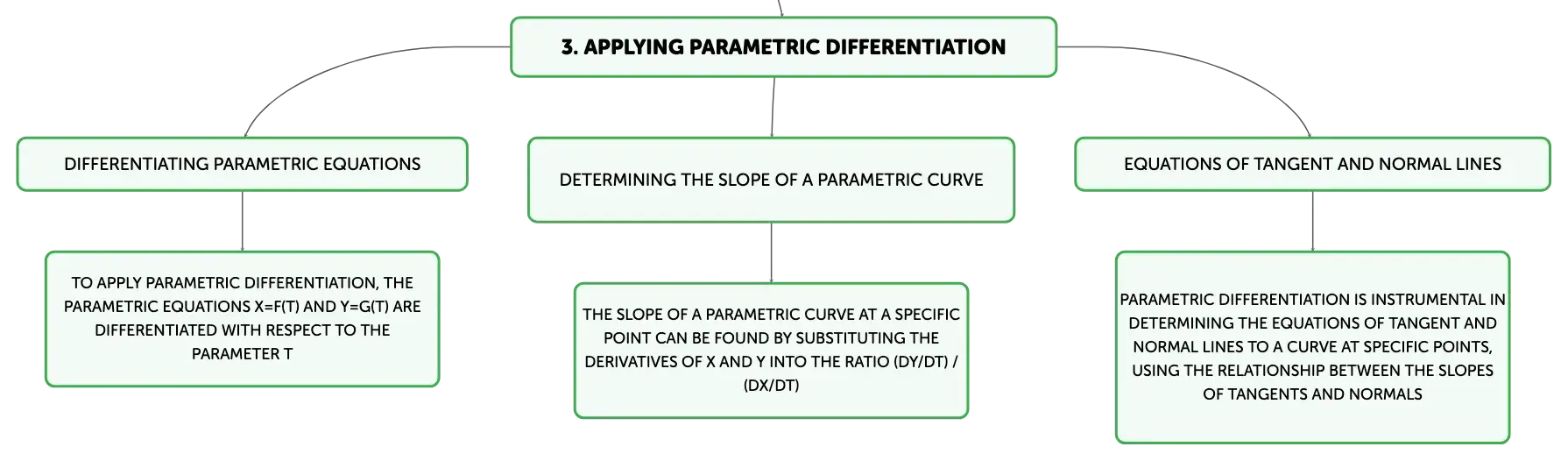

The next step in parametric differentiation is to differentiate the parametric equations x=f(t) and y=g(t) with respect to the parameter t. For example, consider the parametric equations for a circle: x(t) = cos(t) and y(t) = sin(t). The derivatives with respect to t are dx/dt = -sin(t) and dy/dt = cos(t), which represent the instantaneous rates of change of x and y with respect to the parameter t. These derivatives are then used to form the ratio (dy/dt) / (dx/dt), which yields the derivative dy/dx, providing the slope of the curve at any point corresponding to the parameter t.Calculating the Slope of Parametric Curves
To determine the slope of a parametric curve at a specific point, we substitute the derivatives found in the previous step into the ratio (dy/dt) / (dx/dt). For the circle example, the slope at any point t is given by dy/dx = cos(t) / -sin(t) = -cot(t). This process can be applied to any parametric curve to find its slope at any point, by dividing the derivative of y with respect to t by the derivative of x with respect to t, as long as dx/dt is not zero, which would indicate a vertical tangent line at that point.Deriving Equations of Tangents and Normals from Parametric Derivatives
Beyond finding the slope, parametric differentiation is instrumental in determining the equations of tangent and normal lines to the curve at specific points. A tangent line touches the curve at one point and has the same slope as the curve at that point. Given a point of tangency (x1, y1) on the curve described by parametric equations, the equation of the tangent line can be written as y - y1 = m(x - x1), where m is the slope at (x1, y1). A normal line, on the other hand, is perpendicular to the tangent line at the point of tangency, and its slope is the negative reciprocal of the tangent's slope. By using the relationship between the slopes of tangents and normals (m_tangent * m_normal = -1), we can easily derive the equation of the normal line at any point on the curve.Concluding Insights on Parametric Differentiation
In conclusion, parametric differentiation is a powerful method for analyzing the geometric features of curves defined by parametric equations. By applying the Chain Rule, differentiating the parametric functions with respect to the parameter, and forming the ratio of these derivatives, we can determine the slope of the curve at any given point. This information is essential for constructing the equations of tangent and normal lines, which provide deeper insights into the curve's behavior at specific points. Parametric differentiation thus offers a thorough framework for exploring the intricacies of curves in mathematics and related scientific disciplines.Want to create maps from your material?
Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.
Try Algor
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
1
Definition of Parametric Equations
Click to check the answer
2
Application of Parametric Differentiation
Click to check the answer
3
Advantage of Parametric Curves
Click to check the answer
4
The ______ Rule formula is expressed as dy/dx = (dy/dt) / (dx/dt), removing the variable ______ from the derivative.
Click to check the answer
5
Parametric circle equations
Click to check the answer
6
Derivatives of circle parametrics
Click to check the answer
7
Finding slope from parametrics
Click to check the answer
8
For a circle, the gradient at any point t is -cot(t), which is the result of dividing ______ by ______.
Click to check the answer
9
Definition of tangent line in parametric curves
Click to check the answer
10
Equation form of a tangent line at a point
Click to check the answer
11
Relationship between slopes of tangent and normal lines
Click to check the answer
12
______ differentiation allows for the analysis of curves' geometric features by using parametric equations.
Click to check the answer
13
The slope of a curve at any point can be found by differentiating parametric functions, applying the ______, and taking the ratio of these derivatives.
Click to check the answer
