Definition of Tension Force

Tension force is a fundamental concept in physics, involving the force transmitted through strings or cables under stress. It's crucial for understanding how systems support or move loads. The force is equal to the load's weight in equilibrium, greater during upward acceleration, and less when descending. Complex tension scenarios and angled systems require advanced calculations, which are essential for designing structures and machinery.

See more

1/4

Want to create maps from your material?

Insert your material in few seconds you will have your Algor Card with maps, summaries, flashcards and quizzes.

Try Algor

Learn with Algor Education flashcards

Click on each Card to learn more about the topic

1

Transmission medium for tension force

Click to check the answer

Tension force is transmitted through strings, ropes, cables, or similar objects.

2

Tension force role in mechanics

Click to check the answer

Tension is crucial for systems using ropes/cables to support/move loads.

3

In a resting setup, like a weight hanging from a string, the tension in the string is equal to the ______ force on the mass.

Click to check the answer

gravitational

4

Tension formula for upward acceleration

Click to check the answer

T = mg + ma, where T is total tension, m is mass, g is gravitational acceleration, and a is upward acceleration.

5

Net force in upward acceleration

Click to check the answer

Net force equals ma, which is the force needed to accelerate an object upwards, beyond gravitational force.

6

When an object speeds up downwards, the ______ in the support is not as strong as the object's ______ ______.

Click to check the answer

tension gravitational weight

7

To prevent free fall and ensure a managed descent, the tension is determined by the formula ______ = ______ - ______, representing gravitational force minus acceleration force.

Click to check the answer

T mg ma

8

Newton's Second Law Application

Click to check the answer

Apply F=ma to each mass separately, considering system's acceleration and string's tension.

9

System Acceleration Effect

Click to check the answer

Heavier mass in a pulley system dictates overall acceleration due to gravitational force.

10

Solving Tension and Acceleration

Click to check the answer

Use simultaneous equations derived from Newton's Second Law for each mass to find tension and system acceleration.

11

To calculate the tension forces in a string's segments, one uses ______ functions and techniques like ______ equations.

Click to check the answer

trigonometric simultaneous

12

Tension force in static systems

Click to check the answer

In static systems, tension equals the load's weight, maintaining equilibrium.

13

Tension during upward acceleration

Click to check the answer

Tension exceeds the weight of the load when accelerating upwards.

14

Tension with angled configurations

Click to check the answer

Calculating tension involves resolving forces along different axes in angled setups.

Q&A

Here's a list of frequently asked questions on this topic

Similar Contents

Physics

Newton's Second Law of Motion

Physics

Standard Units of Measurement

Physics

Work and Energy in Classical Mechanics

Physics

Forces and Resultant Force

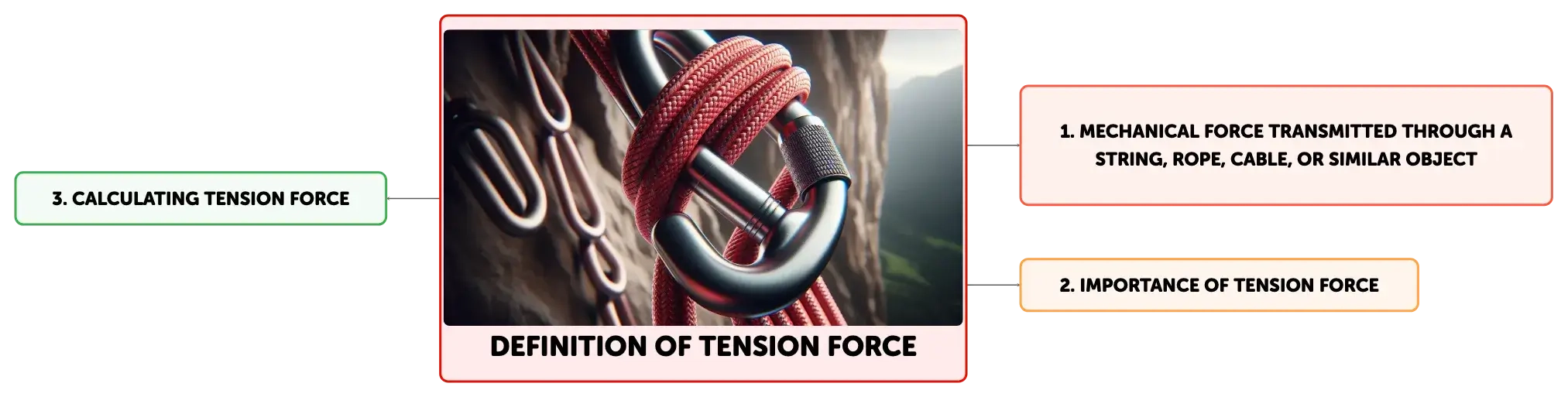

The Principles of Tension Force

Tension force is a mechanical force transmitted through a string, rope, cable, or similar object when forces are applied at opposite ends. This force, commonly known as tension, arises when a load induces stress within the material, enabling the transfer of force along the length of the object. Tension is a reactive force that appears only when the object is under stress; it is essential for understanding the mechanics of systems involving ropes or cables in supporting or moving loads.
Close-up of a polished steel D-shaped carabiner securing a taut red climbing rope, with a blurred rock face background, highlighting climbing safety gear.

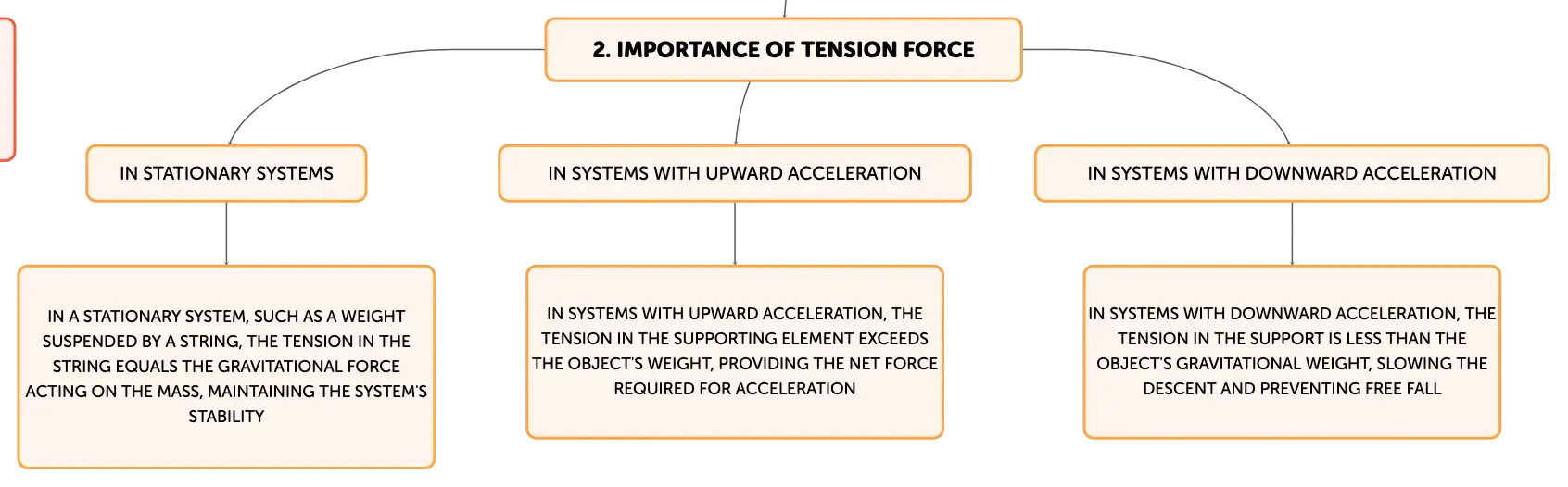

Tension in Equilibrium

In a stationary system, such as a weight suspended by a string, the concept of tension force is straightforward. If the system is at rest or moving at constant velocity, the tension in the string equals the gravitational force acting on the mass. This is described by the equation T = mg, where T represents the tension in the string, m is the mass of the object, and g is the acceleration due to gravity (approximately 9.81 m/s² on Earth). This equilibrium condition implies that the tension force counteracts the gravitational force, maintaining the system's stability.

Tension During Upward Acceleration

When an object experiences upward acceleration, the tension in the supporting element exceeds the object's weight. This additional tension is necessary to overcome the gravitational pull and provide the net force required for acceleration. The relationship governing this scenario is T = mg + ma, where a is the upward acceleration of the object. The equation indicates that the total tension is the sum of the gravitational force and the force needed for acceleration.

Tension During Downward Acceleration

If an object accelerates downward, the tension in the support is less than the object's gravitational weight. This reduction in tension slows the descent, preventing free fall. The tension in this situation is calculated using T = mg - ma, where a is the downward acceleration. This formula shows that the tension is the gravitational force minus the force due to acceleration, ensuring a controlled descent.

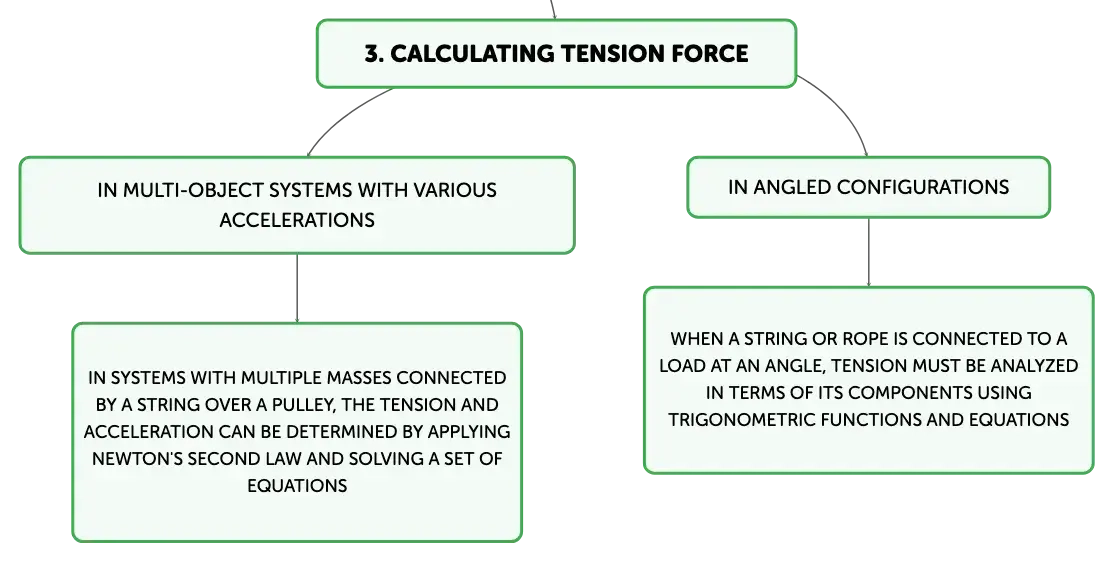

Complex Tension Calculations

Calculating tension in multi-object systems with various accelerations requires a more intricate approach. For instance, in a system with two masses connected by a string over a pulley, the heavier mass will cause the system to accelerate. By applying Newton's second law to each mass and considering the tension in the string, one can establish a set of equations. Solving these equations simultaneously allows for the determination of both the tension in the string and the acceleration of the system.

Tension in Angled Systems

When a string or rope is connected to a load at an angle, tension must be analyzed in terms of its components. The tension force is decomposed into vertical and horizontal components using trigonometric functions to relate the angle of attachment to the tension. By formulating equations for these components and employing methods such as simultaneous equations and substitution, the tension forces in different segments of the string can be accurately determined.

Summary of Tension Force Concepts

Tension force is a pivotal concept in physics, characterizing the force exerted by a stretched rope, string, or cable. It matches the load's weight in a static system, surpasses the weight in upward acceleration, and is less than the weight during downward acceleration. Mastery of tension force calculations in various contexts, including complex systems and angled configurations, is crucial for the analysis and design of structures and machinery that utilize tensile elements for support and motion.
