Exploring Systems of Inequalities

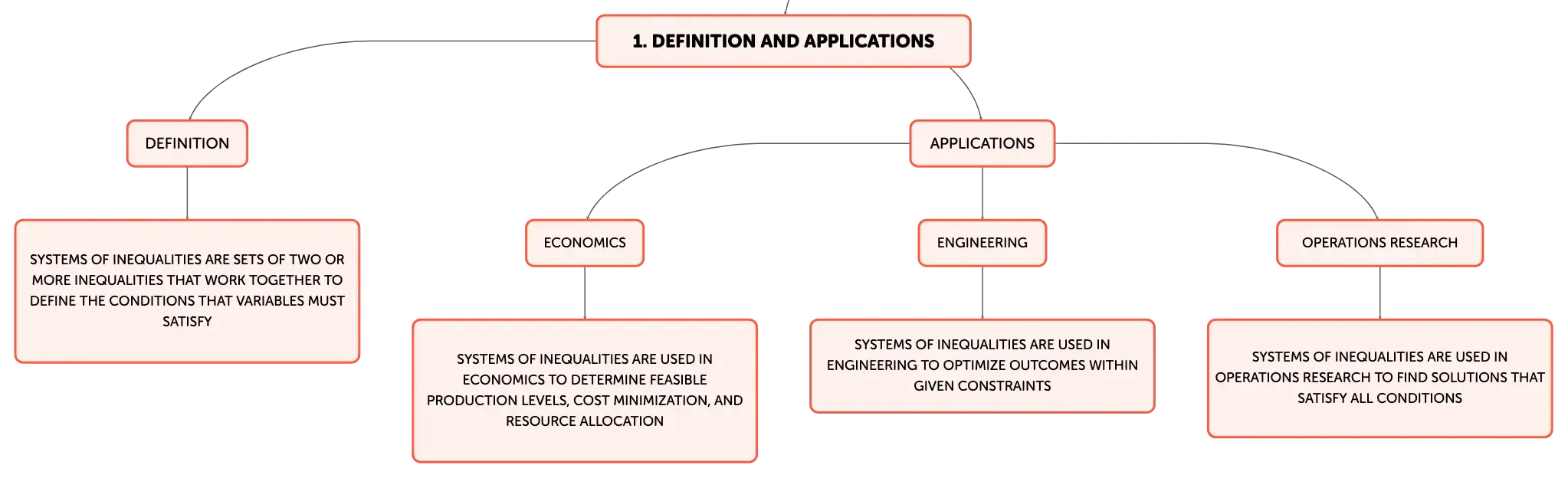

Systems of inequalities are sets of two or more inequalities that work together to define the conditions that variables must satisfy. These systems are pivotal in numerous fields, including economics, engineering, and operations research, where they are used to optimize outcomes within given constraints. For example, in business, systems of inequalities can determine feasible production levels, cost minimization, and resource allocation. Each inequality in the system contributes a condition that the solution must meet, and the collective solution set is the range of values that satisfy all inequalities simultaneously.

Clear acrylic clipboard with blank paper, transparent ruler, and sharpened pencil on a wooden desk in a softly lit, empty classroom setting.

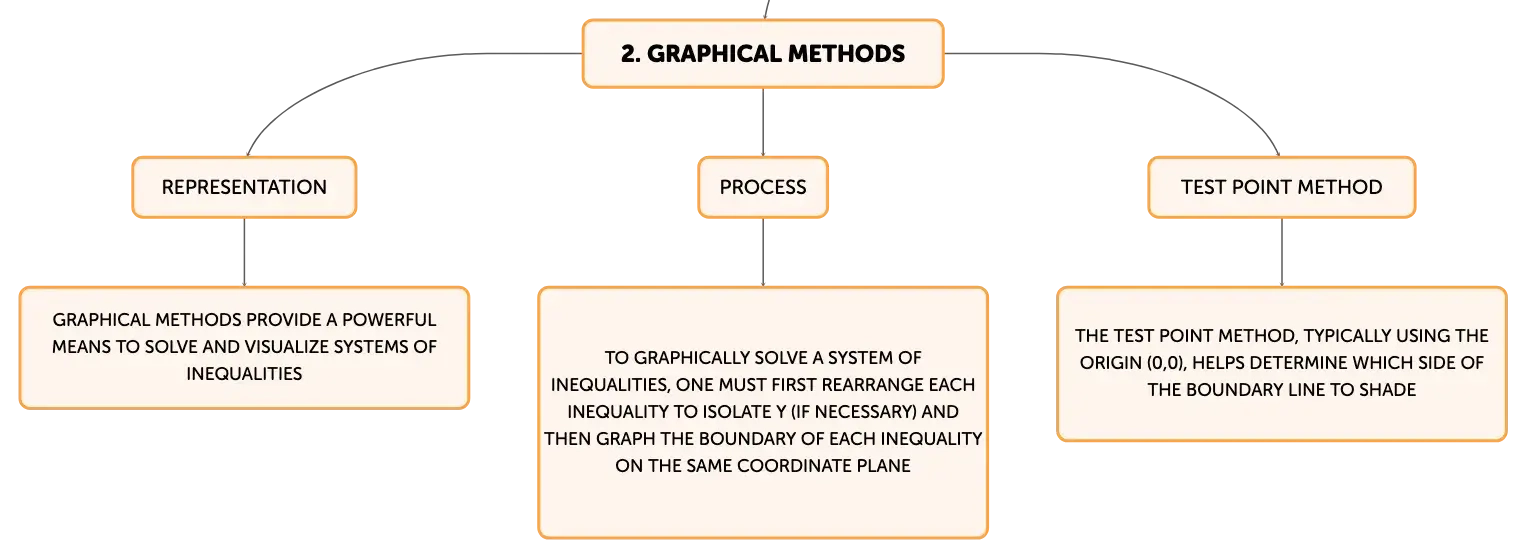

Visualizing Solutions with Graphs

Graphical methods provide a powerful means to solve and visualize systems of inequalities. On a coordinate plane, each inequality is represented by a region bounded by a line or curve. The solution to the system is the common area where all these regions overlap. Solid lines indicate inclusive inequalities (≤ or ≥), suggesting that points on the line are part of the solution set, while dashed lines indicate exclusive inequalities (< or >), excluding points on the line. The overlapping region, often shaded, represents all the points that satisfy every inequality in the system.

Graphical Solution Methodology

To graphically solve a system of inequalities, one must first rearrange each inequality to isolate y (if necessary). Then, graph the boundary of each inequality on the same coordinate plane. The test point method, typically using the origin (0,0), helps determine which side of the boundary line to shade. This process is repeated for each inequality in the system. The intersection of the shaded regions is the graphical representation of the solution set. If no such intersection exists, the system has no solution.

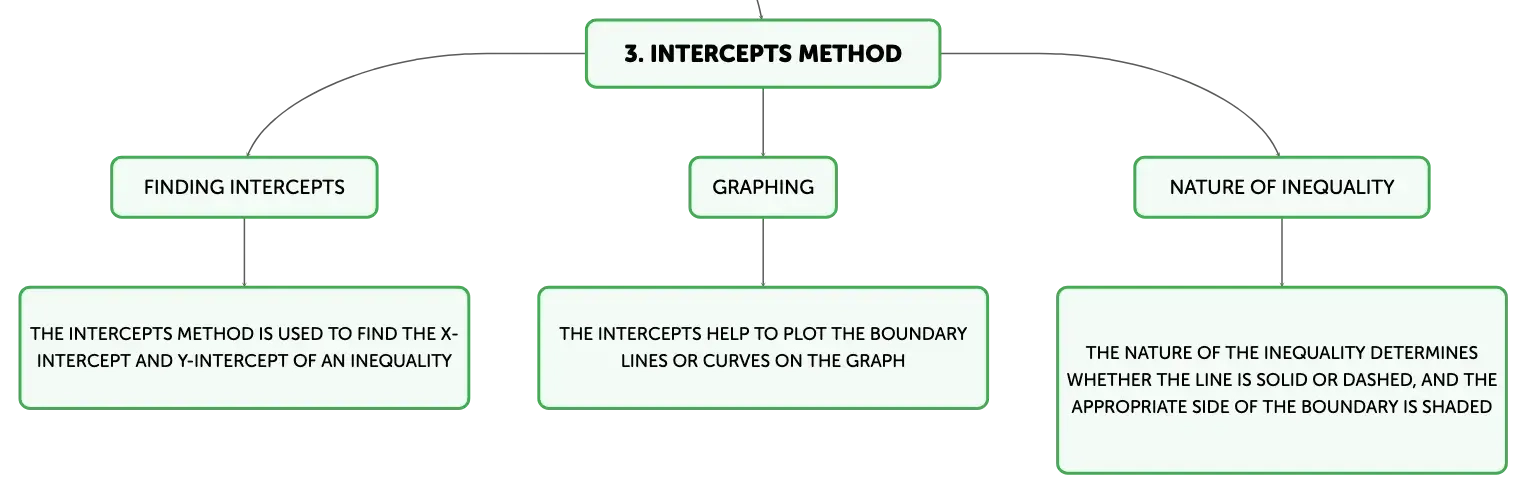

Addressing Two-Variable Inequalities

Systems of inequalities with two variables often utilize the intercepts method for graphing. To find the x-intercept of an inequality, set y to zero and solve for x; similarly, find the y-intercept by setting x to zero and solving for y. These intercepts help to plot the boundary lines or curves on the graph. The nature of the inequality determines whether the line is solid or dashed, and the appropriate side of the boundary is shaded. The solution to the system is the region where the shaded areas of all inequalities intersect.

Tackling Single-Variable Inequalities

For systems of inequalities involving a single variable, the solution involves determining the set of values that satisfy all inequalities. Each inequality is solved individually, and their solutions are graphed on a number line. The intersection of these graphical solutions represents the overall solution set. Interval notation is used to succinctly describe the solution set, which is the range of values that satisfies the entire system of inequalities.

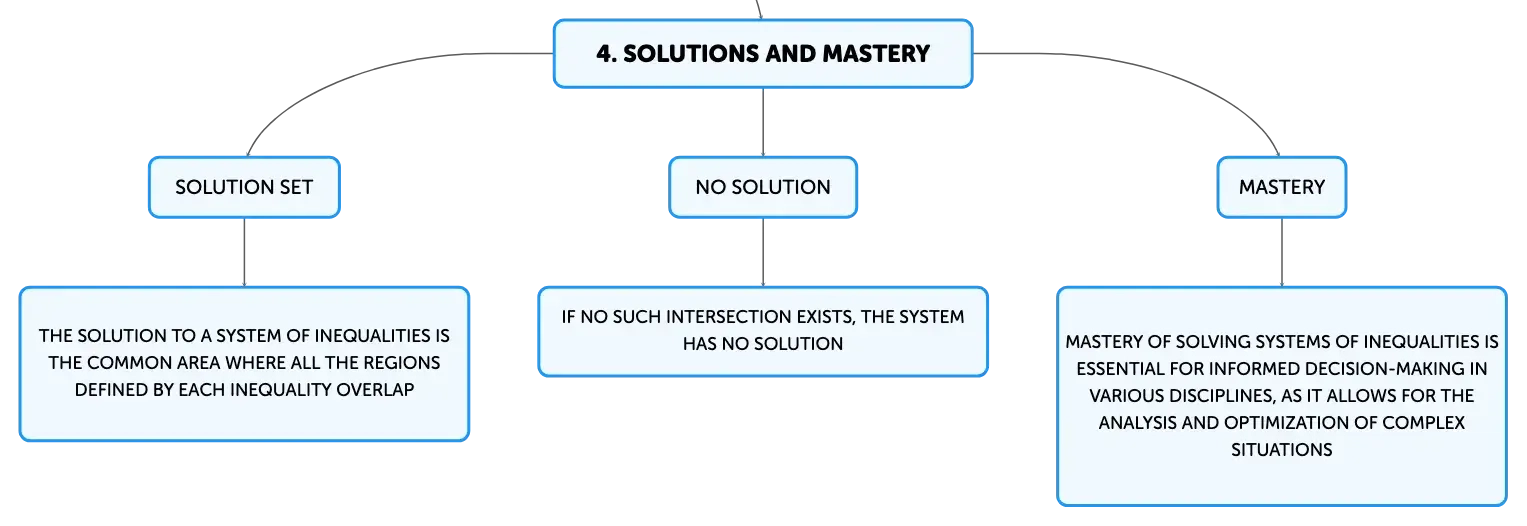

Concluding Insights on Inequality Systems

Systems of inequalities are indispensable for modeling scenarios with multiple constraints and finding solutions that satisfy all conditions. The graphical approach is an intuitive method to identify the feasible solution set, which is the intersection of the regions defined by each inequality. It is important to recognize that systems may sometimes have no solution, which is indicated by non-intersecting regions on the graph. Mastery of solving systems of inequalities is essential for informed decision-making in various disciplines, as it allows for the analysis and optimization of complex situations.
