Pulleys: Essential Simple Machines for Lifting Heavy Loads

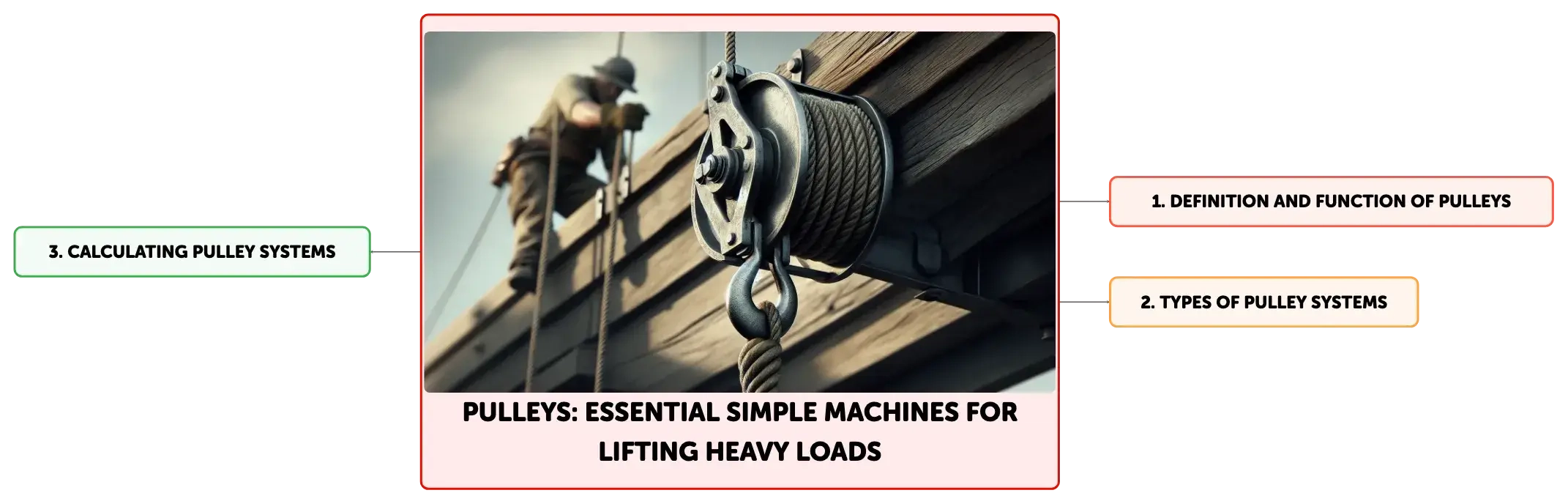

Concept Map
Exploring pulley systems, this overview discusses their use in lifting heavy loads efficiently. It covers the basics of single-wheel and multi-wheel pulleys, their mechanical advantage, and classifications including fixed, movable, and compound systems. The application of physics for force and acceleration calculations in pulley dynamics is also examined, providing practical insights into these essential simple machines.
Summary
Outline
Exploring the Basics of Pulley Systems
Pulleys are essential mechanical devices classified as simple machines, primarily used to lift or move heavy loads with greater efficiency. A basic pulley system comprises a wheel with a grooved rim to accommodate a rope or cable, mounted on an axle. The core function of a pulley is to redirect the force applied, allowing for a force multiplication effect, which eases the lifting process. This effect, known as mechanical advantage, is the ratio of the output force exerted on the load to the input force applied by the user. Pulleys enable the movement of heavy objects with reduced effort compared to lifting them directly.The Mechanics of Pulleys: Understanding Weight, Mass, and Mechanical Advantage
Comprehending pulley mechanics necessitates a grasp of weight, mass, and mechanical advantage. Weight is the gravitational force acting on an object, measured in Newtons (N), while mass represents the quantity of matter within an object, measured in kilograms (kg). The equation weight = mass x gravitational acceleration (9.8 m/s^2 on Earth) describes their relationship. For example, a 40 kg object has a weight of 392 N. Mechanical advantage quantifies the efficiency of a machine in amplifying an input force to accomplish work on a load, and it is a dimensionless number indicating how much the machine multiplies the force.Single-Wheel Pulley Systems: Achieving Directional Advantage
A single-wheel pulley system provides a basic mechanical advantage by altering the direction of the applied force. When a downward force is exerted on the rope, the load attached to the opposite end is raised. This type of system does not decrease the effort needed to lift the load but rather changes the direction of the applied force, which can simplify the lifting process in various contexts.Enhancing Mechanical Advantage with Multi-Wheel Pulley Systems
Incorporating additional wheels into a pulley system amplifies the mechanical advantage, thus reducing the effort needed to lift a load. In a two-wheel system, the load's weight is shared between the wheels, effectively requiring half the effort to lift it. However, the distance the rope must be pulled is doubled to achieve the same lift height. Similarly, a four-wheel system divides the load's weight further, necessitating only a quarter of the initial force, but quadrupling the length of rope needed for the same vertical displacement.Classifying Pulley Systems: Fixed, Movable, and Compound
Pulley systems are classified into fixed, movable, and compound types. Fixed pulleys have a wheel that is stationary, with the load lifted on one side and the effort applied on the other, primarily changing the force's direction. Movable pulleys are attached to the load itself and reduce the force needed to lift it by providing a mechanical advantage. Compound pulleys combine features of both fixed and movable pulleys, offering a significant mechanical advantage by both altering the direction of force and multiplying it, which is especially beneficial for lifting extremely heavy loads.Applying Physics to Pulley Systems for Force and Acceleration Calculations
Physics principles are essential for calculating the necessary force and acceleration in pulley systems. The SUVAT equations, which describe the motion of objects under uniform acceleration, can be used to determine the acceleration of a load in a pulley system. For instance, when two masses connected by a string over a pulley are released from rest, their acceleration can be calculated by establishing equations for each mass's acceleration and tension and solving them together. This requires a comprehensive understanding of the forces involved, such as gravity, tension, and the masses of the objects, to accurately predict the system's dynamics.Practical Insights on Pulleys: Concluding Thoughts
In conclusion, pulleys are invaluable simple machines that significantly ease the lifting of heavy loads by providing a mechanical advantage. The number of wheels in a system directly influences the effort required to lift a load, with more wheels equating to a greater mechanical advantage. Fixed, movable, and compound pulleys each serve distinct functions, from merely changing the direction of force to significantly multiplying it for heavier loads. A thorough understanding of the physics behind pulleys, including concepts such as weight, mass, and acceleration, is crucial for precise calculations and the effective application of these machines in a variety of settings.
Show More

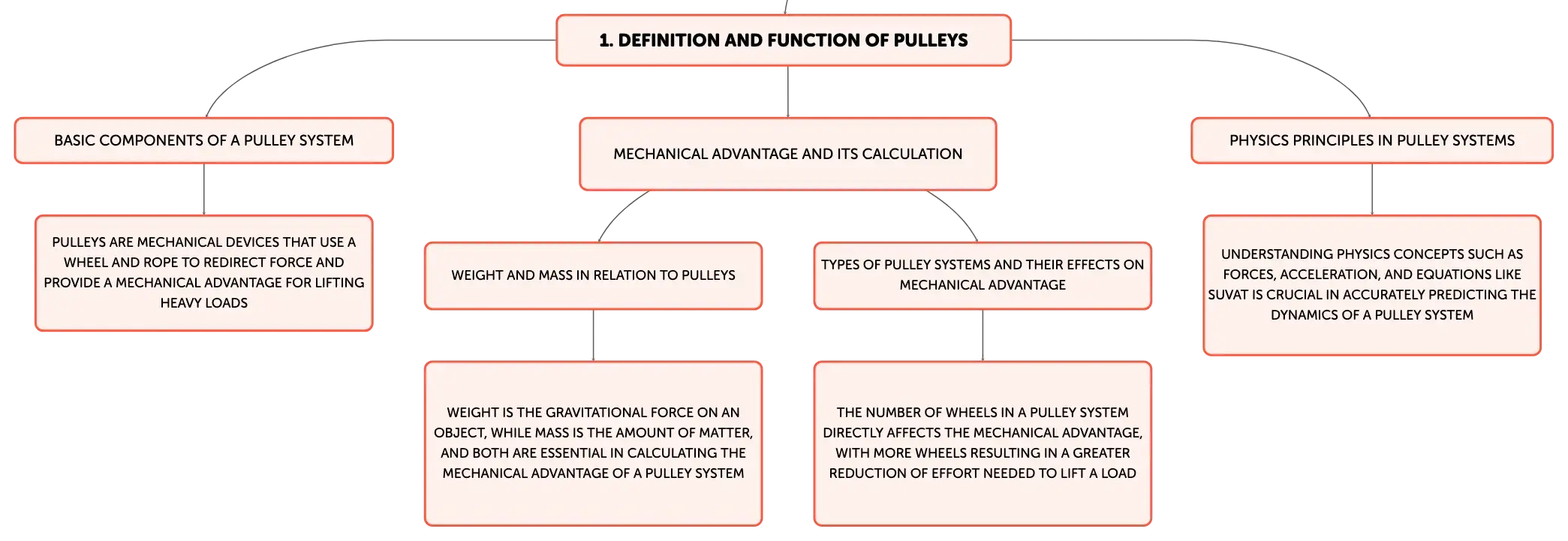

Definition and Function of Pulleys
Basic Components of a Pulley System
Pulleys are mechanical devices that use a wheel and rope to redirect force and provide a mechanical advantage for lifting heavy loads
Mechanical Advantage and its Calculation
Weight and Mass in Relation to Pulleys
Weight is the gravitational force on an object, while mass is the amount of matter, and both are essential in calculating the mechanical advantage of a pulley system
Types of Pulley Systems and their Effects on Mechanical Advantage
The number of wheels in a pulley system directly affects the mechanical advantage, with more wheels resulting in a greater reduction of effort needed to lift a load
Physics Principles in Pulley Systems
Understanding physics concepts such as forces, acceleration, and equations like SUVAT is crucial in accurately predicting the dynamics of a pulley system

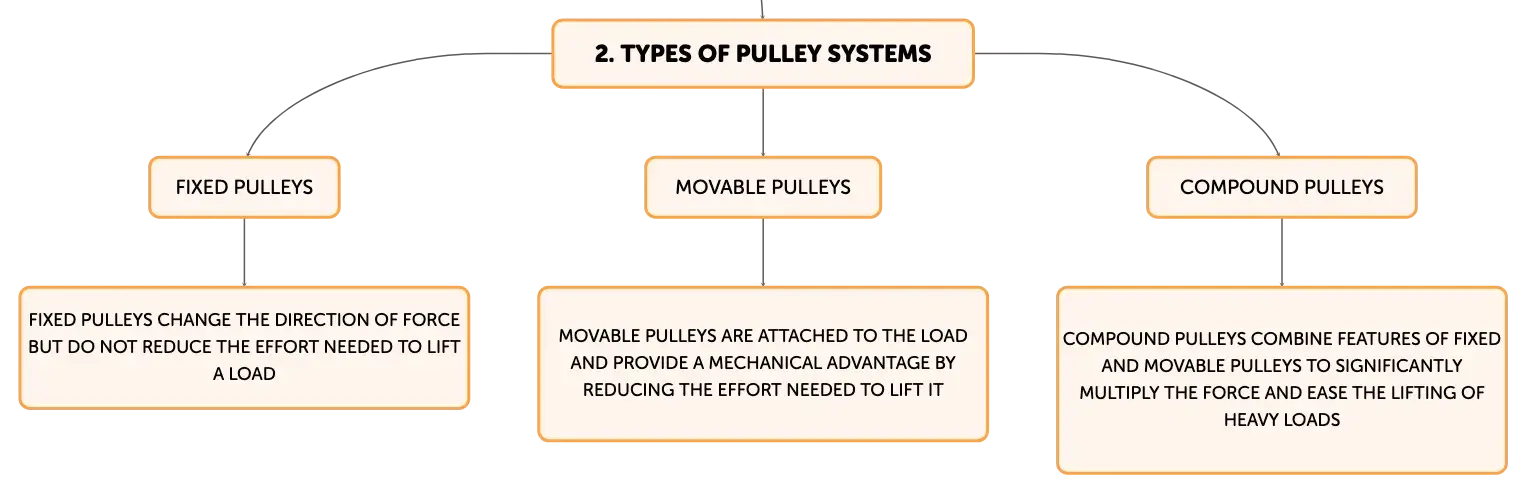

Types of Pulley Systems
Fixed Pulleys
Fixed pulleys change the direction of force but do not reduce the effort needed to lift a load
Movable Pulleys
Movable pulleys are attached to the load and provide a mechanical advantage by reducing the effort needed to lift it
Compound Pulleys
Compound pulleys combine features of fixed and movable pulleys to significantly multiply the force and ease the lifting of heavy loads

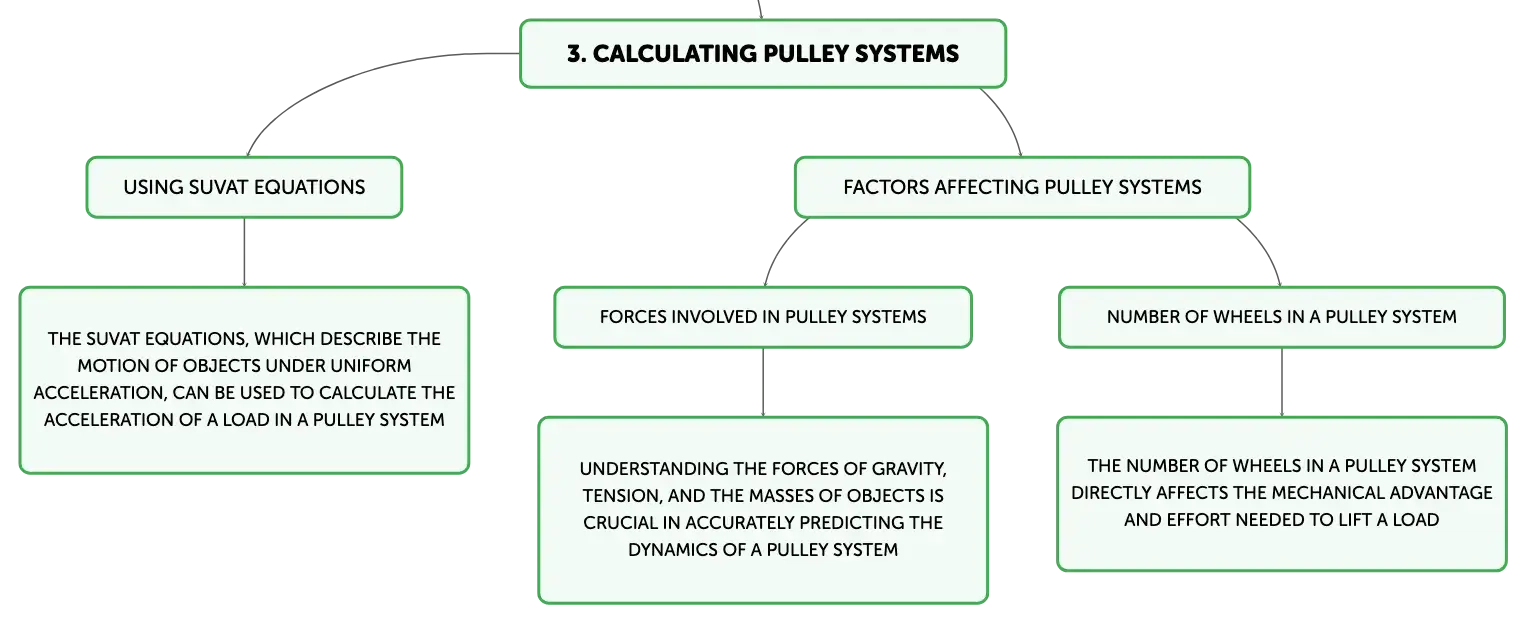

Calculating Pulley Systems
Using SUVAT Equations
The SUVAT equations, which describe the motion of objects under uniform acceleration, can be used to calculate the acceleration of a load in a pulley system
Factors Affecting Pulley Systems
Forces Involved in Pulley Systems
Understanding the forces of gravity, tension, and the masses of objects is crucial in accurately predicting the dynamics of a pulley system
Number of Wheels in a Pulley System
The number of wheels in a pulley system directly affects the mechanical advantage and effort needed to lift a load
Pulleys: Essential Simple Machines for Lifting Heavy Loads
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
The ______ advantage of a pulley is the ratio of the output force on the load to the ______ force applied.
mechanical
input
01
Weight Equation
Weight = Mass x Gravitational Acceleration (9.8 m/s^2 on Earth)
02
Units of Mass and Weight
Mass measured in kilograms (kg), Weight in Newtons (N)
