Complex Numbers and Their Representations
Concept Map
The exponential form of complex numbers, expressed as z=re^{iθ}, is a key concept in advanced mathematics. It is derived from Euler's Formula, which connects complex exponentials with trigonometric functions, simplifying multiplication, division, and exponentiation in the complex plane. Understanding the conversion between rectangular and exponential forms, as well as the geometric interpretation of complex numbers, is essential for mathematical operations and analysis.
Summary
Outline
Exploring the Exponential Representation of Complex Numbers
Complex numbers are an integral part of mathematics, commonly expressed in the form \(z=a+ib\), where \(a\) and \(b\) are real numbers, and \(i\) is the imaginary unit, satisfying \(i^2=-1\). Beyond the standard rectangular form, complex numbers can be represented in polar coordinates as \(z=r(\cos\theta +i\sin\theta)\), where \(r\) is the modulus, calculated by \(r=\sqrt{a^{2}+b^{2}}\), and \(\theta\) is the argument, the angle with the positive x-axis. The exponential form of complex numbers, \(z=re^{i\theta}\), is a concise expression derived from Euler's Formula, which provides a powerful framework for operations such as multiplication and finding powers of complex numbers.Euler's Formula: The Foundation of Exponential Form
Euler's Formula is a remarkable discovery in complex analysis that establishes a profound connection between complex exponentials and trigonometric functions. It is expressed as \(e^{i\theta}=\cos\theta+i\sin\theta\), where \(e\) is the base of the natural logarithm. This formula demonstrates that complex exponentiation can be understood in terms of rotation in the complex plane. By applying Euler's Formula, we can rewrite the polar form of a complex number as \(z=re^{i\theta}\), which is known as the exponential form. This form is particularly useful for simplifying the multiplication and division of complex numbers and for raising complex numbers to powers.Converting Between Exponential and Rectangular Forms
Transitioning between the exponential and rectangular forms of complex numbers is a common task in mathematics. Given a complex number in exponential form, \(z=re^{i\theta}\), its rectangular counterpart is \(z=a+ib\), where \(a=r\cos\theta\) and \(b=r\sin\theta\). These relationships allow for the conversion from exponential to rectangular form by identifying the real and imaginary components. Conversely, to find the exponential form from the rectangular form, one computes the modulus \(r\) and the argument \(\theta\), which can be determined using the arctangent function, taking into account the quadrant in which the complex number lies.Geometric Interpretation of Exponential Form
The exponential form of complex numbers offers a geometric perspective when visualized on the complex plane. A complex number \(z=re^{i\theta}\) is represented by a point at a distance \(r\) from the origin, oriented at an angle \(\theta\) relative to the positive x-axis. This polar coordinate representation underscores the periodic nature of the argument \(\theta\), which can have infinitely many equivalent values differing by multiples of \(2\pi\). To maintain consistency, the principal value of \(\theta\), typically constrained to \(-\pi < \theta \leq \pi\), is used to uniquely describe the complex number's direction.Transforming Rectangular to Exponential Form
To convert a complex number from rectangular to exponential form, one must first determine the modulus \(r\) using the formula \(r=\sqrt{a^2+b^2}\), where \(a\) and \(b\) are the real and imaginary parts, respectively. The argument \(\theta\) is then found by calculating the arctangent of \(b/a\), considering the sign of \(a\) and \(b\) to ensure the correct quadrant for \(\theta\). With \(r\) and \(\theta\) established, the complex number can be succinctly expressed as \(z=re^{i\theta}\). This transformation is particularly advantageous for operations involving multiplication, division, and exponentiation of complex numbers, as it aligns with the properties of exponentials.Exponential Form of Complex Numbers: Essential Insights
The exponential form of complex numbers, \(z=re^{i\theta}\), is a powerful and elegant representation that stems from Euler's identity. It simplifies complex arithmetic, particularly when raising complex numbers to powers, by reducing the operation to the multiplication of the modulus \(r\) and the addition of the argument \(\theta\) when expressed in exponential form. Mastery of this representation is crucial for those engaged in fields that frequently manipulate complex numbers, offering a streamlined and intuitive approach to complex number operations.
Show More

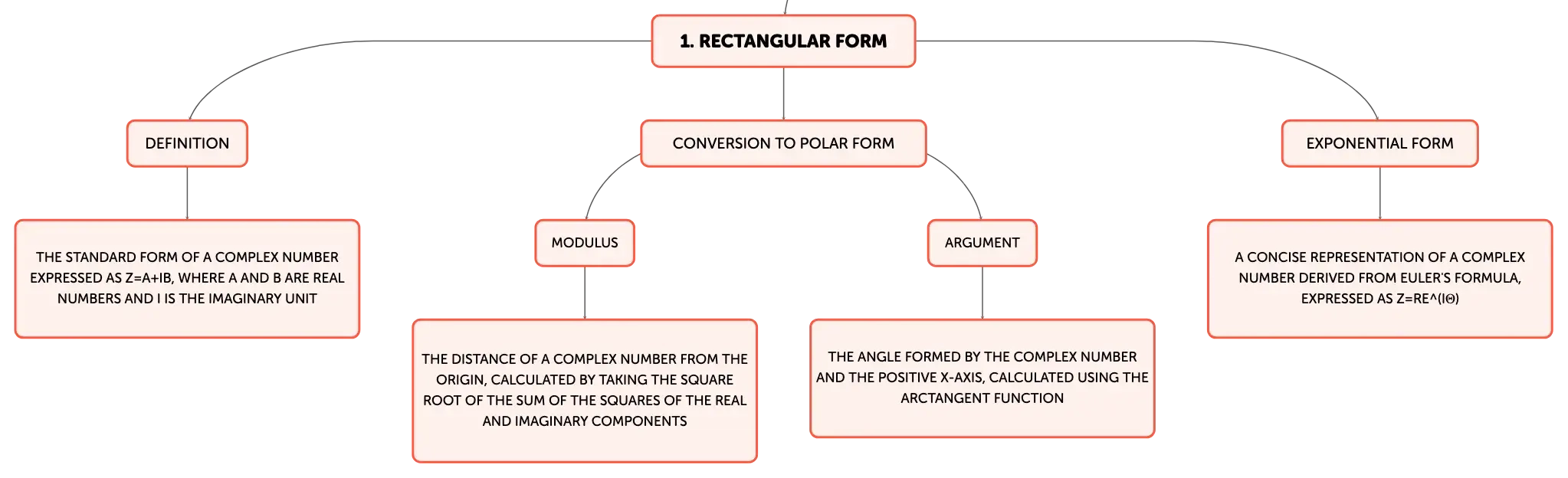

Rectangular Form
Definition
The standard form of a complex number expressed as z=a+ib, where a and b are real numbers and i is the imaginary unit
Conversion to Polar Form
Modulus
The distance of a complex number from the origin, calculated by taking the square root of the sum of the squares of the real and imaginary components
Argument
The angle formed by the complex number and the positive x-axis, calculated using the arctangent function
Exponential Form
A concise representation of a complex number derived from Euler's Formula, expressed as z=re^(iθ)

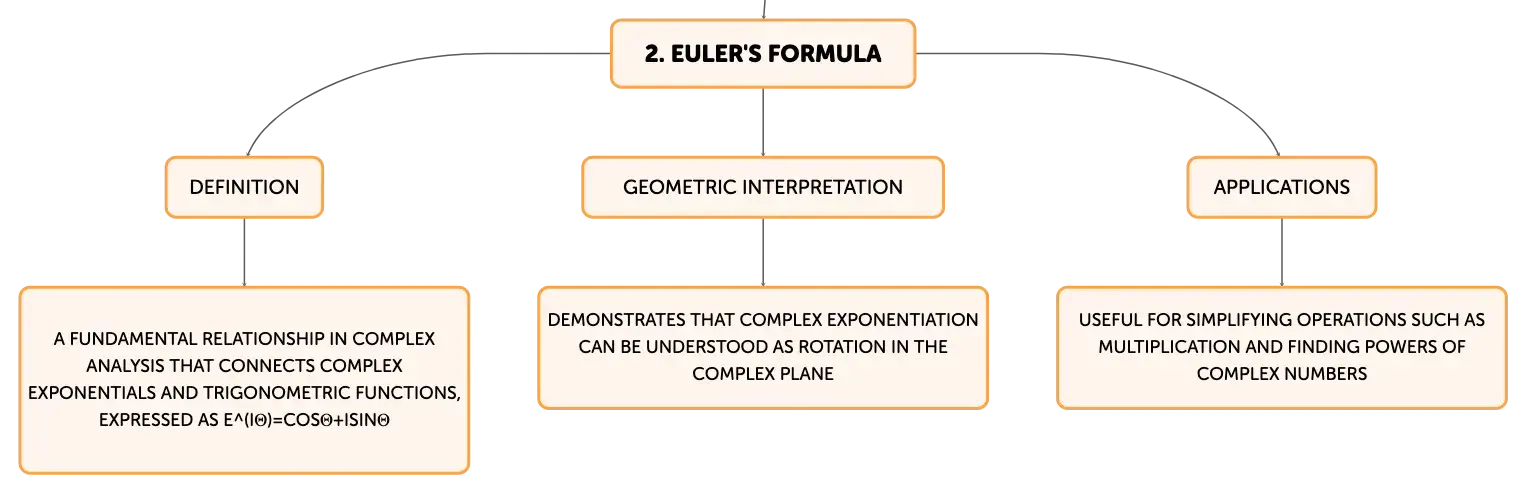

Euler's Formula
Definition
A fundamental relationship in complex analysis that connects complex exponentials and trigonometric functions, expressed as e^(iθ)=cosθ+isinθ
Geometric Interpretation
Demonstrates that complex exponentiation can be understood as rotation in the complex plane
Applications
Useful for simplifying operations such as multiplication and finding powers of complex numbers

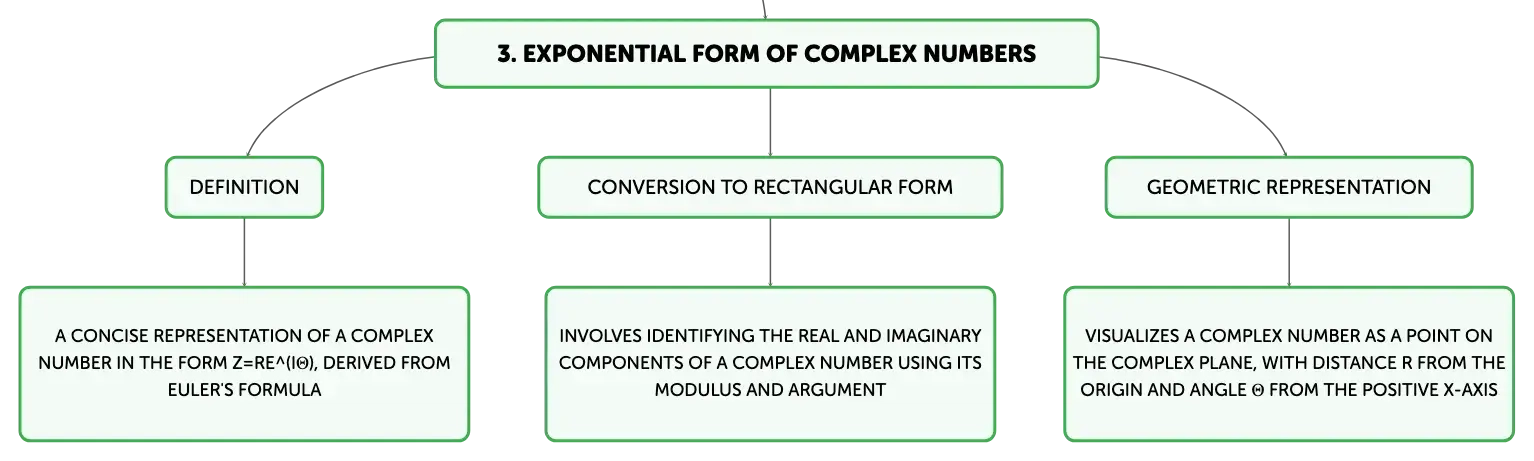

Exponential Form of Complex Numbers
Definition
A concise representation of a complex number in the form z=re^(iθ), derived from Euler's Formula
Conversion to Rectangular Form
Involves identifying the real and imaginary components of a complex number using its modulus and argument
Geometric Representation
Visualizes a complex number as a point on the complex plane, with distance r from the origin and angle θ from the positive x-axis

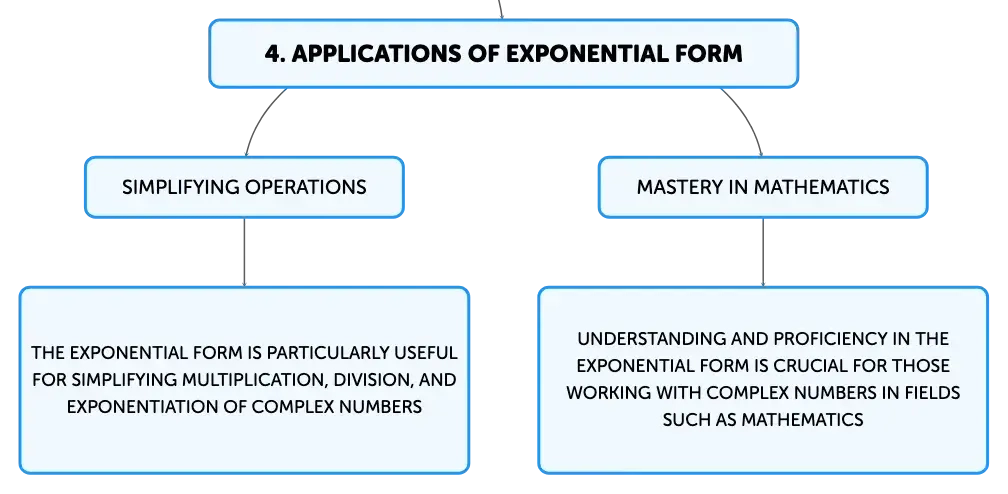

Applications of Exponential Form
Simplifying Operations
The exponential form is particularly useful for simplifying multiplication, division, and exponentiation of complex numbers
Mastery in Mathematics
Understanding and proficiency in the exponential form is crucial for those working with complex numbers in fields such as mathematics
Complex Numbers and Their Representations
Learn with Algor Education flashcards
Click on each Card to learn more about the topic
00
Standard form of a complex number
Expressed as z=a+ib, where 'a' and 'b' are real numbers, 'i' is the imaginary unit with i^2=-1.
01
Modulus of a complex number
Given by r=sqrt(a^2+b^2), represents the distance from the origin to the point (a, b) in the complex plane.
02
Argument of a complex number
Denoted by theta, it's the angle in polar coordinates from the positive x-axis to the line segment connecting the origin to the point (a, b).
